Super Slim Tube Driver for T8 Led Tube Light
This ultra-thin driver for T8 LED tubes is intended for modern lighting, with a small form factor and high performance. Its ultra-thin design saves space and is appropriate for a variety of narrow installation settings, including tubes and recessed lamps. The driver delivers efficient power conversion and consistent current output, ensuring that LED tubes operate reliably over time. It also supports a variety of intelligent dimming and control modules, which increase the flexibility and intelligence of lighting systems.
Top Features and Benefits:
|
|
|
|
|
|
Wide Voltage Output 100-210/60-140Vdc |
Flicker free |
1% deeply dimmable |
5V auxiliary power supply |
1.Linear led tube driver. Its ultra-thin design saves space and is appropriate for a variety of narrow installation settings
2.Protective features: over temperature, short-circuit protection, over voltage protection
3.Suitable for tube lights, fluorescent lights, tri-proof lights

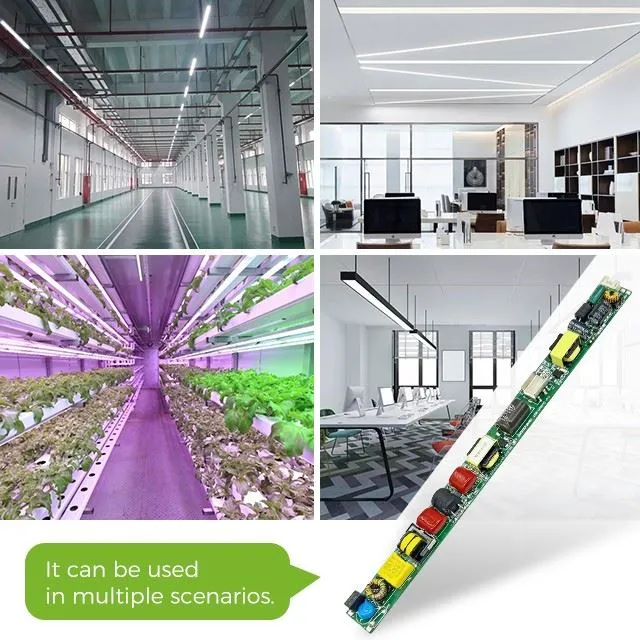

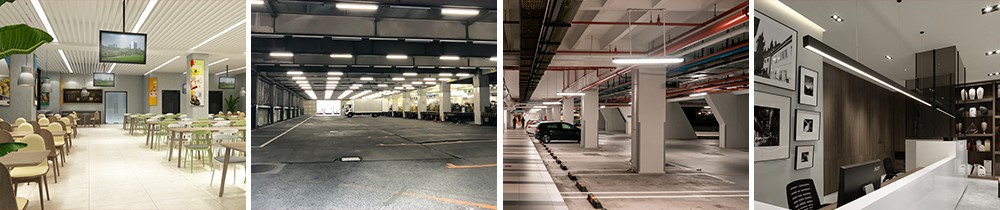

Application Scenario:
Factories: Durable and high-output LED drivers are crucial for ensuring consistent lighting in manufacturing environments.
Product Details:
Low Cost: FR4 PCB material costs less than most other options, such as metal substrates. This makes it an attractive choice for most PCB types, from basic designs to complex multi-layer boards.
Protection Against External Interference: EMC parts also shield the LED driver from external electromagnetic interference, which can affect performance and longevity.
Improving Power Factor: Capacitors are used in power factor correction circuits to improve the power factor of the LED driver. A better power factor reduces energy losses and improves the efficiency of the power delivery system.
Transformers can be part of power factor correction circuits, improving the power factor of the LED driver. This leads to more efficient use of electrical power and reduced demand on the power grid.
A horizontal layout can simplify wiring and connections, making the assembly process more straightforward and reducing the potential for errors.
By dimming or turning off the LEDs when not needed, smart sensors help reduce the operational hours of the LEDs, extending their lifespan and reducing maintenance costs.

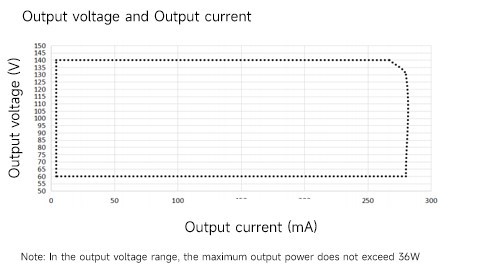

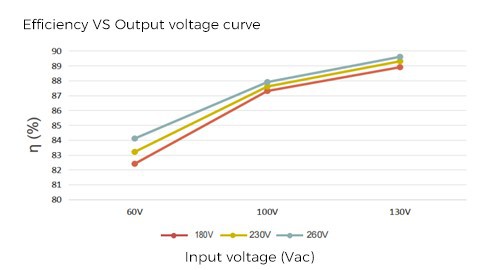

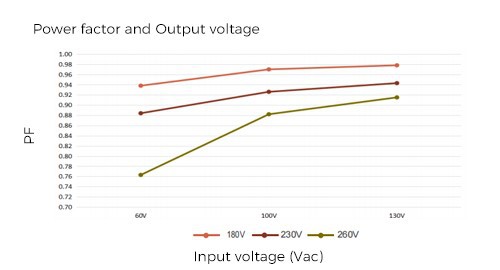

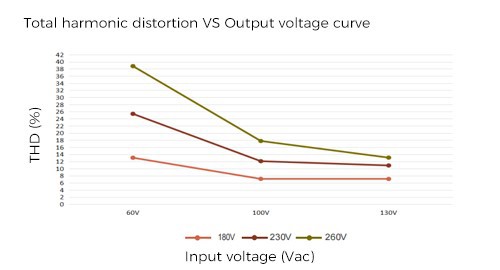

Electrical Chart:
Test at TA25℃ and output current 280mA

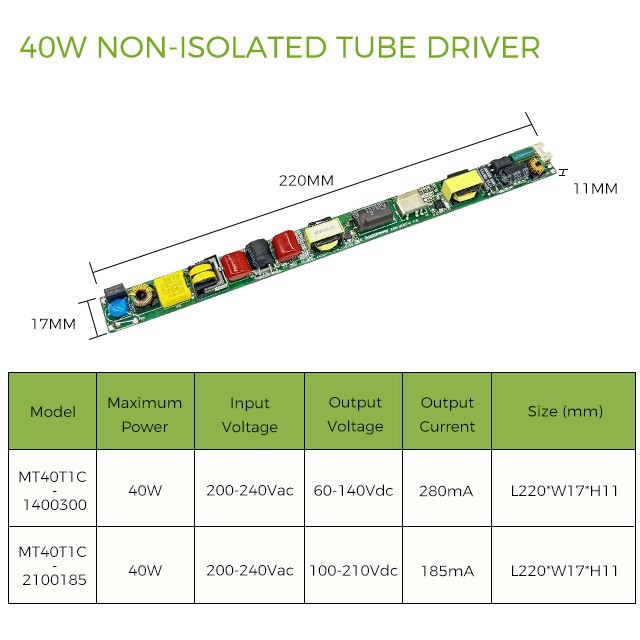

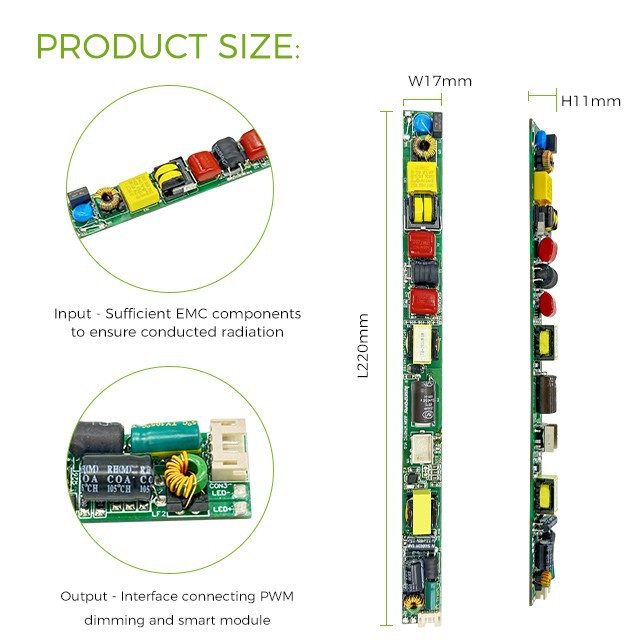

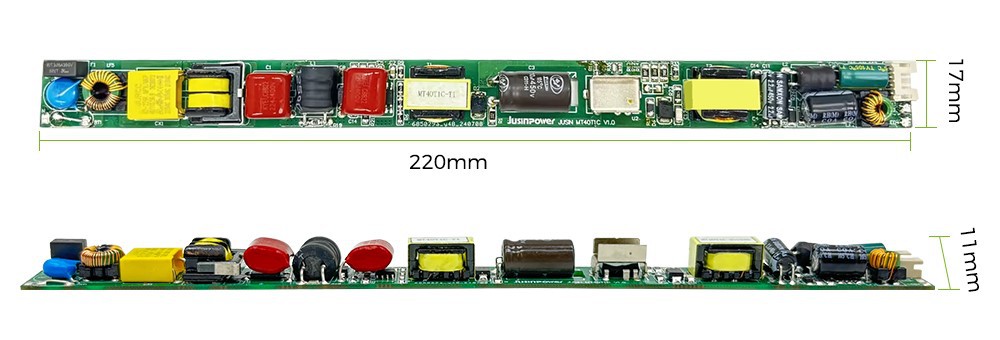

Dimension(mm):
Length:220mm Width: 17mm Height:11mm
Wiring instructions:
The two ends of the product are connected, one end is the AC input end, weld the black/white PVC wire, and the other end is the DC output and dimming signal input end. LED+ and LED- are connected to the positive and negative poles of the LED lamp respectively; the terminal is connected to the PWM dimming signal.
Product Packaging:
Hot Tags: super slim tube driver for t8 led tube light, China super slim tube driver for t8 led tube light manufacturers, suppliers, factory, 70W Tunable White LED Driver, Dim to Warm, tuya system, 6000K Dimming, smart module, up and down cct
MT40T1C
|
Performance |
||
|
Model |
MT40T1C-1400300 |
|
|
Input |
Voltage |
200-240Vac |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
89%@230Vac full load |
|
|
Power Factor |
≥0.9@230Vac full load |
|
|
THD(Full load) |
<20 %@230Vac full load |
|
|
AC Current (Max) |
0.26A@230Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
20A peak@180V |
|
|
28A peak@230V |
||
|
30A peak@260V |
||
|
Leakage Current (Max) |
<0.5mA |
|
|
Output |
Voltage (Vdc) /Current (mA) Power (W) |
60-140Vdc/280mA 36W |
|
Ripple Voltage |
<5% |
|
|
Channel |
/ |
|
|
Line regulation |
±5% |
|
|
No-Load Output Voltage |
180V |
|
|
Start Time |
<0.5S@260V ＜1S@180V |
|
|
Auxiliary Voltage |
5V |
|
|
Function |

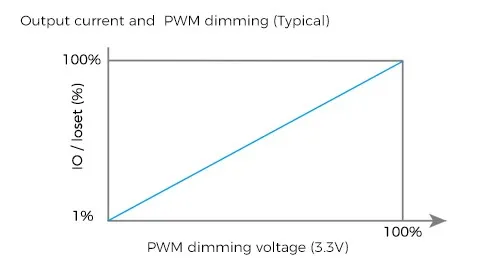

Dimming method |
3.3V PWM Dimming |
|
Dimming current |
<2mA@1% <280mA@100% |
|
|
Dimming range |
1%-100%(standard) |
|
|
10%-100% (Optional ) |
||
|
Power regulation |
/ |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
220 mm |
|
Width |
17mm |
|
Height |
11 mm |
|
Weight (g) |
≈45g |
|
Environmental |
|
|
Safety Standard |
CE ,Class2 |
|
EMC |
Meet EN IEC 55015:2019/A11:2020 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|

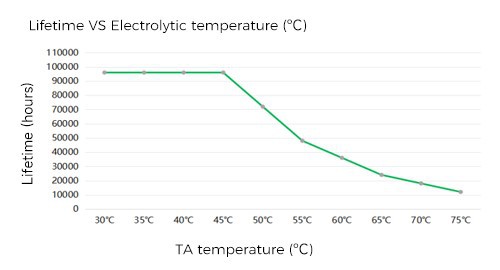

Warranty Tc |
50000Hour (s)@TC:＜80℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
|
MT40T1C-1400300 |
36W |
200-240Vac |
60-140Vdc |
280mA |
0.9 |
89% |
L220*W17*H11 |
