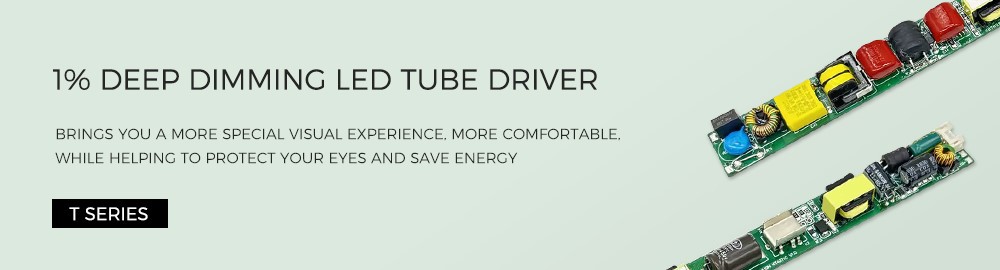

1% Deep Dimming Led Tube Driver

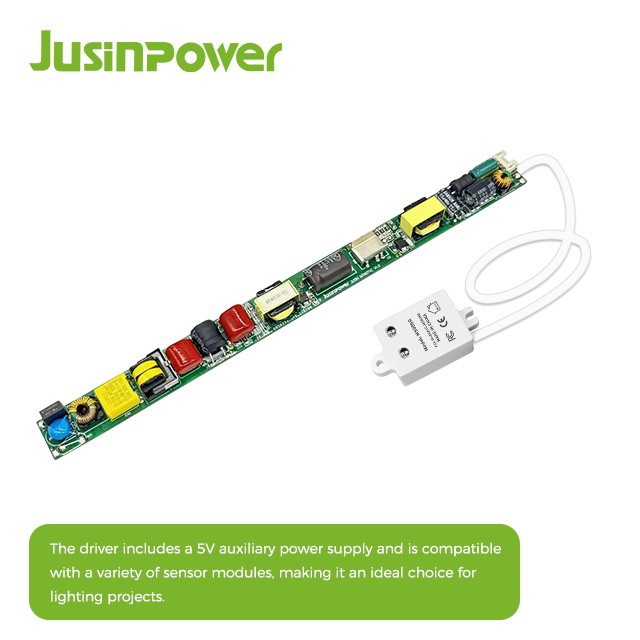

This 1% deep dimming led tube driver is intended for precision lighting control and can provide ultra-low brightness dimming effects of up to 1%, resulting in a flicker-free, smooth dimming performance. It can handle a wide range of lighting requirements in both commercial and residential settings. It is highly compatible and works with a wide range of dimming systems. It also supports intelligent module expansion, which allows for intelligent lighting control.

Top Features and Benefits:


1% deeply dimmable	Flicker free	PWM dimming	Ultra small thin

1.1% deep dimming tube driver.1% deep dimming specific function brings you a more special visual experience, more comfortable, while helping to protect your eyes and save energy

2.Compact Design: Perfect for installation in narrow and confined spaces.

3.Meet safety standards and certifications to ensure safe operation

4.Meet UL/TUV/CB/SAA/CE certification

Application Scenario:

Living Rooms and Bedrooms: LED drivers with dimming capabilities allow for customizable ambiance, providing comfortable and adaptable lighting conditions.

product-1000-210

Product Details:

product-1000-206

FR4 is more advanced. It consists of two conductive copper layers with an FR4 laminate in between. The two sides make the board more versatile because manufacturers can place components on both surfaces. This design is very useful in high component density applications.

Improved Safety: Proper EMC design helps in preventing the emission of harmful electromagnetic radiation, which can be a safety concern in certain environments.

Smoothing Voltage Fluctuations: Capacitors help to smooth out voltage fluctuations and spikes in the power supply, protecting the LEDs from potential damage caused by these irregularities.

Modern transformers are designed to be highly efficient, minimizing energy losses during the voltage conversion process. This leads to lower energy consumption and better overall efficiency of the LED driver.

Horizontal orientation can reduce mechanical stress on components during operation, leading to improved reliability and longer life.

Smart sensors allow for customizable lighting schedules and settings, providing flexibility and convenience in managing lighting environments.

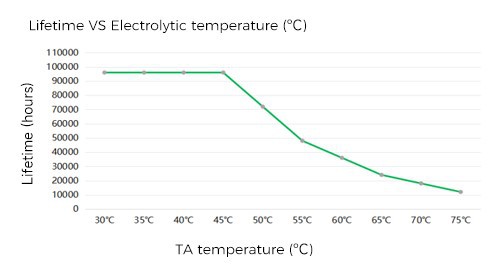

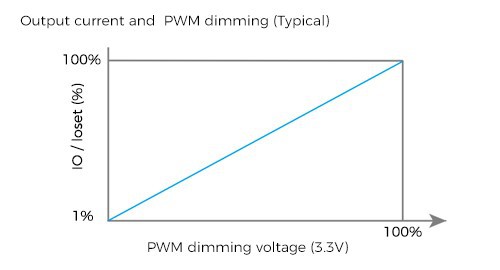

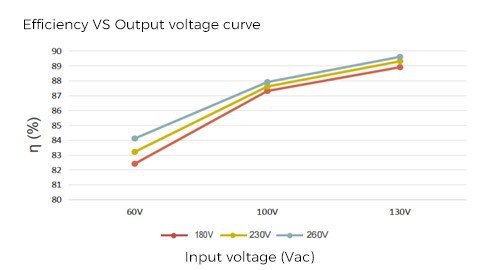

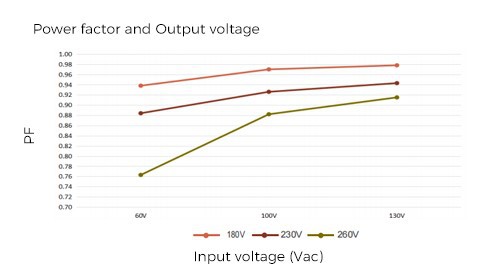

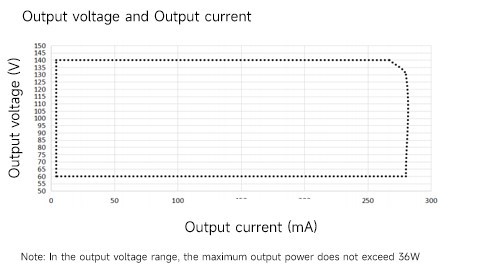

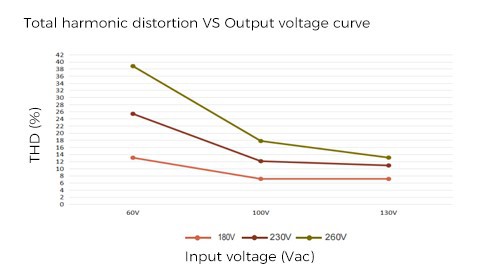

Electrical Chart:

Test at TA25℃ and output current 280mA

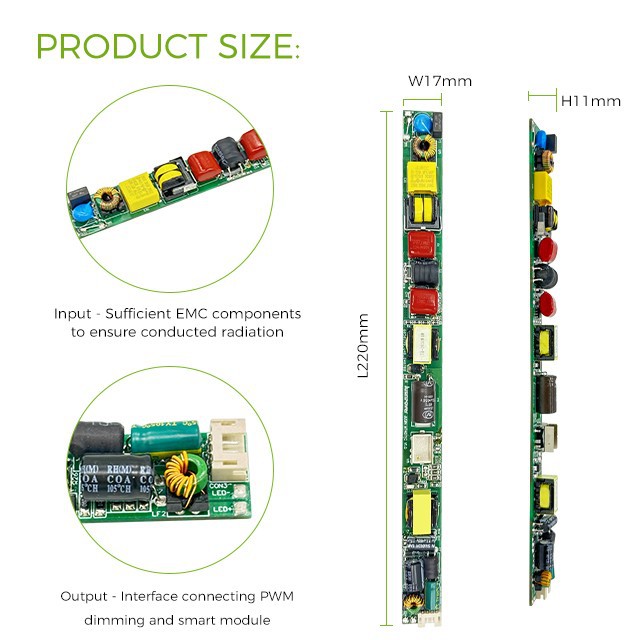

Dimension(mm):

Length:220mm Width: 17mm Height:11mm

product-1000-340

Wiring instructions:

The two ends of the product are connected, one end is the AC input end, weld the black/white PVC wire, and the other end is the DC output and dimming signal input end. LED+ and LED- are connected to the positive and negative poles of the LED lamp respectively; the terminal is connected to the PWM dimming signal.

product-1000-580

Product Packaging:

product-1000-243

Hot Tags: 1% deep dimming led tube driver, China 1% deep dimming led tube driver manufacturers, suppliers, factory, PWM Valve Driver, 40w 0 10v Dimming Driver, CB certification, 50 60Hz, deeply dimming, 3000k selectable

MT40T1C

Performance
Model	MT40T1C-1400300
Input	Voltage	200-240Vac
	Frequency Range(Hz)	50/60Hz
	Efficiency	89%@230Vac full load
	Power Factor	≥0.9@230Vac full load
	THD(Full load)	<20 %@230Vac full load
	AC Current (Max)	0.26A@230Vac full load
	Standby Power	<1W
	Inrush Current (Cold Engine Start) Max	20A peak@180V
		28A peak@230V
		30A peak@260V
	Leakage Current (Max)	<0.5mA
Output	Voltage (Vdc) /Current (mA) Power (W)	60-140Vdc/280mA 36W
	Ripple Voltage	<5%
	Channel	/
	Line regulation	±5%
	No-Load Output Voltage	180V
	Start Time	<0.5S@260V ＜1S@180V
	Auxiliary Voltage	5V
Function	Dimming method	3.3V PWM Dimming
	Dimming current	<2mA@1% <280mA@100%
	Dimming range	1%-100%(standard)
	Dimming range	10%-100% (Optional )
	Power regulation	/
Protection	Over Temperature	When temperature is too high,shut down the output, return to normal after release
	Over Load	The on-load voltage is too high to enter the protection. return to normal after release
	Short Circuit	Enter hiccup mode and return to normal after release

Size
Length	220 mm
Width	17mm
Height	11 mm
Weight (g)	≈45g

Environmental
Safety Standard	CE ,Class2
EMC	Meet EN IEC 55015:2019/A11:2020
Operating Temperature	-20°C to 50°C
Storage Temperature, Humidity	-20°C to 85°C,20-90%RH
Warranty Tc	50000Hour (s)@TC:＜80℃
Surge Protection	L-N 1KV
Ip Rating	IP20

Series Driver
Model	Max Power	Input Voltage	Output Voltage	Output Current	Power Factor	Efficiency	Size
MT40T1C-1400300	36W	200-240Vac	60-140Vdc	280mA	0.9	89%	L220W17H11

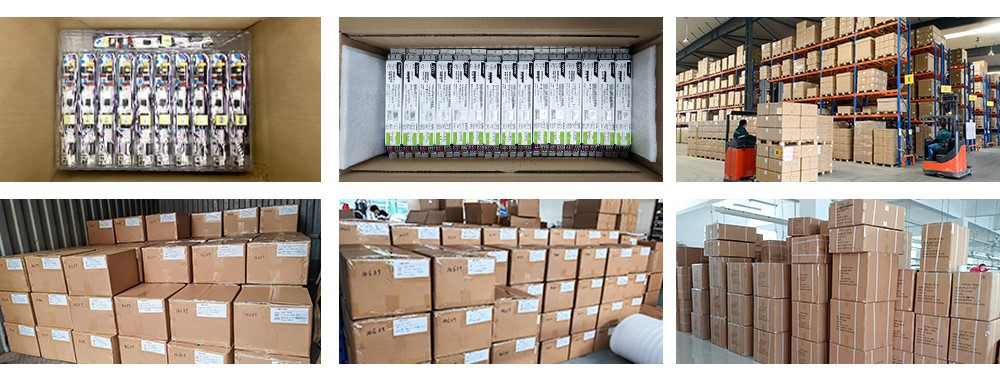

Packing

Standard export packing ,or customized packing as your request .From production to shipment of a series of processes, we will carry out strict inspection over and over again to ensure the quality of goods. Bare board series of products we will set a layer of blister protection shell, to ensure that the goods are not damaged during transportation.

product-1000-381

Delivery

We have a variety of shipping options to choose from:express(DHL,FEDEX,UPS,TNT,EMS）air,sea.

If your order is not big, we can send them to you by TNT,DHL,FEDEX, UPS or EMS etc.

If your order is big, we'll advise you to use Air or Sea shipping through your nominated forwarder agent. Our long-term cooperated agent is also available.

product-1000-426

Certificate

Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate.

The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.

product-1000-540

Factory

1.We have a 4000 square meter factory in Foshan high-tech Zone for production. At the same time, we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT machine, Automatic Gluing Machine, Aged Vehicle, Reflow Solder and so on. The production line of about 80 people, able to reach 1 million shipments per year!

2.Custom-made service provided

3.LED driver can be customized according to the customer's lamps, application space, product parameters, functions and other requirements, whole lamp service can also be provided.

4.Automated factory

5.Three SMT lines and two DIP lines. The automatic placement machine & automatic plug-in machine & AOI for inspection. Continuously update automation to improve work efficiency.

6.R & D abilities

7.10-20 engineers in the team, who get over ten years of experience and mature research & design abilities.

8.Strict evaluation process

9.A strict three-stage evaluation process based on product information, pictures and testing requirements before getting a product report
