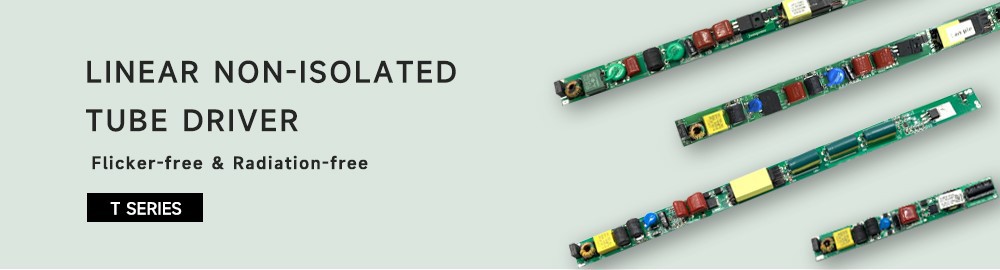

Linear Non-isolated Tube Driver
It provides reliable performance and high efficiency, stable driving current and consistent lighting output. The driver is equipped with advanced safety features, including over-current, over-voltage, short-circuit protection, ensuring safe and durable operation. With its compact design, this linear non-isolated tube driver can be flexibly adapted to various environments.
Top Features and Benefits:
|
|
|
|
|
|
100-277Vac |
Flicker free |
Over voltage protection |
Ultra small thin |
1.Power factor correction
2.OLP/OTP/OVP
3.Flicker-free&Radiation-free
4.Meet with UL,TUV,FCC certificate

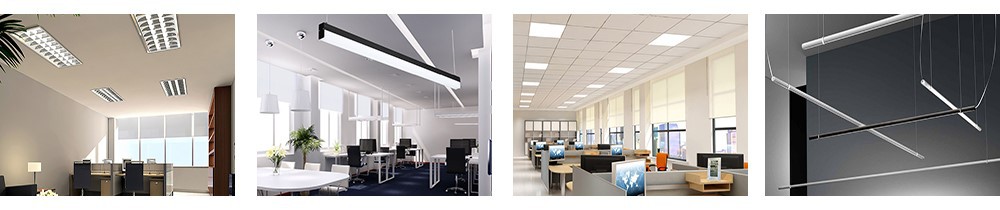

Application Scenario:

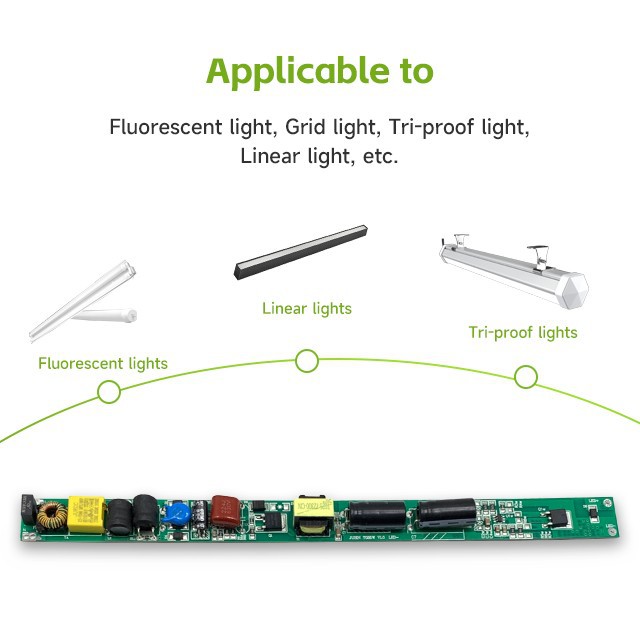

This product is widely used and can be used in a wide range of applications such as fluorescent lamps, grille lamps, tri-proof lamps and linear lamps.

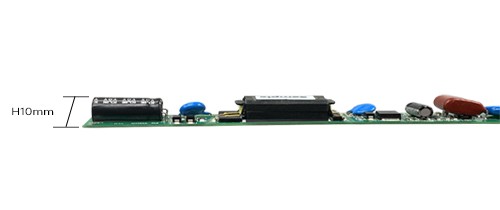

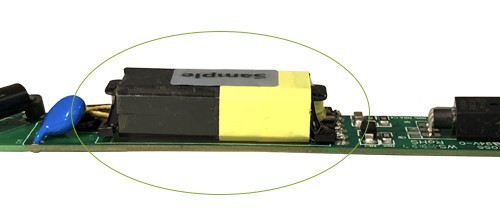

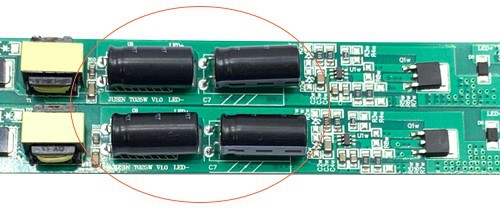

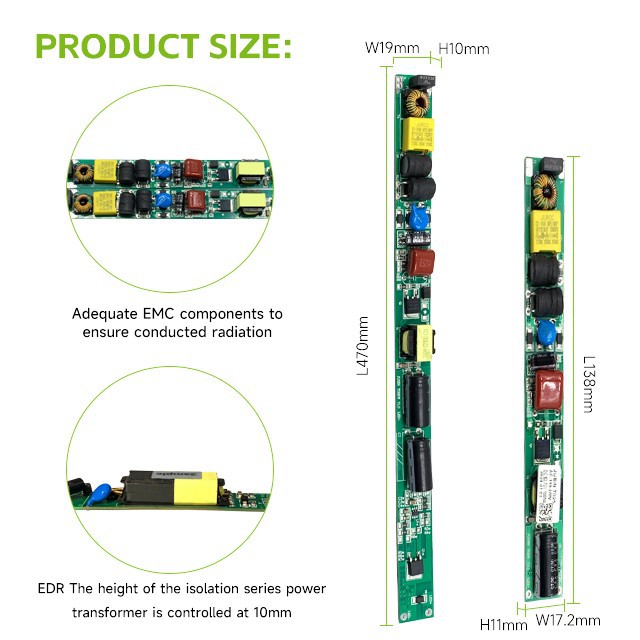

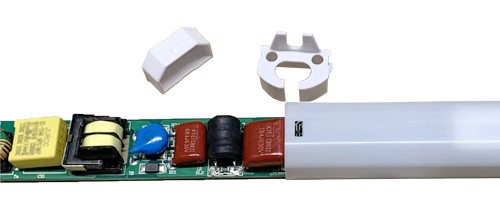

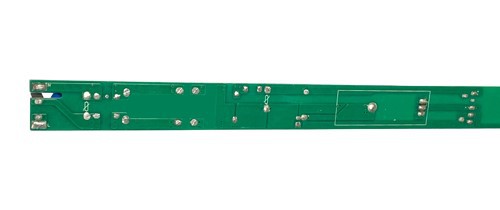

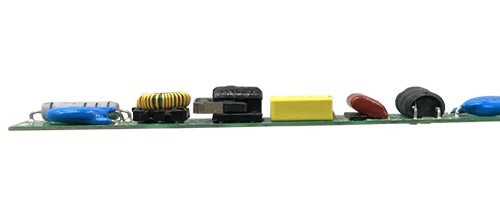

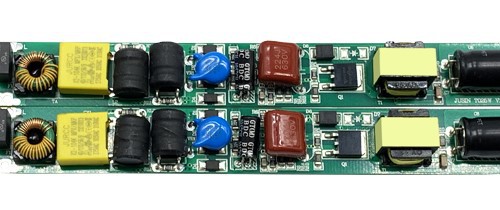

Product Details:

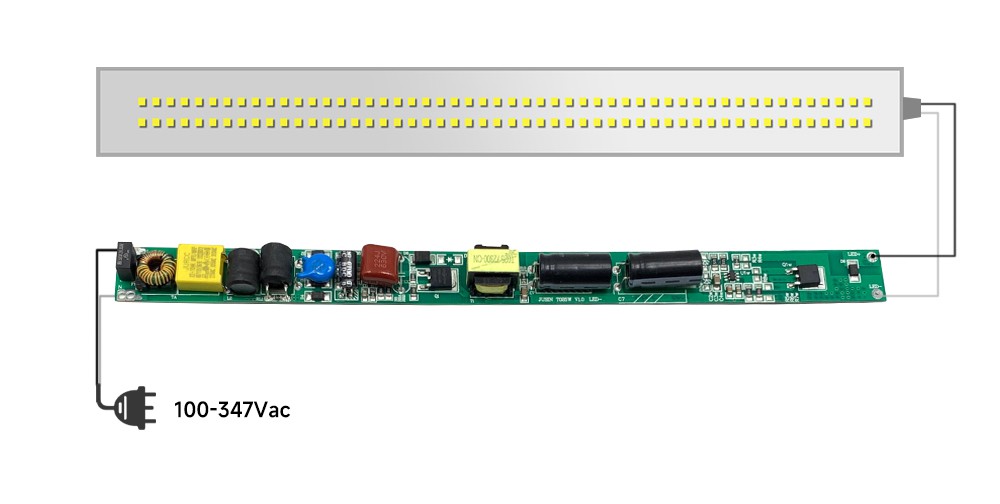

Wiring Instructions:
AC input terminal, this terminal is connected to the mains power(100-347Vac), and the other terminal is the DC output terminal + and -, which are connected to the positive and negative poles of the LED light respectively.

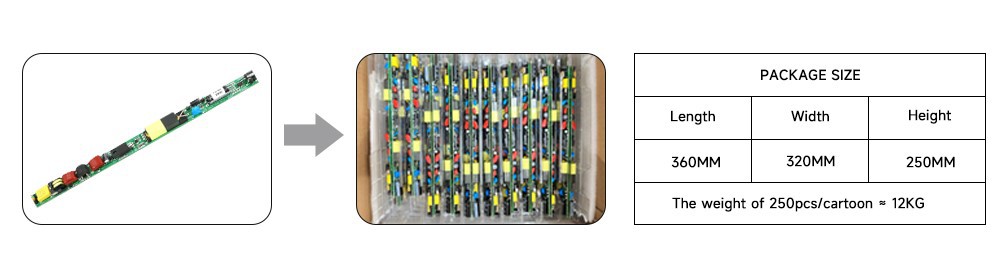

Product Packaging:
Hot Tags: linear non-isolated tube driver, China linear non-isolated tube driver manufacturers, suppliers, factory, wave sensor driver, 0 5s to start, output current 750mA, RoHS certification, 0 10V dimming line lights, wifi led driver

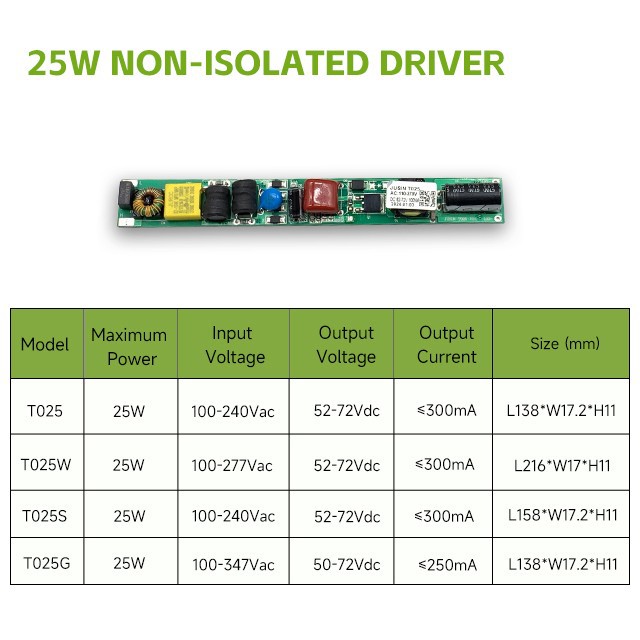

T025 T025W T025S T025G
|
Performance |
|
|
Model |
T025 T025W T025S T025G |
|
Input Voltage |
100-277 Vac/347vac |
|
Input Current Max |
0.22A@100Vac Full load |
|
Input Power Max |
25W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.92 |
|
Output Voltage (Refer to Driver Operating Range) |
52-72Vdc |
|
Max. Output Current |
300mA |
|
Output Power |
25W |
|
Power Efficiency |
91%@230Vac Input,Output 72V/300mA |
|
Input Line Regulation |
±3% |
|
Adjustment Rat |
±3 % |
|
No flicker |
Optional(T025W Model) |
|
Surge 2.5KV |
Optional(T025S Model) |
|
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup,when the output power exceeds ,then, recovers automatically after fault removed |
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Surge protection |
L-N 0.5KV |
|
Surge protection(Optional) |
2.5KV(T025S Model ) |
|
Product Net Weight |
22g |
|
Series |
|||||||||
|
Model |
Max power |
Input voltage |
Output voltage |
Output current |
Efficiency |
Power factor |
Size(mm) |
Meet with |
Remark |
|
T025 |
25W |
100-240Vac |
52-72Vdc |
≤300mA |
0.91 |
0.92 |
L138*W17.2*H11 |
EMC |
|
|
T025W |
25W |
100-277Vac |
52-72Vdc |
≤300mA |
0.92 |
0.92 |
L216*W17*H11 |
EMC |
Flicker free |
|
T025S |
25W |
100-240Vac |
52-72Vdc |
≤300mA |
0.91 |
0.92 |
L158*W17.2*H11 |
EMC |
2.5KV surge |
|
T025G |
25W |
100-347Vac |
50-72Vdc |
≤250mA |
0.91 |
0.90 |
L138*W17.2*H11 |
EMC |
347Vac input |
|
T028 |
32W |
120-277Vac |
52-72Vdc |
≤450mA |
0.92 |
0.95 |
L170*W17.2*H11 |
EMC |
|
|
T028W |
32W |
110-277Vac |
52-72Vdc |
≤450mA |
0.91 |
0.95 |
L230*W17.2*H11 |
EMC |
Flicker free |
|
T036 |
36W |
120-347Vac |
50-70Vdc |
≤520mA |
0.92 |
0.90 |
L241.5*W17.2*H10 |
EMC |
347Vac input |
|
T012 |
42W |
180-240Vac |
30-84Vdc |
≤600mA |
0.92 |
0.95 |
L197*W17.2*H10 |
EMC |
|
|
T012E |
42W |
180-240Vac |
30-84Vdc |
≤600mA |
0.92 |
0.95 |
L267*W17.2*H10 |
EMC |
|
|
T012EW |
40W |
120-277Vac |
52-72Vdc |
≤560mA |
0.91 |
0.95 |
L360*W17.2*H10 |
EMC |
|
|
T026 |
56W |
100-240Vac |
52-72Vdc |
≤800mA |
0.92 |
0.95 |
L330*W17.2*H10 |
EMC |
Flicker free |
|
T026W |
50W |
100-277Vac |
52-70Vdc |
≤800mA |
0.92 |
0.95 |
L470*W19*H10 |
EMC |
Flicker free |
