PWM Dimmable Flicker Free Tube Driver
The LED tube flicker-free driver uses pulse width modulation (PWM) technology to give a smooth dimming experience without flicker, protect eyesight, and provide a comfortable lighting atmosphere. It is simple to use, with great precision, efficiency, and an excellent dimming effect. It is highly compatible with a wide range of lighting systems and allows for accurate brightness adjustment. This driver can produce consistent lighting effects and increase overall lighting quality.
Top Features and Benefits:
|
|
|
|
|
|
1% deeply dimmable |
Flicker free |
5V auxiliary power supply |
Ultra small thin |
1.PWM dimmable tube driver.Simple and efficient application, precise and smooth dimming
2.High power factor(PF0.9),low THD.Reduce power loss and extend equipment life
3.Flicker free for mobile phone photography
4.200-240Vac input

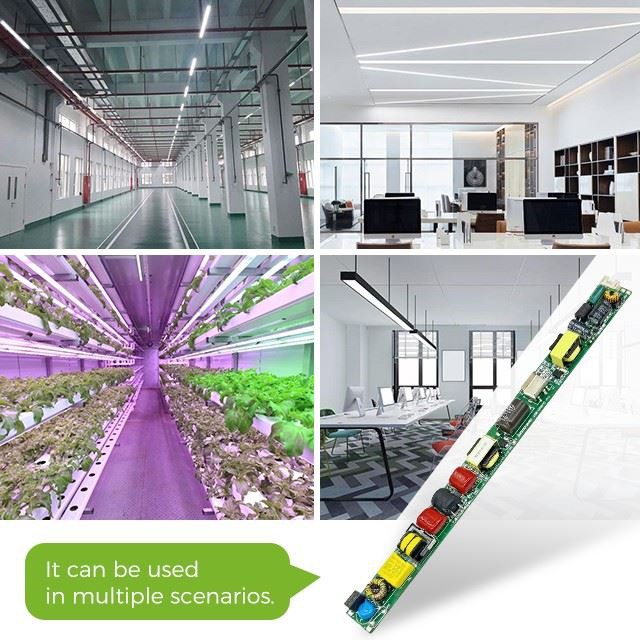

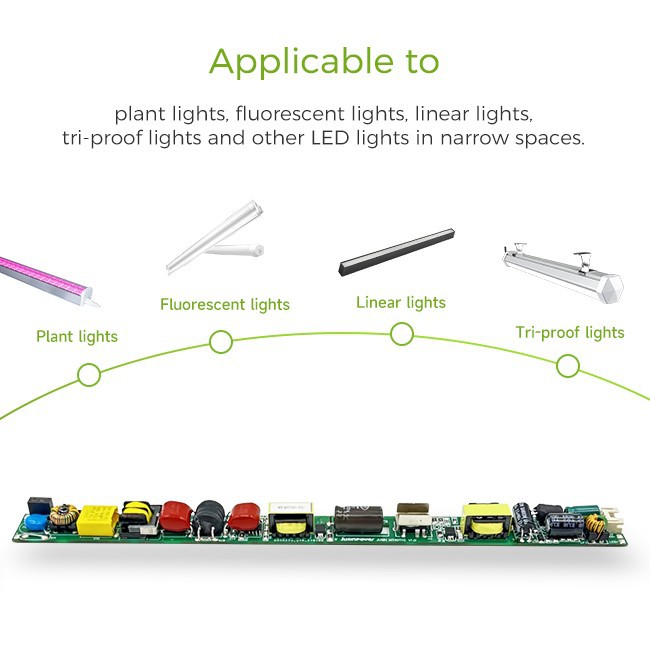

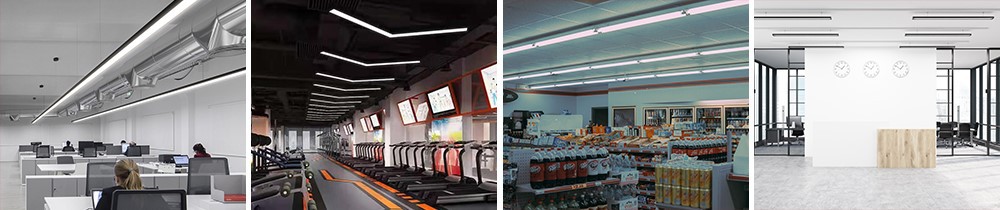

Application Scenario:
Warehouses: LED drivers are used in high bay and low bay fixtures to provide powerful illumination, ensuring safety and visibility in large spaces.
Product Details:
FR4 PCB density indicates the ratio of its weight to volume. The typical density of FR4 is 1.85/cm2. This makes it a lightweight but stiff material suitable for many different uses, from home electronics to PBs used in portable communications equipment.
Compliance with Standards: Many regions have strict regulations regarding EMI emissions. EMC components help LED drivers meet these standards, making the products market-ready and compliant with legal requirements.
Stabilizing Output: By stabilizing the output voltage, capacitors ensure consistent light output from the LEDs, preventing flickering and ensuring a steady and reliable illumination.
Transformers help in filtering out electrical noise and disturbances from the power supply, providing a cleaner and more stable power output to the LEDs.
Horizontally arranged components can be more accessible for inspection, maintenance, and replacement, facilitating easier servicing.
Smart sensors can adjust lighting based on time of day, activity, or specific user preferences, creating a more comfortable and user-friendly environment.

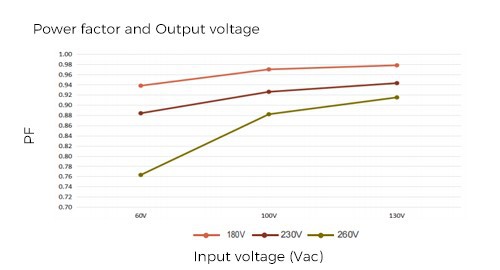

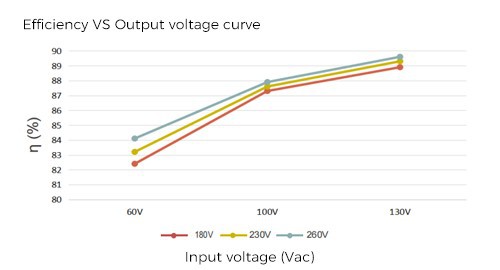

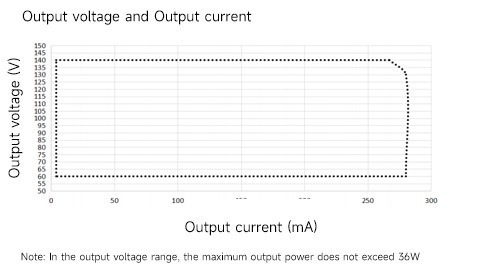

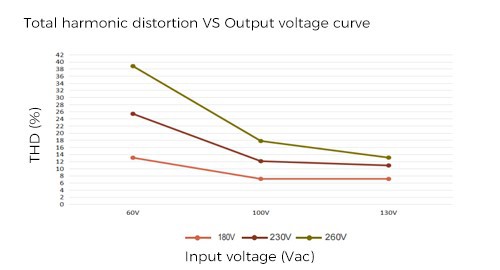

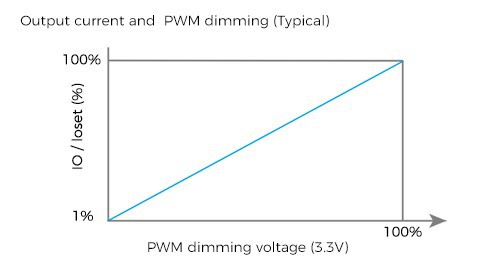

Electrical Chart:
Test at TA25℃ and output current 280mA

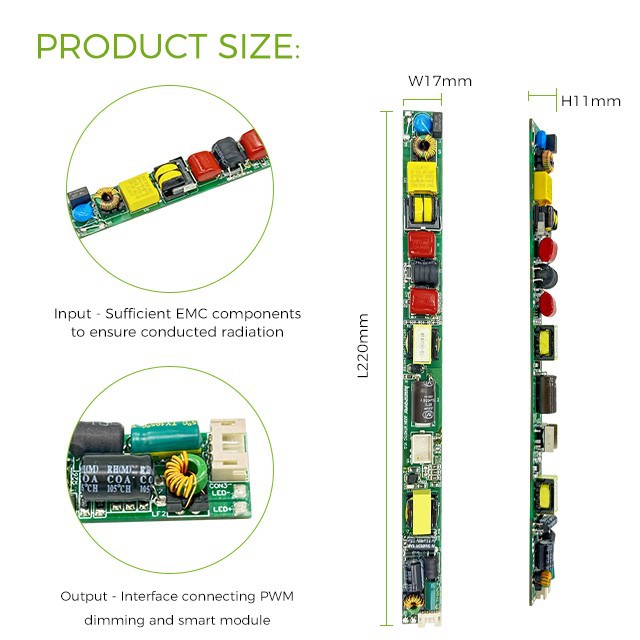

Dimension(mm):
Length:220mm Width: 17mm Height:11mm
Wiring instructions:
The two ends of the product are connected, one end is the AC input end, weld the black/white PVC wire, and the other end is the DC output and dimming signal input end. LED+ and LED- are connected to the positive and negative poles of the LED lamp respectively; the terminal is connected to the PWM dimming signal.
Product Packaging:
Hot Tags: pwm dimmable flicker free tube driver, China pwm dimmable flicker free tube driver manufacturers, suppliers, factory, 10v dimmer, push dimming, zigbee led driver, UL Certification, Grow light driver, 75W Sensor Driver
MT40T1C
|
Performance |
||
|
Model |
MT40T1C-1400300 |
|
|
Input |
Voltage |
200-240Vac |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
89%@230Vac full load |
|
|
Power Factor |
≥0.9@230Vac full load |
|
|
THD(Full load) |
<20 %@230Vac full load |
|
|
AC Current (Max) |
0.26A@230Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
20A peak@180V |
|
|
28A peak@230V |
||
|
30A peak@260V |
||
|
Leakage Current (Max) |
<0.5mA |
|
|
Output |
Voltage (Vdc) /Current (mA) Power (W) |
60-140Vdc/280mA 36W |
|
Ripple Voltage |
<5% |
|
|
Channel |
/ |
|
|
Line regulation |
±5% |
|
|
No-Load Output Voltage |
180V |
|
|
Start Time |
<0.5S@260V ＜1S@180V |
|
|
Auxiliary Voltage |
5V |
|
|
Function |
Dimming method |
3.3V PWM Dimming |
|
Dimming current |
<2mA@1% <280mA@100% |
|
|
Dimming range |
1%-100%(standard) |
|
|
10%-100% (Optional ) |
||
|
Power regulation |
/ |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
220 mm |
|
Width |
17mm |
|
Height |
11 mm |
|
Weight (g) |
≈45g |
|
Environmental |
|
|
Safety Standard |
CE ,Class2 |
|
EMC |
Meet EN IEC 55015:2019/A11:2020 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|

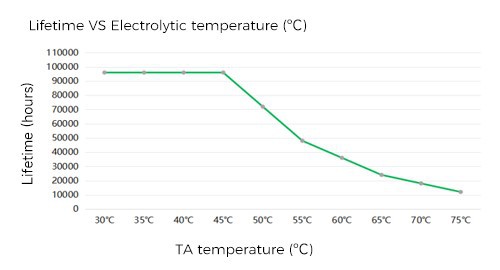

Warranty Tc |
50000Hour (s)@TC:＜80℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
|
MT40T1C-1400300 |
36W |
200-240Vac |
60-140Vdc |
280mA |
0.9 |
89% |
L220*W17*H11 |
