Non-isolated driver for linear lights

This driver is designed specifically for linear lights and is compliant with EMC standards. It has a wide input voltage range and offers full protection against potential electrical hazards. Additionally, this driver offers 2.5KV surge protection, ensuring that your lighting system stays safe and functional even in the event of a power surge or other electrical disturbance. Designed for reliability and durability, this single-stage driver is the perfect choice for ensuring that your linear lights provide consistent, high-quality performance over the long term.

Top Features and Benefits:


Over temperature protection	Flicker free	Over voltage protection	Ultra small thin

1.Ease of installation and use

2.Adequate warranty coverage

3.Compatibility with different lighting fixtures

4.Meet safety standards and certifications to ensure safe operation

Application Scenario:

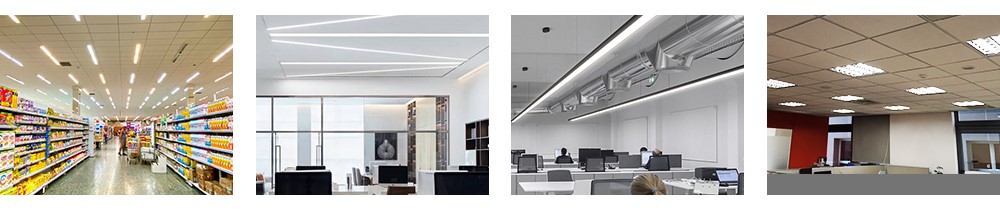

This product can be used in commercial lighting, residential lighting, outdoor lighting, public facility lighting, and special-purpose lighting, etc., to meet the diverse needs of different scenarios.

product-1000-210

Product Details:

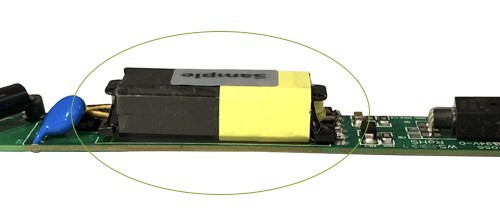

EDR The height of the non-isolation series power transformer is controlled at 10mm

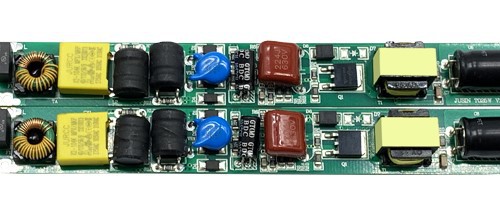

Ensure that electronic equipment or systems can operate stably in the electromagnetic environment and will not cause or be interfered with other surrounding equipment or systems.

Double-panel structure, with higher layout freedom and connection density, can accommodate more electronic component

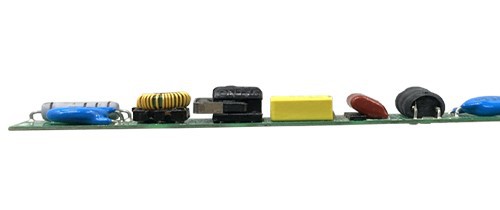

The components are all designed horizontally to control the

height.

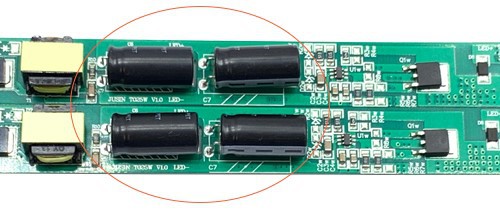

Maximize the lifespan of your driver with high-capacity capacitors from SAMXON SK Electrolytic Capacitors, boasting a remarkable longevity of up to 10,000 hours.

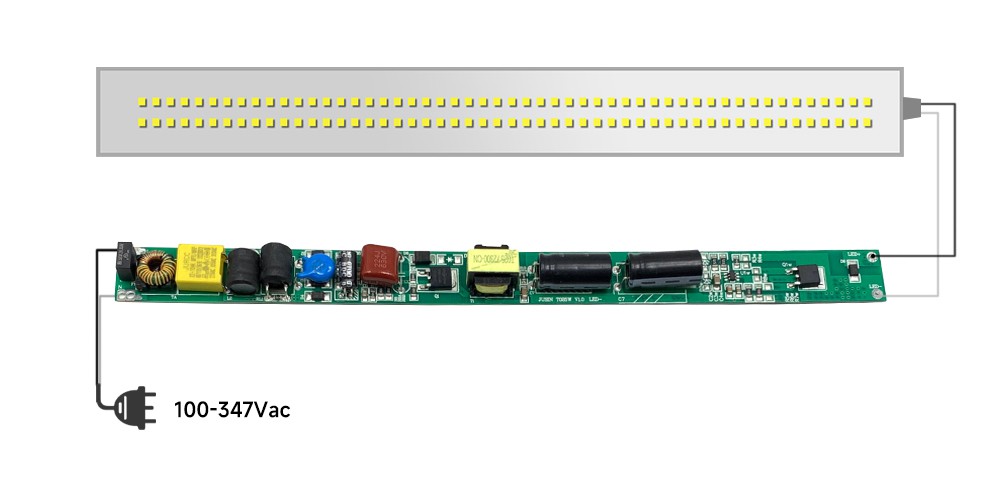

Wiring Instructions:

The AC input terminals connect to an AC power source ranging from 100-347Vac, while the DC output terminals, marked as positive and negative, are used to connect to LED lights.

product-1000-504

Product Packaging:

product-1000-270

Hot Tags: non-isolated driver for linear lights, China non-isolated driver for linear lights manufacturers, suppliers, factory, Driver with Adjustable Color Temperature, Unipolar with strobe, thin led light fixtures, 4500k dimmable, 2stage, 40w dimmable led driver

T026

Performance
Model	T026
Input Voltage	100-277 Vac
Input Current Max	0.52A@100Vac Full load
Input Power Max	56W
Input Frequency	50/60Hz
Power Factor	> 0.9
Output Voltage (Refer to Driver Operating Range)	52-72Vdc
Max. Output Current	800mA
Output Power	50-56W
Power Efficiency	91%@230Vac Input,Output 72V/780mA
Input Line Regulation	±3%
Adjustment Rat	±3 %

Environmental
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 85°C
Surge protection	L-N 0.5KV
Product Net Weight	74.5g

Series
Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark
T025	25W	100-240Vac	52-72Vdc	≤300mA	0.91	0.92	L138W17.2H11	EMC
T025W	25W	100-277Vac	52-72Vdc	≤300mA	0.92	0.92	L216W17H11	EMC	Flicker free
T025S	25W	100-240Vac	52-72Vdc	≤300mA	0.91	0.92	L158W17.2H11	EMC	2.5KV surge
T025G	25W	100-347Vac	50-72Vdc	≤250mA	0.91	0.90	L138W17.2H11	EMC	347Vac input
T028	32W	120-277Vac	52-72Vdc	≤450mA	0.92	0.95	L170W17.2H11	EMC
T028W	32W	110-277Vac	52-72Vdc	≤450mA	0.91	0.95	L230W17.2H11	EMC	Flicker free
T036	36W	120-347Vac	50-70Vdc	≤520mA	0.92	0.90	L241.5W17.2H10	EMC	347Vac input
T012	42W	180-240Vac	30-84Vdc	≤600mA	0.92	0.95	L197W17.2H10	EMC
T012E	42W	180-240Vac	30-84Vdc	≤600mA	0.92	0.95	L267W17.2H10	EMC
T012EW	40W	120-277Vac	52-72Vdc	≤560mA	0.91	0.95	L360W17.2H10	EMC
T026	56W	100-240Vac	52-72Vdc	≤800mA	0.92	0.95	L330W17.2H10	EMC	Flicker free
T026W	50W	100-277Vac	52-70Vdc	≤800mA	0.92	0.95	L470W19H10	EMC	Flicker free
