Linear Isolated Tube Driver

The input voltage range of this product is 100-277VAC, meeting global requirements. It ensures stable lumen output without any frequency flicker. It brings reliability and consistency to your lamps. It provides excellent results every time. It is a reliable and efficient product, ensuring the best lighting and performance.

Top Features and Benefits:


Ultra small thin	Short circuit protection	Over temperature protection	Over voltage protection

1.Power factor correction

2.OLP/OTP/OVP

3.Suit for T5,T8,T10 tube light

4.High-performance

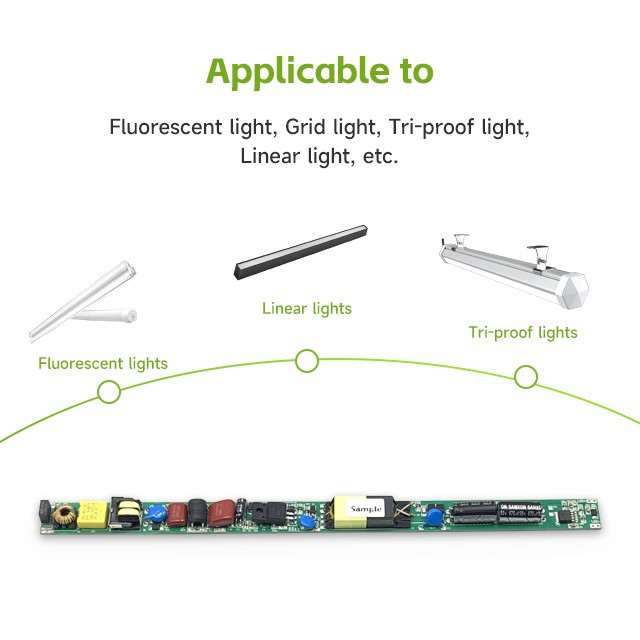

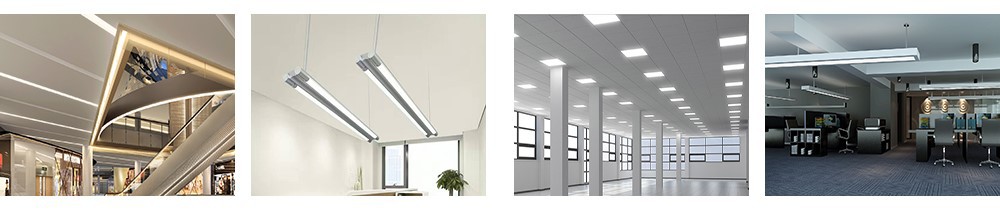

Application Scenario:

The slim strip with built-in driver is suitable for various lighting scenarios and applications using LED linear light.

product-1000-210

Product Details:

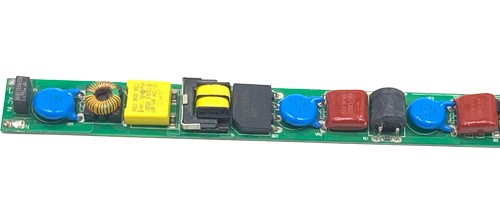

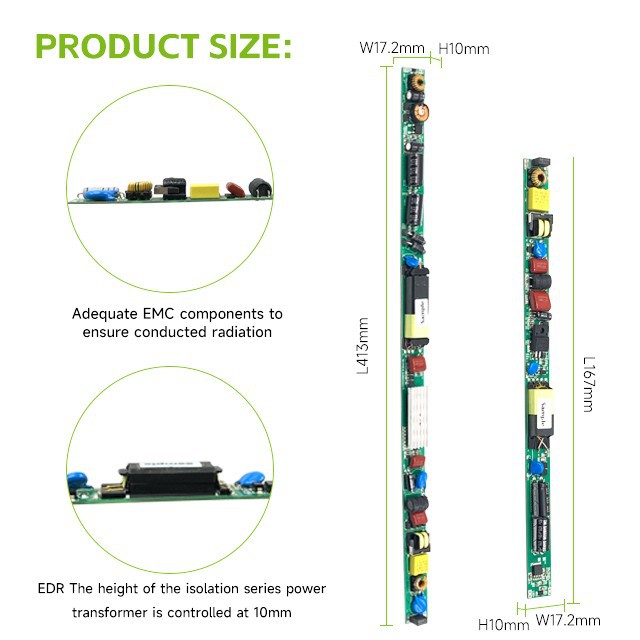

The ultra-slim and compact design is perfect for utilizing space in smaller areas.

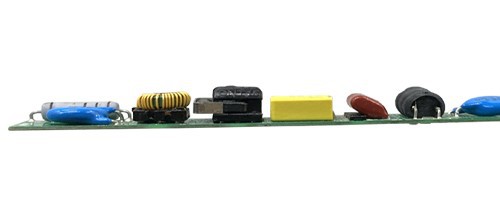

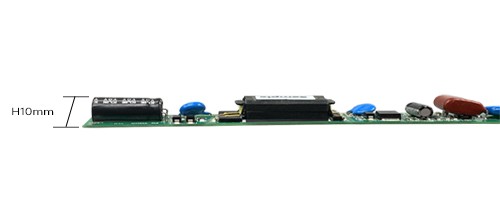

The product is slim and only 10 mm high.

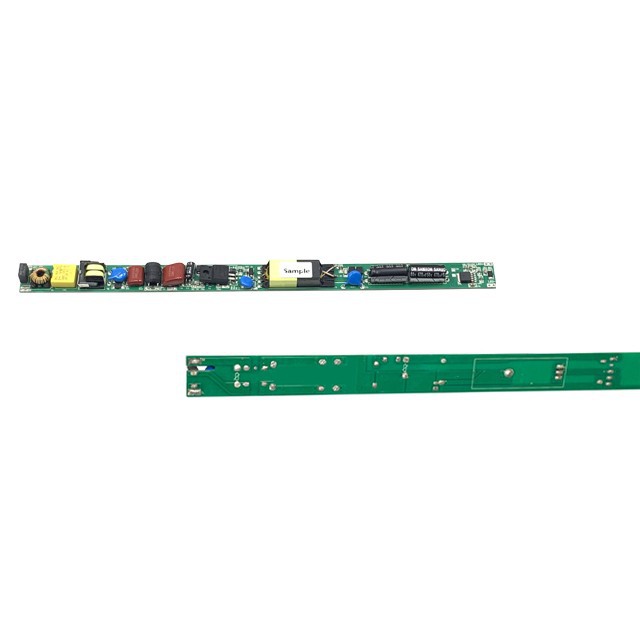

The material used for PCB is FR4 material, which has excellent high temperature resistance and consistent and reliable electrical insulation performance.

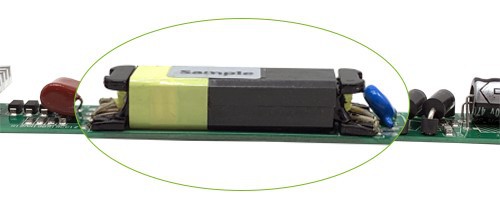

The transformer design of the isolated series LED driver features a compact height of 10mm.

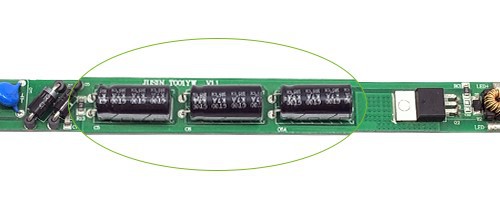

Maximize the lifespan of your driver with high-capacity capacitors from SAMXON SK Electrolytic Capacitors, boasting a remarkable longevity of up to 10,000 hours.

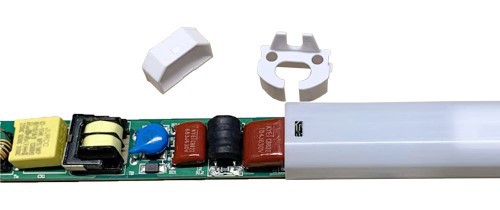

The plastic shell acts as a shield and insulation. The plug can effectively seal and prevent the power supply from falling.

EMC consists of key components such as fuses, Y-capacitors, inductors and CBB capacitors, which are designed to effectively reduce electromagnetic interference (EMI) and provide adequate electromagnetic shielding.

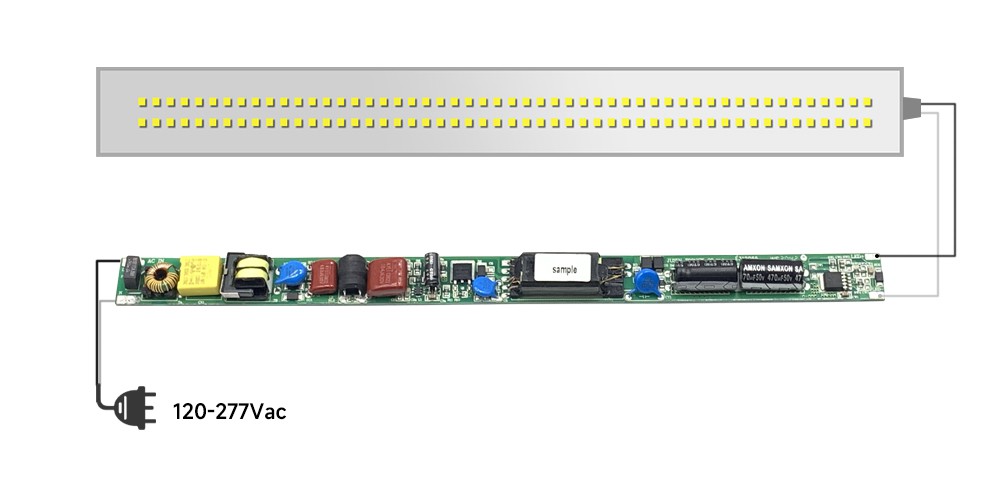

Wiring Instructions:

The AC input terminal is where you connect the power source from 120-277Vac mains. The DC output terminal, marked with positive and negative poles, is where you connect the LED light

product-1000-504

Product Packaging:

product-1000-270

Hot Tags: linear isolated tube driver, China linear isolated tube driver manufacturers, suppliers, factory, led induction power supply, 6000K Dimming, led driver pwm dimming, 0 10v dimming ac or dc, Suitable for Grow Lights, 12V aux

T001J T001JW

Performance
Model	T001J T001JW
Input Voltage	100-277 Vac
Input Current Max	0.09A@100Vac Full load
Input Power Max	25W
Input Frequency	50/60Hz
Power Factor	> 0.9
Output Voltage (Refer to Driver Operating Range)	30-42Vdc
Max. Output Current	600mA
Output Power	25W
Power Efficiency	88%@230Vac Input,Output 42V/600mA
No flicker	Optional(T001JW Model)

Environmental
EMC Standard	EN55015,EN55022
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 85°C
Surge protection	L-N 1KV
Product Net Weight	42g
Certificate	Meet CE/ FCC /UL certificate

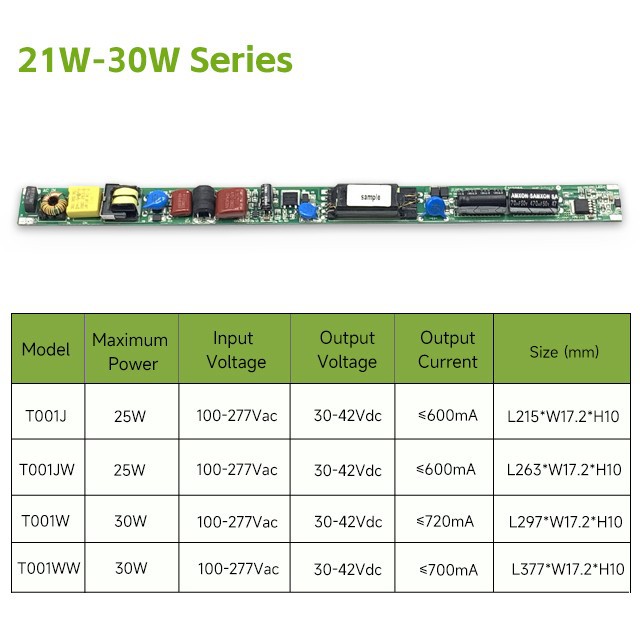

Series
Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark
T014E	12W	100-277Vac	30-42Vdc	≤300mA	0.86	0.90	L167W17.2H10	EMC,CE,UL
T014EW	12W	100-277Vac	30-42Vdc	≤300mA	0.84	0.90	L220W17.2H10	EMC,CE,UL	Flicker free
T001Z	18W	100-277Vac	28-42Vdc	≤450mA	0.86	0.90	L190W17.2H10	EMC,CE,UL
T001S	18W	100-277Vac	30-42Vdc	≤450mA	0.88	0.90	L222W17.2H10	EMC,CE,UL	3KV surge
T001KW	18W	100-277Vac	28-42Vdc	≤450mA	0.85	0.90	L243W17.2H10	CCC	Flicker free
T001J	25W	100-277Vac	30-42Vdc	≤600mA	0.88	0.90	L215W17.2H10	CCC	CCC
T001JW	25W	100-277Vac	30-42Vdc	≤600mA	0.86	0.90	L263W17.2H10	EMC,CE,UL	Flicker free
T001W	30W	100-277Vac	30-42Vdc	≤720mA	0.89	0.90	L297W17.2H10	EMC,CE,UL
T001WW	30W	100-277Vac	30-42Vdc	≤700mA	0.86	0.90	L377W17.2H10	EMC,CE,UL	Flicker free
T001Y	40W	100-277Vac	30-42Vdc	≤880mA	0.89	0.90	L330W17.2H10	EMC,CE,UL
T001YW	40W	100-277Vac	30-42Vdc	≤850mA	0.86	0.90	L413W17.2H10	EMC,CE,UL	Flicker free
T040C	40W	200-240Vac	30-42Vdc	≤920mA	0.87	0.92	L350W18.5H12	FCC,TUV,UL	Flicker free
T050C	50W	200-240Vac	30-42Vdc	≤1200mA	0.88	0.92	L360W18.2H13	FCC,TUV,UL	Flicker free

Warranty

Our products all come with3-year warranty or 5-year warranty, so you don’t have to worry about any service quality issues.

Advantage

CUTTING-EDGE

Shenzhen JUSIN Technology Co, Ltd, established in2012,is a national high-tech enter-is a national high-tech enter-development, production,sales and service of LED driver.

RELIABLE

A reliable partner that delivers outstanding and solid LED outstanding and driver power.

PROFESSIONAL

A professional and experienced R&D and guaranteed the excellent products.

Certificate

Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.
