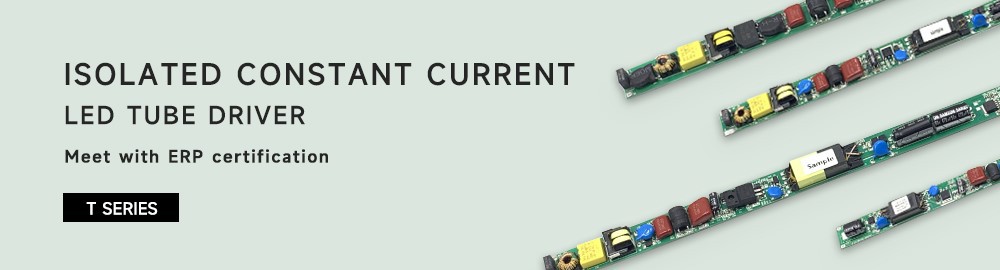

Isolated Constant Current LED tube driver
Isolated Constant Current LED tube driver is the ideal solution for powering LED tubes in a safe, efficient way. With its isolated design, it eliminates any risk of electric shock, making it ideal for use in a variety of different settings. The driver is also capable of providing a constant current output, ensuring that the LED tubes are powered efficiently and reliably.
Top Features and Benefits:
|
|
|
|
|
|
Over temperature protection |
Flicker free |
Short circuit protection |
Ultra small thin |
1.Meet with ERP certification
2.Flicker free for mobile phone photography
3.AC to DC led power supply
4.Bipolar flicker free

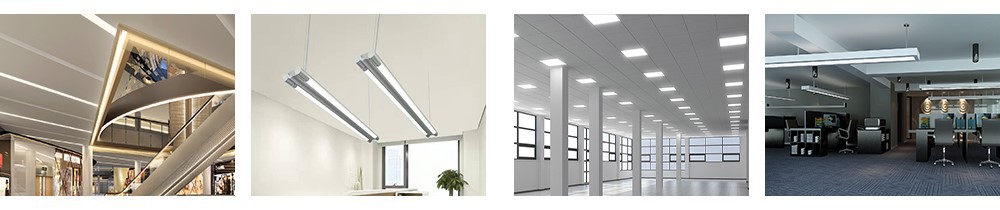

Application Scenario:
Provides a reliable and energy-efficient solution for commercial and residential lighting applications.
Product Details:

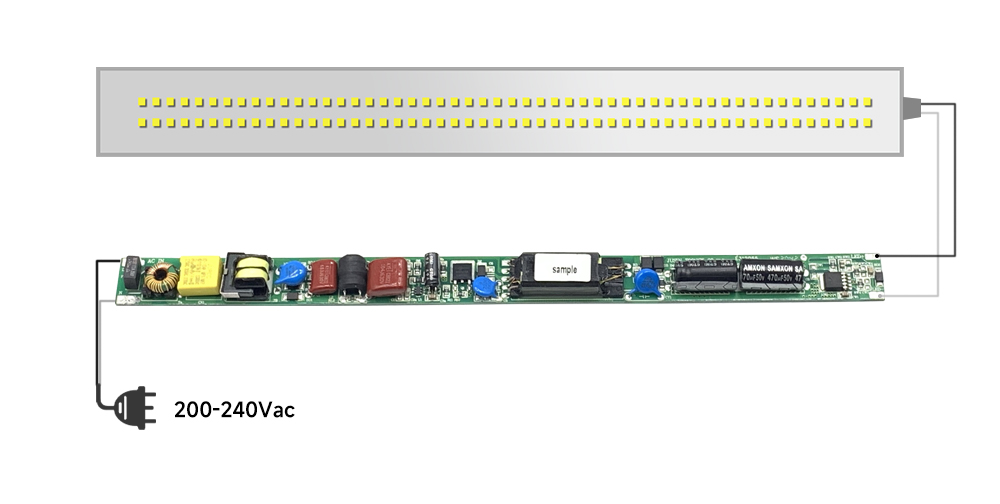

Wiring Instructions:
AC input terminals are used to connect to 200-240 volt AC power, while DC output terminals labeled positive and negative are used to connect LED lights
Product Packaging:
Hot Tags: isolated constant current led tube driver, China isolated constant current led tube driver manufacturers, suppliers, factory, smart light lamp, Dial code adjustment, 12w led panel light driver, 3CCT white light, 230Vac input, led panel driver

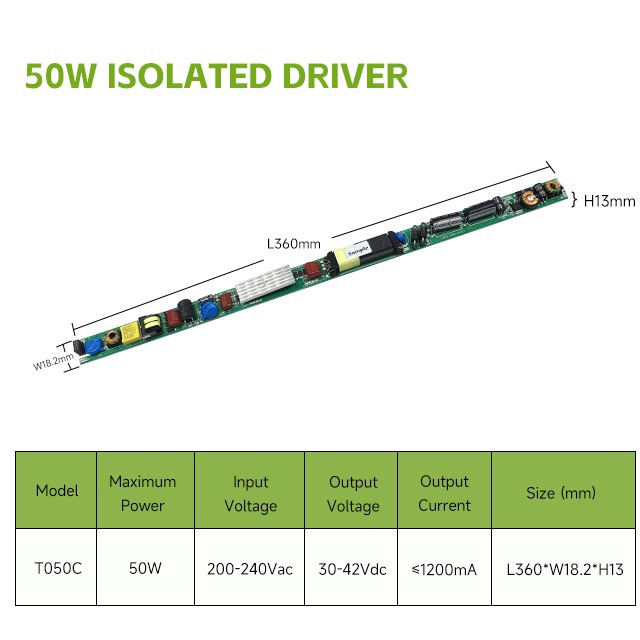

T050C
|
Performance |
|
|
Model |
T050C |
|
Input Voltage |
200-240 Vac |
|
Input Current Max |
0.29A@220Vac Full load |
|
Input Power Max |
50W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.9 |
|
Output Voltage (Refer to Driver Operating Range) |
30-42Vdc |
|
Max. Output Current |
1200mA |
|
Output Power |
50W |
|
Power Efficiency |
85%@220Vac Input |
|
No flicker |
Optional(T050C Model) |
|
Environmental |
|
|
EMC Standard |
EN55015,EN55022 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Surge protection |
L-N 2KV |
|
Product Net Weight |
67g
|
|
Certificate |
Meet CE /FCC/ UL certificate |
|
Series |
|||||||||
|
Model |
Max power |
Input voltage |
Output voltage |
Output current |
Efficiency |
Power factor |

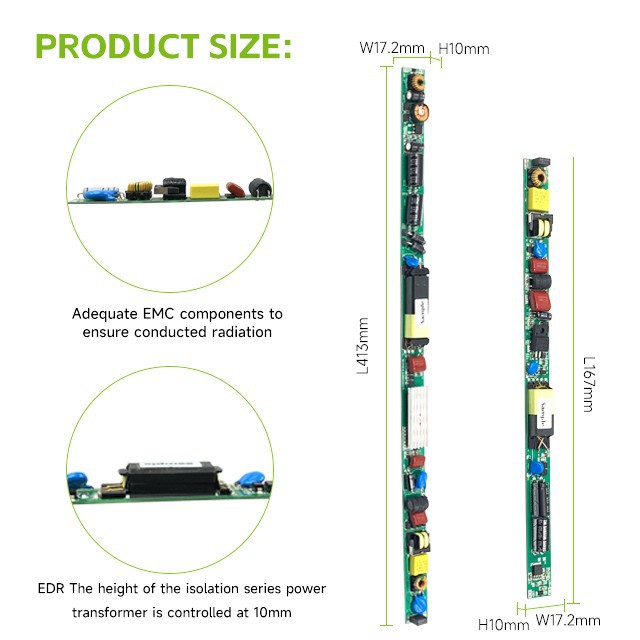

Size(mm) |
Meet with |
Remark |
|
T014E |
12W |
100-277Vac |
30-42Vdc |
≤300mA |
0.86 |
0.90 |
L167*W17.2*H10 |
EMC,CE,UL |
|
|
T014EW |
12W |
100-277Vac |
30-42Vdc |
≤300mA |
0.84 |
0.90 |
L220*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T001Z |
18W |
100-277Vac |
28-42Vdc |
≤450mA |
0.86 |
0.90 |
L190*W17.2*H10 |
EMC,CE,UL |
|
|
T001S |
18W |
100-277Vac |
30-42Vdc |
≤450mA |
0.88 |
0.90 |
L222*W17.2*H10 |
EMC,CE,UL |
3KV surge |
|
T001KW |
18W |
100-277Vac |
28-42Vdc |
≤450mA |
0.85 |
0.90 |
L243*W17.2*H10 |
CCC |
Flicker free |
|
T001J |
25W |
100-277Vac |
30-42Vdc |
≤600mA |
0.88 |
0.90 |
L215*W17.2*H10 |
CCC |
CCC |
|
T001JW |
25W |
100-277Vac |
30-42Vdc |
≤600mA |
0.86 |
0.90 |
L263*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T001W |
30W |
100-277Vac |
30-42Vdc |
≤720mA |
0.89 |
0.90 |
L297*W17.2*H10 |
EMC,CE,UL |
|
|
T001WW |
30W |
100-277Vac |
30-42Vdc |
≤700mA |
0.86 |
0.90 |
L377*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T001Y |
40W |
100-277Vac |
30-42Vdc |
≤880mA |
0.89 |
0.90 |
L330*W17.2*H10 |
EMC,CE,UL |
|
|
T001YW |
40W |
100-277Vac |
30-42Vdc |
≤850mA |
0.86 |
0.90 |
L413*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T040C |
40W |
200-240Vac |
30-42Vdc |
≤920mA |
0.87 |
0.92 |
L350*W18.5*H12 |
FCC,TUV,UL |
Flicker free |
|
T050C |
50W |
200-240Vac |
30-42Vdc |
≤1200mA |
0.88 |
0.92 |
L360*W18.2*H13 |
FCC,TUV,UL |
Flicker free |
Packing Delivery
Standard export packing, or customized packing as your request. From production to shipment of a series of processes, we will carry out strict inspection over and over again to ensure the quality of goods. Bare board series of products we will set a layer of blister protection shell, to ensure that the goods are not damaged during transportation.
Advantage
CUTTING-EDGE: Shenzhen Jusin Technology Co, Ltd, established in2012, is a national high-tech enter-is a national high-tech enter-development, production,sales and service of LED driver.
RELIABLE: A reliable partner that delivers outstanding and solid LED outstanding and driver power.
PROFESSIONAL: A professional and experienced R&D and guaranteed the excellent products.
Certificate
Have passed the "ISO9001:2015" quality management system certification and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, CE, CB, SAA, FCC, CCC.
