PWM Dimmable Constant Current LED Tube Driver

It's the perfect solution for your lighting needs. Designed to provide stable and reliable performance, this driver is capable of driving LED tubes of various sizes and wattages. With its advanced dimming capabilities, you can easily adjust the brightness of your LEDs to create the perfect lighting ambiance. This driver features a compact and versatile design, making it easy to install and connect to your lighting system.

Top Features and Benefits:


0-10V dimming	Flicker free	Short circuit protection	Ultra small thin

1.Bipolar flicker-free design

2.0-10v dimming

3.Output open circuit protection

4.3years warranty

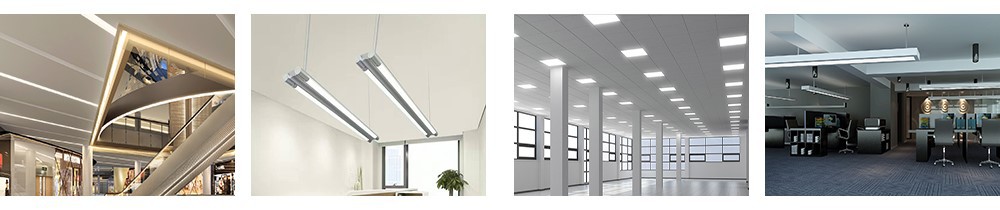

Application Scenario:

It's easy to install and comes equipped with multiple protection features, such as over-temperature and short circuit protection.

product-1000-210

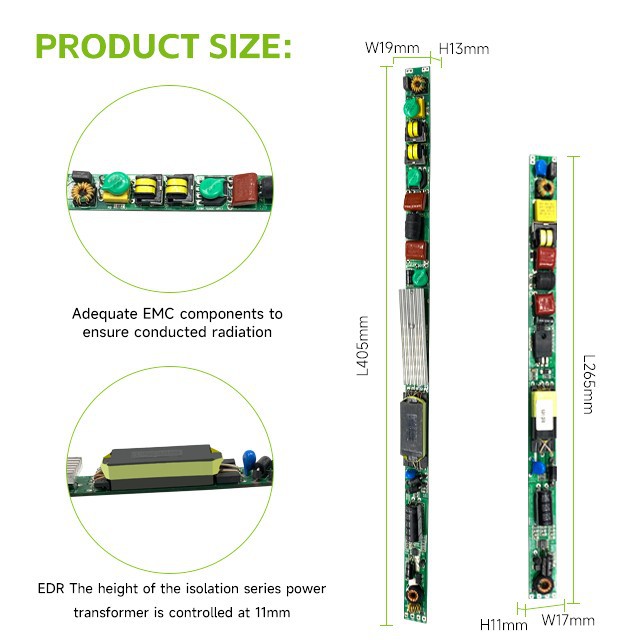

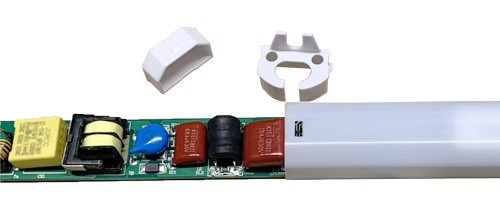

Product Details:

Plastic housing and end caps offer good impact resistance, protecting the internal components of the LED driver from damage caused by accidental bumps or knocks during handling or installation.

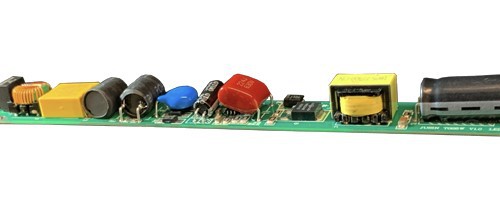

FR4 has good thermal stability, allowing PCBs to withstand temperature variations without compromising performance or reliability, making them suitable for a wide range of operating environments.

Horizontal component placement offers flexibility in fixture design, allowing for various configurations and layouts to accommodate different lighting requirements and spatial constraints.

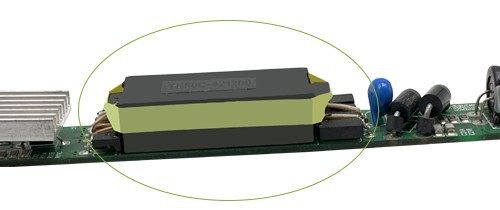

Transformers in LED drivers help optimize power transfer and reduce energy losses, resulting in higher efficiency and lower power consumption.

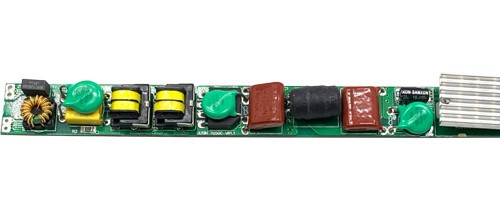

Safety tubes can help minimize electromagnetic interference (EMI) and radio frequency interference (RFI) by containing electromagnetic emissions from the input side of the LED driver.

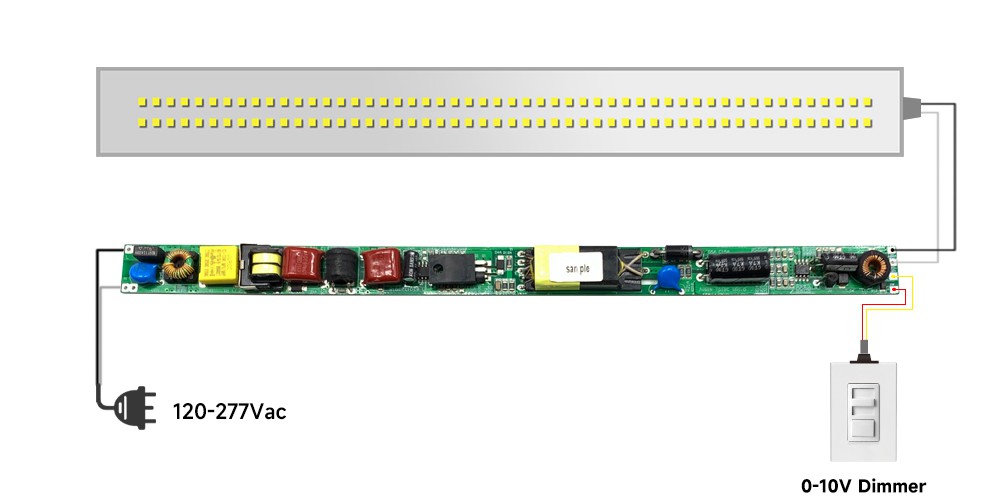

Wiring Instructions:

AC input terminals are used to connect to AC120-277V power, while DC output terminals labeled positive and negative are used to connect LED lights

Product Packaging:

product-1000-270

Hot Tags: pwm dimmable constant current led tube driver, China pwm dimmable constant current led tube driver manufacturers, suppliers, factory, Long Strip Smart Dimming LED Driver, professional casambi, no strobe, Independent selection of current, tuya led driver, Power 55W

TG50C

Performance
Model	TG50C
Input Voltage	100-277 Vac
Input Current Max	0.6A@230Vac Full load
Input Power Max	50W
Input Frequency	50/60Hz
Power Factor	> 0.9
Output Voltage (Refer to Driver Operating Range)	30-42Vdc
Max. Output Current	1200mA
Output Power	50W
Power Efficiency	88%@230Vac Input
No flicker	Optional(TG50C Model)

Environmental
Safety standard	UL8750 ,Class2
EMC emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature,Humidity	-20°C to 85°C,20-90%RH
Surge protection	L-N 1KV , L/N-FG 2KV
Certificate	Meet CE /FCC/ UL certificate

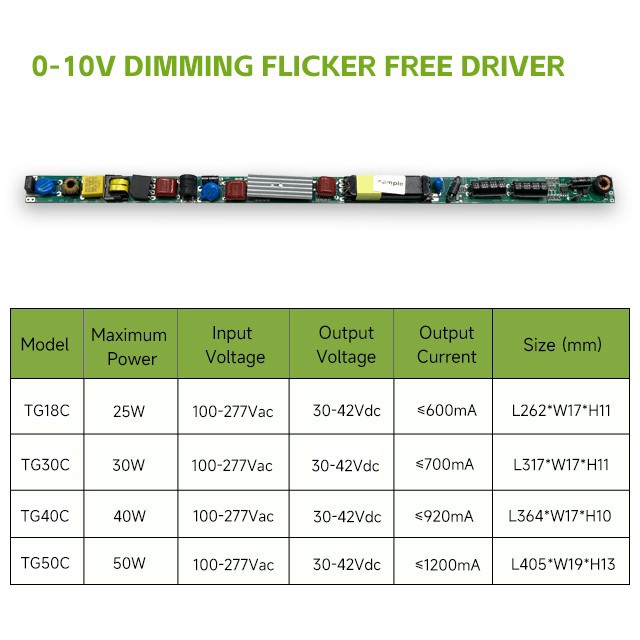

Series
Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark
TG19A	18W	100-277Vac	30-42V	≤430mA	0.88	0.92	L265W17H11	TUV,FCC,UL	0-10V Dimming signal isolation
TG28A	30W	100-277Vac	30-42V	≤700mA	0.88	0.92	L311W17H11	TUV,FCC,UL	0-10V Dimming signal isolation
TG18C	25W	100-277Vac	28-42V	≤600mA	0.87	0.92	L265W17H11	TUV,FCC,UL	Flicker free
TG30C	30W	100-277Vac	30-42V	≤700mA	0.87	0.92	L317W17H11	TUV,FCC,UL	Flicker free
TG40C	40W	100-277Vac	28-42V	≤920mA	0.87	0.92	L364W17H11	TUV,FCC,UL	Flicker free
TG50C	50W	100-277Vac	30-42V	≤1200mA	0.87	0.92	L405W19H13	TUV,FCC,UL	Flicker free

OEM/ODM

Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure,required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.

product-1000-270

OEM/ODM Service flow

1.New Project: Overall project discussion product specification definition estimate cost quotation.According to your specific needs, we can develop personalized solutions that are different from conventional standards.

2.R&D Design: research and design of the prototype.Prototype functional test and verification. We have a professional R&D team and engineers of about 20 people who can provide you with full-process services from concept design to product prototype production.

3. Sample Release: Get customer sample approval-final modification

4. Mass Production: Logistics services and Provide after-sales service

Company Profile

Shenzhen JUSIN Technology Co.,Ltd.,established in 2012,is a national high-tech enterprise integrating research and development, production, sales and service of LED driver.Headquartered in Shenzhen,China,We have set up a branch in Taiwan,and have a 4000 square meter factory in Foshan high-tech Zone for production.In the 10 years since its establishment, all JUSIN family have continuously created value for nearly 1000 partners around the world by responding the market demands rapid and accurate,high-quality products and perfect services,and have passed the "ISO9001:2015" quality management system certification.

Certificate

Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international cUL, SAA, TUV, CE, CB, SAA, FCC, CCC.
