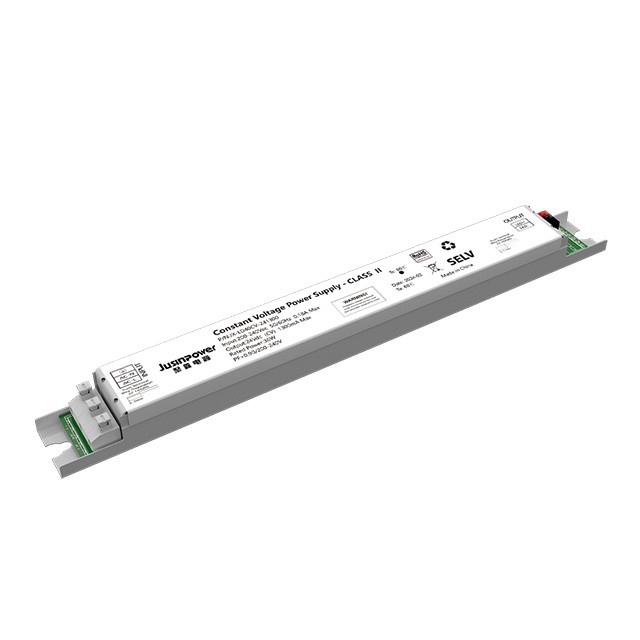

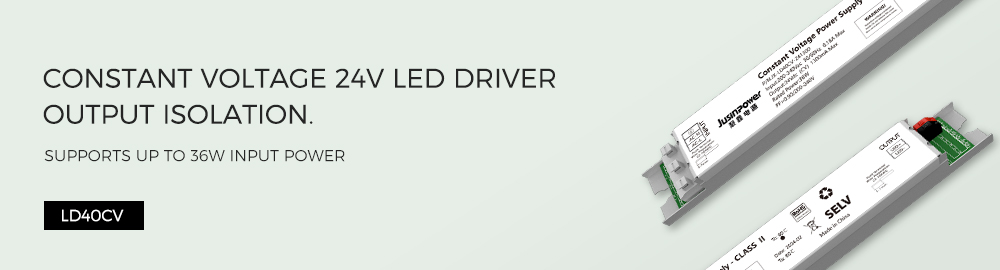

Constant Voltage 24V LED Driver Output Isolation.
High power density design means higher power can be output in a smaller volume. Small size and light weight make it easy to integrate and install in equipment with limited space. Linear small size isolated flicker-free constant voltage driver is an efficient, reliable and safe power solution for occasions with high requirements on lighting quality and power stability.
Top Features and Benefits:
|
|
|
|
|
|
Ultra-thin size |
Input 200-240Vac |
Constant voltage |
High PF & Low THD |
1. Supports up to 36W input power
2. Output isolation.
3. PF > 0.9 for improved energy efficiency
4. Low THD for better power quality

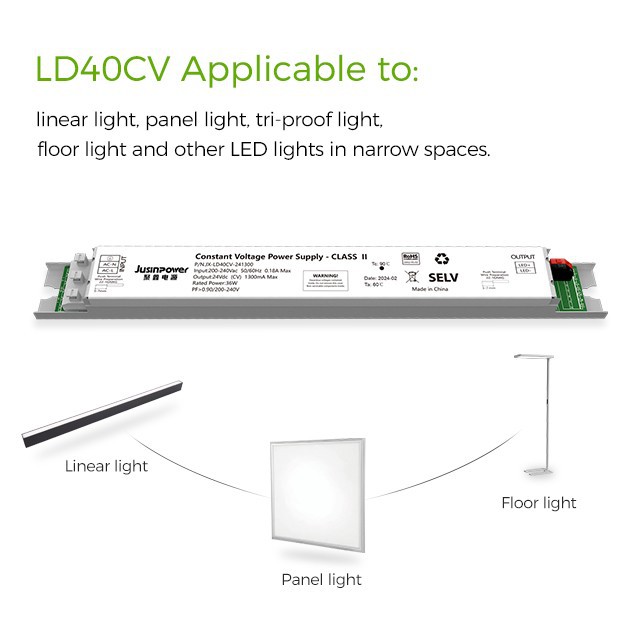

Application Scenario:
In outdoor landscape lighting such as parks and courtyards, constant voltage power supplies provide continuous power support for LED lamps to meet long-term operation requirements.
Product Details:

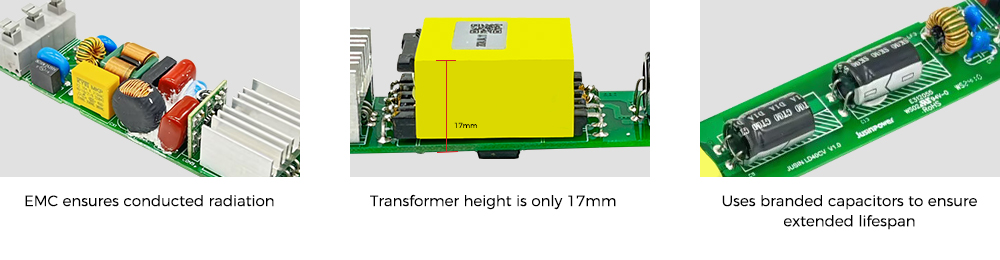

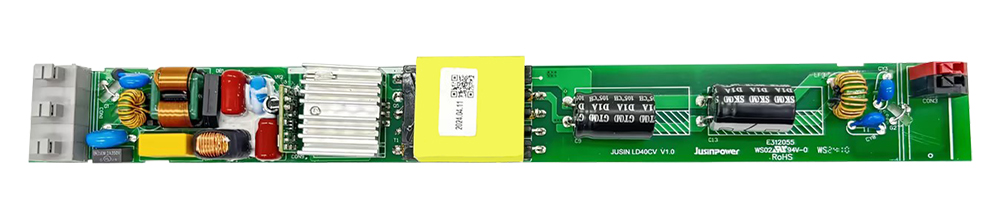

Sufficient internal components

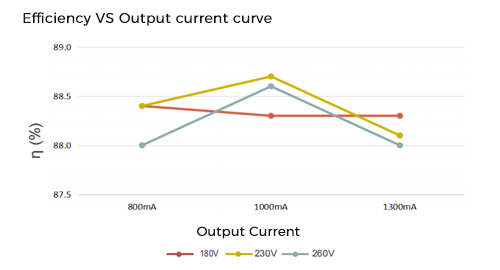

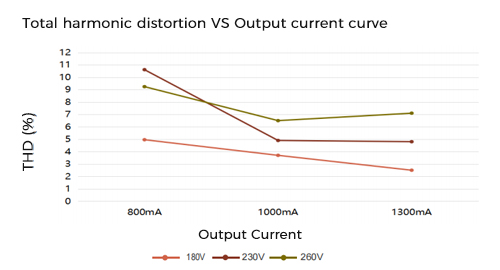

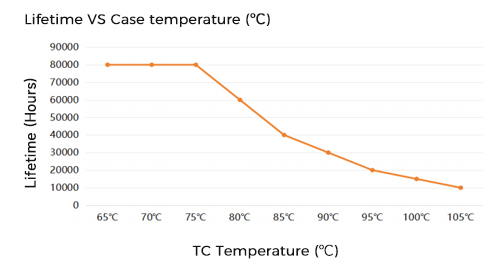

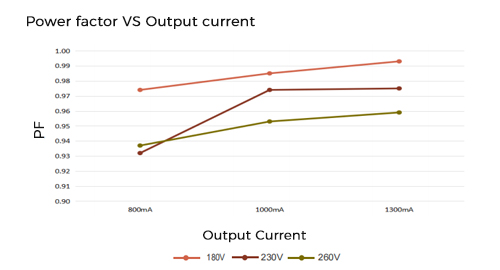

Electrical Curve Diagram:
Test at Ta 25℃, the output voltage is 24V, and the current is 800mA to1300mA

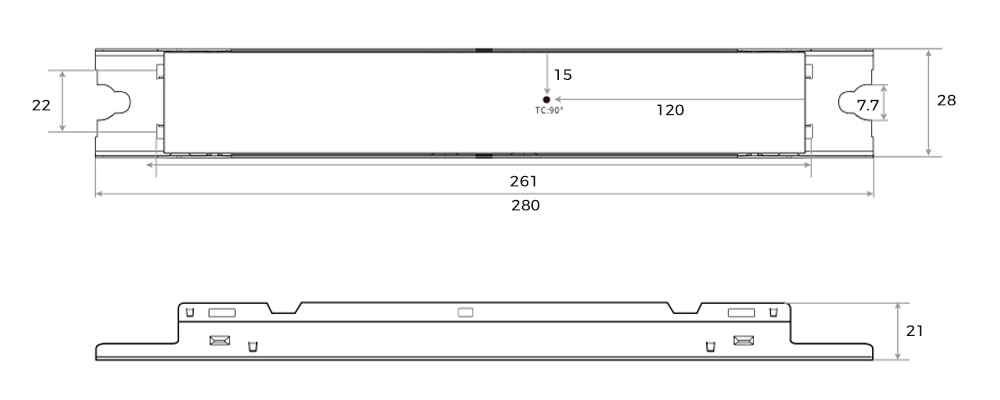

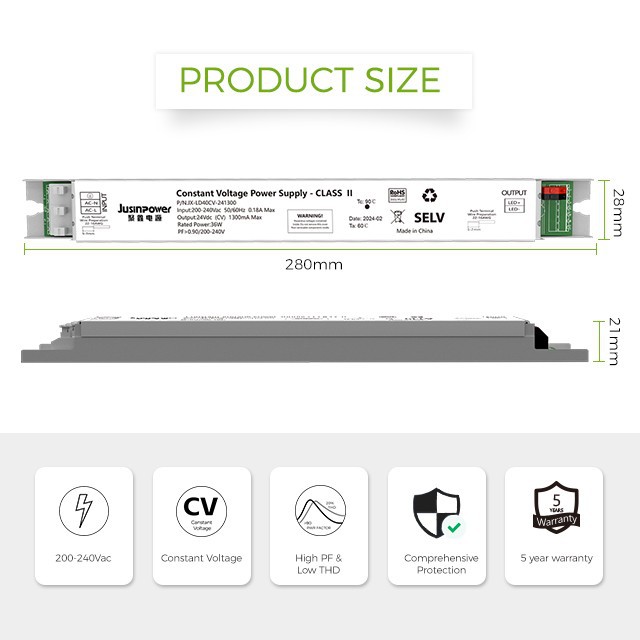

Dimension(mm):
Length: 280mm Width: 28mm Height: 21mm

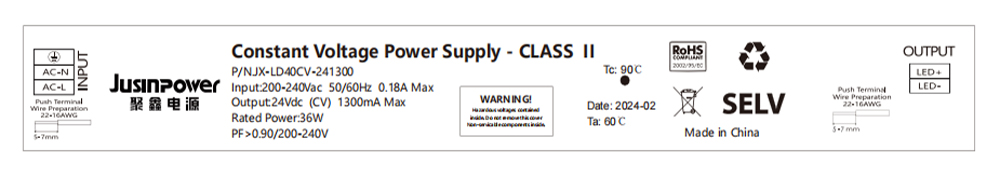

Product Label:

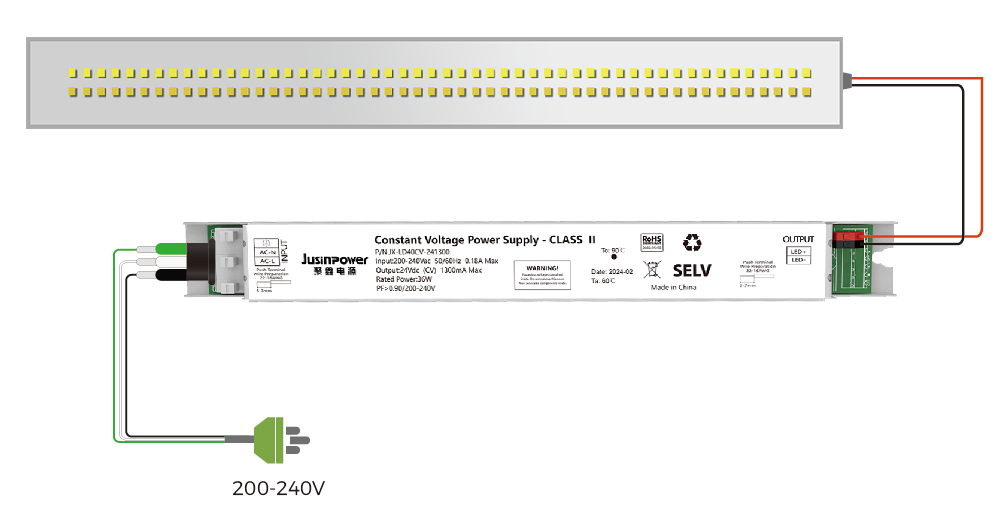

Wiring Instructions：
AC input terminal, this terminal is connected to the mains power(200-240Vac), and the other terminal is the DC output terminal + and -, which are connected to the positive and negative poles of the LED light respectively.

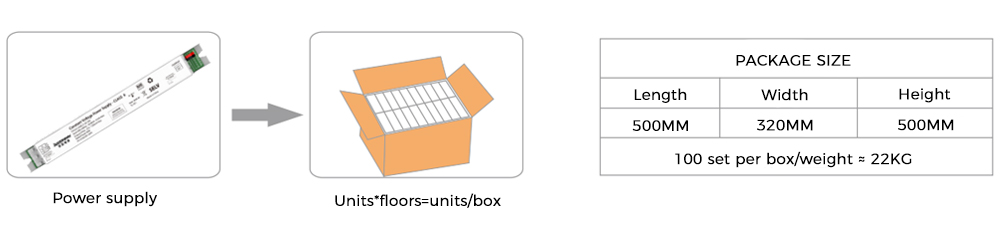

Product Packaging:
Hot Tags: constant voltage 24v led driver output isolation., China constant voltage 24v led driver output isolation. manufacturers, suppliers, factory, for Mexican market, zigbee led driver, app control led driver, slim strip driver, input 277Vac, 5 different color temperatures
LD40CV
|
Performance |
||
|
Model |
LD40CV-241300 |
|
|
Input |
Voltage |
200-240Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
88%@230Vac full load |
|
|
Power Factor |
≥0.9@230Vac full load |
|
|
THD (Full Load) |
<20 %@230Vac full load |
|
|
AC Current (Max) |
0.18A@230Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
230V 25A peak,600us duration(10% Ipeak) |
|
|
Leakage Current (Max) |
<0.5mA |
|
|
Output |
Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1300mA/44.4W Max CV |
|
Ripple Voltage
|
<30% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<1S@230V |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
280 mm |
|
Width |
28mm |
|
Height |
21 mm |
|
Weight (g) |
210g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Case temperature |
TC=50℃ |
|
Warranty Tc |
50000Hour (s)@TC:＜80℃ |
|
Surge Protection |
L-N 1KV L/N-FG 2 KV |
|
Ip Rating |
IP20 |
|
Shell Material |
Ironclad |
|
Series Driver |
|
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Meet with |
|
LD40CV-241300 |
36W |
200-240Vac |
24V |
1300mA |
0.9 |
88% |
L280*W28*H21 |
UL,FCC,CE,ROHS |
OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure, required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.

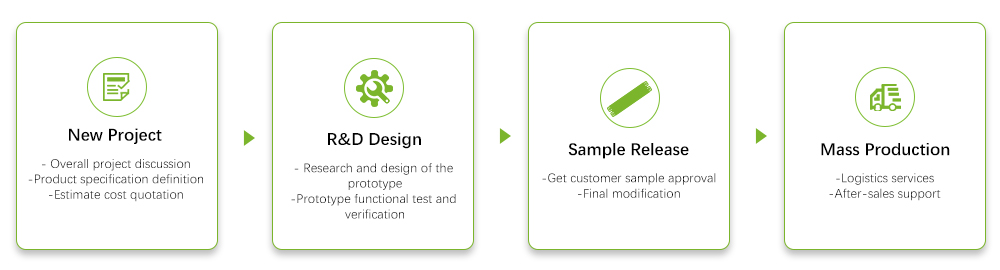

OEM/ODM Service Flow
