Linear 24V 36W 1300mA CV LED Driver For Strip Light
The linear small size 24V 36W 1300mA constant voltage driver adopts a compact design. The driver is small in size and easy to install in a small space. It is suitable for various application scenarios with limited size. High safety: isolation design and multiple protection functions ensure the safety of the driver and equipment. It can be applied to office lighting, supermarket lighting, home lighting, display cabinet lighting and other scenarios
Top Features and Benefits:
|
|
|
|
|
|
Ultra-thin size |
Input 200-240Vac |
Constant voltage |
High PF & Low THD |
1. Supports up to 36W input power
2. Output isolation.
3. PF > 0.9 for improved energy efficiency
4. Low THD for better power quality

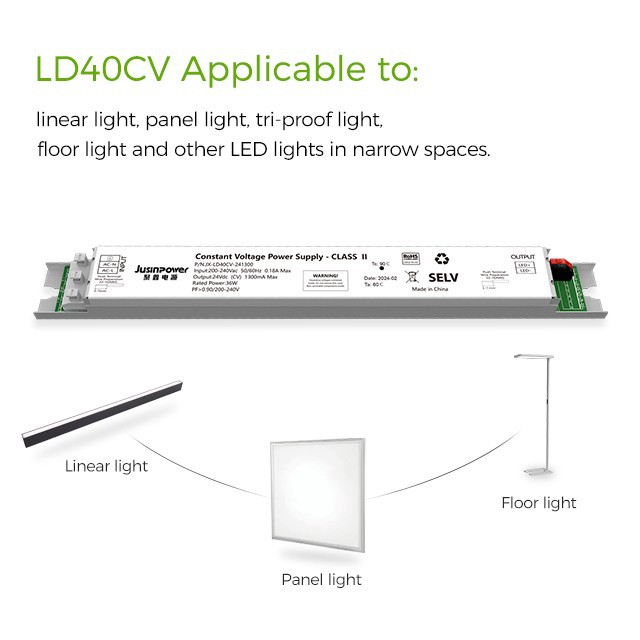

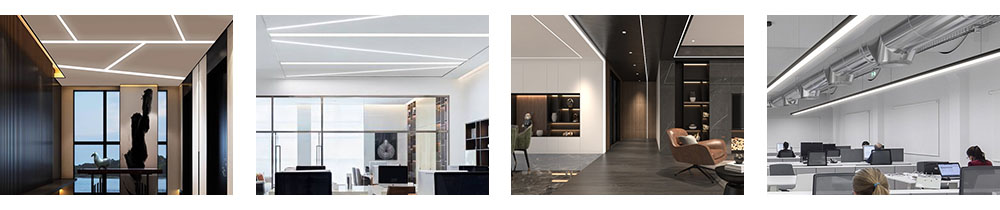

Application Scenario:
In embedded lighting such as cabinets and bookcases, constant voltage power supplies provide stable current for these low-voltage LED lamps to ensure long-lasting durability.

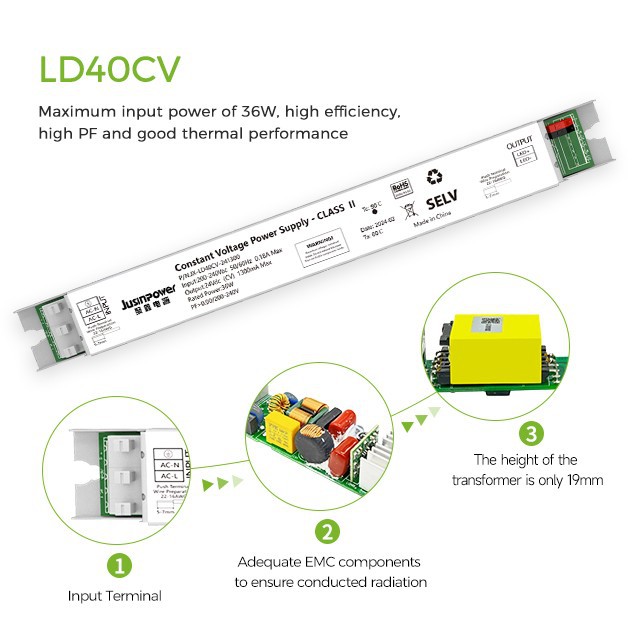

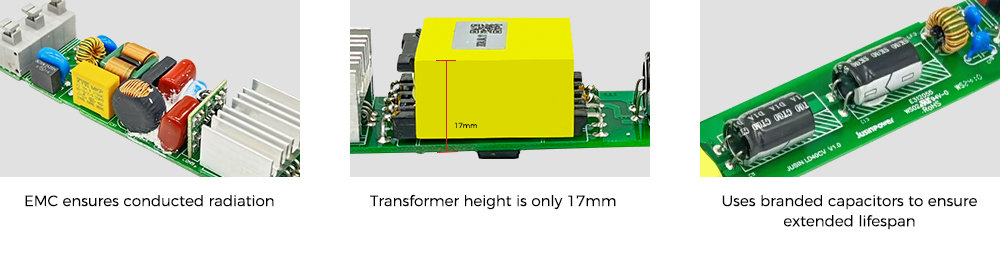

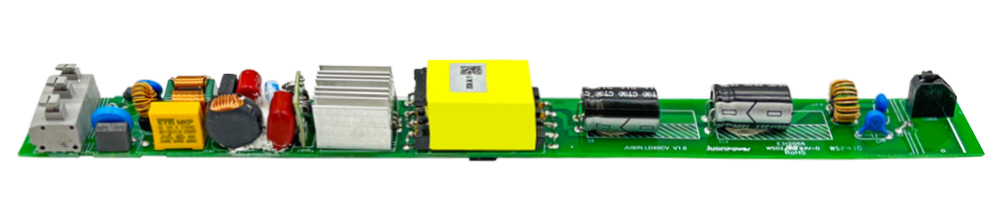

Product Details:
Linear design: The power supply adopts a slender strip design, which is easy to install in a small space or linear lamp, optimizing space utilization.

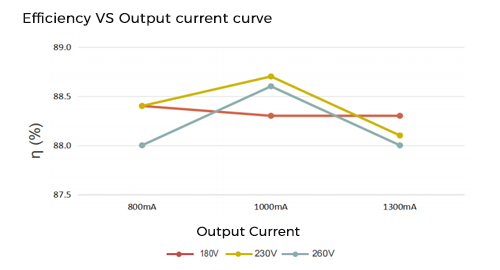

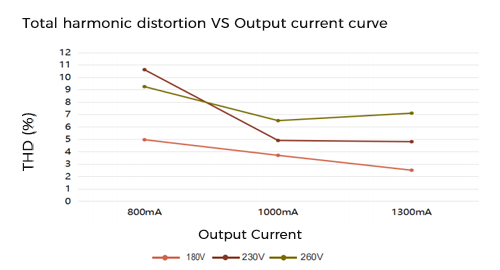

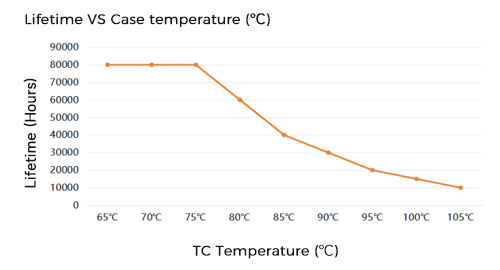

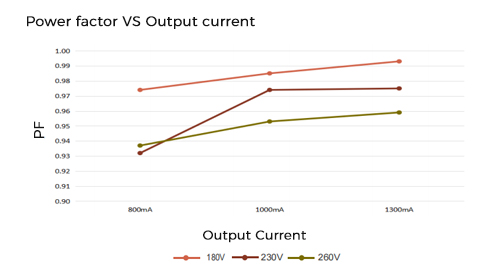

Electrical Curve Diagram:
Test at Ta 25℃, the output voltage is 24V, and the current is 800mA to1300mA

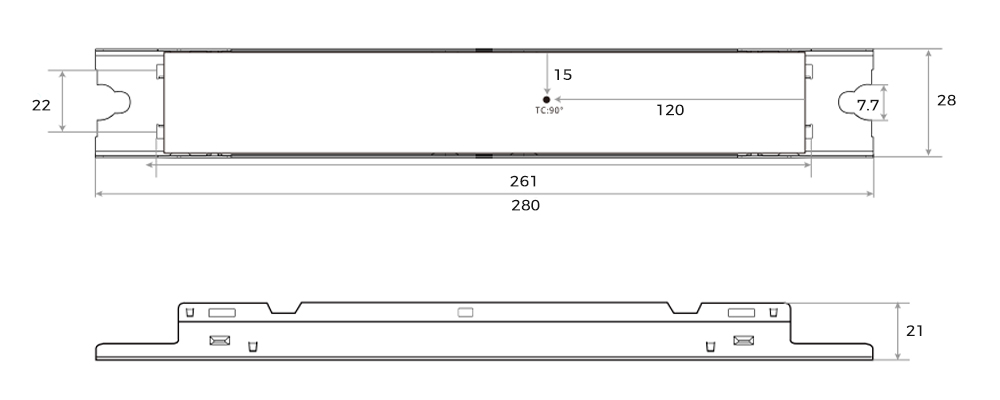

Dimension(mm):
Length: 280mm Width: 28mm Height: 21mm

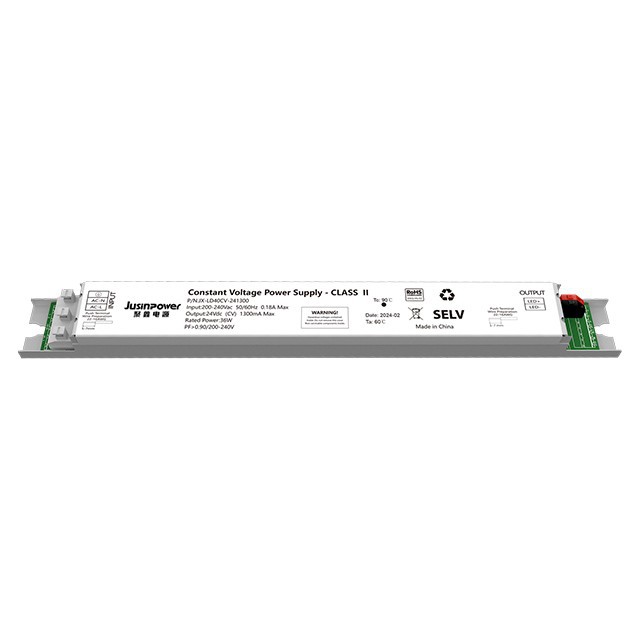

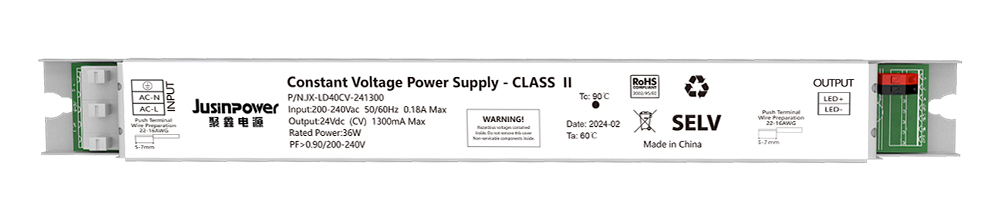

Product Label:
To ensure the product's safety and efficacy during installation and usage, users can find comprehensive wiring instructions and basic specification information on the product label.

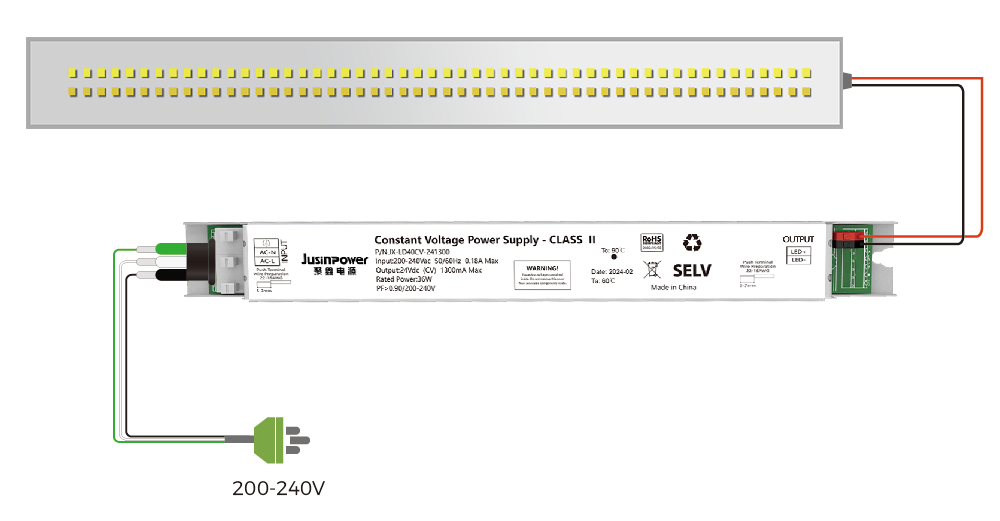

Wiring Instructions：
AC input terminal, this terminal is connected to the mains power(200-240Vac), and the other terminal is the DC output terminal + and -, which are connected to the positive and negative poles of the LED light respectively.

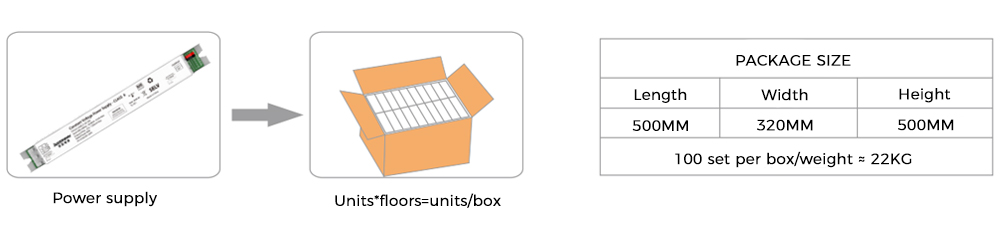

Product Packaging:
Hot Tags: linear 24v 36w 1300ma cv led driver for strip light, China linear 24v 36w 1300ma cv led driver for strip light manufacturers, suppliers, factory, Maximum voltage 347V, Three color temperatures, 30-54Vdc, flicker free led lights, dimmable driver, 22W Sensor Driver
LD40CV
|
Performance |
||
|
Model |
LD40CV-241300 |
|
|
Input |
Voltage |
200-240Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
88%@230Vac full load |
|
|
Power Factor |
≥0.9@230Vac full load |
|
|
THD (Full Load) |
<20 %@230Vac full load |
|
|
AC Current (Max) |
0.18A@230Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
230V 25A peak,600us duration(10% Ipeak) |
|
|
Leakage Current (Max) |
<0.5mA |
|
|
Output |
Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1300mA/44.4W Max CV |
|
Ripple Voltage
|
<30% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<1S@230V |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
280 mm |
|
Width |
28mm |
|
Height |
21 mm |
|
Weight (g) |
210g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Case temperature |
TC=50℃ |
|
Warranty Tc |
50000Hour (s)@TC:＜80℃ |
|
Surge Protection |
L-N 1KV L/N-FG 2 KV |
|
Ip Rating |
IP20 |
|
Shell Material |
Ironclad |
|
Series Driver |
|
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Meet with |
|
LD40CV-241300 |
36W |
200-240Vac |
24V |
1300mA |
0.9 |
88% |
L280*W28*H21 |
UL,FCC,CE,ROHS |

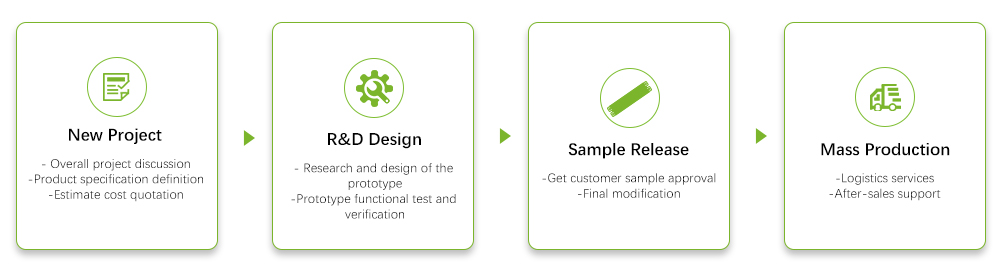

OEM/ODM
