Constant voltage 0-10V dimmable led driver

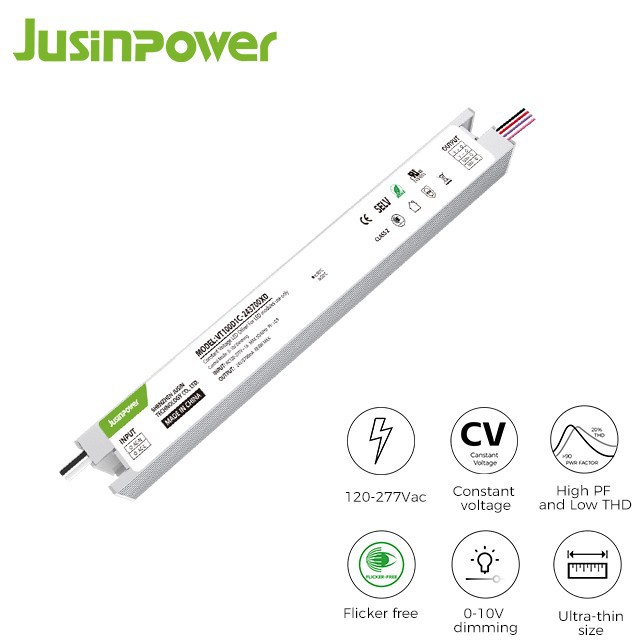

This is a bipolar flicker-free dimmable constant voltage LED driver, which can provide a maximum input power of 100w. It also has overload, short circuit and over temperature protection. Dimming range 1 to 100%. It can be connected to an external smart module.
Top Features and Benefits:
|
|
|
|
|
|
Application of GaN (gallium nitride) solution |
Flicker free |
0-10V Dimming |
Ultra-thin size |
1. Dimming range 1 to 100 %
2. Bipolar flicker-free
3. 0-10V dimmable led driver
4. Overload, short circuit and over temperature protection
Application Scenario:
When the constant voltage slender strip is installed in linear lights and various narrow or special shaped spaces, it can not only provide stable and efficient lighting, but also meet diverse design requirements.Provides uniform linear illumination

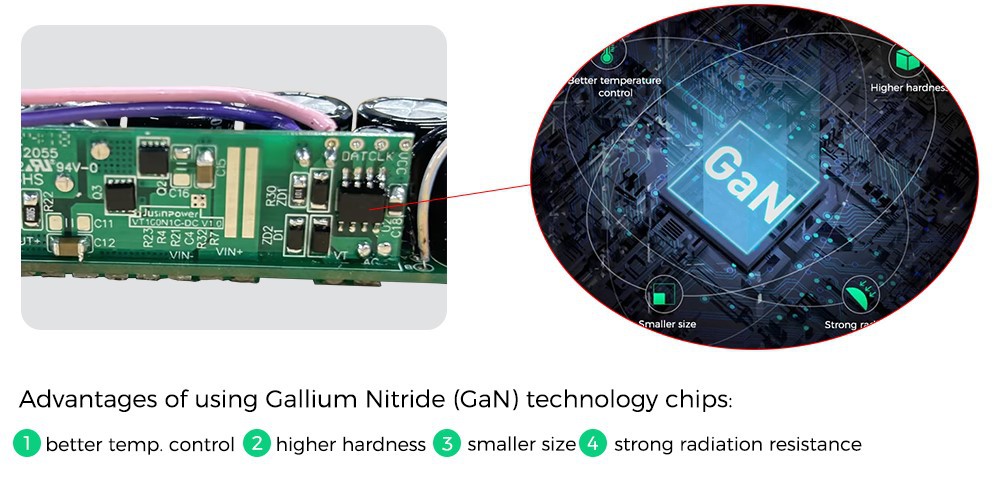

The chip uses the latest gallium nitride technology

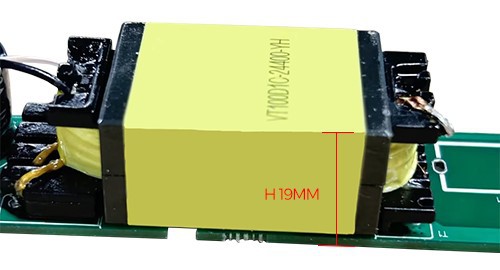

1.Use smaller transformer, low switching loss, low temperature rise, high efficiency, ultra-small size, and maximum performance in the ultimate space

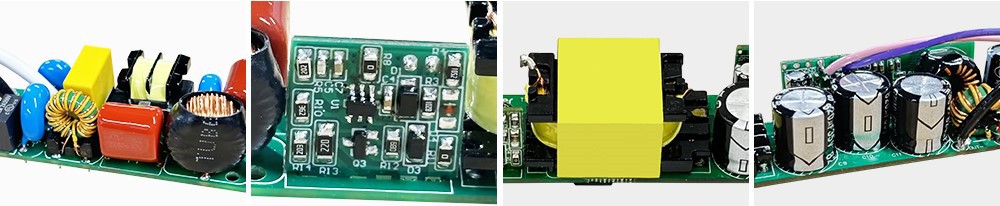

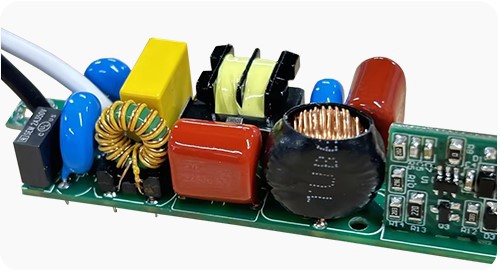

Internal structure introduction:

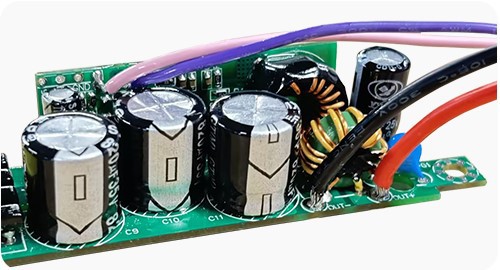

Effective EMC design eliminates problems caused by electromagnetic interference, increases equipment dependability and service life, and lowers maintenance and replacement costs.
Prolong the service life of capacitors. Good drive circuit design can prevent electrolytic capacitors from working under high load or unstable voltage, thereby reducing their aging speed and failure probability
Linear driver design can reduce unnecessary energy consumption and improve energy efficiency by optimizing circuit design and power management.

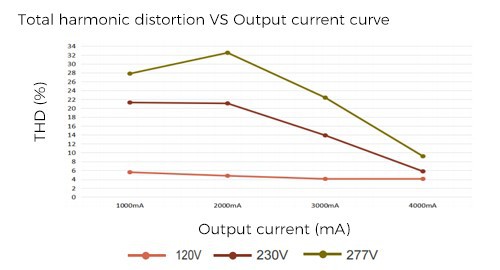

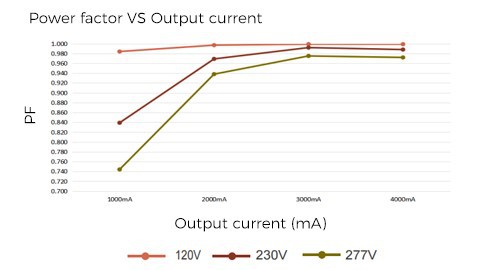

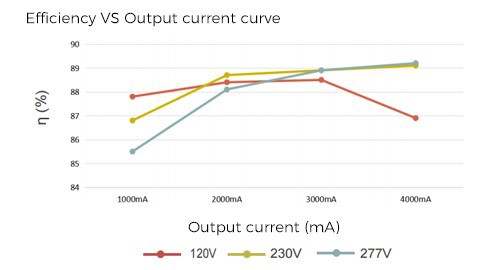

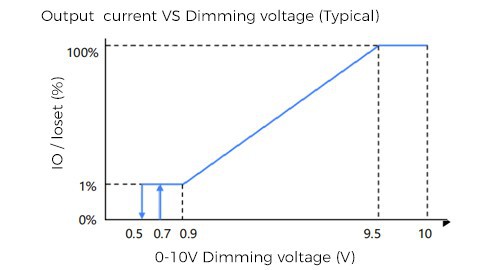

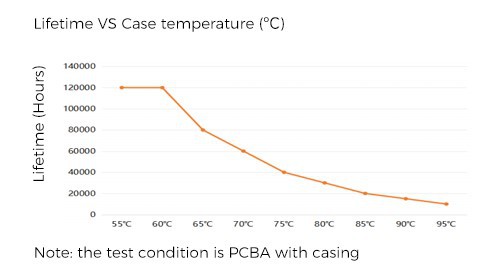

Electrical curve diagram:
Test at Ta 25℃ and output current 1200mA

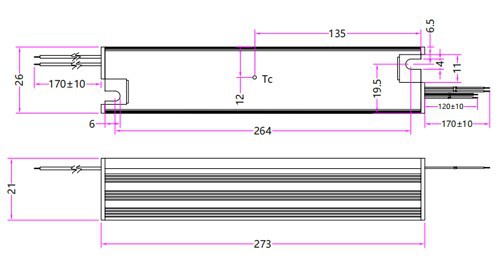

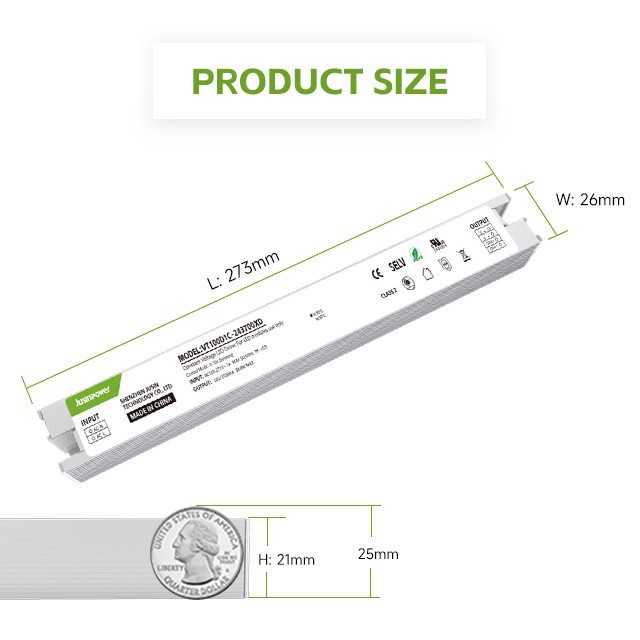

Dimension (mm):
Length: 274 Width: 25.5 Height: 21
Product Label
The product label contains detailed descriptions of wiring instructions and basic specification information to help users install and use the product correctly and ensure its safety and effectiveness

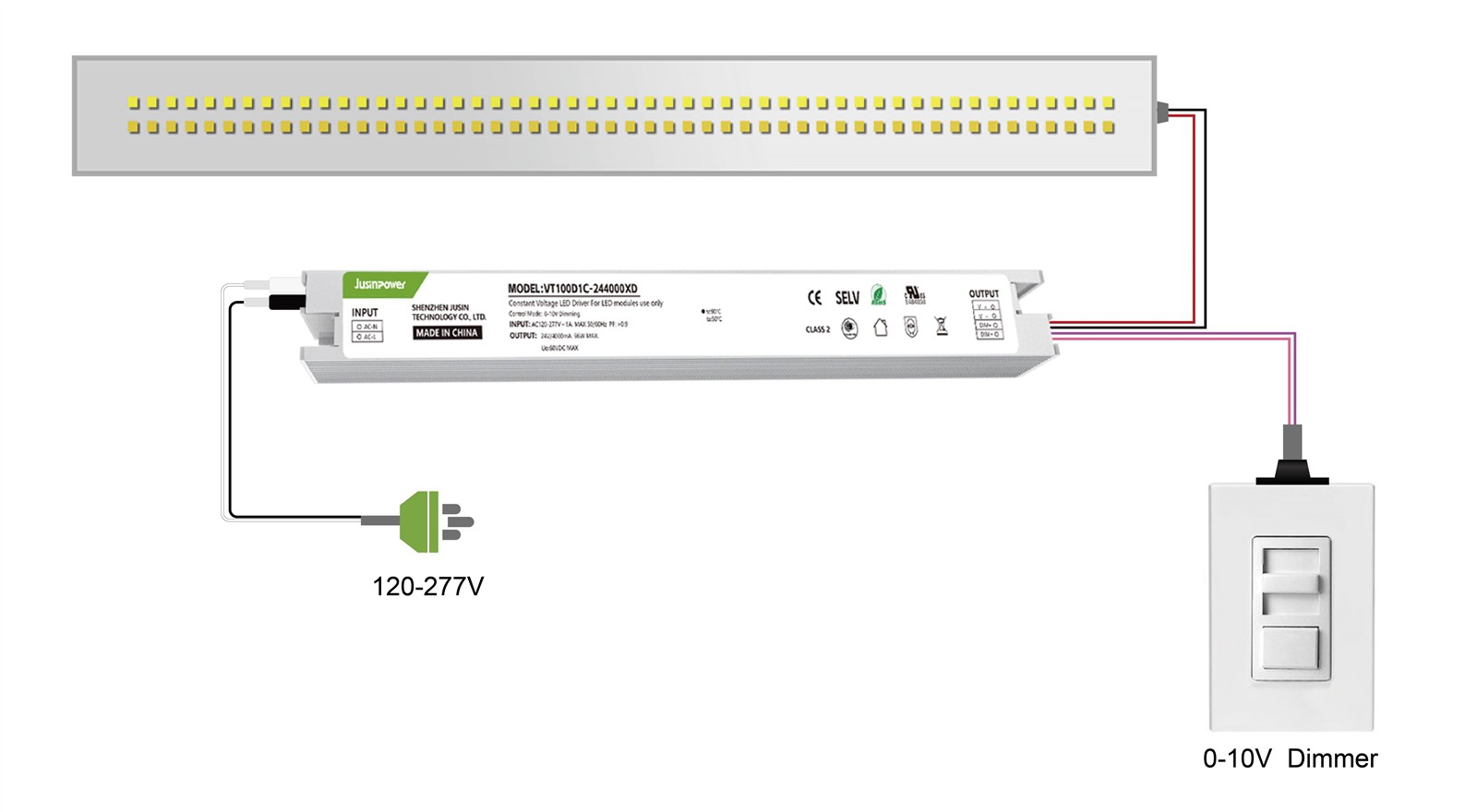

Wiring instructions：
The product has two connected ends: the AC input end is on one end, and the DC output and dimming signal input end is on the other. The positive and negative poles of the LED lamp fixture are linked to LED+ and LED-, respectively; 0-10V+ and 0-10V- are connected to Purple DIM+ and Pink DIM-, respectively.

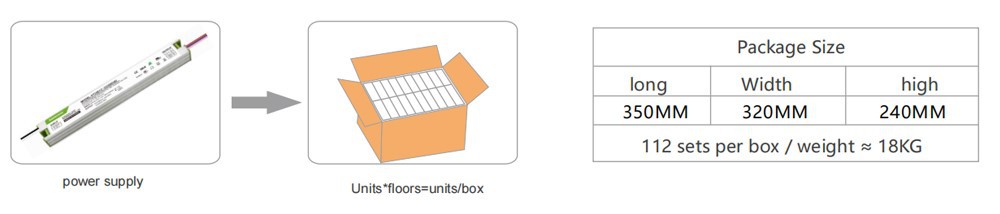

Product Packaging:
Hot Tags: constant voltage 0-10v dimmable led driver, China constant voltage 0-10v dimmable led driver manufacturers, suppliers, factory, 3 stage dimming, 6000K Dimming, power selectable, output voltage 30 54Vdc, UL CUL FCC, 60w dimmable led driver
VT100D1C
|
Performance |
||
|
Model |
VT100D1C-243700XD |
|
|
Input |
Voltage |
120-277Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
87%@120Vac full load |
|
|
89%@230Vac full load |
||
|
89%@277Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(30-100 %) full load |
|
|
≥ 0.9@230Vac/50Hz(50-100 %) full load |
||
|
≥ 0.9@277Vac/60Hz(50-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (30-100 %) full load |
|
|
<20 %@230Vac (50-100 %) full load |
||
|
<20 %@277Vac (50-100 %) full load |
||
|
AC Current (Max) |
0.90A@120Vac full load |
|
|
0.46A@230Vac full load |
||
|
0.38A@277Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
230V 25A peak,600us duration(10% Ipeak) |
||
|
277V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@277V |
|
|
Output |
/Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/3700mA/88.8W CV |
|
Ripple Voltage
|
<5% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<0.5S@277V ＜1S@120V |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V ON |
|
Dimming current |
<0.5mA@10V <1mA@0.7V |
|
|
Dimming range |
1%-100%(standard) |
|
|
Power regulation |
/ |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
273 mm |
|
Width |
26mm |
|
Height |
21 mm |
|
Weight (g) |
310g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Warranty Tc |
50000Hour (s)@TC:＜75℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|

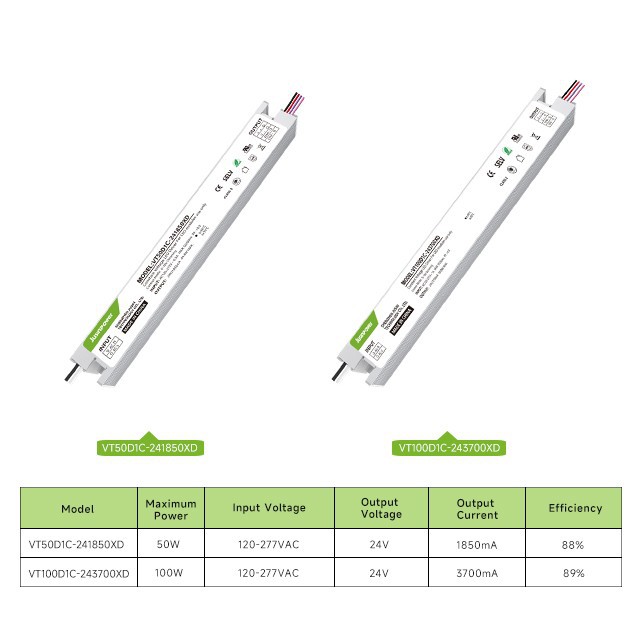

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Certification |
|
VT50D1C-242000XD |
48W |
120-277Vac |
24V |
2A |
0.9 |
88% |
L185*W25.5*H21 |
UL,FCC,CE,ROHS |
|
VT100D1C-244000XD |
96W |
120-277Vac |
24V |
4A |
0.9 |
89% |
L274*W25.5*H21 |
UL,FCC,CE,ROHS |

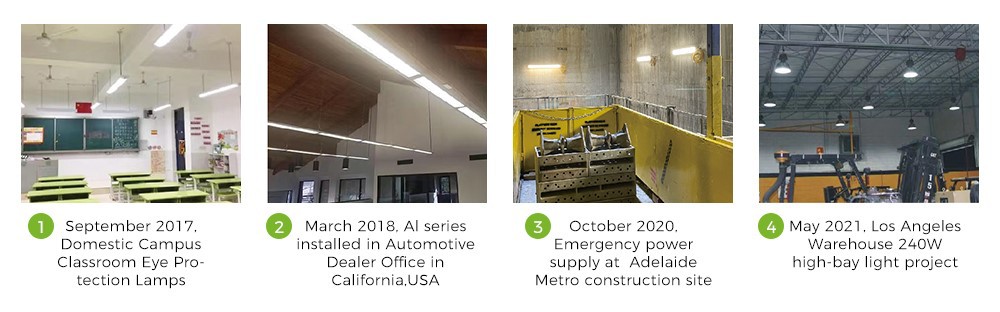

Successful Cases
