High Input Voltage 200-240Vac Constant Voltage LED Driver
Applicable to the global market with 200-240V AC input, it adapts to the high voltage standards of different countries or regions, ensuring that the drive can work stably and reliably under the power grid conditions of these regions. Especially in some countries and regions with high voltage standards, it reduces the problem of regional voltage incompatibility. It provides multiple protection functions such as over voltage protection, short circuit protection, over-temperature protection to ensure the safety of equipment and loads under extreme conditions.
Top Features and Benefits:
|
|
|
|
|
| Input 200-240Vac | Ultra-thin size | Constant voltage |
High PF & Low THD |
1. High input voltage 200-240Vac
2. Stable 24V Voltage Output
3. Class 2 power supply
4. Overload, short circuit and over temperature protection

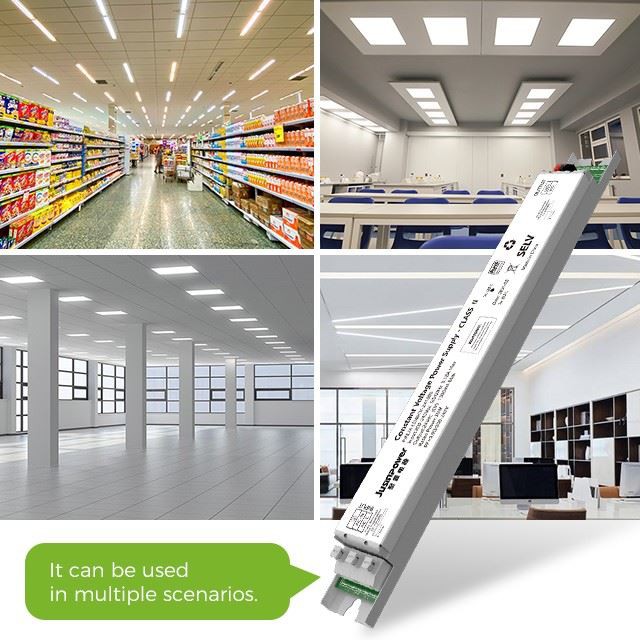

Application Scenario:

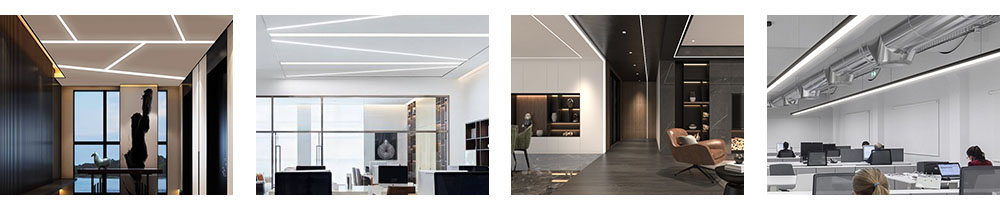

Suitable for linear lamps, such as decorative lighting in offices or shopping malls, the constant voltage power supply ensures stable brightness of the lamps and flexible installation.

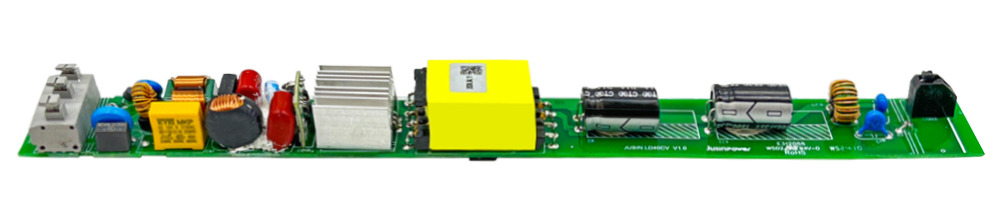

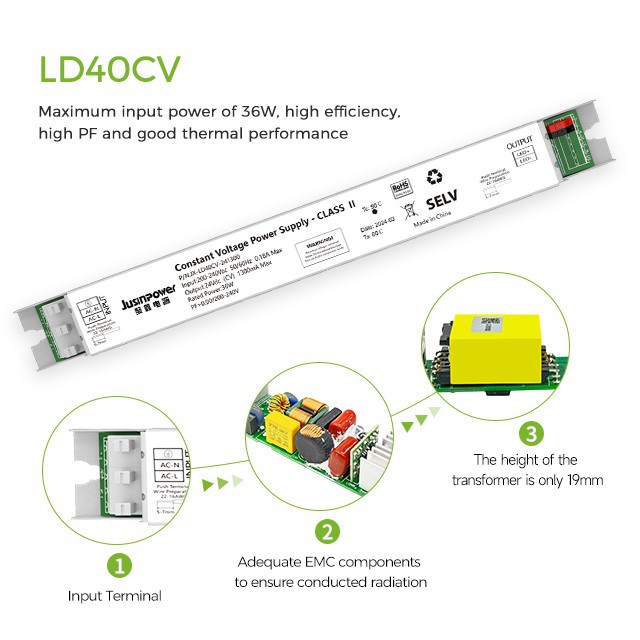

Product Details:

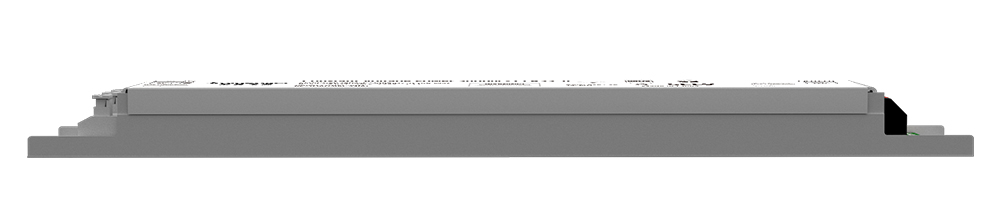

The height is only 21mm, suitable for small spaces

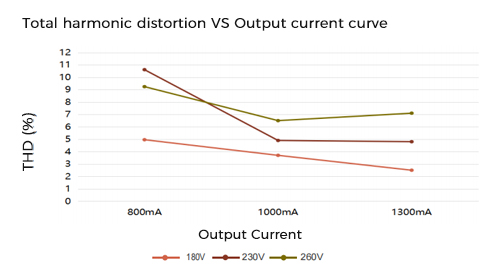

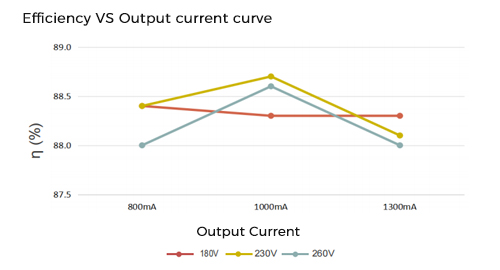

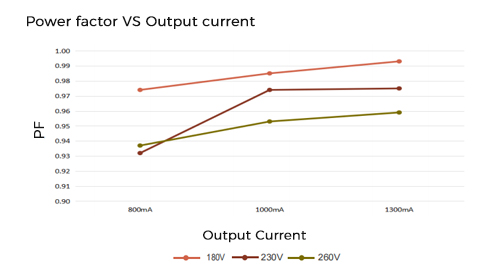

Electrical Curve Diagram:
Test at Ta 25℃, the output voltage is 24V, and the current is 800mA to1300mA

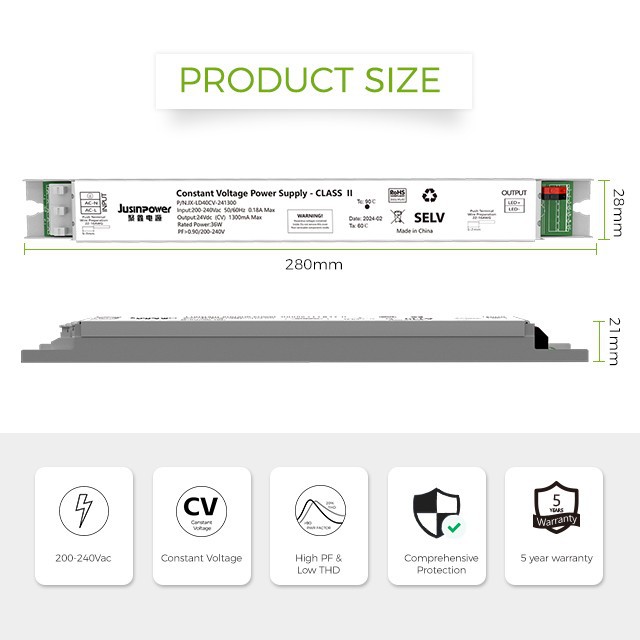

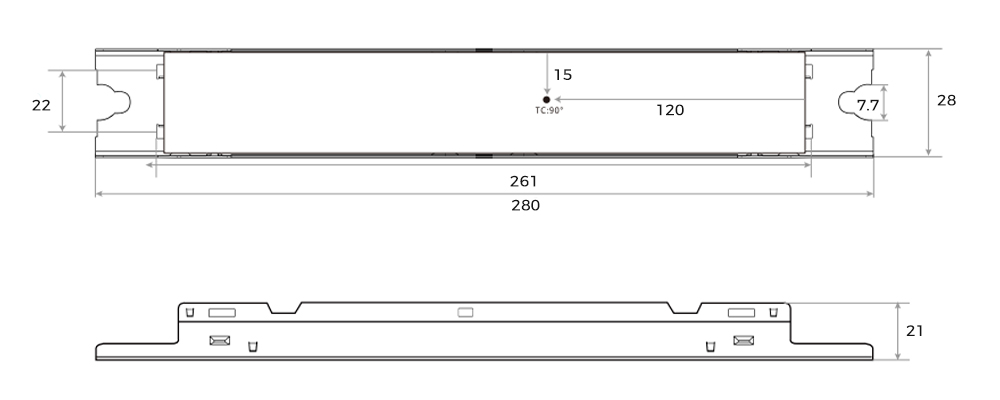

Dimension(mm):
Length: 280mm Width: 28mm Height: 21mm

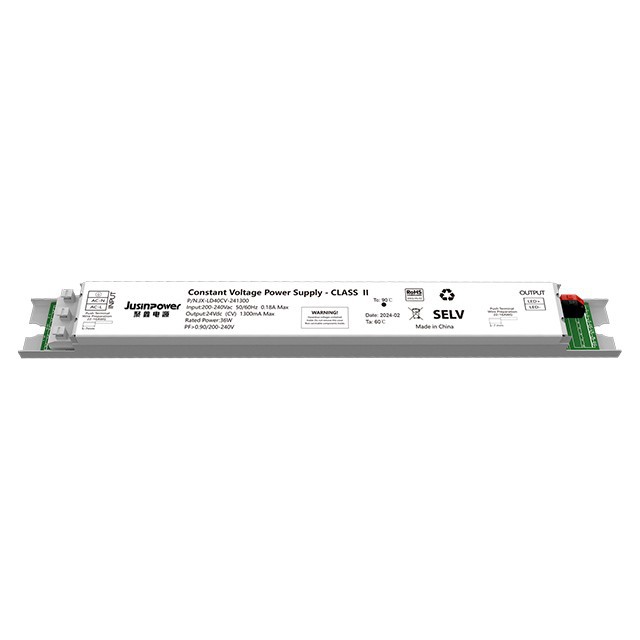

Product Label:

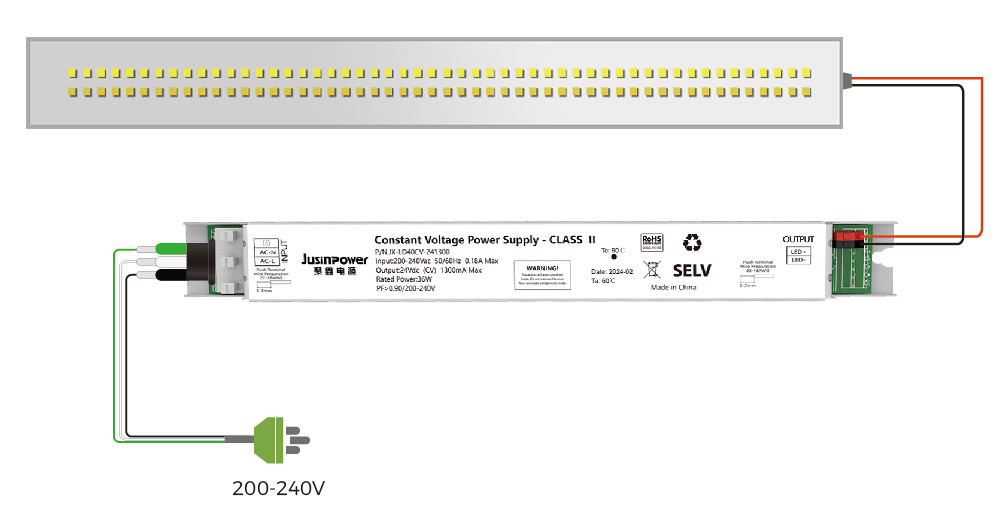

Wiring Instructions：
AC input terminal, this terminal is connected to the mains power(200-240Vac), and the other terminal is the DC output terminal + and -, which are connected to the positive and negative poles of the LED light respectively.

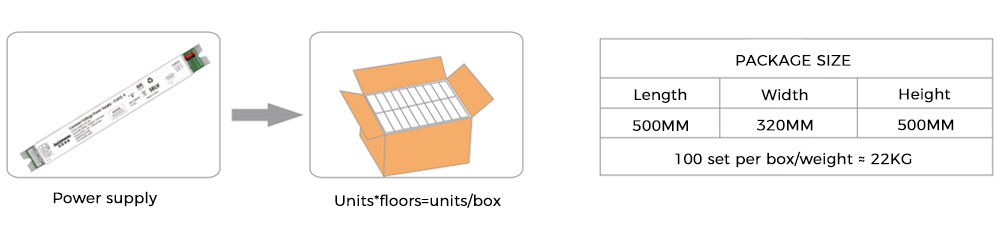

Product Packaging:
Hot Tags: high input voltage 200-240vac constant voltage led driver, China high input voltage 200-240vac constant voltage led driver manufacturers, suppliers, factory, 3CCT warm light, led strip driver 12v, dimming 0 10v, slim led strip driver, 3CCT select, 0 10v dimming ac or dc
LD40CV
|
Performance |
||
|
Model |
LD40CV-241300 |
|
|
Input |
Voltage |
200-240Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
88%@230Vac full load |
|
|
Power Factor |
≥0.9@230Vac full load |
|
|
THD (Full Load) |
<20 %@230Vac full load |
|
|
AC Current (Max) |
0.18A@230Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
230V 25A peak,600us duration(10% Ipeak) |
|
|
Leakage Current (Max) |
<0.5mA |
|
|
Output |
Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1300mA/44.4W Max CV |
|
Ripple Voltage
|
<30% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<1S@230V |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
280 mm |
|
Width |
28mm |
|
Height |
21 mm |
|
Weight (g) |
210g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Case temperature |
TC=50℃ |
|

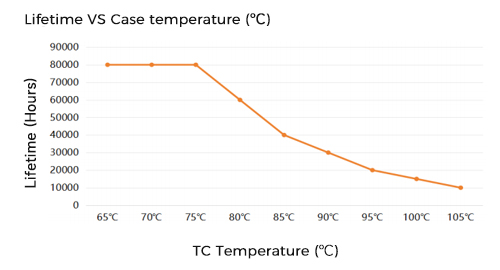

Warranty Tc |
50000Hour (s)@TC:＜80℃ |
|
Surge Protection |
L-N 1KV L/N-FG 2 KV |
|
Ip Rating |
IP20 |
|
Shell Material |
Ironclad |
|
Series Driver |
|
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Meet with |
|
LD40CV-241300 |
36W |
200-240Vac |
24V |
1300mA |
0.9 |
88% |
L280*W28*H21 |
UL,FCC,CE,ROHS |
Inspection

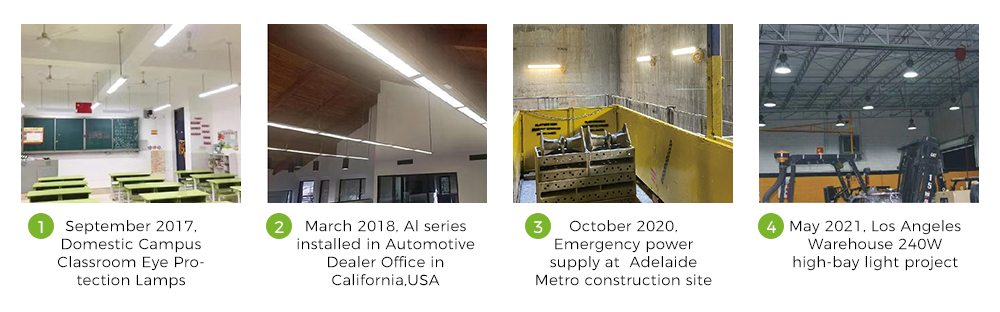

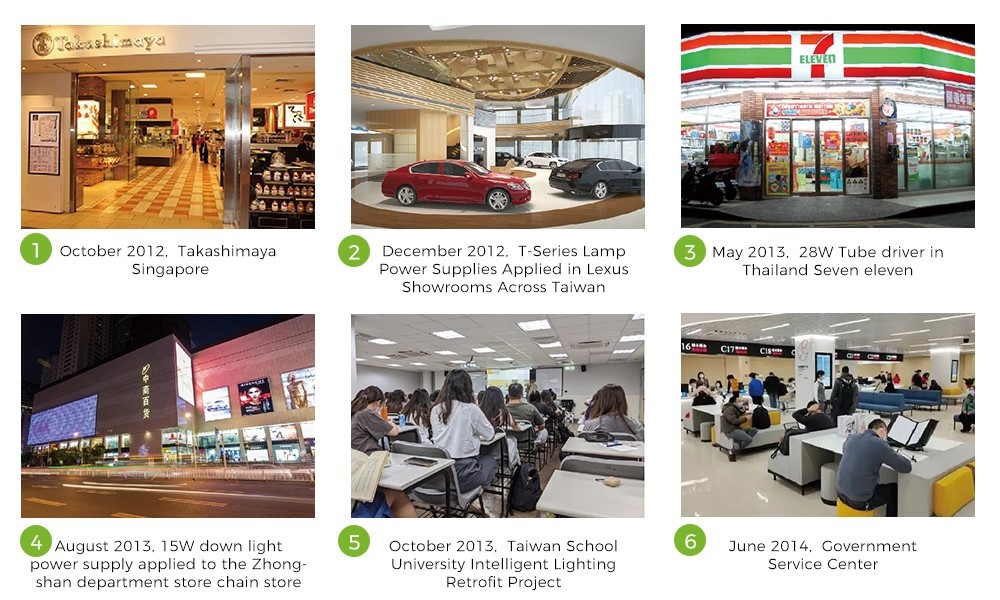

Successful Cases
