CV high PF flicker free led driver
This 1% deep dimming constant voltage LED driver provides 0-10V dimming and can handle up to 100W of input power. It features bipolar flicker-free operation, high power factor (PF>0.9) and low total harmonic distortion (THD). It is designed to interface with an external smart module and provides overload, short circuit and over temperature protection.

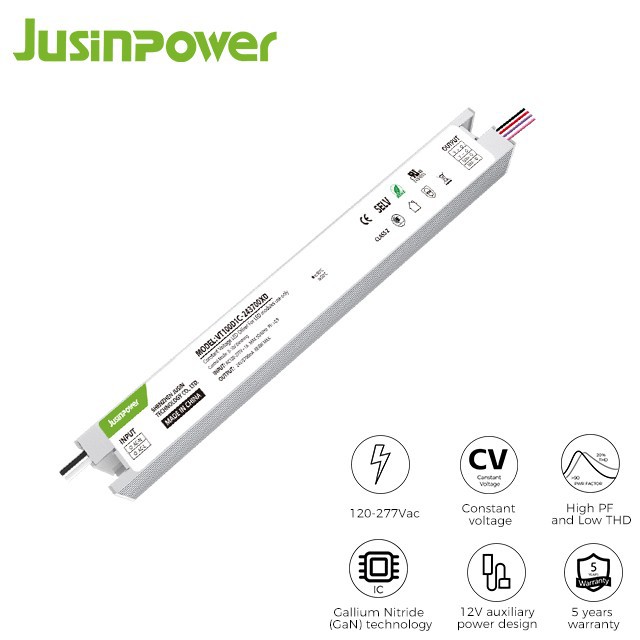

Top Features and Benefits:
|
|
|
|
|
|
Application of GaN (gallium nitride) solution |
High PF & Low THD |
1% deep dimming |
Ultra-thin size |
1. Supports up to 100W input power
2. 1% deep dimming with 0-10V control
3. PF > 0.9 for improved energy efficiency
4. Low THD for better power quality

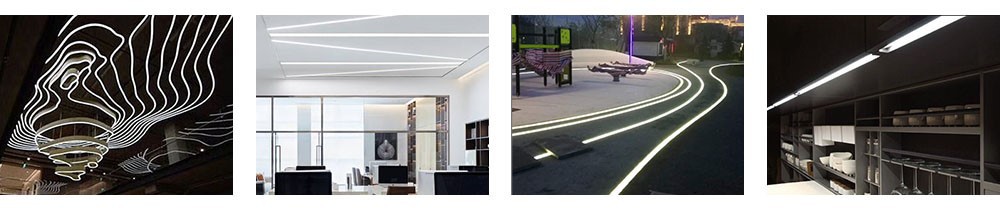

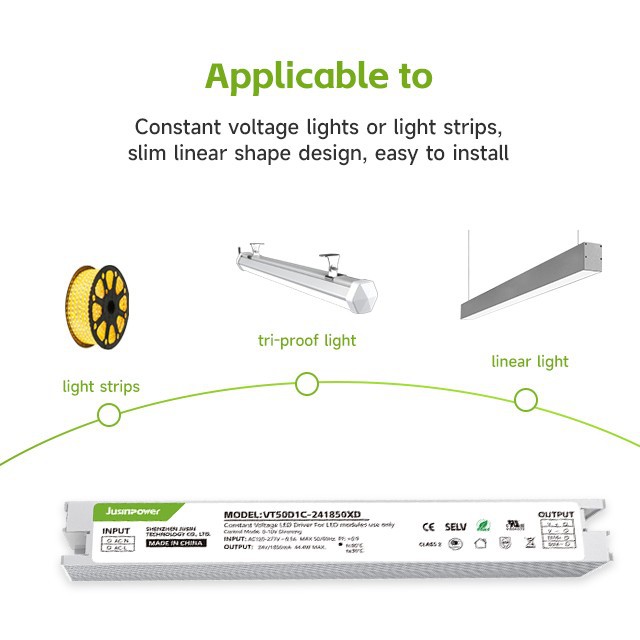

Application Scenario:
24V constant voltage power supply is widely used in various constant voltage lamps such as light strips, home decoration, cabinet lighting, commercial environment and outdoor lighting due to its stability and adaptability, providing functional and decorative light sources.

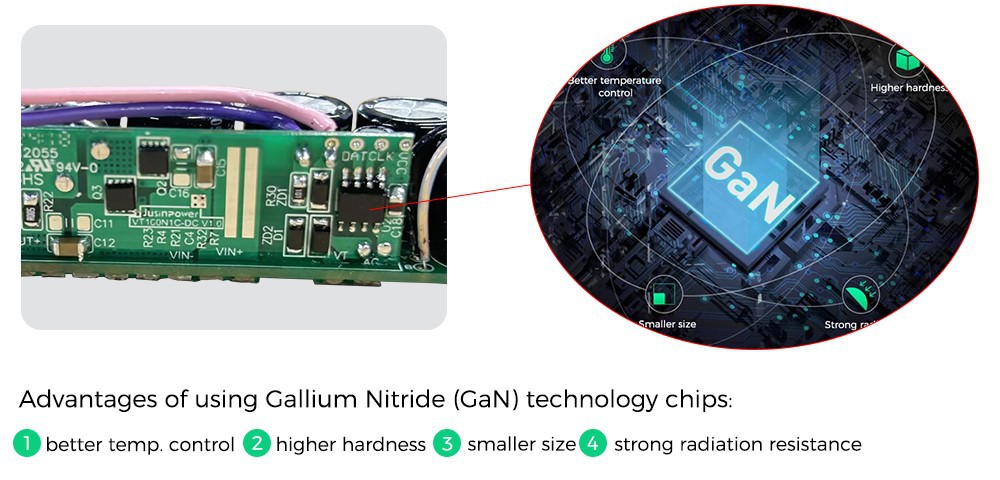

The chip uses the latest gallium nitride technology
Use smaller transformer, low switching loss, low temperature rise, high efficiency, ultra-small size, and maximum performance in the ultimate space

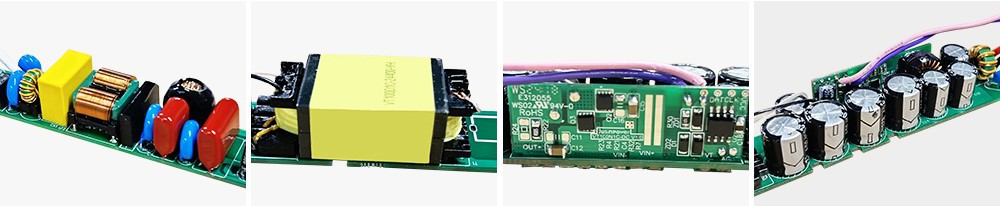

Internal structure introduction:
An excellent electromagnetic compatibility design reduces electromagnetic interference-related failures, increases the life and dependability of equipment, and reduces maintenance.
Extends the life of capacitors, prolongs the useful life of electrolytic capacitors, and reduces the frequency of maintenance and replacement

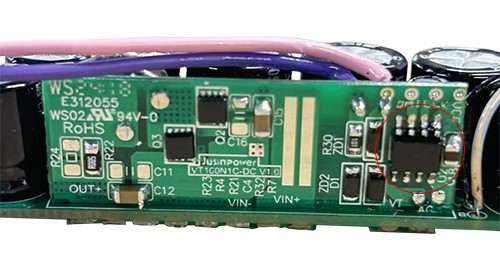

The chip is built with Gallium Nitride (GaN) technology, offering high-temperature resistance. It's ideal for high-power LED lighting fixtures

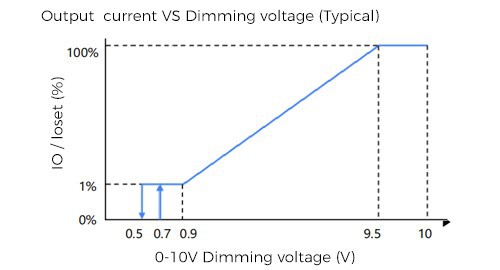

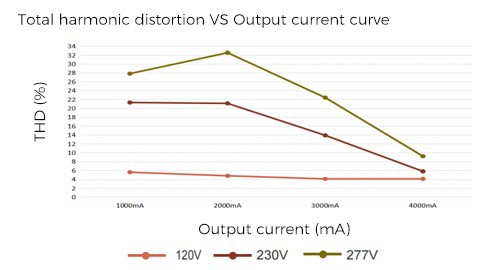

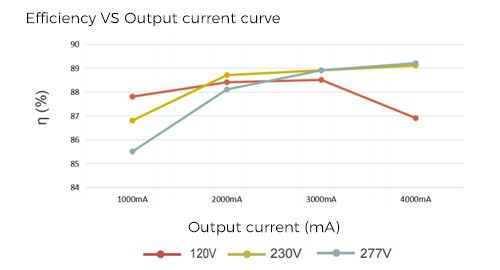

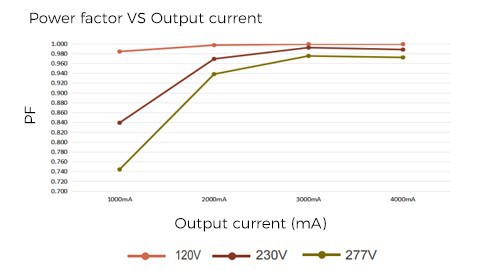

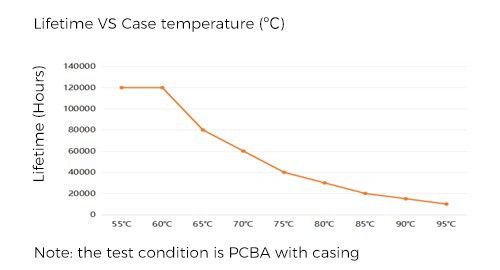

Electrical curve diagram:
Test at Ta 25℃ and output current 1200mA

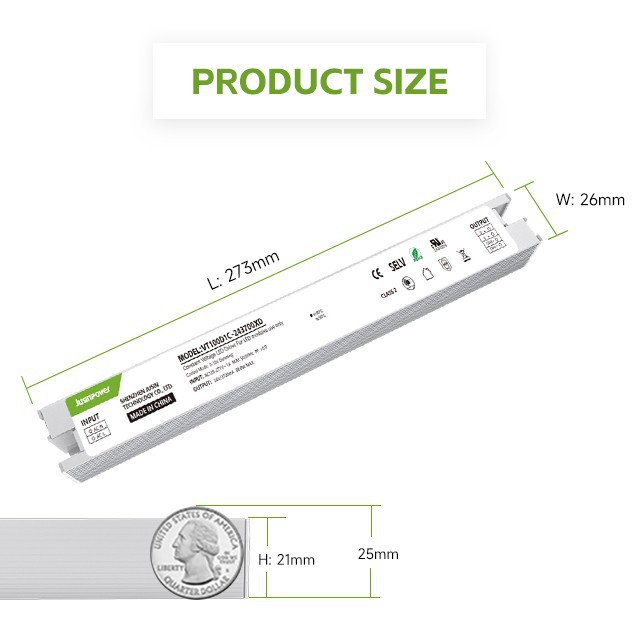

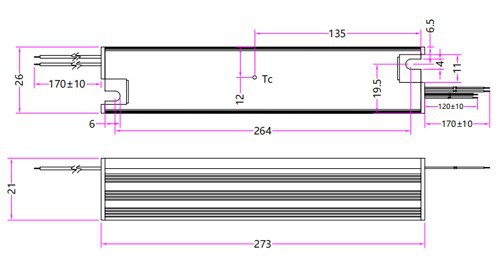

Dimension (mm):
Length: 274 Width: 25.5 Height: 21
Product Label
The product label contains detailed descriptions of wiring instructions and basic specification information to help users install and use the product correctly and ensure its safety and effectiveness

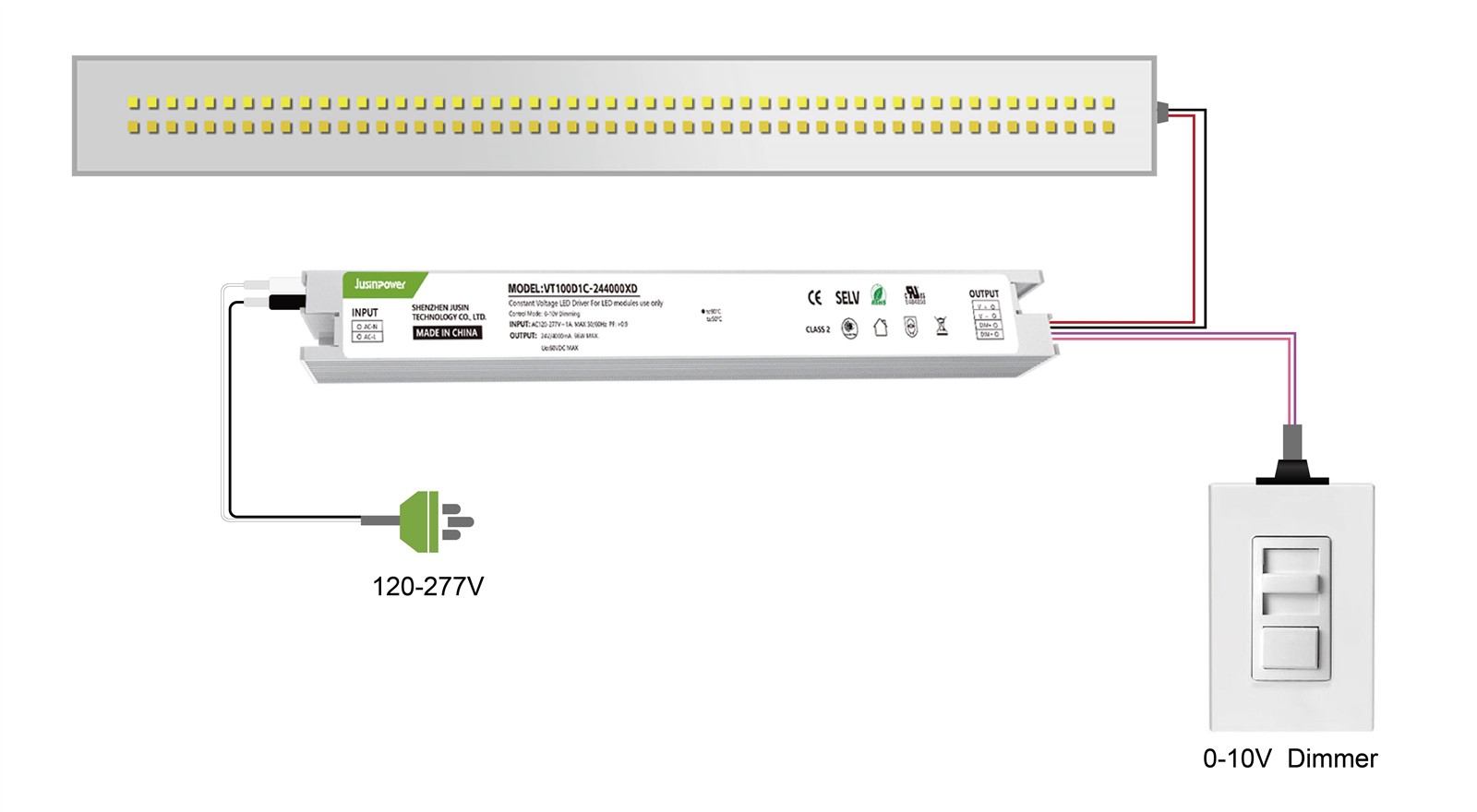

Wiring instructions：
The product has two connected ends: the AC input end is on one end, and the DC output and dimming signal input end is on the other. The positive and negative poles of the LED lamp fixture are linked to LED+ and LED-, respectively; 0-10V+ and 0-10V- are connected to Purple DIM+ and Pink DIM-, respectively.

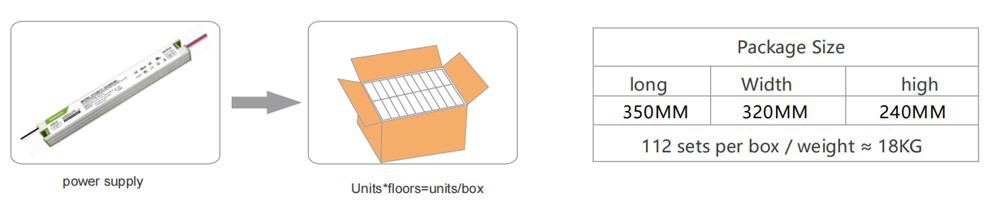

Product Packaging:
Hot Tags: cv high pf flicker free led driver, China cv high pf flicker free led driver manufacturers, suppliers, factory, 4500K selectable, Independent selection of current, Suitable for Grow Lights, 40W Tunable White LED Driver, Non segregated driver, 500ma sensor led driver
VT100D1C
|
Performance |
||
|
Model |
VT100D1C-243700XD |
|
|
Input |
Voltage |
120-277Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
87%@120Vac full load |
|
|
89%@230Vac full load |
||
|
89%@277Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(30-100 %) full load |
|
|
≥ 0.9@230Vac/50Hz(50-100 %) full load |
||
|
≥ 0.9@277Vac/60Hz(50-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (30-100 %) full load |
|
|
<20 %@230Vac (50-100 %) full load |
||
|
<20 %@277Vac (50-100 %) full load |
||
|
AC Current (Max) |
0.90A@120Vac full load |
|
|
0.46A@230Vac full load |
||
|
0.38A@277Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
230V 25A peak,600us duration(10% Ipeak) |
||
|
277V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@277V |
|
|
Output |
/Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/3700mA/88.8W CV |
|
Ripple Voltage
|
<5% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<0.5S@277V ＜1S@120V |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V ON |
|
Dimming current |
<0.5mA@10V <1mA@0.7V |
|
|
Dimming range |
1%-100%(standard) |
|
|
Power regulation |
/ |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
273 mm |
|
Width |
26mm |
|
Height |
21 mm |
|
Weight (g) |
310g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Warranty Tc |
50000Hour (s)@TC:＜75℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|

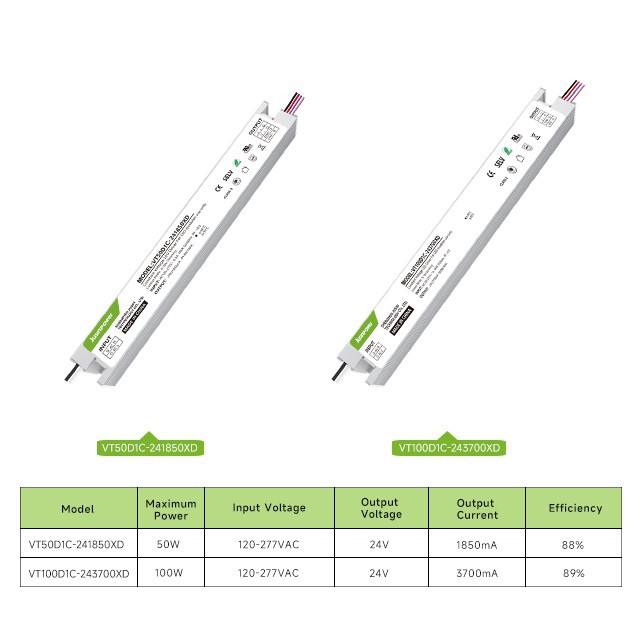

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Certification |
|
VT50D1C-242000XD |
48W |
120-277Vac |
24V |
2A |
0.9 |
88% |
L185*W25.5*H21 |
UL,FCC,CE,ROHS |
|
VT100D1C-244000XD |
96W |
120-277Vac |
24V |
4A |
0.9 |
89% |
L274*W25.5*H21 |
UL,FCC,CE,ROHS |
