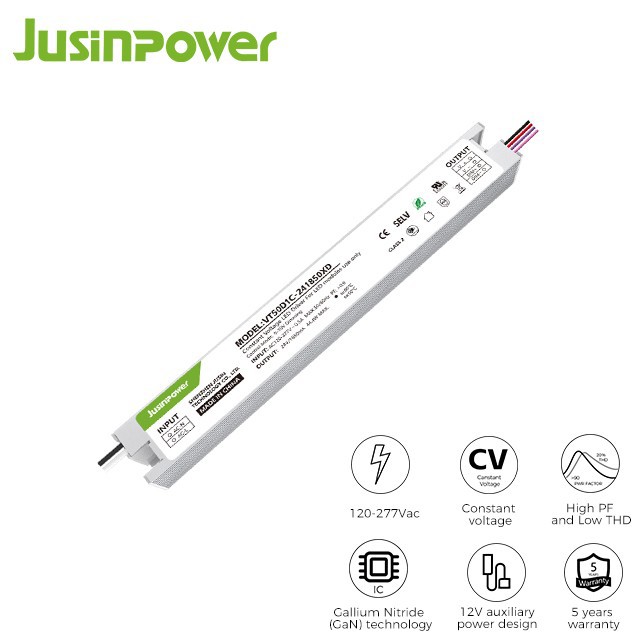

Compact size constant voltage led drivers

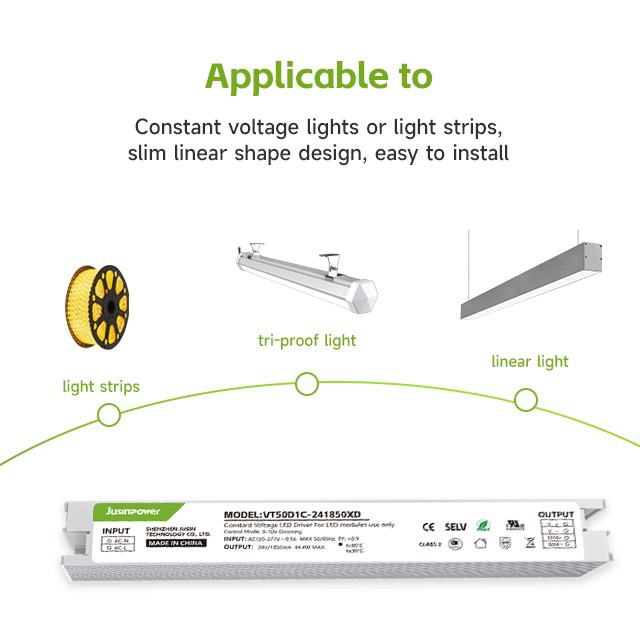

It is classified as a Class 2 power supply that operates in the input voltage range of 120-277Vac and as its compact size, is suitable for a variety of commercial indoor applications such as tri-proof lights and linear luminaries. The driver is equipped with an aluminum housing that requires proper insulation protection during use
Top Features and Benefits:
|
|
|
|
|
|
Application of GaN (gallium nitride) solution |
Input 120-277Vac |
5 years warranty |
Flicker free |
1.Comprehensive Protection
2.Operates on 120-277Vac input voltage
3.Ensures safety and reliability in various applications
4.Aluminum housing with necessary insulation protection

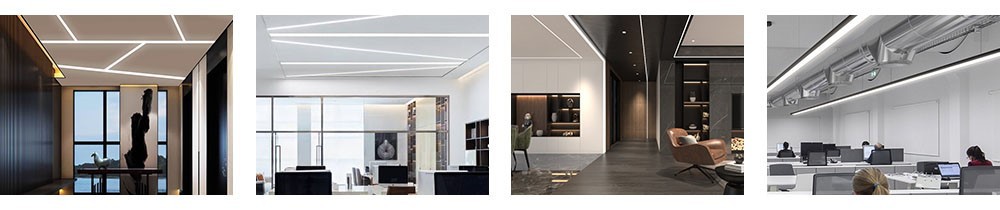

Application Scenario:
It is suitable for a variety of design schemes such as straight lines and curves, and is widely used in various scenes such as home,business,office,and outdoor application.

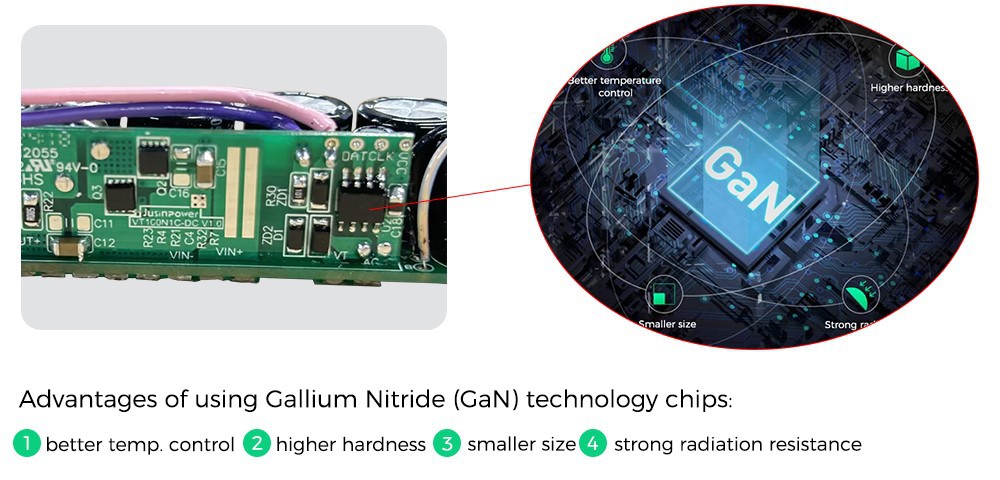

The chip uses the latest gallium nitride technology
Suitable for ultra-small fixture spaces, low switching losses, low temperature rise, high efficiency, maximum performance in the smallest available space

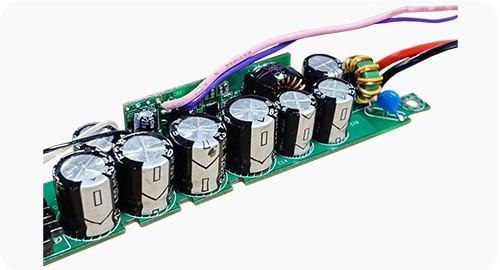

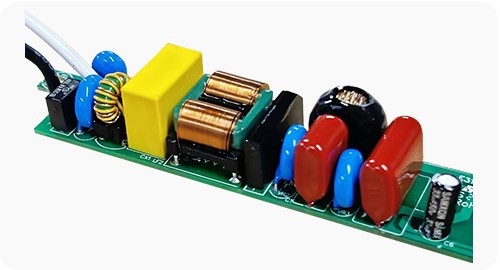

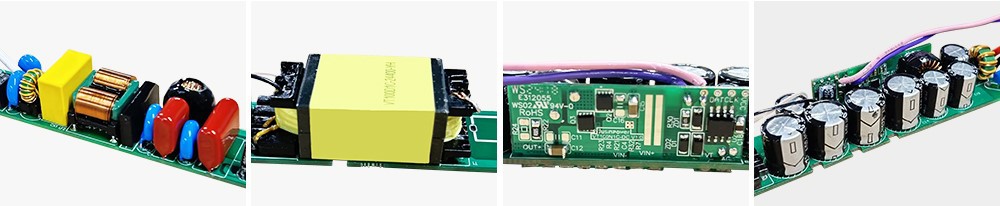

Internal structure introduction:
The accurate electromagnetic compatibility (EMC) design enhances its anti-interference capacity and dependability.
Increase the service life of capacitors. A good drive circuit design can keep electrolytic capacitors from operating under high loads or unpredictable voltages, minimizing their aging rate and failure likelihood.

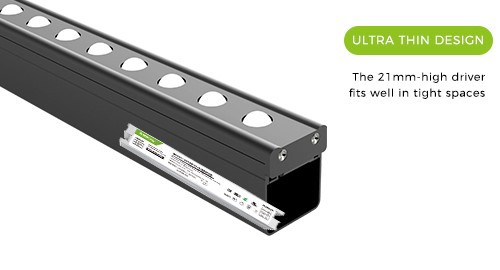

1.Linear small form factor LED drivers are suited for space-constrained applications like ultra-thin Linear lights and compact lighting systems.

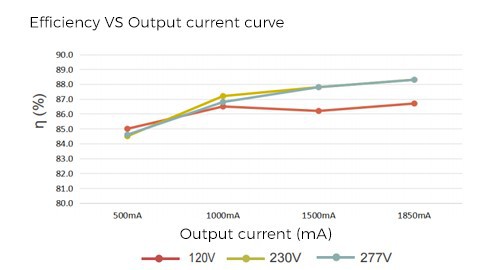

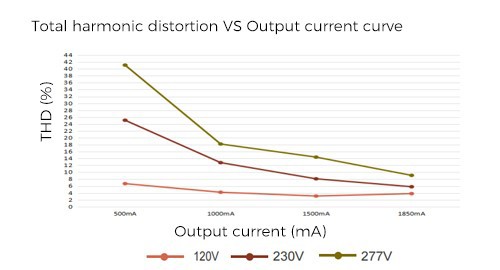

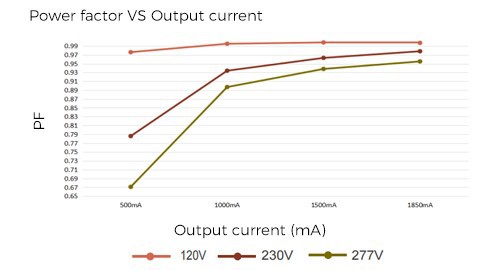

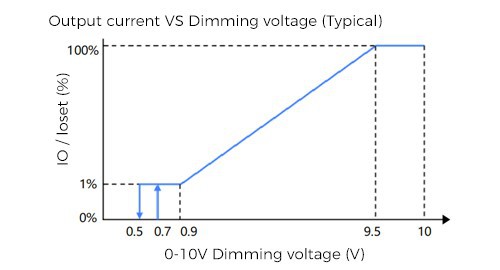

Electrical curve diagram:
At TA 25℃, the output voltage is 24V, and the current is 500mA to 1850mA

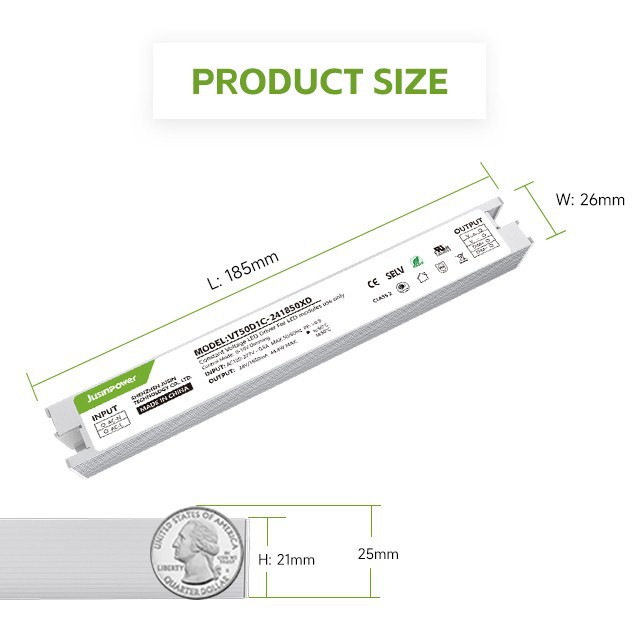

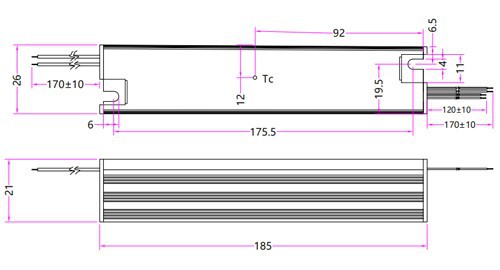

Dimension (mm):
Length: 185 Width: 25.5 Height: 21

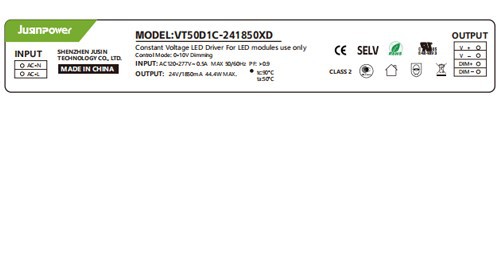

Product Label
To ensure the product's safety and efficacy during installation and usage, users can find comprehensive wiring instructions and basic specification information on the product label.

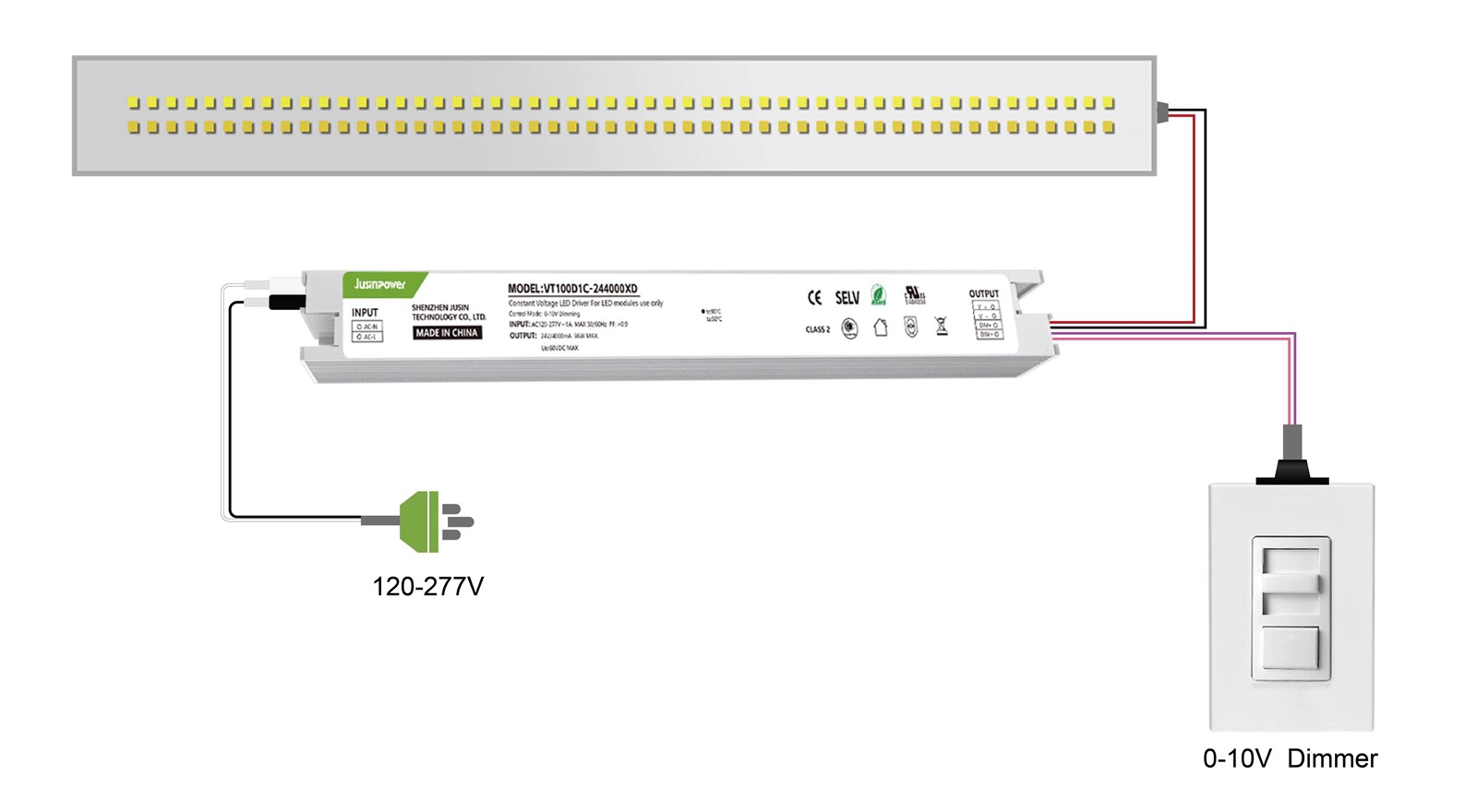

Wiring instructions：
The two ends of the product are connected, one end is the AC input end, the other end is the DC output and dimming signal input end. LED+, LED- respectively connected to the positive and negative poles of the LED lamp; Purple DIM+ is connected to 0-10V+, Pink DIM- is connected to 0-10V-.
Product Packaging:
Hot Tags: compact size constant voltage led drivers, China compact size constant voltage led drivers manufacturers, suppliers, factory, Non isolated Flicker Free Sensor Driver, 0 01 dimming, FCC certification, no strobe, 60W Tunable White LED Driver, 75W power source
VT50D1C
|
Performance |
||
|
Model |
VT50D1C-241850XD |
|
|
Input |
Voltage |
120-277Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
87%@120Vac full load |
|
|
88%@230Vac full load |
||
|
88%@277Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(30-100 %) full load |
|
|
≥ 0.9@230Vac/50Hz(60-100 %) full load |
||
|
≥ 0.9@277Vac/60Hz(60-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (30-100 %) full load |
|
|
<20 %@230Vac (60-100 %) full load |
||
|
<20 %@277Vac (60-100 %) full load |
||
|
AC Current (Max) |
0.46A@120Vac full load |
|
|
0.24A@230Vac full load |
||
|
0.19A@277Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
230V 25A peak,600us duration(10% Ipeak) |
||
|
277V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@277V |
|
|
Output |
/Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1850mA/44.4W CV |
|
Ripple Voltage
|
<5% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<0.5S@277V ＜1S@120V |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V ON |
|
Dimming current |
<0.5mA@10V <1mA@0.7V |
|
|
Dimming range |
1%-100%(standard) |
|
|
Power regulation |
/ |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
185 mm |
|
Width |
26mm |
|
Height |
21 mm |
|
Weight (g) |
145g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|

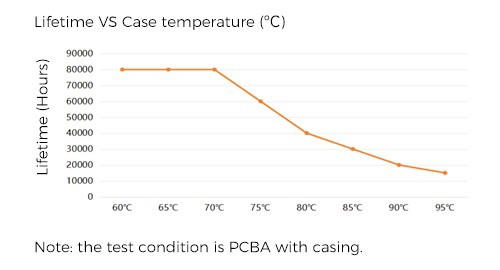

Warranty Tc |
50000Hour (s)@TC:＜75℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Certification |
|
VT50D1C-242000XD |
48W |
120-277Vac |
24V |
2A |
0.9 |
88% |
L185*W25.5*H21 |
UL,FCC,CE,ROHS |
|
VT100D1C-244000XD |
96W |
120-277Vac |
24V |
4A |
0.9 |
89% |
L274*W25.5*H21 |
UL,FCC,CE,ROHS |

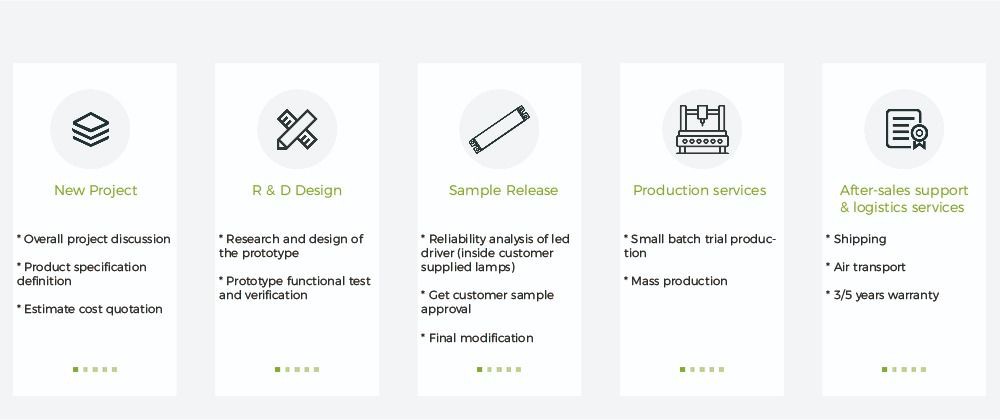

OEM/ODM
