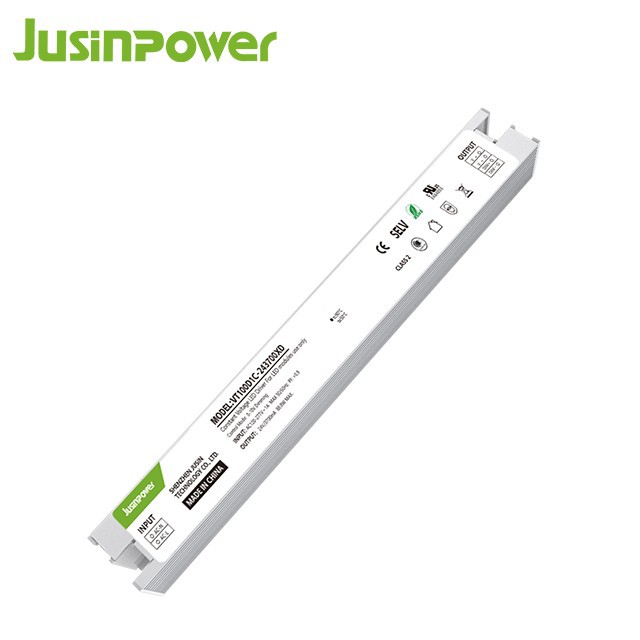

24V 100W dimmable led driver
This constant voltage power supply has 50w and 100w options, and the output voltage is 24V. It has the characteristics of High Efficiency, Reliability & Flexibility. And its size is compact and slender, and it can stably output 1%-100% dimming current, which is more suitable for wall washers, light strips, and indoor linear lights.
Top Features and Benefits:
|
|
|
|
|
|
Application of GaN (gallium nitride) solution |
High PF & Low THD |
1% deep dimming |
Ultra-thin size |
1. Compact and slender size
2. High Efficiency, Reliability & Flexibility
3. 50w-100w constant voltage led driver
4.Output 1% deep dimming current

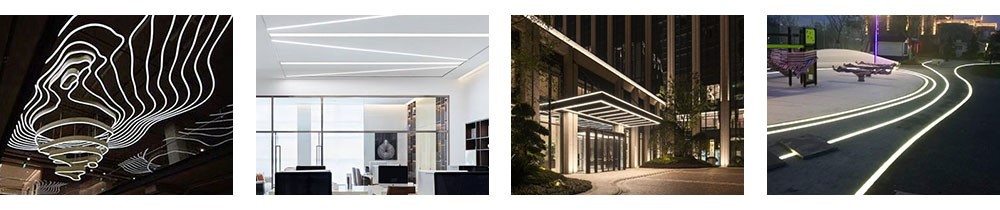

Application Scenario:
The slender constant voltage product is suitable for light strips, which can be used in a variety of scenarios, such as home decoration, commercial lighting, outdoor landscape, etc. It is suitable for various creative design and decoration needs and has high adaptability.

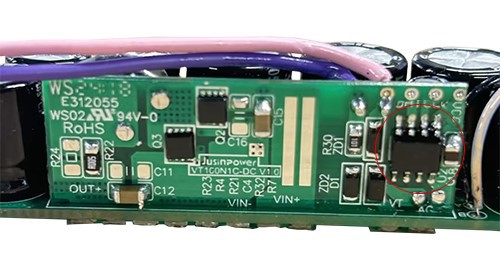

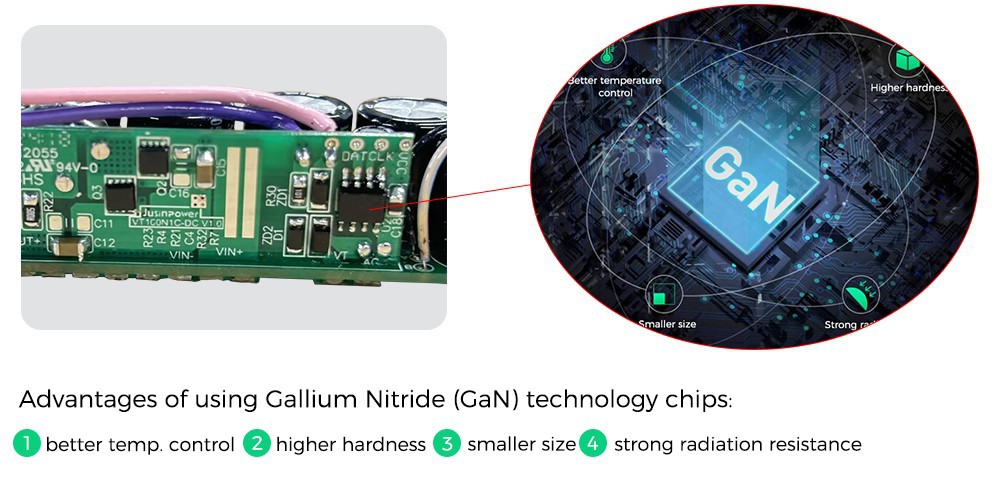

The chip uses the latest gallium nitride technology
The chip uses GaN (gallium nitride) scheme. Smaller volume with the same power, low temperature rise, long life, high efficiency under light load, energy saving

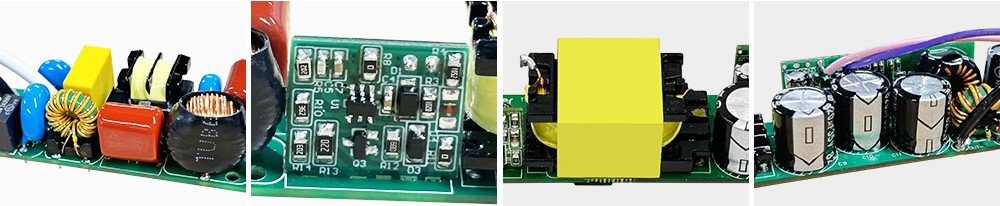

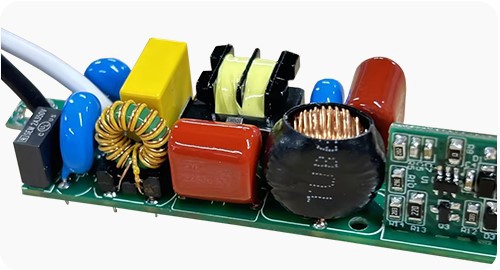

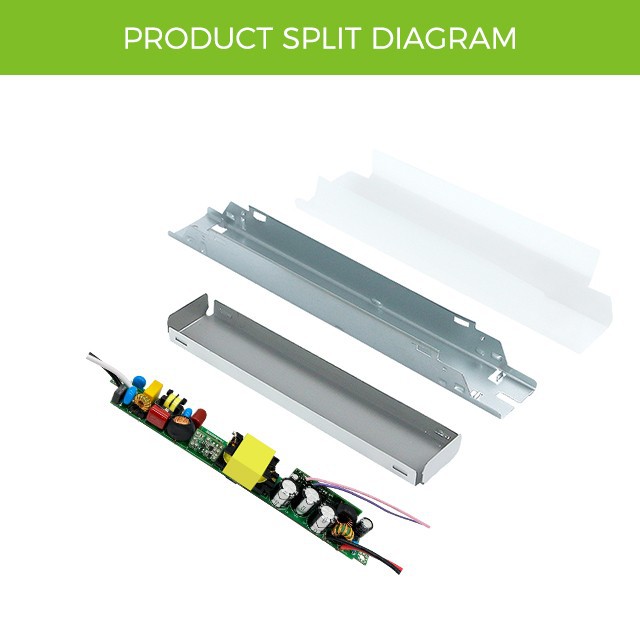

Internal structure introduction:
The precision electromagnetic compatibility (EMC) design enhances its anti-interference ability and reliability.

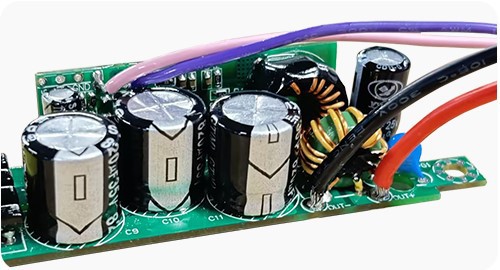

Use large-capacity capacitors to ensure driver life 10000h
Linear small form factor LED drivers are suited for space-constrained applications like ultra-thin Linear lights and compact lighting systems.

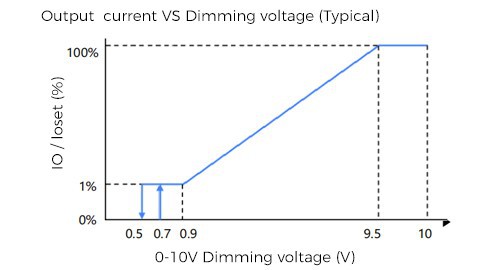

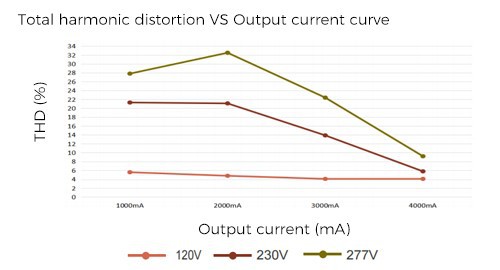

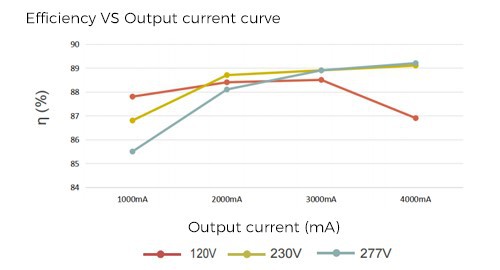

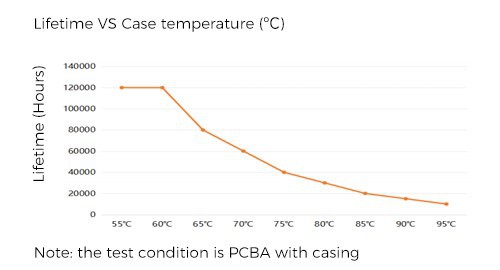

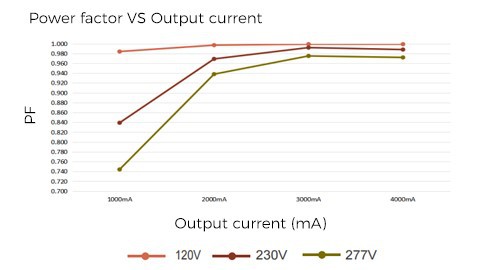

Electrical curve diagram:
Test at Ta 25℃ and output current 1200mA

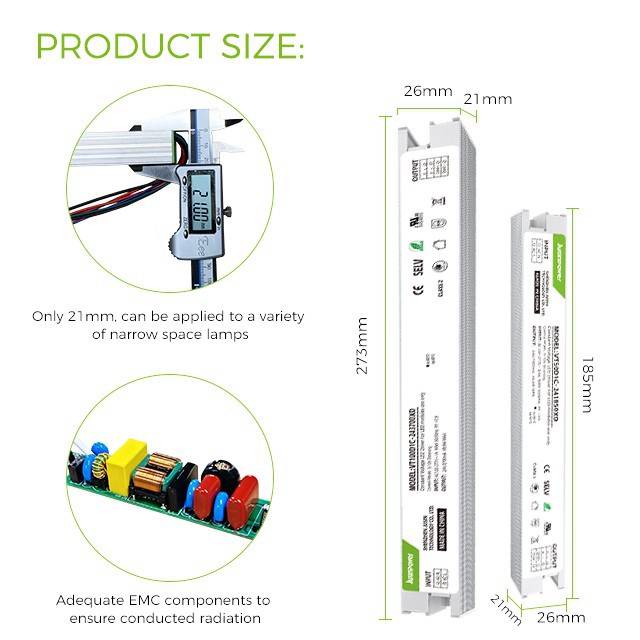

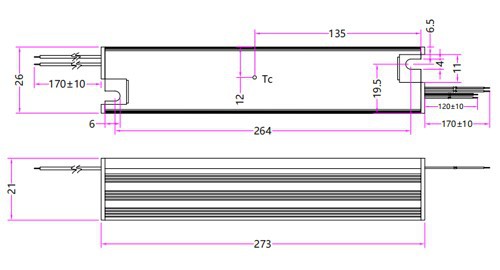

Dimension (mm):
Length: 274 Width: 25.5 Height: 21

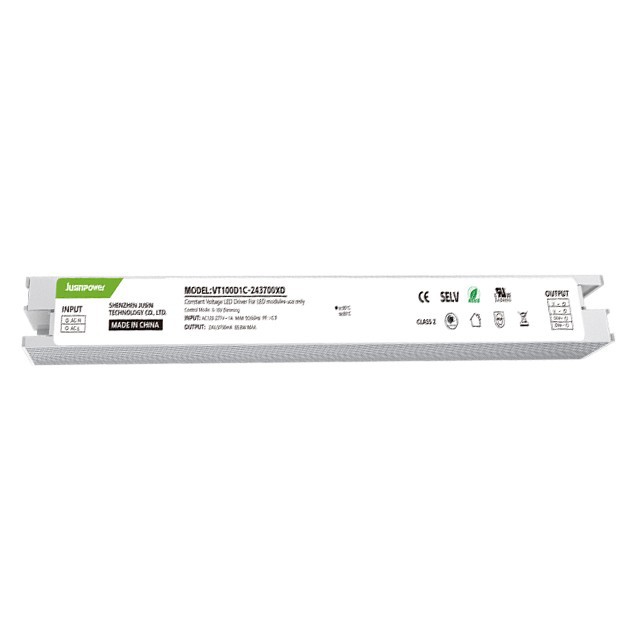

Product Label
The product label contains detailed descriptions of wiring instructions and basic specification information to help users install and use the product correctly and ensure its safety and effectiveness

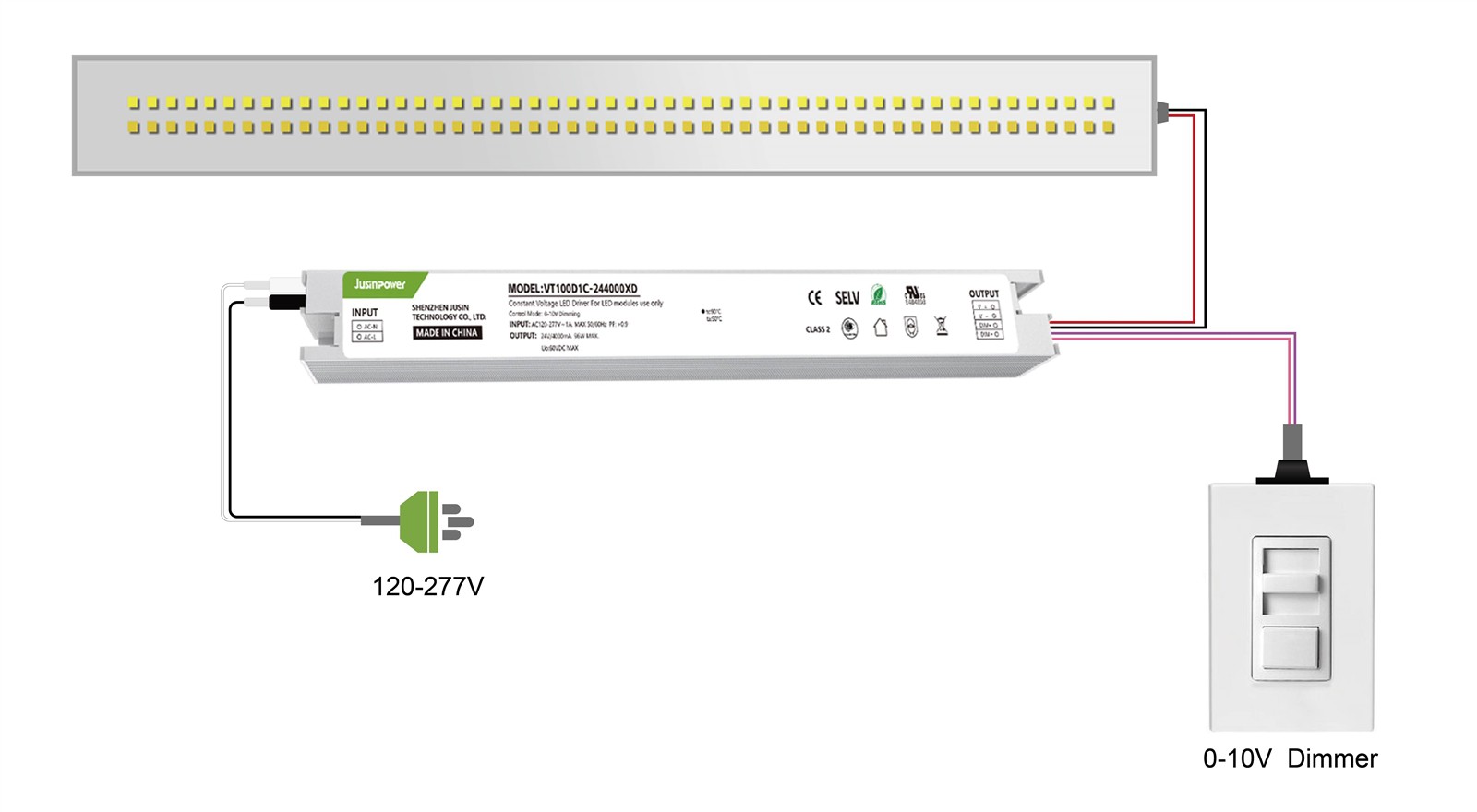

Wiring instructions：
The product has two connected ends: the AC input end is on one end, and the DC output and dimming signal input end is on the other. The positive and negative poles of the LED lamp fixture are linked to LED+ and LED-, respectively; 0-10V+ and 0-10V- are connected to Purple DIM+ and Pink DIM-, respectively.

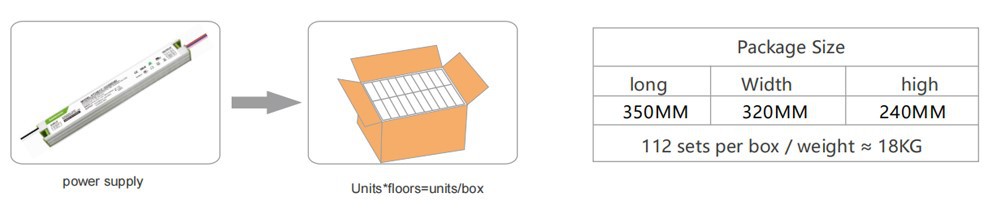

Product Packaging:
Hot Tags: 24v 100w dimmable led driver, China 24v 100w dimmable led driver manufacturers, suppliers, factory, Plant Light led Driver, efficiency 92 , cct tunable led driver, driver for led strip lights, up and down cct, led driver pwm dimming
VT100D1C
|
Performance |
||
|
Model |
VT100D1C-243700XD |
|
|
Input |
Voltage |
120-277Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
87%@120Vac full load |
|
|
89%@230Vac full load |
||
|
89%@277Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(30-100 %) full load |
|
|
≥ 0.9@230Vac/50Hz(50-100 %) full load |
||
|
≥ 0.9@277Vac/60Hz(50-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (30-100 %) full load |
|
|
<20 %@230Vac (50-100 %) full load |
||
|
<20 %@277Vac (50-100 %) full load |
||
|
AC Current (Max) |
0.90A@120Vac full load |
|
|
0.46A@230Vac full load |
||
|
0.38A@277Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
230V 25A peak,600us duration(10% Ipeak) |
||
|
277V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@277V |
|
|
Output |
/Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/3700mA/88.8W CV |
|
Ripple Voltage
|
<5% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<0.5S@277V ＜1S@120V |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V ON |
|
Dimming current |
<0.5mA@10V <1mA@0.7V |
|
|
Dimming range |
1%-100%(standard) |
|
|
Power regulation |
/ |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
273 mm |
|
Width |
26mm |
|
Height |
21 mm |
|
Weight (g) |
310g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Warranty Tc |
50000Hour (s)@TC:＜75℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Certification |
|
VT50D1C-242000XD |
48W |
120-277Vac |
24V |
2A |
0.9 |
88% |
L185*W25.5*H21 |
UL,FCC,CE,ROHS |
|
VT100D1C-244000XD |
96W |
120-277Vac |
24V |
4A |
0.9 |
89% |
L274*W25.5*H21 |
UL,FCC,CE,ROHS |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.

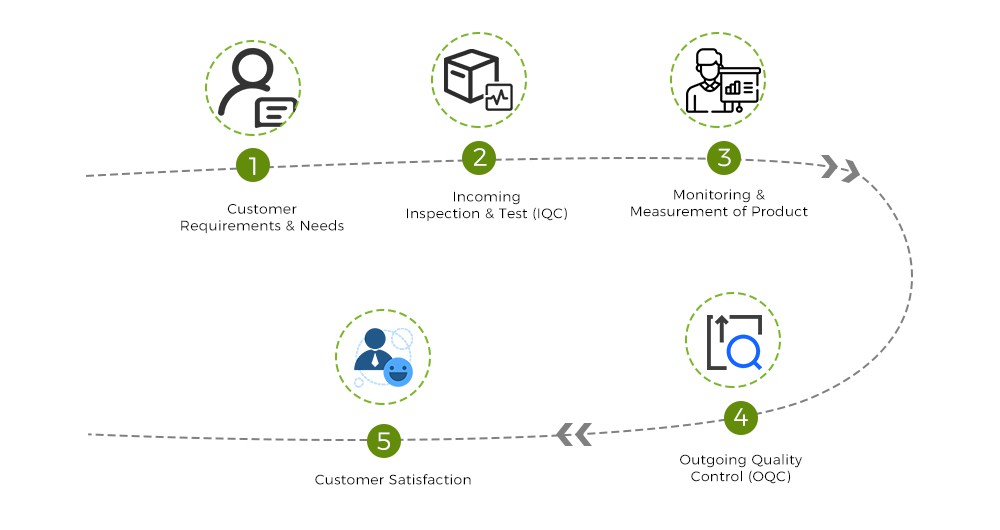

QC Process Flow Chart
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.

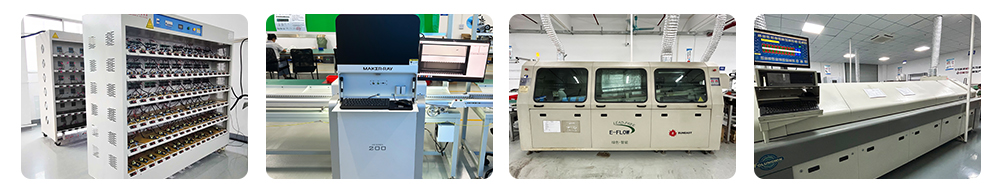

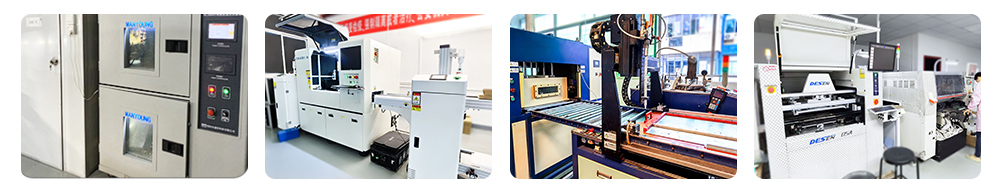

Factory
