120.Linear Three-phase Power 220V/380V LED Drivers
Linear LED drivers designed for 380Vac input three-phase power. These drivers are engineered to deliver consistent, reliable power to LED modules in industrial and commercial lighting applications. They are ideal for installations that require stable, high-efficiency performance in environments with a three-phase power supply, ensuring optimal energy consumption and enhanced longevity of LED lights.
1. 380Vac Three phase electricity power
2.High surge protections: L-N: 6kV; L/N-GND:4kV
3.Iron shell, glue filling design, good heat dissipation
4.Suitable for mains voltage peaks (burst/surge) up to 4KV

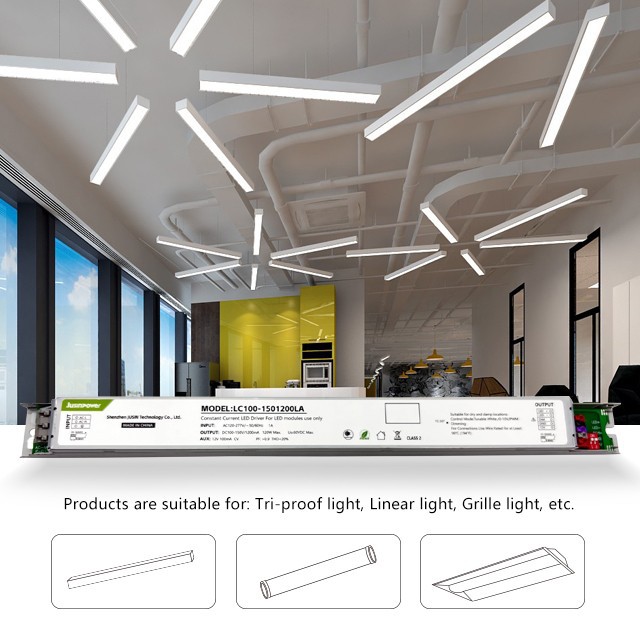

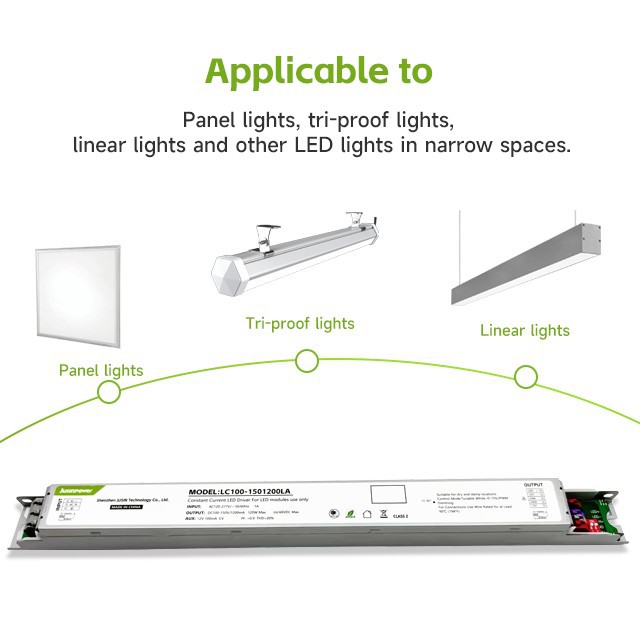

Application Scenario:

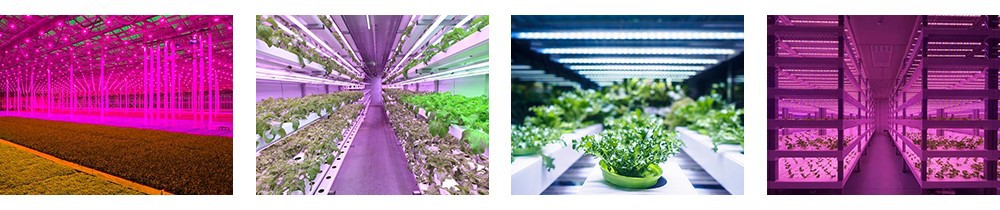

Agricultural lighting: In greenhouses or vertical farms, plant growth lights need to run for a long time and provide stable lighting. 380V three-phase electric drive can support high-power LED plant lights to ensure efficient operation of the lamps.
Product Details:

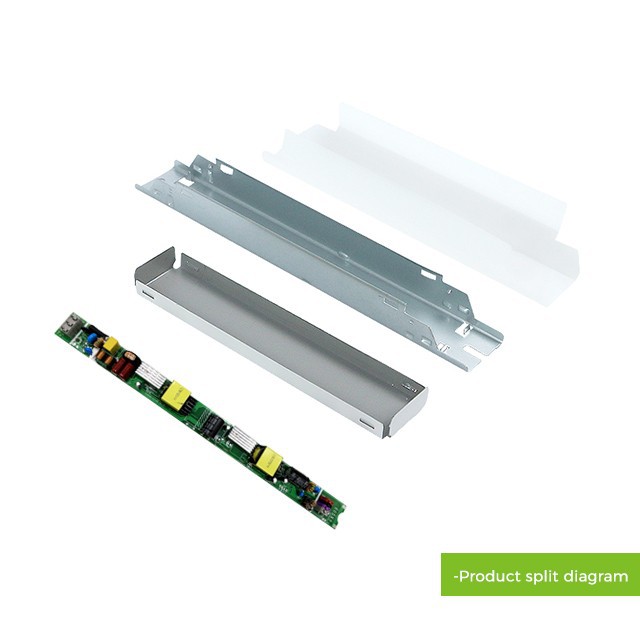

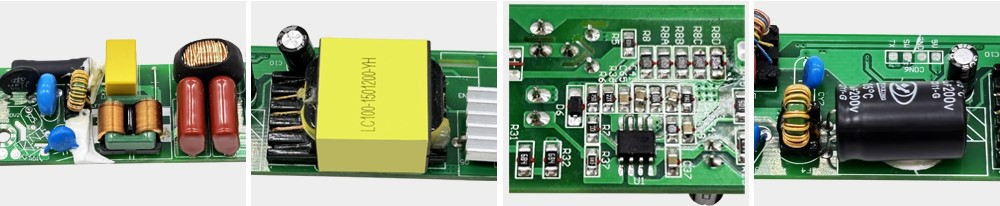

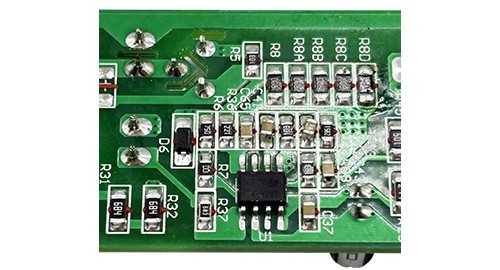

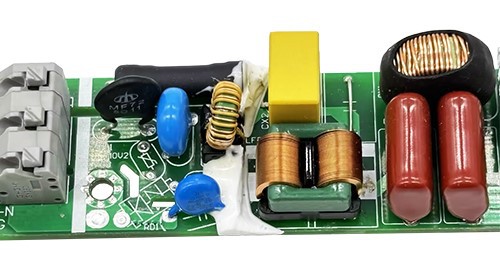

Double-sided board design, additional via-hole tinning. The cutout on the back is basically the same as the PCB, and there is no thorny feeling to the touch.

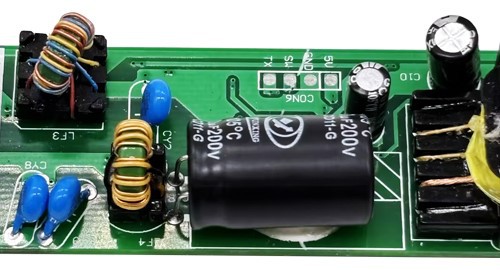

1.Ensure that electronic equipment or systems can operate stably in the electromagnetic environment.

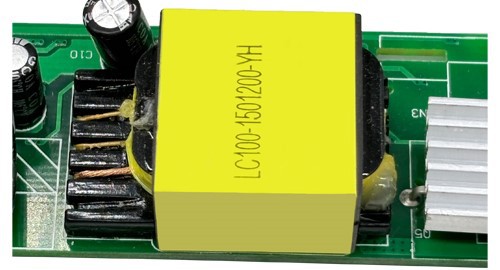

2.High-quality transformer to achieve voltage conversion and reduce losse.
Three-phase Three-wire Delta 220V System

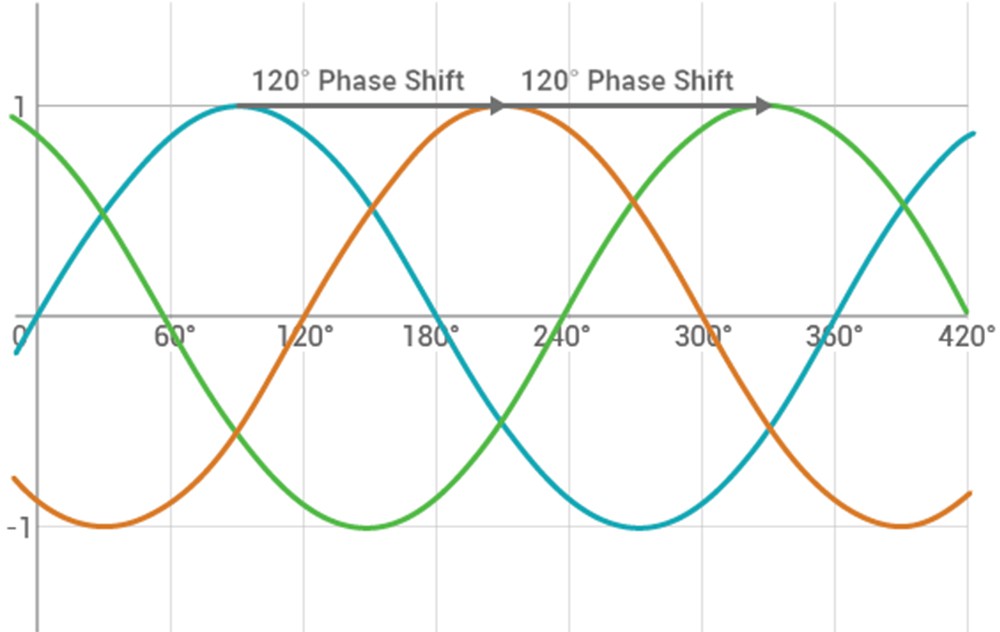

A three-phase AC power supply is a power system composed of three alternating currents with the same frequency, equal voltage amplitude, and a phase difference of 120° from each other, as shown in Figure. It is generated by a three-phase generator with three windings and is commonly used in industrial power systems. To ensure the stable operation of the generator, at least three windings are required. Theoretically, the number of phases for power generation can be higher, but a three-phase power supply is the most economically efficient. Therefore, three-phase generation and power supply are widely used in countries around the world.
Three-phase Three-wire Delta 220V System

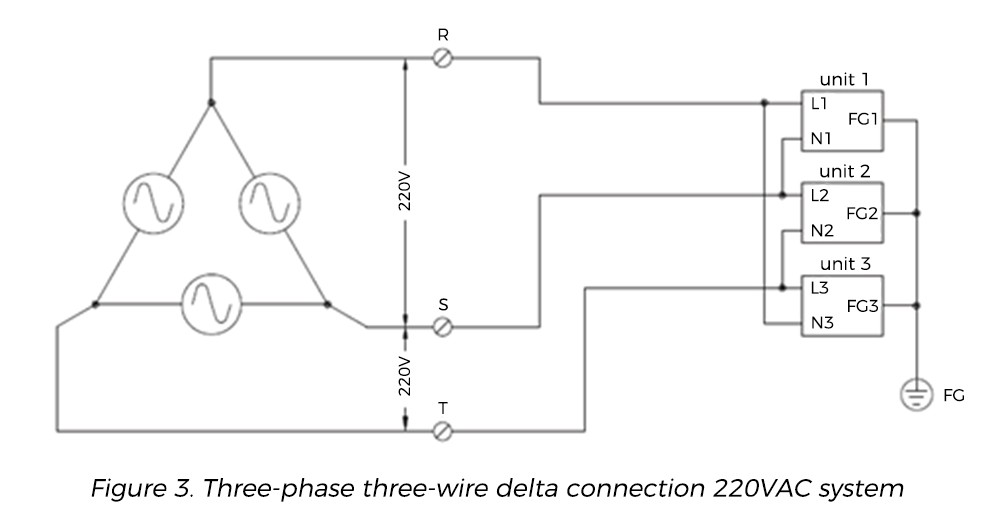

The three-phase three-wire triangle 220V system is suitable for industrial equipment and is commonly found in power supply environments without a neutral point. When wiring, you only need to connect L1, L2, and L3 to the load, and the equipment is wired in a triangle manner to operate normally.

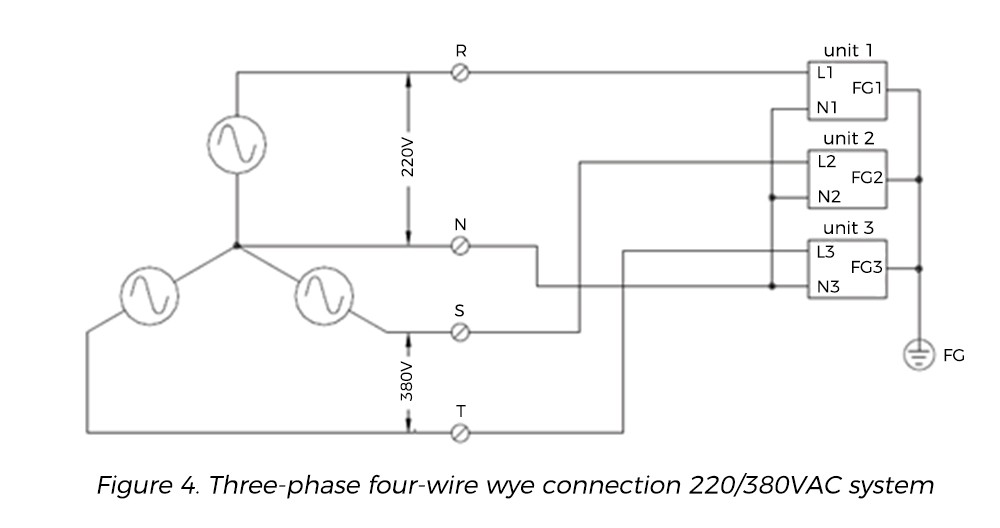

Three-phase Four-wire Wye 220V/380V System
Industrial electricity uses three-phase electricity, such as three-phase AC motors. The voltage between any two phases is 380VAC, and any phase-to-ground voltage is 220VAC, divided into A phase, B phase, and C phase. The lines are represented by L1, L2, and L3.
Three-phase Wiring Color Codes for 460V Supplies

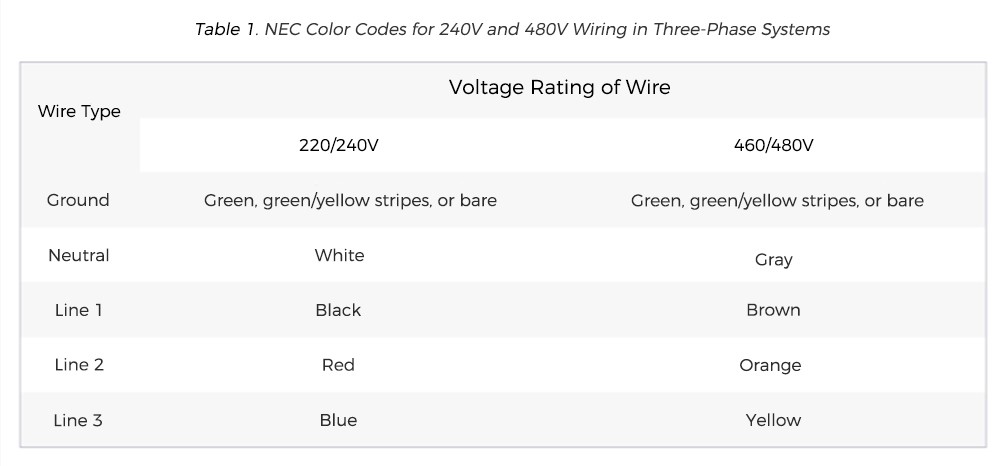

National Electrical Codes (NEC) are published by the National Fire Protection Association (NFPA) to cover the electrical wiring standards used in the USA and Canada, while the wiring standards and color-coding guidelines in Europe are covered by the International Electrotechnical Commission (IEC). The guidelines can vary based on the number of phases and the voltage rating of the wiring system. Table 1 shows the guidelines by NEC for the 240 V and 480 V three-phase wiring systems.
Structural Size Characteristics：
Suitable for wires between 16-20WAG, wire twisted tin 5-8mm

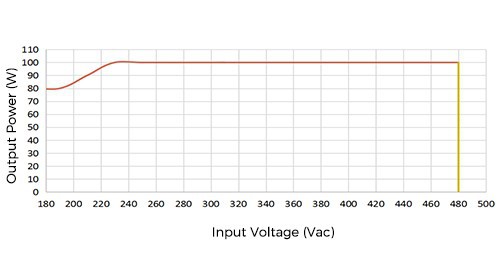

Electrical Characteristic:

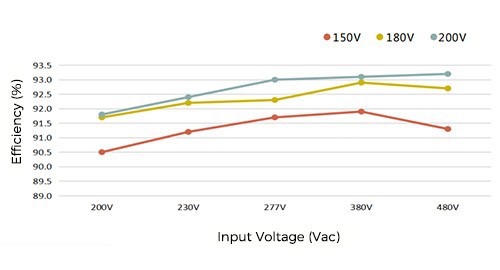

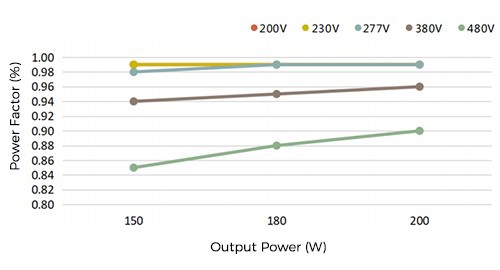

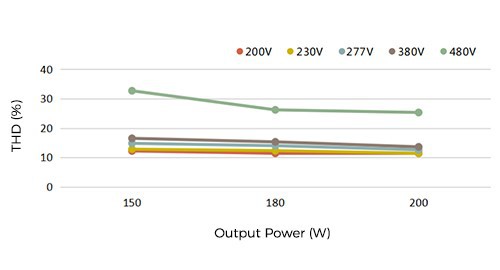

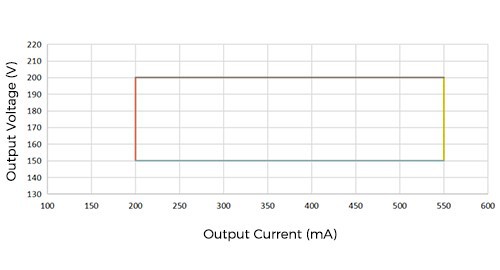

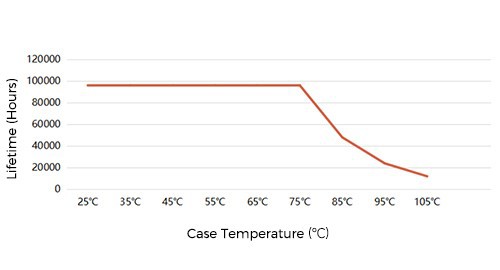

★ Lifetime VS Shell Temperature

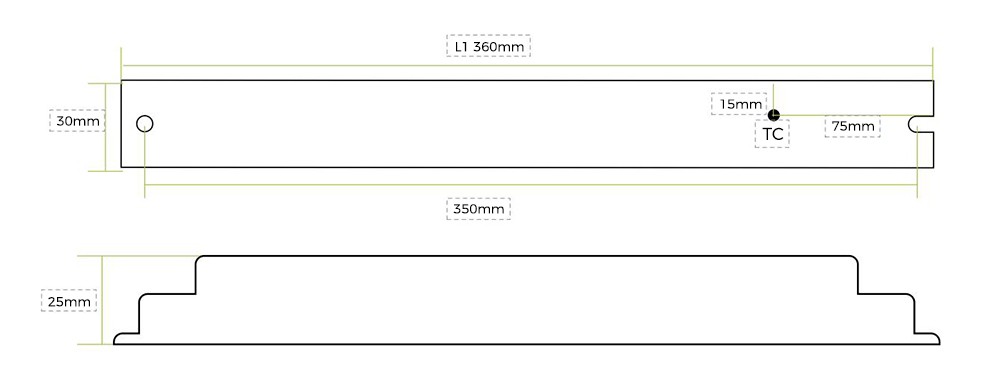

Dimension (mm)
Length: 360mm Width: 30mm Height: 25mm

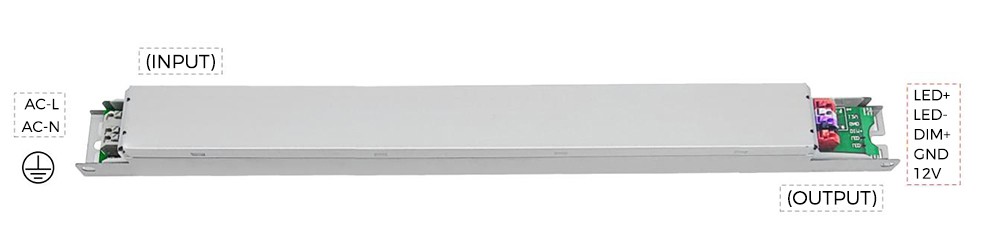

Wiring Diagram
The AC high voltage input 200-480.The DC output terminal, The DC output with 12V auxiliary, can be connected to smart module,marked with positive and negative poles, is where you connect the LED light.

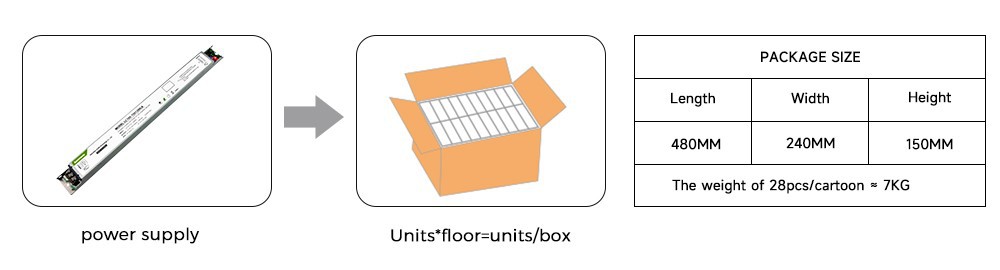

Product Packaging:
Hot Tags: linear 380v three phase power input led drivers, China linear 380v three phase power input led drivers manufacturers, suppliers, factory, app control led driver, non isolated led driver circuit, 230Vac input, light slim, tuya system, Power 55W
|
Performance |
||
|
Model |
LC100-200550HX |
|
|
Input |
Efficiency |
91% |
|
|
Power |
100W |
|
|
Voltage |
200-480Vac |
|
|
Frequency Range (Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.99@200Vac full load |
|
|
THD (Full Load) |
<15% |
|
|
Ac Current (Max) |
0.6A@200Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
130A@480Vac |
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
150-200Vdc/550mA/100W |
|
|
Linear Regulation |
±3% |
|
|
No-Load Output Voltage |
<200V |
|
|
Start Time
|
<1S@100V |
|
|
Auxiliary Voltage |
12V/200mA |
|
|

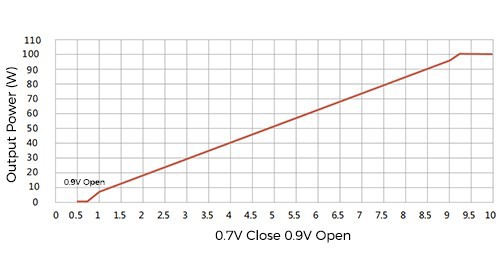

Dimming Range |
10%-100%(optional) |
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
||
|
Length |
360 mm |
|
|
Width |
30 mm |
|
|
Height |
21.5 mm |
|
|
Weight (g) |
276g |
|
|
Environmental |
||
|
Operating Temperature |
-30°C to 50°C |
|
|
Storage Temperature, Humidity |
-40°C to 80°C,5-95%RH |
|
|
Case Temperature |
TC=90℃ |
|
|
Warranty Tc |
85°C max for 50k Hr Life |
|
|
Surge Protection |
L-N 6KV , L/N-FG 4KV |
|
|
Ip Rating |
IP20 |
|
|
Material |
Iron shell |
|
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
|
LC100-200550HX |
100W |
200-480Vac |
150-200Vdc |
550mA |
0.9 |
Adjustable |
91% |
|
|

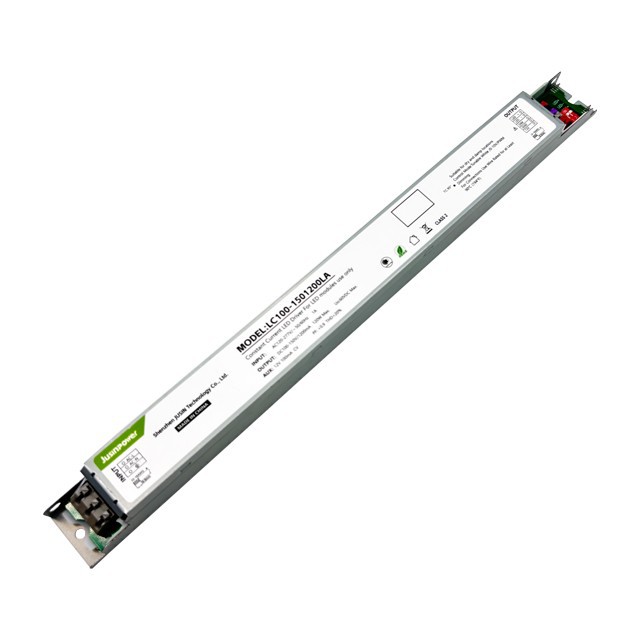

LC100-1501200LX |
120W |
100-277Vac |
100-150Vdc/ |
1200mA |
0.9 |
Adjustable |
94% |
|
Packing

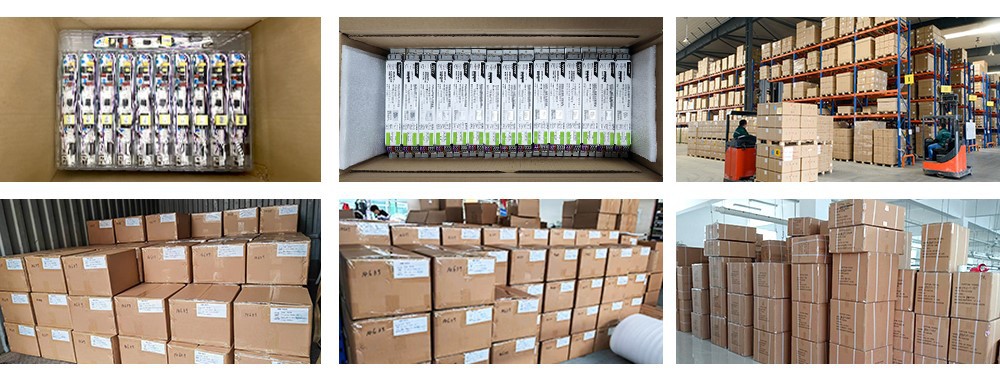

Standard export packing ,or customized packing as your request .From production to shipment of a series of processes, we will carry out strict inspection over and over again to ensure the quality of goods. Bare board series of products we will set a layer of blister protection shell, to ensure that the goods are not damaged during transportation.
Delivery
We have a variety of shipping options to choose from:express(DHL,FEDEX,UPS,TNT,EMS）
air,sea.
