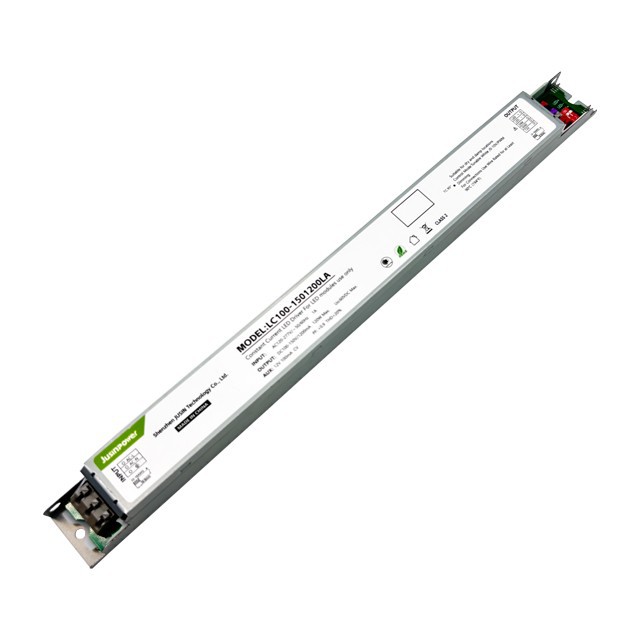

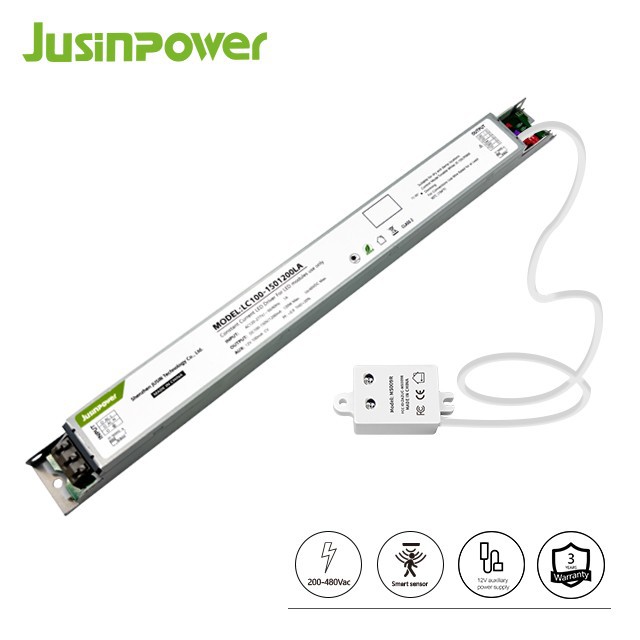

Constant current 100w dimmable led drivers
Constant current 100w dimmable led drivers maximum output power 100W, output current at 550mA.The input voltage is 200-480Vac,the power factor is 0.95.0-10V dimming,12V auxiliary design, can be matched with smart modules and sensors.It adopts a full-frequency bipolar flicker-free design, and it meets UL/TUV/CB/SAA/CE certification.Best energy savings due to low stand-by losses and high efficiency reliability 3 years guarantee.
Features：
0-10V dimming
12V auxiliary power supply
Ultra-thin height 25mm
Flicker free
3 Years warranty
1. 0-10V Dimming,Smooth dimming; dim to off
2. High PF 0.95
3.Low THD
4.Meet UL/TUV/CB/SAA/CE certification
5.Suitable for Class II light fixtures

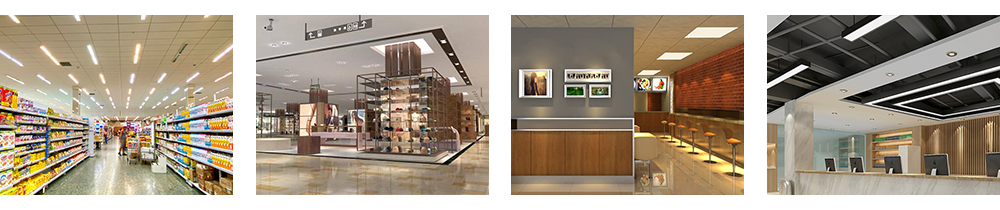

Application Scenario:
Commercial spaces: Lighting systems in commercial spaces such as shopping malls, supermarkets, restaurants and hotels often use linear LED drivers to achieve good light control and energy saving effects.

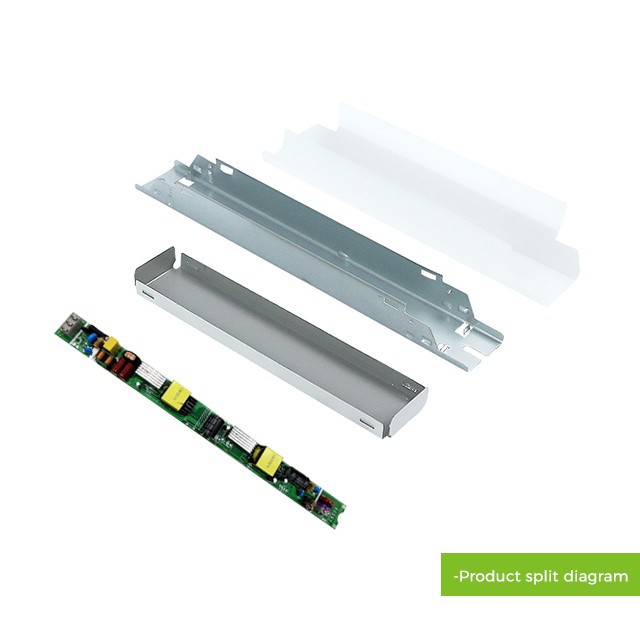

Product Details

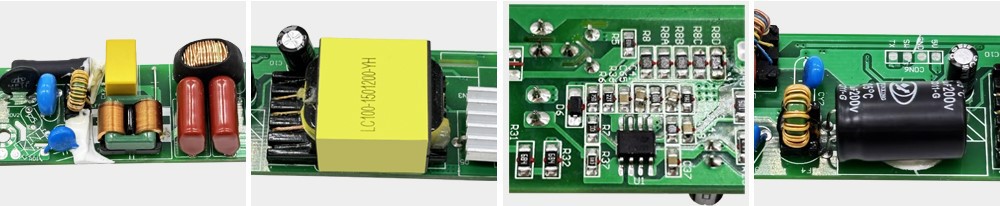

Double-sided board design with additional via-hole tinning. The cutout on the rear is essentially the same as the PCB, and there is no prickly sensation to the touch.

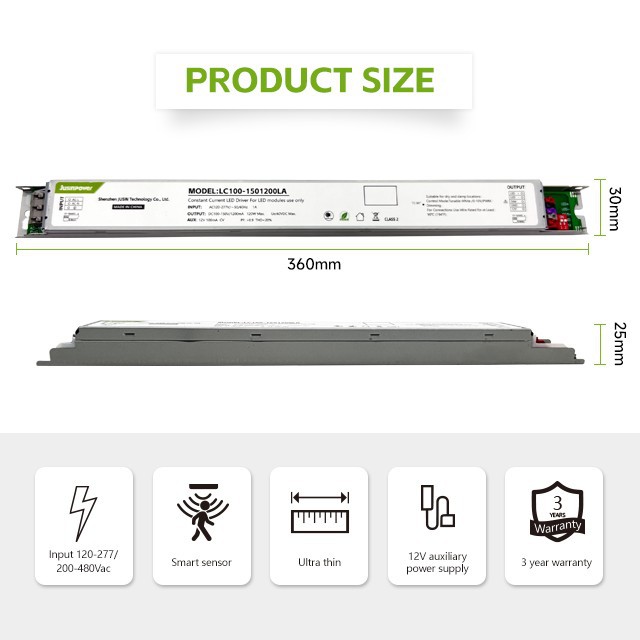

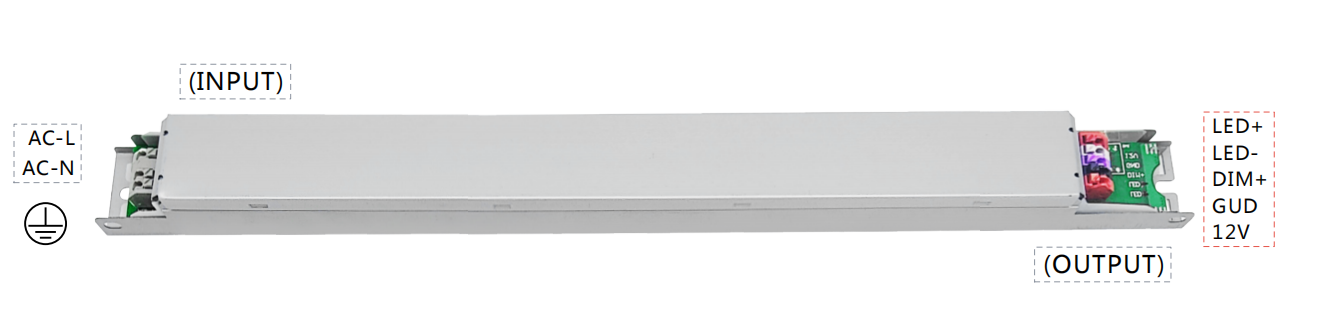

Structural size characteristics
Suitable for wires between 16-20WAG, wire twisted tin 5-8mm

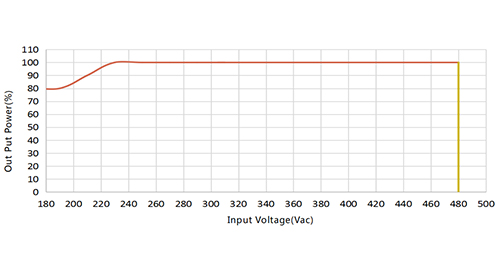

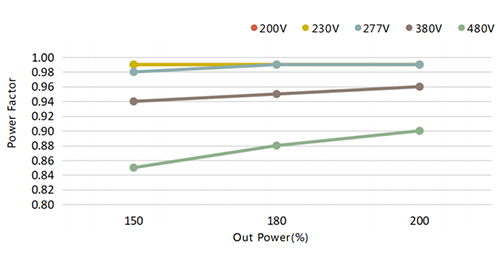

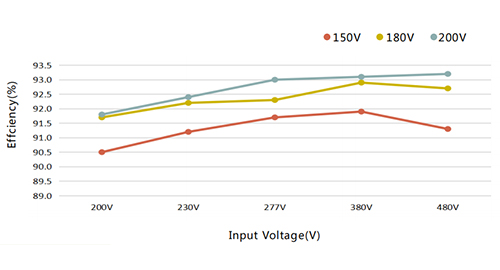

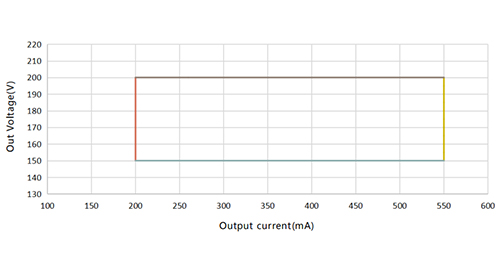

Electrical Characteristic

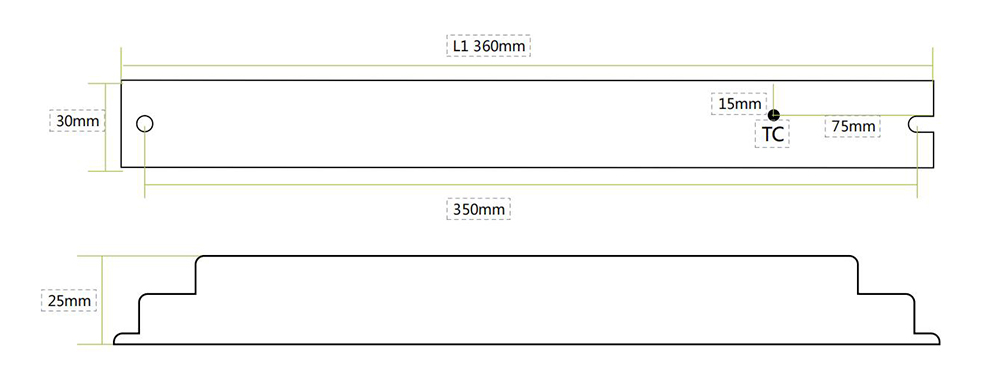

Dimension (mm)
Length: 360mm Width: 30mm Height: 25mm

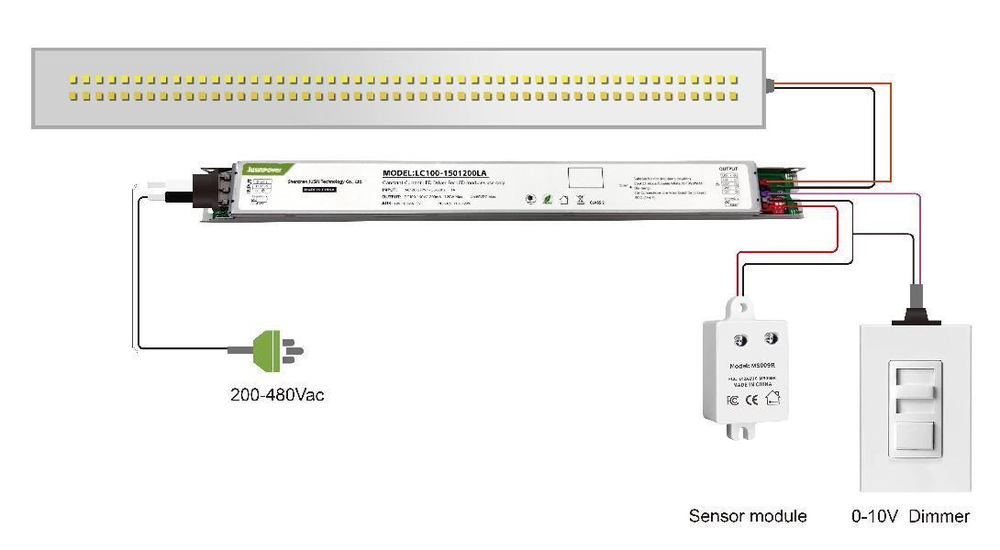

Wiring diagram
The AC high voltage input ranges from 200 to 480.The DC output connector, with 12V auxiliary, can be linked to the smart module, designated with positive and negative poles, where you connect the LED light.
Product Packaging:
Hot Tags: constant current 100w dimmable led drivers, China constant current 100w dimmable led drivers manufacturers, suppliers, factory, Low level dimming, 3CCT warm light, 3CCT, dimming 0 10v, Sensor Drivers for Linear Lights, Long Bar Sensor Driver
LC100
|
Performance |
||
|
Model |
LC100-200550HX |
|
|
Input |
Efficiency |
91% |
|
Power |
100W |
|
|
Voltage |
200-480Vac |
|
|
Frequency Range (Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.99@200Vac full load |
|
|

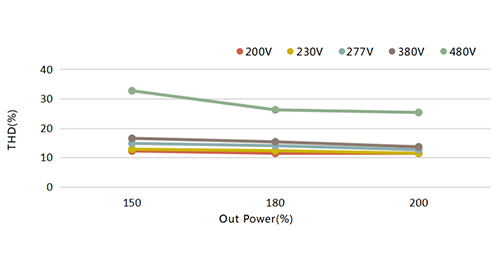

THD (Full Load) |
<15% |
|
|
Ac Current (Max) |
0.6A@200Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
130A@480Vac |
|
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
150-200Vdc/550mA/100W |
|
Linear Regulation |
±3% |
|
|
No-Load Output Voltage |
<200V |
|
|
Start Time
|
<1S@100V |
|
|
Auxiliary Voltage |
12V/200mA |
|
|

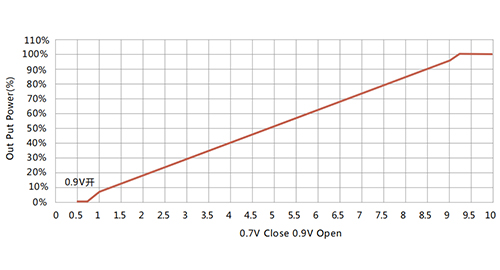

Dimming Range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
360 mm |
|
Width |
30 mm |
|
Height |
25 mm |
|
Weight (g) |
276g |
|
Environmental |
|
|
Operating Temperature |
-30°C to 50°C |
|
Storage Temperature, Humidity |
-40°C to 80°C,5-95%RH |
|
Case Temperature |
TC=90℃ |
|

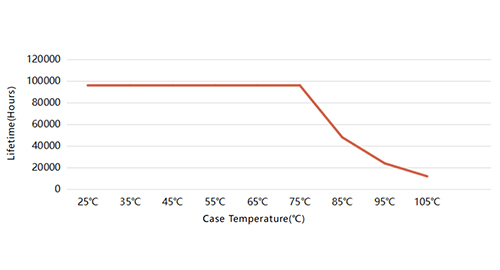

Warranty Tc |
85°C max for 50k Hr Life |
|
Surge Protection |
L-N 6KV , L/N-FG 4KV |
|
Ip Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC100-200550HX |
100W |
200-480Vac |
150-200Vdc |
550mA |
0.9 |
Adjustable |
91% |
|
LC100-1501200LX |
120W |
100-277Vac |
100-150Vdc/ |
1200mA |
0.9 |
Adjustable |
94% |
