High efficiency 100W dimmable LED driver

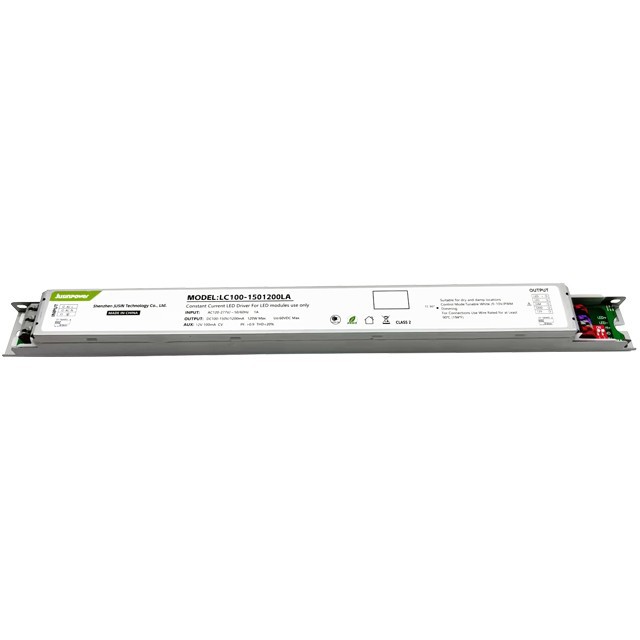

High efficiency 100W dimmable led driver ,non-isolated high efficiency up to 91%,high reliability. Loss of power is small, in the lamps and lanterns within the heat is small, also reduces the temperature rise of the lamps and lanterns. Favorable for slowing down the light decay of LED.Slim and compact size, only 25mm in height, suitable for linear lights, tri-proof lights.
Features：
Ultra-thin height 25mm
12V auxiliary power supply
High input voltage 200-480Vac
Flicker free
3 Years warranty
1. High Efficiency up to 91%
2. Ultra-thin height 25mm
3.Protective features: overtemperature, short-circuit, over voltage
4.High surge protections: L-N: 6kV; L/N-GND:4kV
5.Suitable for linear lights, tri-proof lights.
Application Scenario:

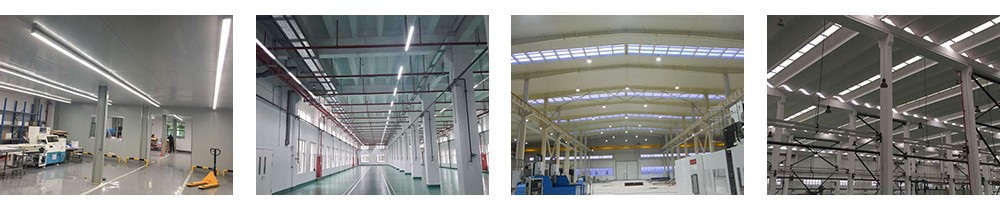

Industrial and production sites: Grille lights are sometimes used as the primary lighting apparatus in industrial and production sites, such as factories, workshops, and warehouses.
Product Details
LED driver power supply structure is rich, low loss, high efficiency, versatility, which can be used to realize the generalization of LED lighting fixtures.
Structural size characteristics
Suitable for wires between 16-20WAG, wire twisted tin 5-8mm
Electrical Characteristic

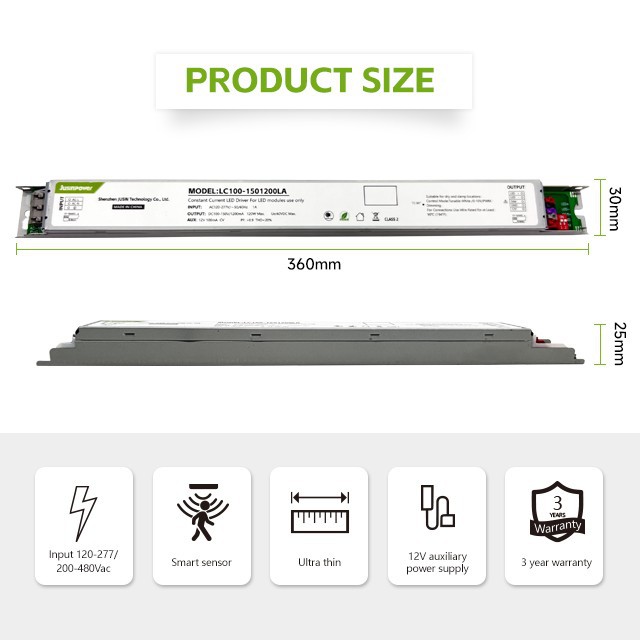

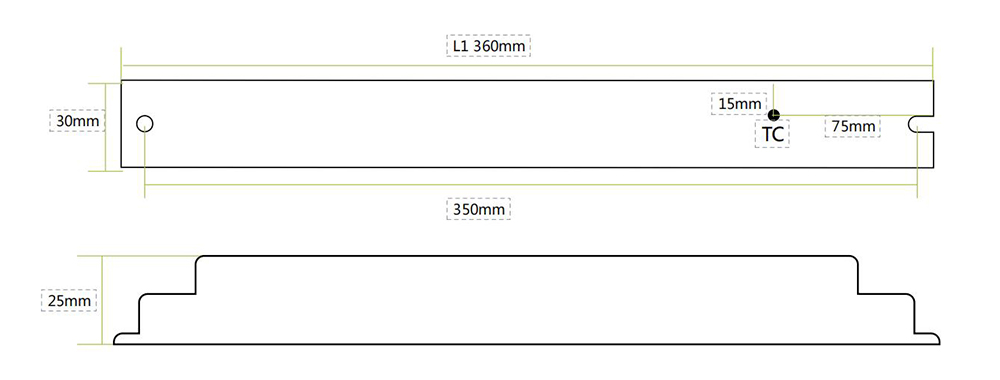

Dimension (mm)
Length: 360mm Width: 30mm Height: 25mm

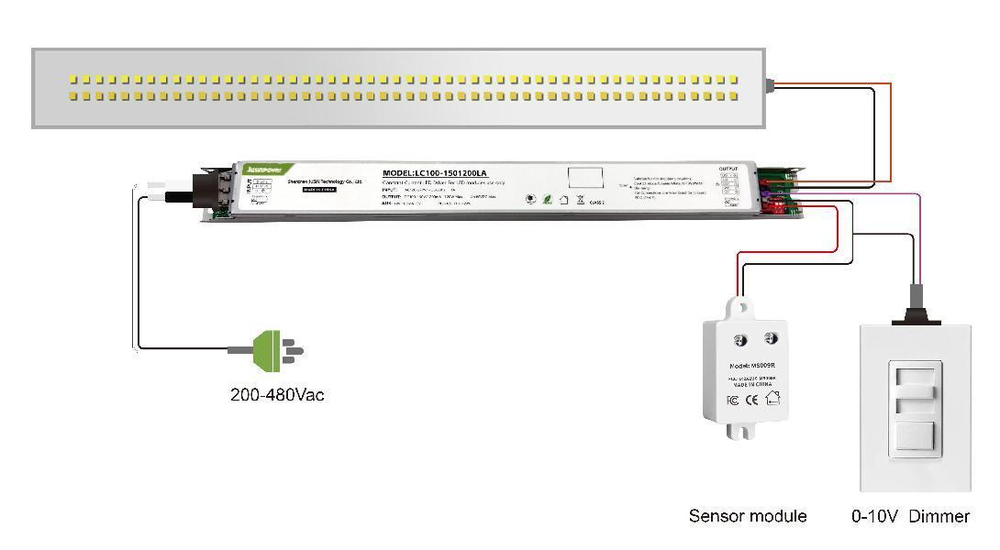

Wiring diagram

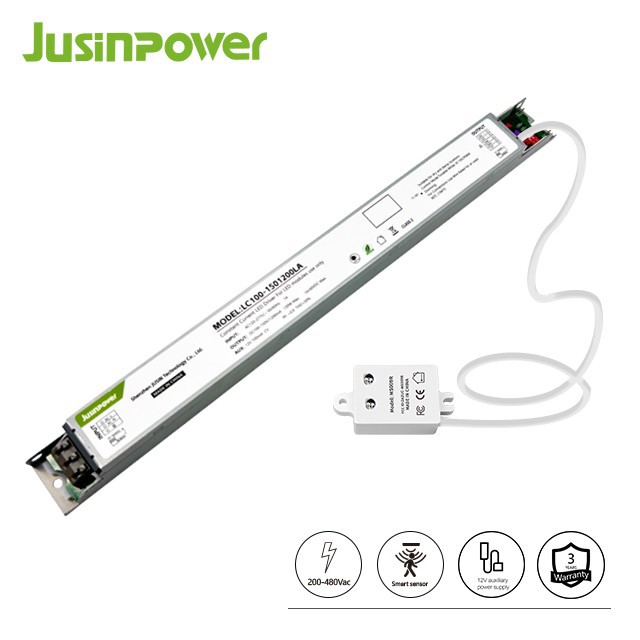

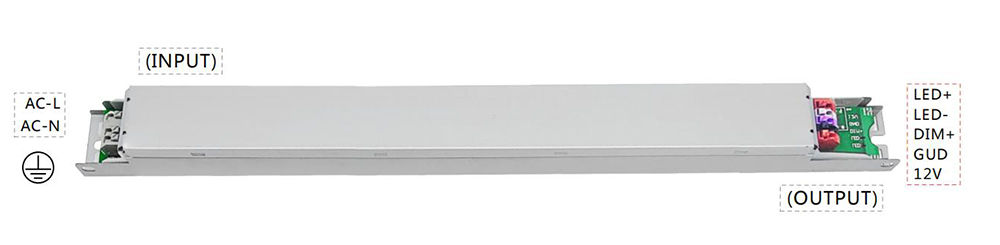

The AC high voltage input 200-480.The DC output terminal, The DC output with 12V auxiliary, can be connected to smart module,marked with positive and negative poles, is where you connect the LED light
Product Packaging:
Hot Tags: high efficiency 100w dimmable led driver, China high efficiency 100w dimmable led driver manufacturers, suppliers, factory, 3000K low brightness, tunable cct, Low THD 10 , 4500K Dimming, LED Driver with Adjustable Three Color Temperatures, Power 75W
LC100
|
Performance |
||
|
Model |
LC100-200550HX |
|
|
Input |
Efficiency |
91% |
|
Power |
100W |
|
|
Voltage |
200-480Vac |
|
|
Frequency Range (Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.99@200Vac full load |
|
|
THD (Full Load) |
<15% |
|
|
Ac Current (Max) |
0.6A@200Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
130A@480Vac |
|
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
150-200Vdc/550mA/100W |
|
Linear Regulation |
±3% |
|
|
No-Load Output Voltage |
<200V |
|
|
Start Time
|
<1S@100V |
|
|
Auxiliary Voltage |
12V/200mA |
|
|
Dimming Range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
360 mm |
|
Width |
30 mm |
|
Mounting Length |
25mm |
|
Weight (g) |
276g |
|
Environmental |
|
|
Operating Temperature |
-30°C to 50°C |
|
Storage Temperature, Humidity |
-40°C to 80°C,5-95%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge Protection |
L-N 6KV , L/N-FG 4KV |
|
Ip Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC100-200550HX |
100W |
200-480Vac |
150-200Vdc |
550mA |
0.9 |
Adjustable |
91% |
|
LC100-1501200LX |
120W |
100-277Vac |
100-150Vdc/ |
1200mA |
0.9 |
Adjustable |
94% |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.

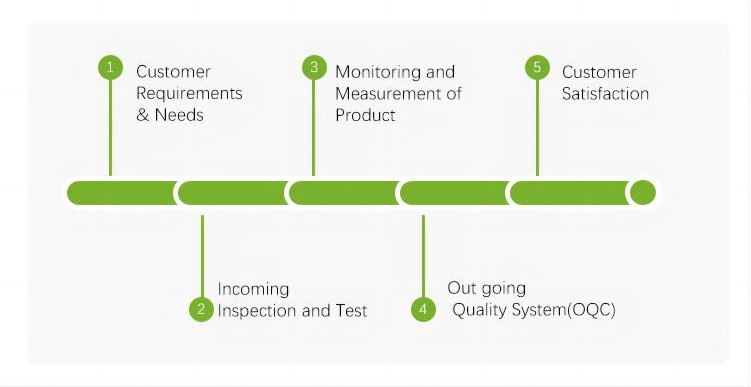

QC Process Flow Chart
