Long Strip Smart Dimming Led Driver

The long strip smart dimming led driver is designed with 0-10V dimming signal isolation and 5-12V auxiliary power supply, which perfectly matches various intelligent modules and sensors, and can choose a flicker-free design. At the same time, we also provide 40W, 60W, 75W, 120W strip smart dimmable led drivers to meet worldwide market demands.

Top Features and Benefits:


120-347Vac	12V auxiliary power supply	Flicker free	5 Years Warranty

1. 5 years warranty

2. Smart dimming

3. Compatible with numerous smart devices

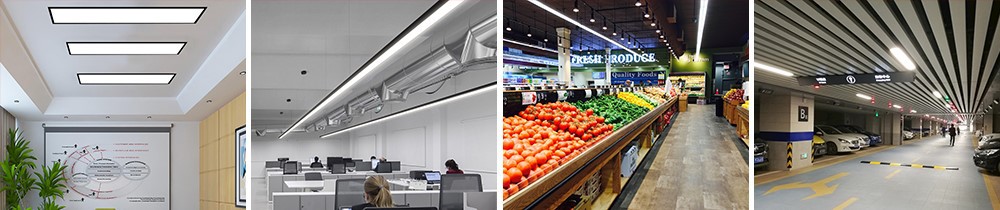

Application Scenario:

The long strip smart dimming led driver suitable for tri-proof light, classroom light, linear light, etc.

product-1000-210

Product Details:

Optional flicker-free design- protects the human body and brings a more comfortable feeling to the eyes.

product-1000-300

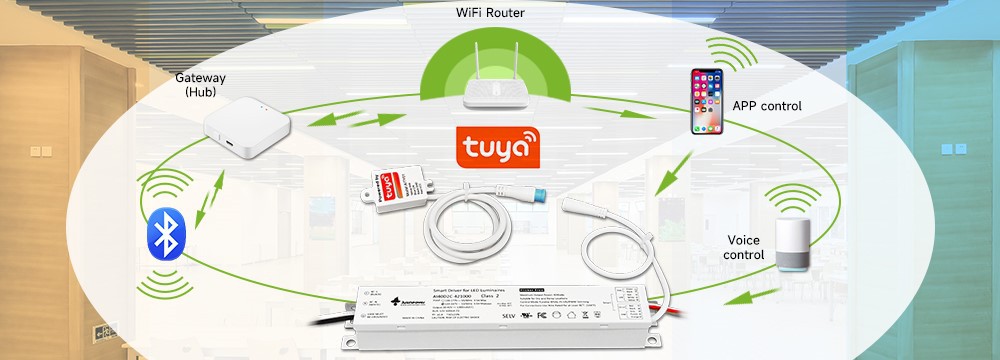

What is the role of 5-12V auxiliary power supply design?

Through the 5-12V auxiliary power supply that comes with the power supply, it is connected to an intelligent controller commonly used in the market to realize intelligent adjustment of lamps and lanterns.

product-1000-360

Electrical Characteristics:

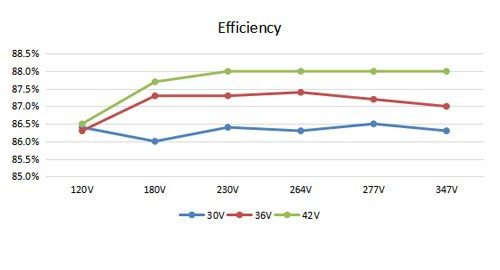

When the input voltage is 347V and the output voltage is 42V, the efficiency can reach 88%

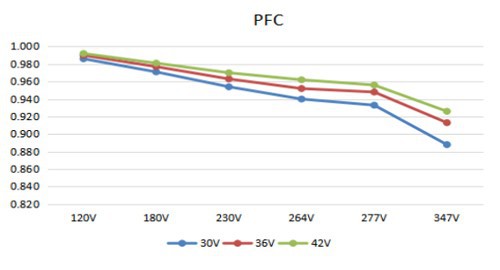

When the input voltage is 347V and the output voltage is 42V, the PF value is 0.94

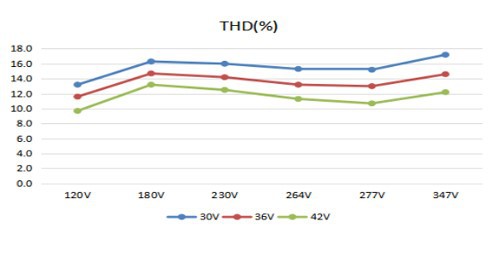

When the input voltage is 347V and the output voltage is 42V, the THD is 12.

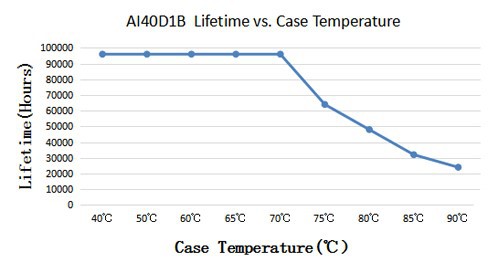

When the operating temperature of the driver is kept between 45℃ and 70℃, its lifespan can reach a maximum of 98,000 hours.

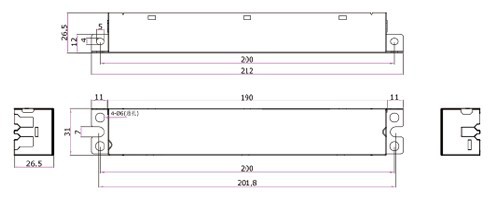

Dimension (mm)

Length: 212mm Width: 31.2mm Height: 28mm

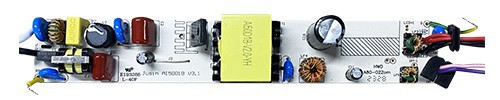

Internal Parts Display

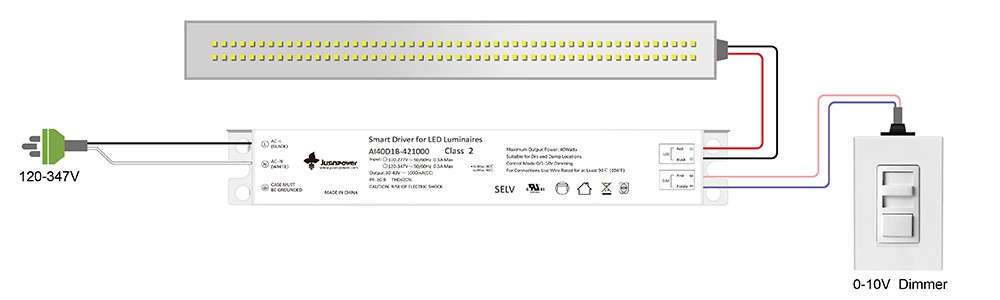

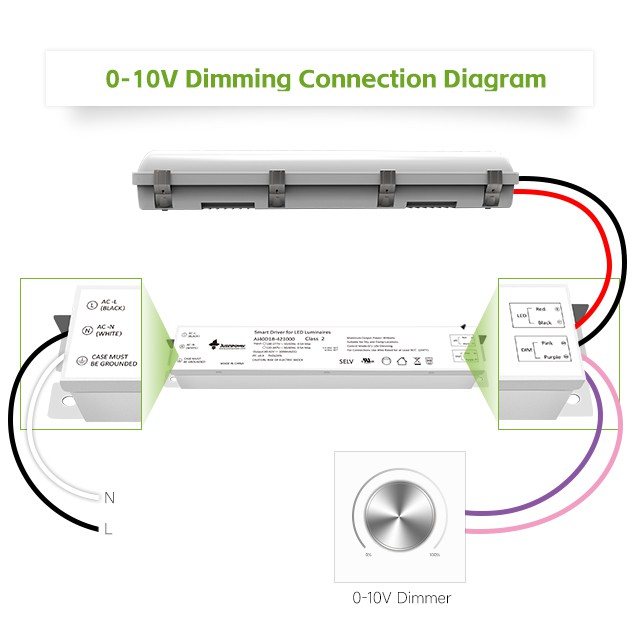

Wiring Diagram

product-1000-300

The product has two sets of wiring at one end, one set of four wires. One end is the AC input end, which is connected to the mains, and the other end is the DC output end. LED+ and LED- are connected to the positive and negative poles of the LED lights respectively.

Hot Tags: long strip smart dimming LED driver, China long strip smart dimming LED driver manufacturers, suppliers, factory, smart light controller, up and down cct, Constant Current Sensor Driver, no strobe effect, 347v 0 10v Dimming Driver, Casambi LED Driver

AI I series

AI I series

AI40D1B-421000(1-10V)

Performance
Input Voltage	100-277 Vac
Input Current Max	0.48A
Input Power Max	40W
Input Frequency	50/60Hz
Power Factor	> 0.9 @ max load
THD Max	< 18 % @ max load
Output Voltage (Refer to Driver Operating Range)	30-42Vdc
Max. Output Current	1000mA
Output Power	42W
Power Efficiency	86%
Input Line Regulation	±3%
Adjustment Rat	±3 %
No Flicker	Optional
Inrush Current* Peak / >10% Duration	277V: 10A / 1.49ms

Physical
Length	212 mm
Width	31.2 mm
Height	27.6 mm
Mounting Length	200mm
Weight (g)	230g

Environmental
Safety Standard	UL8750, Class2
EMC Emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 85°C
Warranty Tc	85°C max for 50k Hr Life
Location Rating	UL Dry & Damp
Surge Protection	L-N 1KV, L-N-FG 2KV
Certificate	CE/UL/FCC certificate

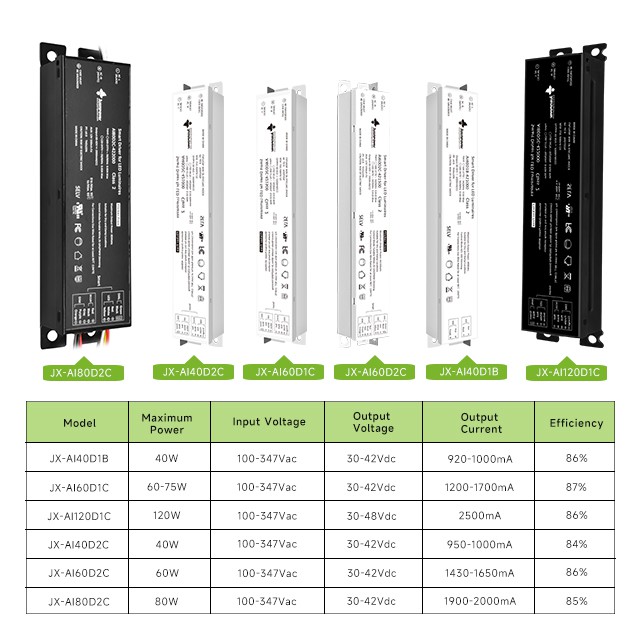

Series Driver
Model	Max Power	Input Voltage	Output Voltage	Output Current	Power Regulation	Efficiency	Size	Certificate
JX-AI40D1B	40W	100-277Vac	30-42Vdc	920mA	External dip switch	86%	L213W32H27	UL FCC CLASSII
JX-AI40D1B	40W	120-347Vac	30-40Vdc	1000mA	External dip switch	86%	L213W32H27	UL FCC CLASSII
JX-AI50D1B	50W	100-277 Vac	30-43Vdc	1300mA	External dip switch	88%	L212W31.2H27.6	UL FCC CLASSII
JX-AI60D1C	60W	100-277Vac 120-347Vac	30-42Vdc 30-40Vdc	1200mA 1500mA	External dip switch	86%	L213W32H27	UL FCC CLASSII
JX-AI60D1C	75W	200-240Vac	30-40Vdc	1700mA	NO	87%	L213W32H27	UL FCC CLASSII
JX-AI120D1C	120W	100-277Vac	30-48Vdc	2500mA	NO	86%	L241.3W43.4H30	UL FCC CLASSII

FAQ

Q1. Are you a manufacturer or trading company?

A1. We are a professional manufacturer of producing led drivers for more than 10 years.

Q2. What is your MOQ?

A2. Our MOQ is 200pcs. But can be negotiable based on different models

Q3. What is your delivery time ?

A3. Our delivery time is 7-20 days which is depended on models and quantity.

Q4. Do you accept OEM/ODM?

A4. Yes. We accept OEM/ODM. And one of our advantage is doing customized drivers for customers.

Q5. Service

A5. We have a professional service team to solve all the questions and problems. No worry about the after-sales service.

Q6. How about your R&D capability?

A6. We have professional engineers for certificates and research&development.

We have passed cUL, FCC, SAA, TUV, ROHS, CE, CB, CCC.
