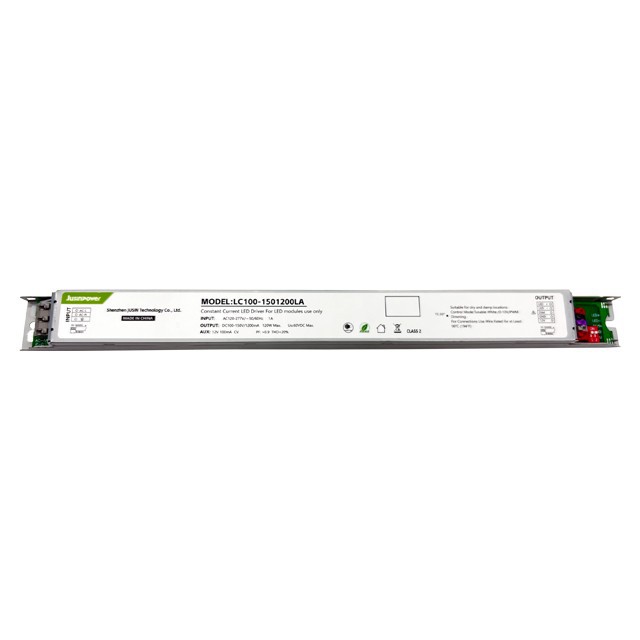

High PF flicker free 120W led drivers
High PF, flicker-free LED drivers.The power factor equals 0.95.It features a compact housing design, bipolar flicker-free operation, reduced THD, and excellent precision.Non-isolated, high efficiency up to 94%, with a constant current power supply and full voltage input.Low standby loss, output current of 1200mA, independent output current selection via a dip switch, and UL/TUV/CB/SAA/CE certification.The shell is made of thin metal and is about 25 mm tall.Suitable for linear lighting and tri-proof lights.
Features：
Ultra-thin height 25mm
Smart sensor
100-277Vac
Flicker free
3 Years warranty
1. High PF up to 0.95
2. High efficiency up to 94%
3.Non-isolated
4.Slim size, only 25mm high
5.Output current adjustable via dip switch
Application Scenario:

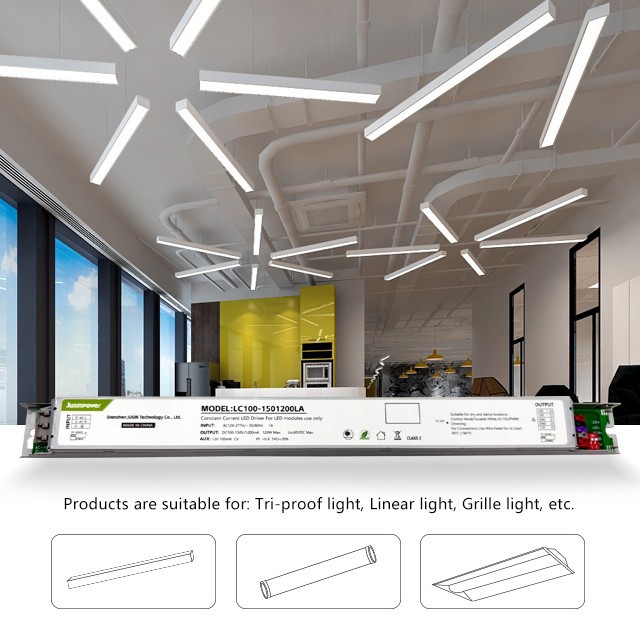

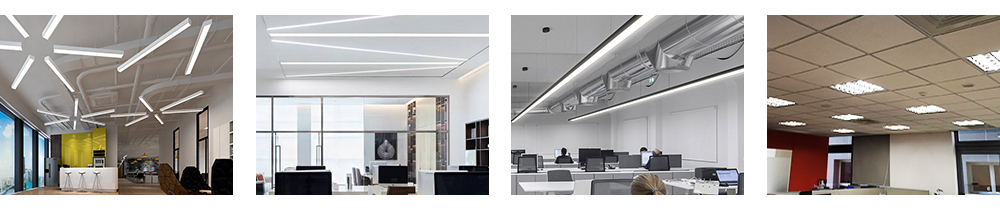

Office lighting: In office settings, linear LED drivers are commonly employed in recessed lamps to produce uniform, comfortable, and energy-efficient lighting.
Product Details

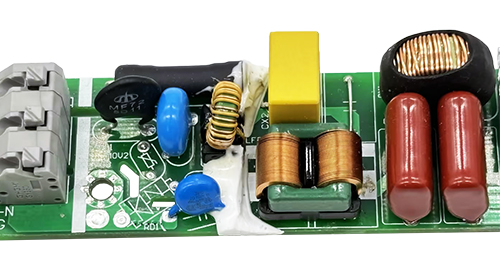

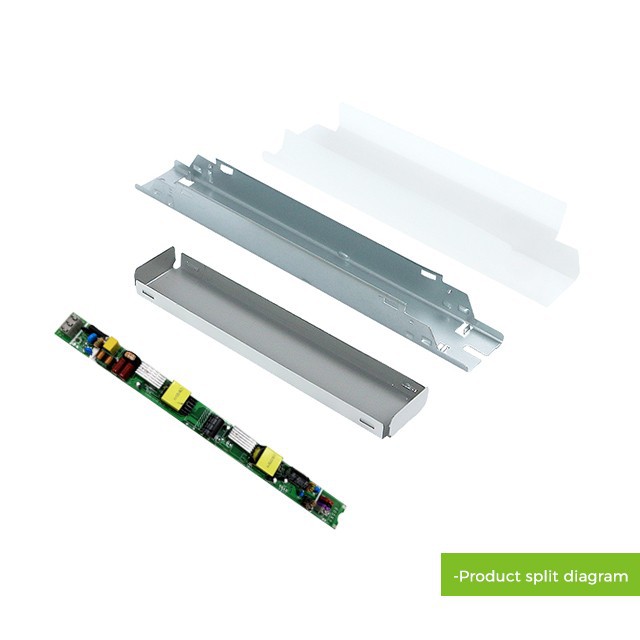

Structural size characteristics
Suitable for wires between 16-20WAG, wire twisted tin 5-8mm

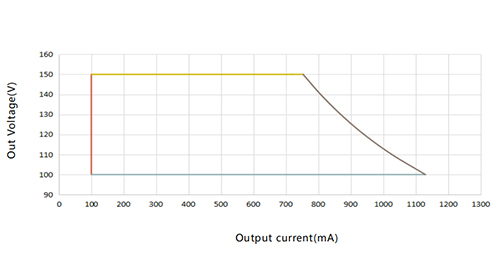

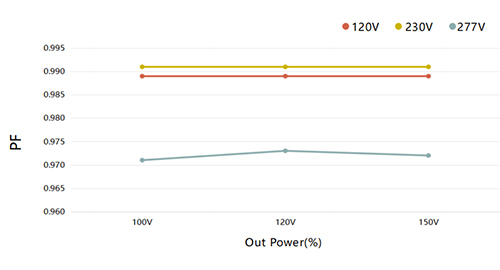

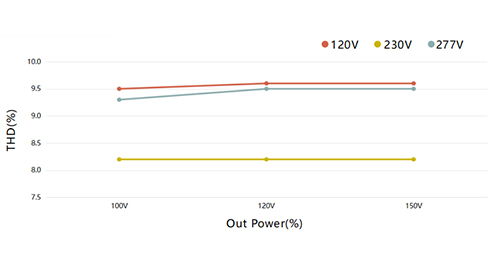

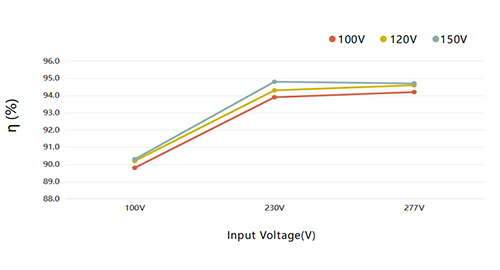

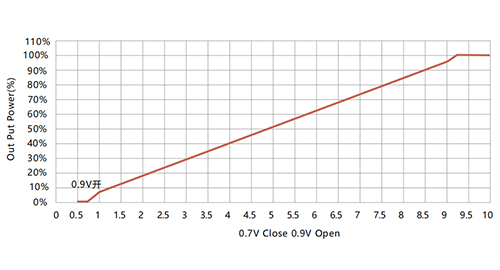

Electrical Characteristic

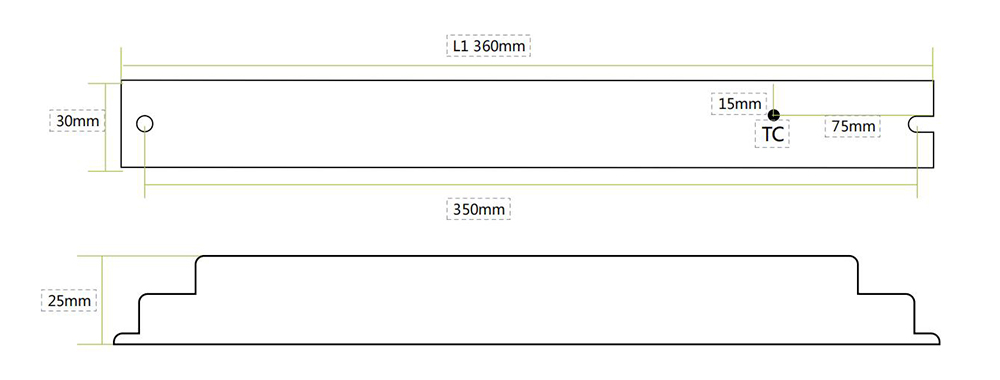

Dimension (mm)

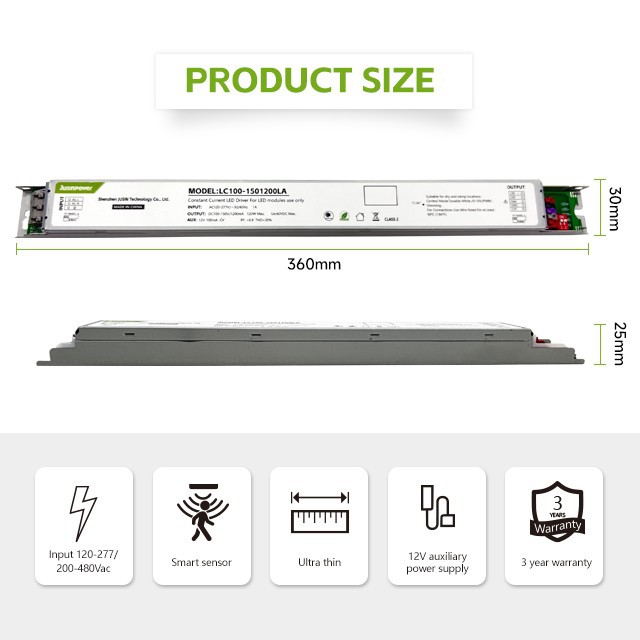

Length: 360mm Width: 30mm Height: 25mm

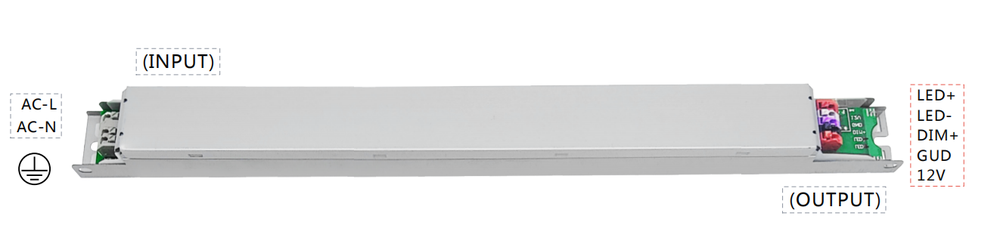

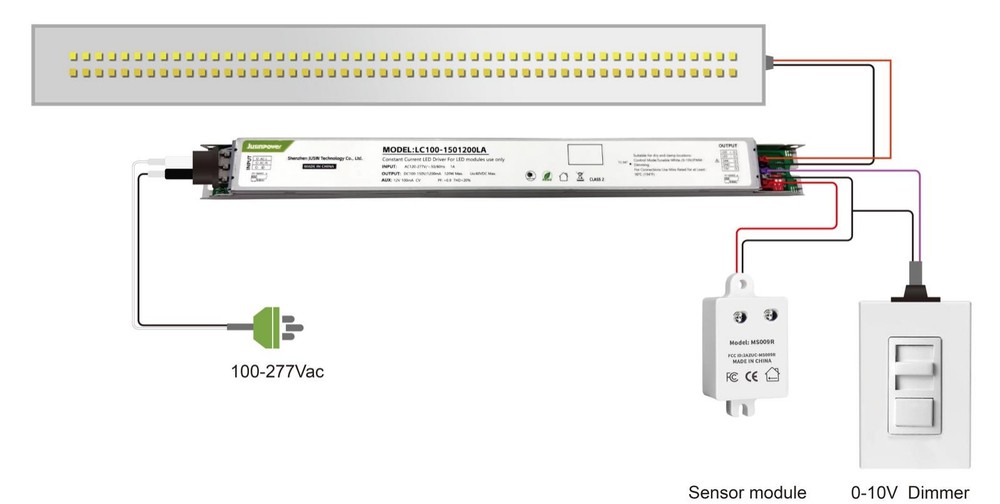

Wiring diagram
The AC input terminal is where you attach the power supply from the 100-277Vac mains.The DC output with 12V auxiliary can be connected to a smart module, designated with positive and negative poles, where you attach the LED light.

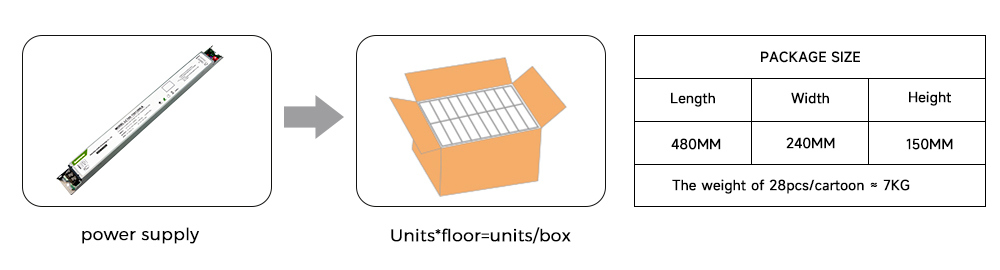

Product Packaging:
Linear small size design, height is only 25mm, the packaging box can accommodate more products as much as possible, saving a certain amount of transportation costs
Hot Tags: high pf flicker free120w led drivers, China high pf flicker free120w led drivers manufacturers, suppliers, factory, double polar, CCT Selectable Driver, constant current tunable driver, 75W power source, Non isolated Flicker Free Sensor Driver, pwm dimming ac
|
Performance |
||
|
Model |
LC100-1501200LX |
|
|
Input |
Efficiency |
94% |
|
Voltage |
100-277Vac |
|
|
Frequency Range (Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.99@100Vac full load |
|
|
≥ 0.97@277Vac full load |
||
|
THD (Full Load) |
<15% |
|
|
Ac Current (Max) |
1.2A@277Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
20A@100Vac |
|
|
28A@230Vac |
||
|
35A@277Vac |
||
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
100-150Vdc/1200mA/120W |
|
Linear Regulation |
±3% |
|
|
No-Load Output Voltage |
200V |
|
|
Start Time
|
<1S@100V |
|
|
Auxiliary Voltage |
12V/200mA |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Size |
|
|
Length |
360mm |
|
Width |
30mm |
|
Height |
25 mm |
|
Weight (g) |
276g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-30°C to 50°C |
|
Storage Temperature, Humidity |
-40°C to 80°C,10-90%RH |
|

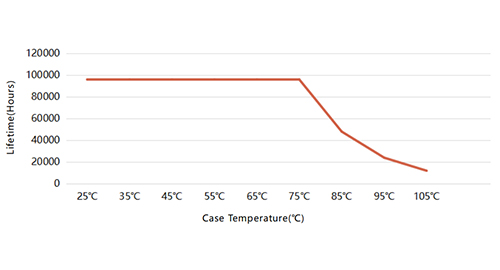

Warranty Tc |
50000Hour (s)@TC:80℃ |
|
Surge Protection |
L-N 4KV |
|
Ip Rating |
IP20 |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC100-200550HX |
100W |
200-480Vac |
150-200Vdc |
550mA |
0.9 |
Adjustable |
91% |
|
LC100-1501200LX |
120W |
100-277Vac |
100-150Vdc/ |
1200mA |
0.9 |
Adjustable |
94% |
OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure, required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.

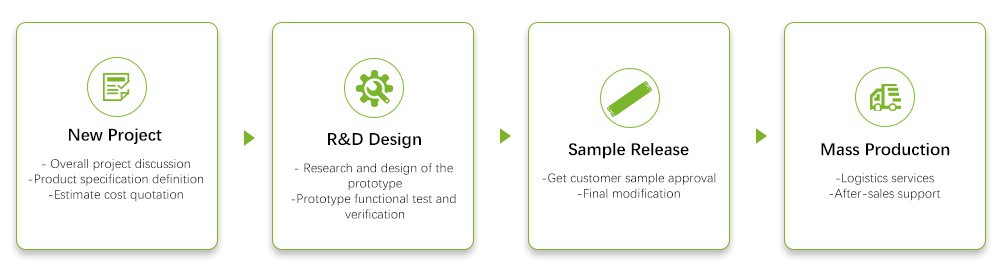

OEM/ODM Service Flow
New Project: Overall project discussion product specification definition estimate cost quotation.According to your specific needs, we can develop personalized solutions that are different from conventional standards.
R&D Design: research and design of the prototype. Prototype functional test and verification. We have a professional R&D team and engineers of about 20 people who can provide you with full-process services from concept design to product prototype production.
Sample Release: Get customer sample approval-final modification.
Mass Production: Logistics services and Provide after-sales service.
