40W 0 10V Dimming Driver
The 40W 0 10V dimming driver has obtained FCC and UL certification. In addition to 40W, there are three power supplies of 60W, 75W, and 120W to choose from, with 0-10V dimming function, and the dimming range is from 7% to 100%.
1. 0-10V dimming
2. 5 years warranty
3. FCC/UL certifications
Top Features and Benefits:
|
|
|
|
|
|
120-347Vac |
12V auxiliary power supply |
Flicker free |
5 Years Warranty |

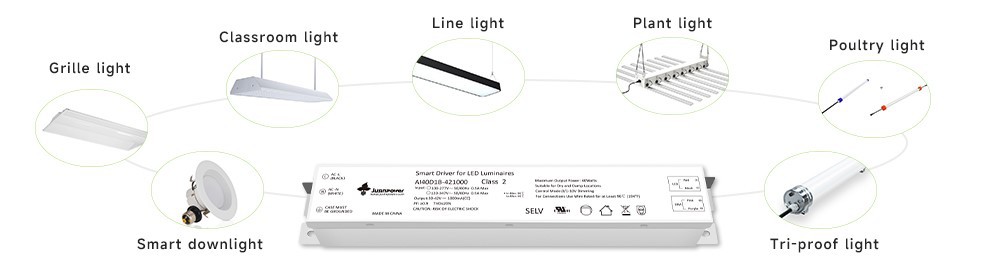

Application Scenario:
The 40W 0 10V dimming driver suitable for tri-proof light, classroom light, linear light and so on.
What is 0-10V dimming?
It works by controlling the brightness of lighting devices by varying the voltage between 0 and 10 volts. 0-10V systems are relatively simple and easy to implement and maintain. Since it is an older dimming technology, many lighting devices support 0-10V dimming interface and can be compatible with many different types of lighting devices.

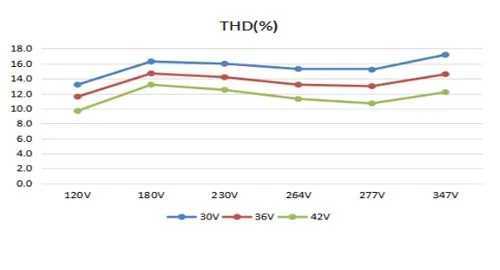

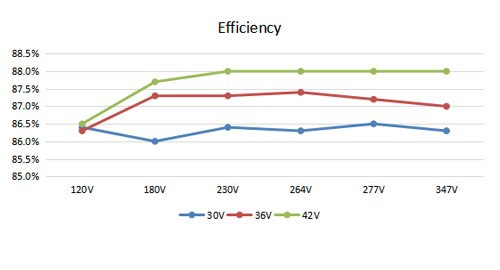

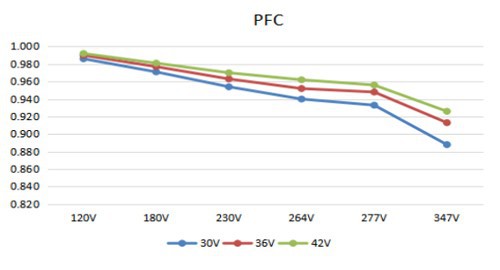

Electrical Characteristics:

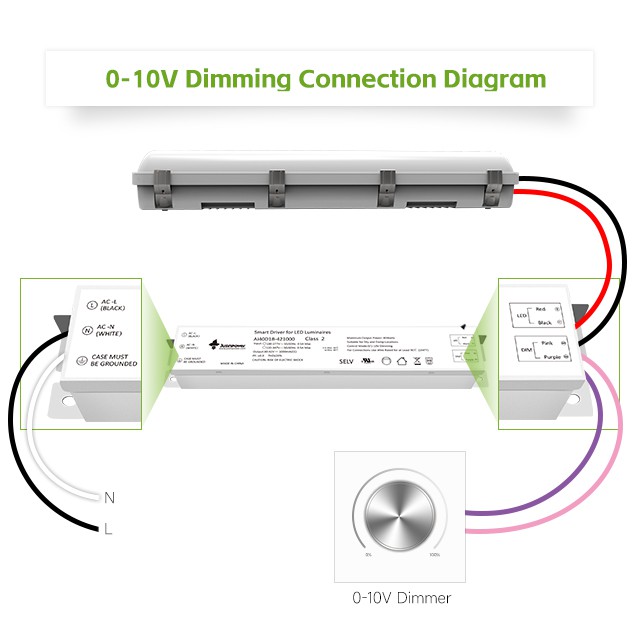

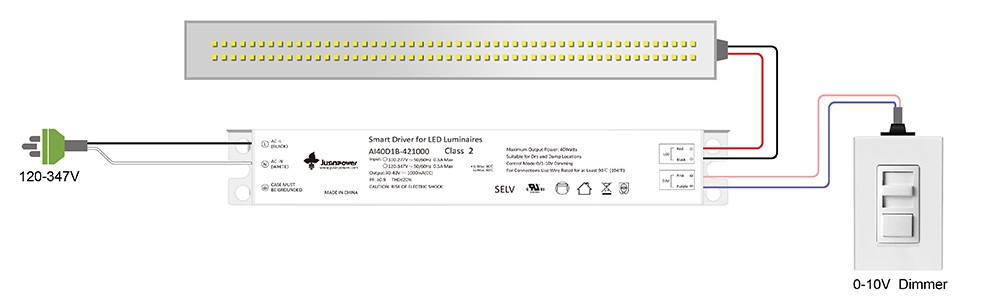

Wiring Diagram
One end of the product is connected with two groups of wires, one group of four wires, one end is AC input terminal, the other end is DC output terminal and dimming signal input terminal, led + and led – are respectively connected with LED lamp positive and negative; DM + and DM – are respectively connected with 0-10 dimmer positive and negative.
Hot Tags: 40w 0 10v dimming driver, China 40w 0 10v dimming driver manufacturers, suppliers, factory, slim strip driver, thin led light fixtures, 75W Sensor Driver, 4500K medium brightness, panel led driver, pwm led driver
AI I series
AI40D1B-421000(1-10V)
|
Performance |
|
|
Input Voltage |
100-277 Vac |
|
Input Current Max |
0.48A |
|
Input Power Max |
40W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.9 @ max load |
|
THD Max |
< 18 % @ max load |
|
Output Voltage (Refer to Driver Operating Range) |
30-42Vdc |
|
Max. Output Current |
1000mA |
|
Output Power |
42W |
|
Power Efficiency |
86% |
|
Input Line Regulation |
±3% |
|
Adjustment Rat |
±3 % |
|
No Flicker |
Optional |
|
Inrush Current* Peak / >10% Duration |
277V: 10A / 1.49ms |
|

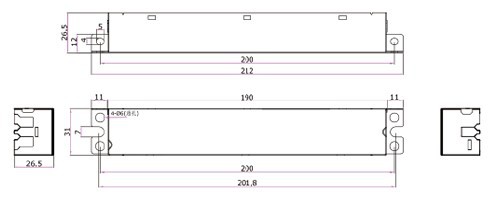

Physical |
|
|
Length |
212 mm |
|
Width |
31.2 mm |
|
Height |
27.6 mm |
|
Mounting Length |
200mm |
|
Weight (g) |
230g |
|
Environmental |
|
|
Safety Standard |
UL8750, Class2 |
|
EMC Emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Location Rating |
UL Dry & Damp |
|
Surge Protection |
L-N 1KV, L-N-FG 2KV |
|
Certificate |
CE/UL/FCC certificate |
|

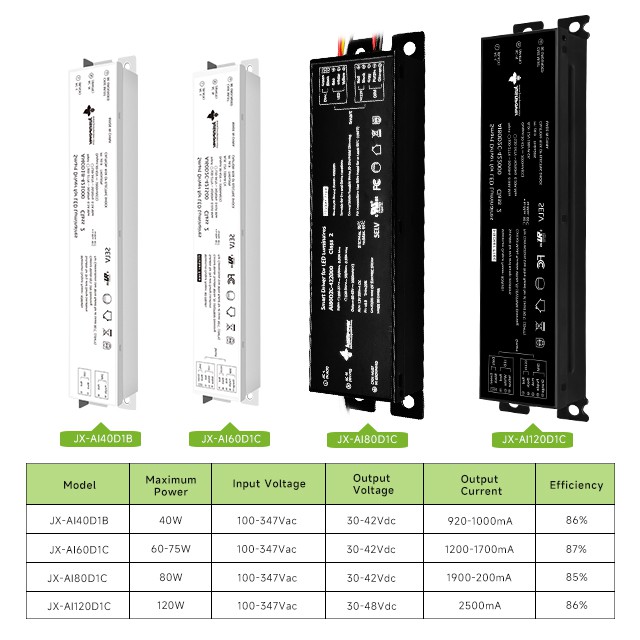

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Regulation |
Efficiency |
Size |
Certificate |
|
JX-AI40D1B |
40W |
100-277Vac |
30-42Vdc |
920mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
1000mA |
||||||
|
JX-AI50D1B |
50W |
100-277 Vac |
30-43Vdc |
1300mA |
External dip switch |
88% |
L212*W31.2*H27.6 |
UL FCC CLASSII |
|
JX-AI60D1C |
60W |
100-277Vac 120-347Vac |
30-42Vdc 30-40Vdc |
1200mA 1500mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
75W |
200-240Vac |
30-40Vdc |
1700mA |
NO |
87% |
L213*W32*H27 |
UL FCC CLASSII |
|
|
JX-AI120D1C |
120W |
100-277Vac |
30-48Vdc |
2500mA |
NO |
86% |
L241.3*W43.4*H30 |
UL FCC CLASSII |
