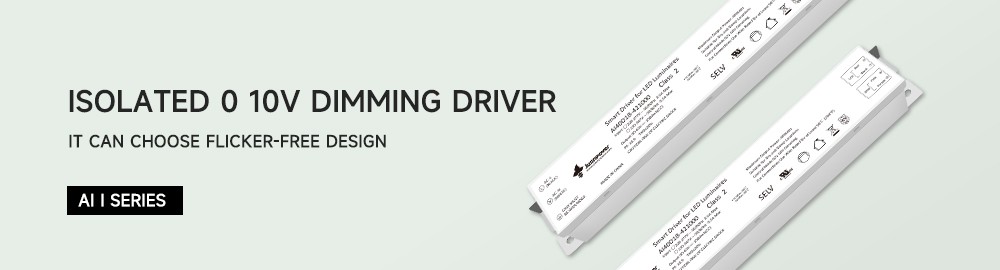

Isolated 0 10V Dimming Driver

The isolated 0 10V dimming driver uses a transformer to convert high voltage to low voltage, and rectifies AC to DC output led power supply. It can choose flicker-free design, adopts class Ⅱ power supply, and the output voltage is 30-48Vdc.

Top Features and Benefits:


120-347Vac	12V auxiliary power supply	Flicker free	5 Years Warranty

1. Isolated driver

2. Output current 30-48Vdc

3. Optional flicker-free design

Application Scenario:

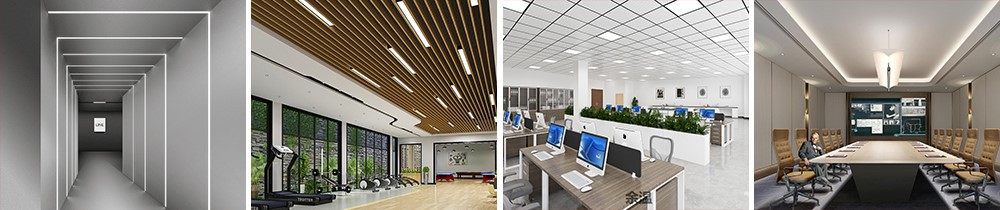

The isolated 1 10V dimming driver suitable for line light, tri-proof light, grille light and so on. Can be used for indoor and outdoor lighting.

product-1000-210

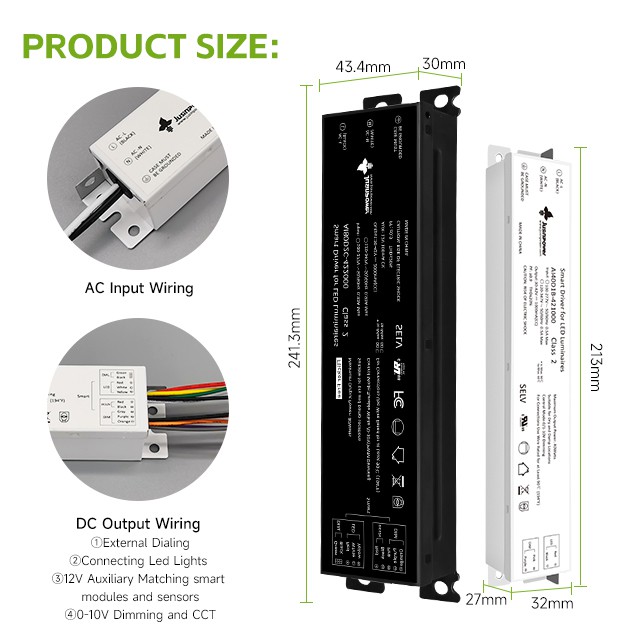

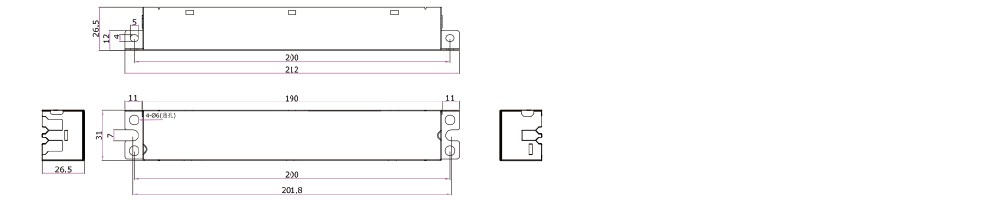

Dimension (mm)

Length:212mm Width:31.2mm Height:28mm

product-1000-200

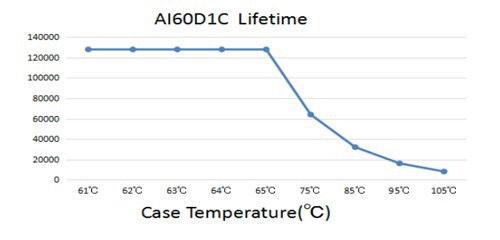

Life Curve

When the operating temperature of the drive is kept between 61℃ and 65℃, its working life can reach the maximum value of 130,000 hours.

product-500-240

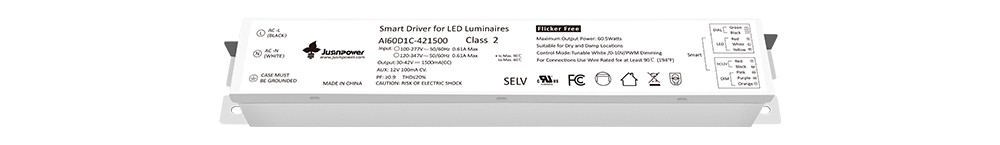

Wiring Diagram

product-1000-145

The product has two sets of wiring at one end, one set of four wires. One end is the AC input end, which is connected to the mains, and the other end is the DC output end. LED+ and LED- are connected to the positive and negative poles of the LED lights respectively.

Hot Tags: isolated 0 10v dimming driver, China isolated 0 10v dimming driver manufacturers, suppliers, factory, Strip smart dimming, Plant Light led Driver, Tri proof light driver, 5 8G LED Sensor Driver, Independent selection of current, 3CCT WHITE TRIM

AI I series

AI60D1B

Performance
Input Voltage	100-277 Vac
Input Current Max	0.46A
Input Power Max	50W
Input Frequency	50/60Hz
Power Factor	> 0.9 @ max load
THD Max	< 15 % @ max load
Output Voltage (Refer to Driver Operating Range)	30-43Vdc
Max. Output Current	1300mA
Output Power	56W
Power Efficiency	88%
Input Line Regulation	±5%
Adjustment Rat	±5%
No Flicker	Optional
Inrush Current* Peak / >10% Duration	277V: 10A / 1.49ms

Physical
Length	212 mm
Width	31.2 mm
Height	27.6 mm
Mounting Length	200mm
Weight (g)	230g

Environmental
Safety Standard	UL8750, Class2
EMC Emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 85°C
Warranty Tc	85°C max for 50k Hr Life
Location Rating	UL Dry & Damp
Surge Protection	L-N 1KV, L-N-FG 2KV
Certificate	CE/UL/FCC certificate

Series Driver
Model	Max Power	Input Voltage	Output Voltage	Output Current	Power Regulation	Efficiency	Size	Certificate
JX-AI40D1B	40W	100-277Vac	30-42Vdc	920mA	External dip switch	86%	L213W32H27	UL FCC CLASSII
JX-AI40D1B	40W	120-347Vac	30-40Vdc	1000mA	External dip switch	86%	L213W32H27	UL FCC CLASSII
JX-AI50D1B	50W	100-277 Vac	30-43Vdc	1300mA	External dip switch	88%	L212W31.2H27.6	UL FCC CLASSII
JX-AI60D1C	60W	100-277Vac 120-347Vac	30-42Vdc 30-40Vdc	1200mA 1500mA	External dip switch	86%	L213W32H27	UL FCC CLASSII
JX-AI60D1C	75W	200-240Vac	30-40Vdc	1700mA	NO	87%	L213W32H27	UL FCC CLASSII
JX-AI120D1C	120W	100-277Vac	30-48Vdc	2500mA	NO	86%	L241.3W43.4H30	UL FCC CLASSII
