Wide Output Voltage 100-210/60-140Vdc Tube Driver
This wide output voltage tube driver is suitable for 100-210V and 60-140V DC voltage ranges. It has efficient power conversion capabilities. The driver is exquisitely designed and integrates multiple protection functions. It can effectively ensure the stability of the output voltage when the input and voltage change in a wide range, enhance the durability of the equipment, and reduce the risk of damage caused by unstable power supply. Its wide voltage input characteristics make it perform well in different application scenarios and is your ideal choice for high-reliability power management
Top Features and Benefits:
|
|
|
|
|
|
Wide Voltage Output 100-210/60-140Vdc |
Flicker free |
3 years warranty |
Ultra small thin |
1.Wide Output Voltage Range: Operates on 100-210Vdc/60-140Vdc.It has efficient power conversion capabilities.
2.The driver is finely constructed, and it incorporates several protection measures.
3.3 years warranty.We not only provide a 3-year warranty, but also provide the best service, with 24-hour online follow-up from production to shipment
4.40W non-isolated flicker free power design.

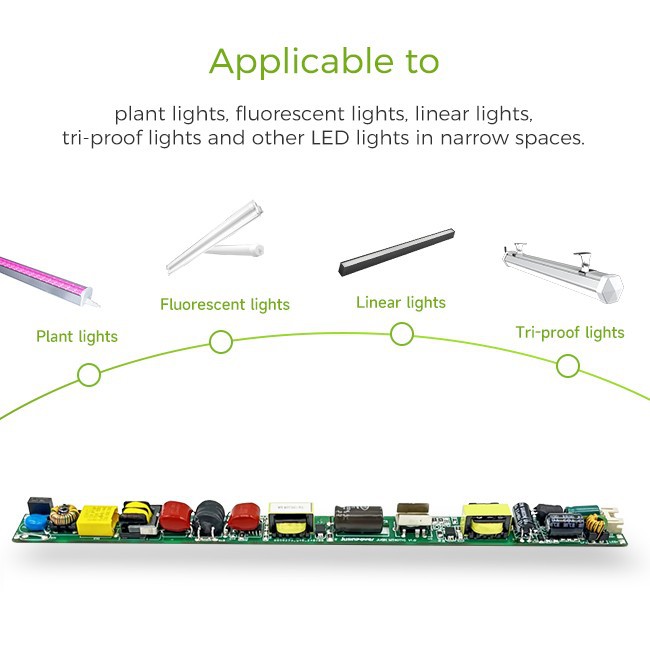

Application Scenario:

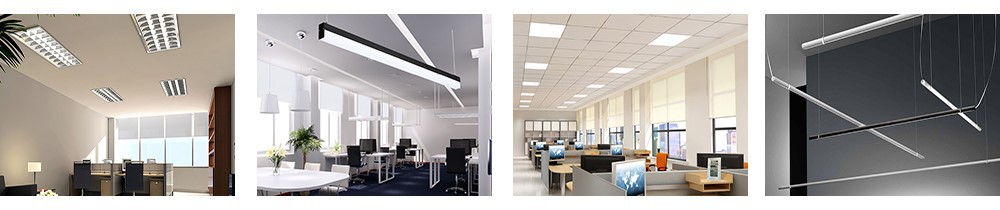

Office Spaces: LED drivers are used in fixtures such as panel lights, downlights, and linear lights to provide efficient and adjustable lighting for work environments.

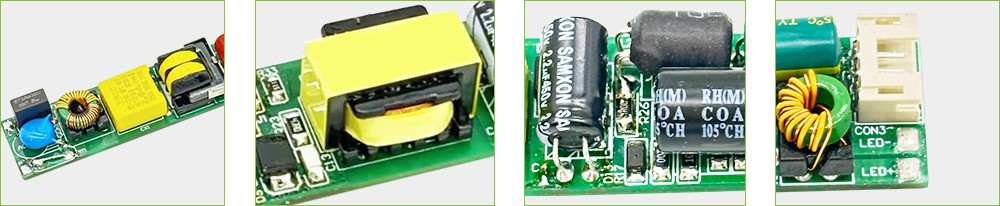

Product Details:

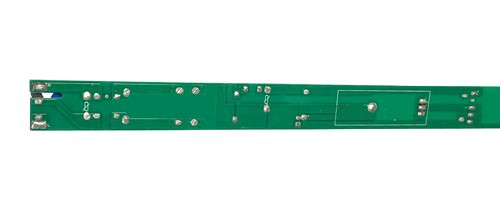

FR4 has the advantages of good processability, stable electrical properties, high mechanical strength, and high temperature resistance, but it is difficult to use in high-speed, high-frequency, and high-power applications.

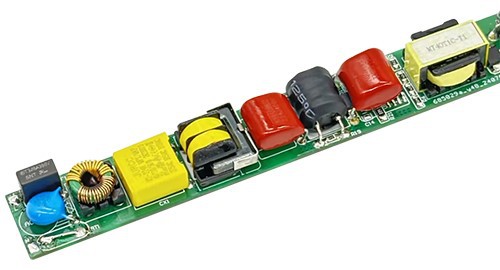

Reduced Electromagnetic Interference (EMI): EMC components help minimize electromagnetic interference generated by the LED driver. This is crucial for preventing disruptions to nearby electronic devices and ensuring compliance with regulatory standards.

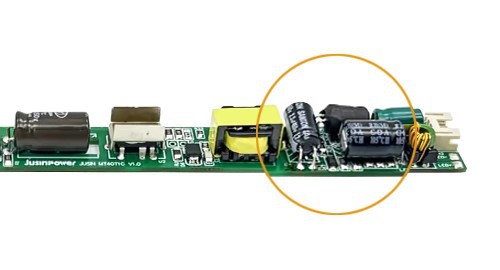

Energy Storage and Filtering: Capacitors store and release electrical energy, helping to smooth out the input voltage and providing a stable power supply to the LEDs.

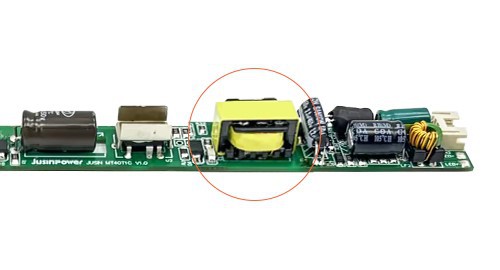

Transformers can convert high input voltage to a lower output voltage suitable for LEDs, or vice versa, ensuring that the LED receives the correct voltage for optimal performance.

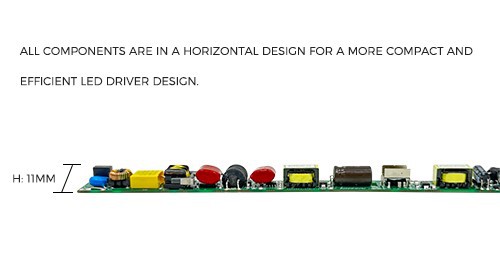

Horizontally arranged components can enhance heat dissipation due to a larger surface area exposed to airflow. This helps in maintaining lower operating temperatures and prolonging the lifespan of the LED driver.

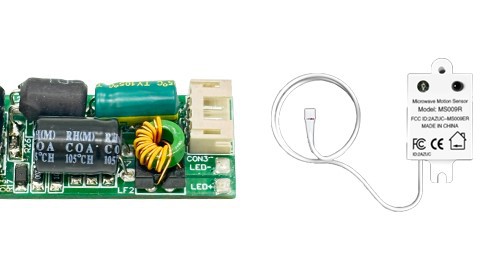

Smart sensors can detect ambient light levels and adjust the brightness of the LEDs accordingly, reducing energy consumption when full brightness is not needed.

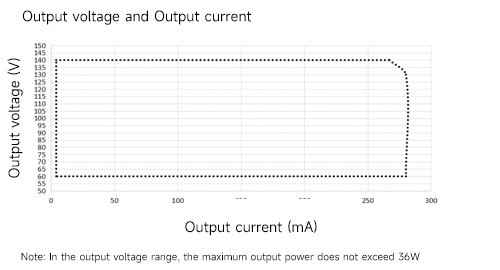

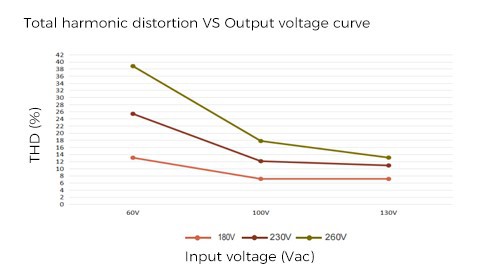

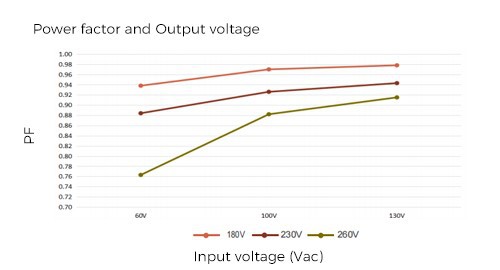

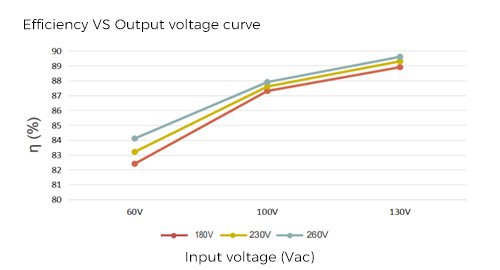

Electrical Chart:
Test at TA25℃ and output current 280mA

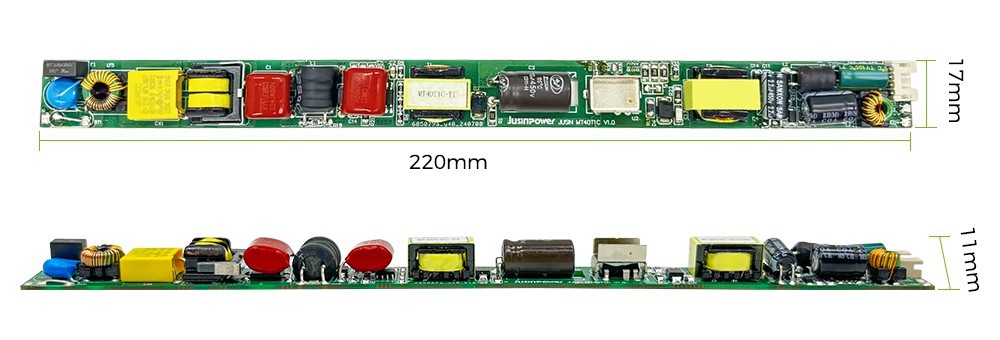

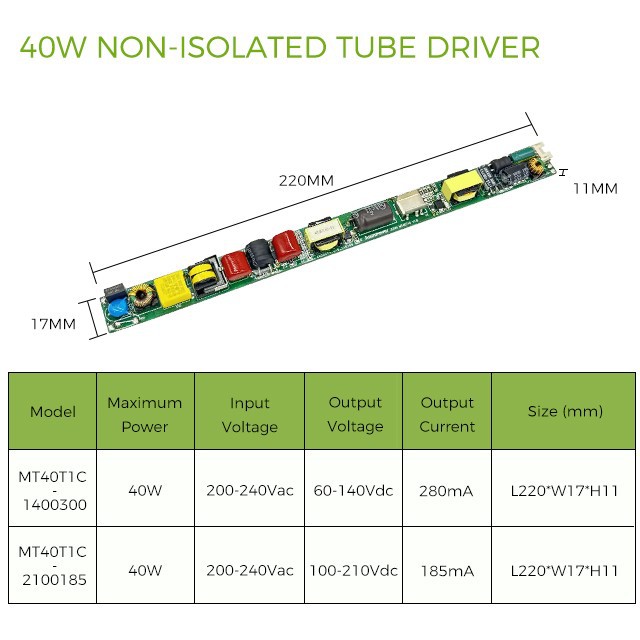

Dimension(mm):
Length:220mm Width: 17mm Height:11mm

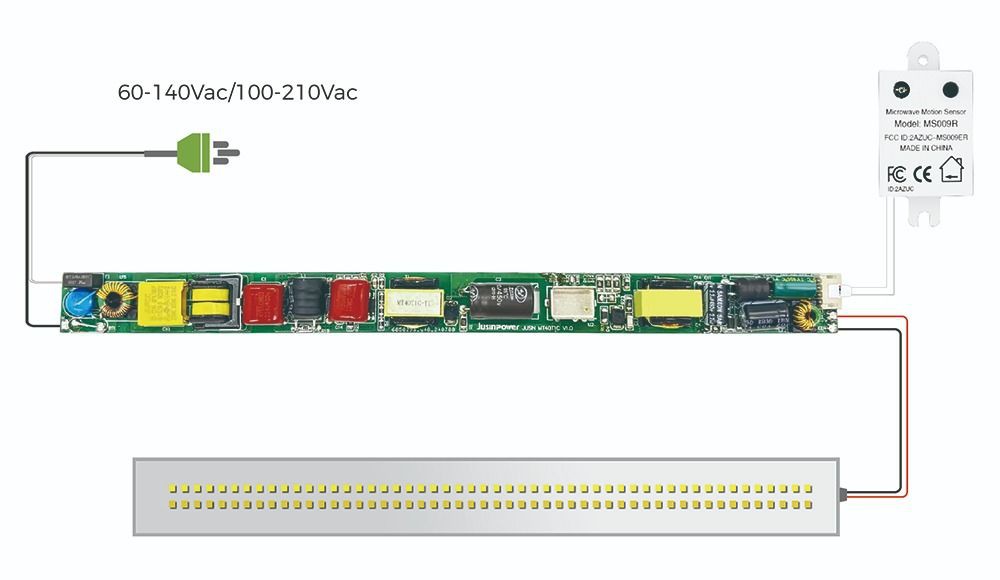

Wiring instructions:
The two ends of the product are connected, one end is the AC input end, weld the black/white PVC wire, and the other end is the DC output and dimming signal input end. LED+ and LED- are connected to the positive and negative poles of the LED lamp respectively; the terminal is connected to the PWM dimming signal.

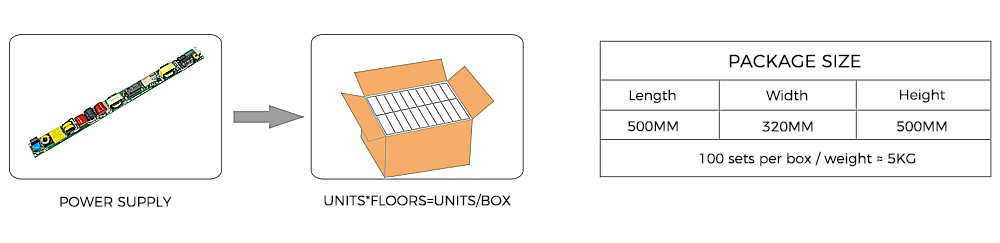

Product Packaging:
Hot Tags: wide output voltage 100-210/60-140vdc tube driver, China wide output voltage 100-210/60-140vdc tube driver manufacturers, suppliers, factory, led driver 5 line cct, smart lighting control systems, 0 10 volt dimming, 80W Tunable White LED Driver, 70W tunable white, 100-347Vac
MT40T1C
|
Performance |
||
|
Model |
MT40T1C-1400300 |
|
|
Input |
Voltage |
200-240Vac |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
89%@230Vac full load |
|
|
Power Factor |
≥0.9@230Vac full load |
|
|
THD(Full load) |
<20 %@230Vac full load |
|
|
AC Current (Max) |
0.26A@230Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
20A peak@180V |
|
|
28A peak@230V |
||
|
30A peak@260V |
||
|
Leakage Current (Max) |
<0.5mA |
|
|
Output |
Voltage (Vdc) /Current (mA) Power (W) |
60-140Vdc/280mA 36W |
|
Ripple Voltage
|
<5% |
|
|
Channel |
/ |
|
|
Line regulation |
±5% |
|
|
No-Load Output Voltage |
180V |
|
|
Start Time
|
<0.5S@260V ＜1S@180V |
|
|

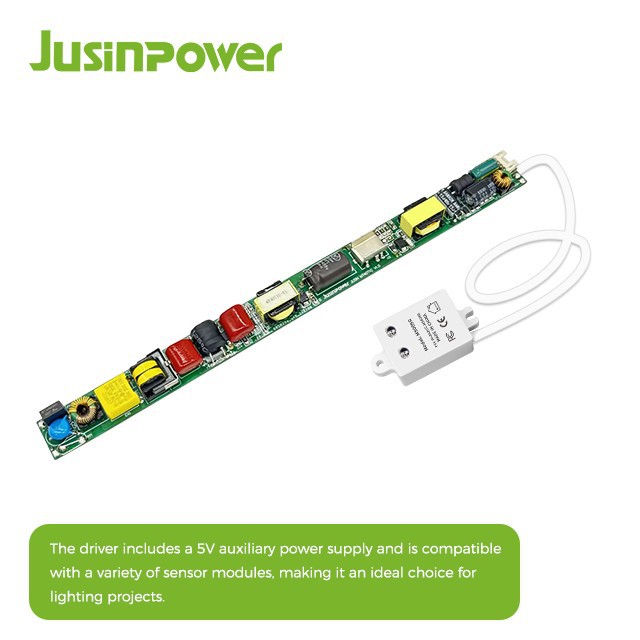

Auxiliary Voltage |
5V |
|
|
Function |

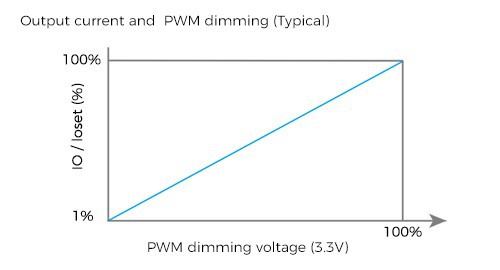

Dimming method |
3.3V PWM Dimming |
|
Dimming current |
<2mA@1% <280mA@100% |
|
|
Dimming range |
1%-100%(standard) |
|
|
10%-100% (Optional ) |
||
|
Power regulation |
/ |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
220 mm |
|
Width |
17mm |
|
Height |
11 mm |
|
Weight (g) |
≈45g |
|
Environmental |
|
|
Safety Standard |
CE ,Class2 |
|
EMC |
Meet EN IEC 55015:2019/A11:2020 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|

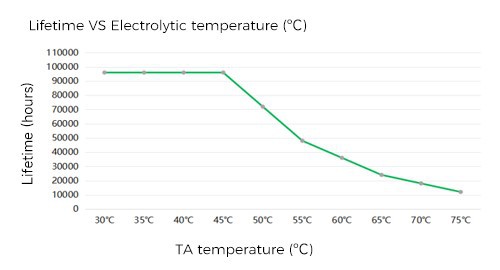

Warranty Tc |
50000Hour (s)@TC:＜80℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
|
MT40T1C-1400300 |
36W |
200-240Vac |
60-140Vdc |
280mA |
0.9 |
89% |
L220*W17*H11 |
