3 levels of
color temperature

adjustment

3 levels of
brightness

Adjustment

120-347Vac

12V auxiliary
power supply

5 Years
warranty

1. 1-10V Dimmable

2. Input frequency 47-63Hz

3. Maximum efficiency up to 91%

Application Scenario:

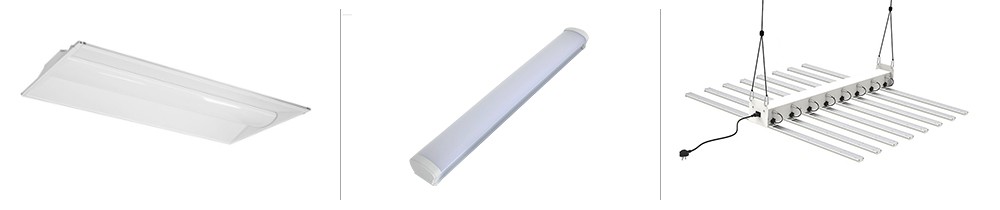

The 1-10V dimming driver suitable for LED lights in narrow spaces such as line lights, tri-proof lights, plant lights, grille lights, etc.

product-1000-210

Product Details:

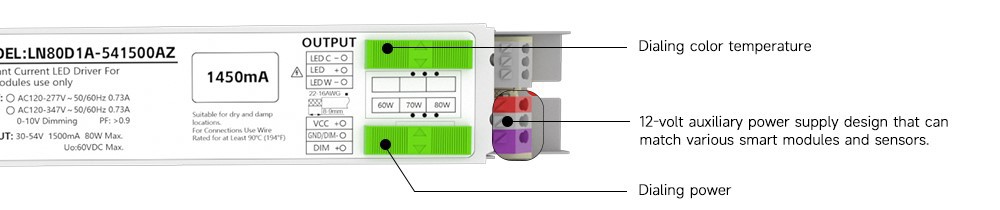

It has dual dials to adjust color temperature and power, and a 12-volt auxiliary power supply design that can match various smart modules and sensors.

product-1000-210

High Quality Raw Materials and Exquisite Technology

product-1000-134

Safety capacitor

Magnetic inductance

Transformer

product-1000-134

Electrolytic capacitor

Dialing color temperature

Dialing power

product-1000-134

Sufficient EMC

Brand IC

Brand high frequency low impedance capacitance

Electrical Characteristics:

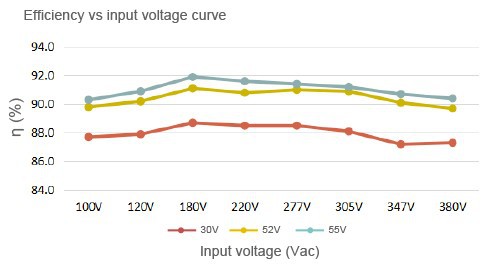

When the input voltage is 277V and the output voltage is 55V, the maximum efficiency can reach 91.8%.

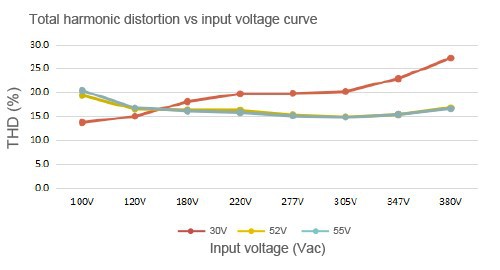

When the input voltage is 277V and the output voltage is 55V, the THD is 15%.

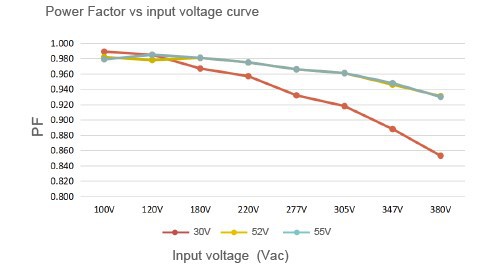

When the input voltage is 277V and the output voltage is 55V, the PF value is 0.97.

0-10V dimming, when adjusted to 1V and below, the brightness of the light is lower than 10%.

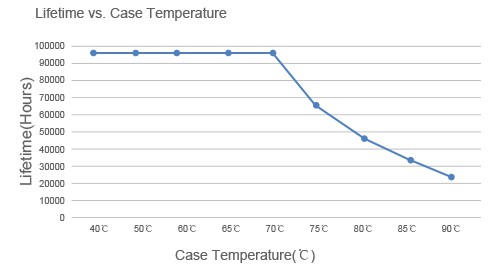

When the operating temperature of the drive is maintained at 40℃ to 70℃, the working life of the drive can reach 98,000 hours.

When the output voltage is 30V, the output current is 1500mA. Note: within the output voltage range, the maximum output power does not exceed 55W.

Product Label:

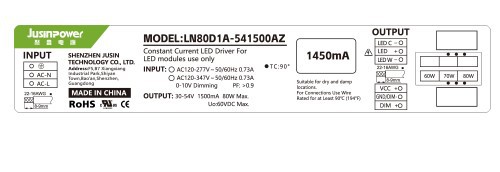

product-500-172

Dimension (mm)

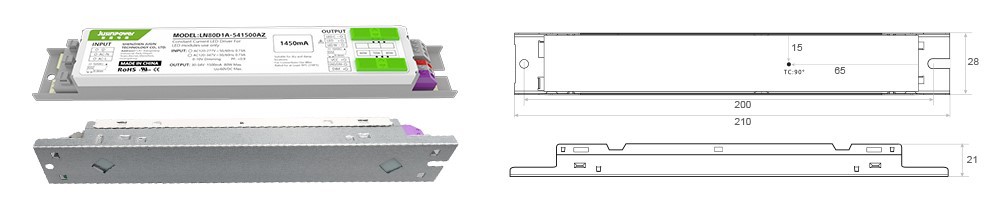

Length: 210mm Width: 28mm Height: 21mm

product-1000-210

Wiring Instructions:

product-1000-500

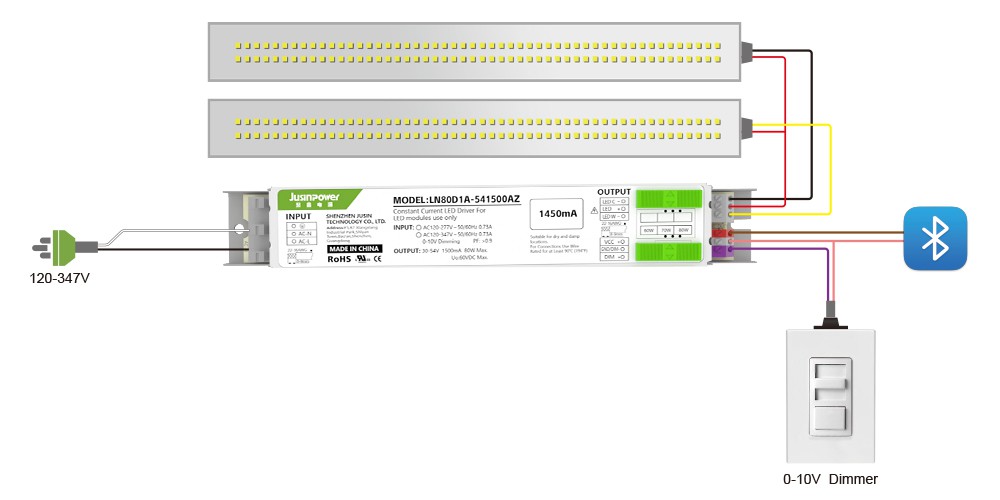

The two ends of the product are connected, one end is the AC input terminal, the other end is the DC output and dimming signal input end, LED+, LED C-/LED W- are respectively connected to the positive pole of the LED light; DIM+ is connected to 0-10V; VCC is connected to the 12V auxiliary module for power supply, GND/DIM- grounded.

Hot Tags: 1-10v dimming driver, China 1-10v dimming driver manufacturers, suppliers, factory, smart module, Dim to Dark, bipolar led driver, single channel output, 3000K low brightness, Double DIP Power Adjustment Constant Current LED Driver

LN80

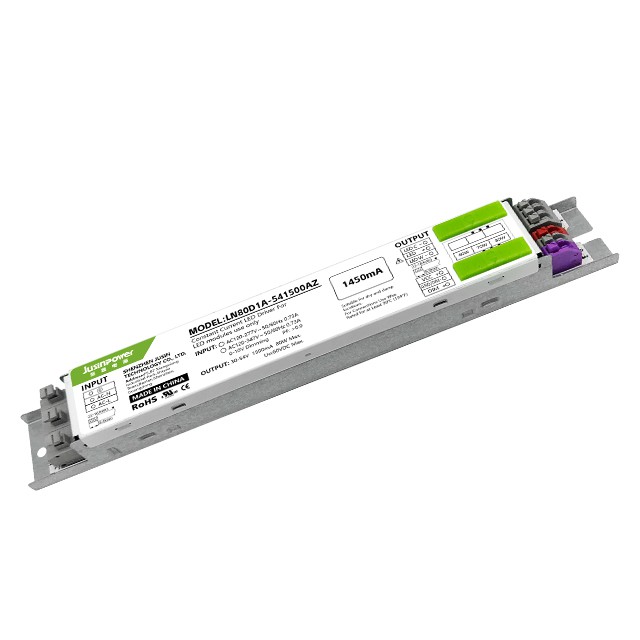

LN80D1A

Performance
Model	LN80D1A-541500AZ
Input	Efficiency	91%@230Vac full load
	Voltage	120-277Vac(standard)
	Voltage	120-347Vac(optional)
	Frequency Range(Hz)	50/60Hz
	Power Factor	≥ 0.9@347Vac full load
	THD(full load)	<20%@120Vac full load
	AC Current(max)	0.8A@120Vac full load
	Standby power	<1W
	Inrush current (cold engine start) max	30A@120Vac
		70A@277Vac
		100A@347Vac
	Leakage current (max)	<0.75mA@347V

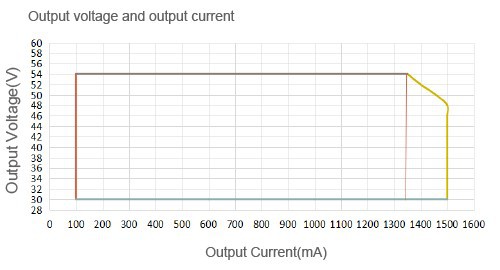

Output	Current(mA)/Voltage (VDC) Power(W)	30-54Vdc/1500mA/75W
	Channel	1 output
	Linear Regulation	±5%
	No-load output voltage	<60V
	Start Time	<0.5S@347V <1S@120V
	auxiliary voltage	12V/100mA

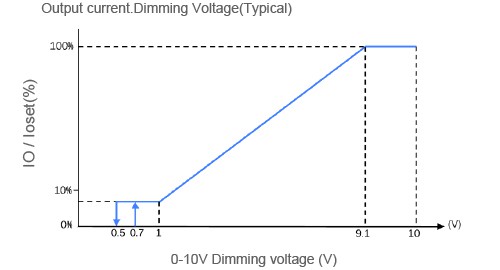

Function	Dimming method	0-10V 0.5V OFF /0.7V OPEN
	Dimming current	<1mA@10V <2mA@0.7V
	Dimming range	7%-100% (standard)
	Color temperature	Three gears adjustable
Protection	Over Temperature	When temperature is too high,shut down the output, Recovers automatically
	Over load	Hiccup, when the output power exceeds ,then,recovers automatically after fault removed
	Short Circuit	Close output,recovers automatically after fault removed

Physical
Length	210 mm
Width	28 mm
Height	21 mm
Mounting Length	195mm
Weight (g)	154g

Environmental
Safety standard	UL8750 ,Class1
EMC emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature,Humidity	-20°C to 85°C,20-90%RH
Case Temperature	TC=90℃
Warranty Tc	85°C max for 50k Hr Life
Surge protection	L-N 1KV , L/N-FG 2KV
IP Rating	IP20
Material	Iron shell
Certificate	CE/FCC/UL certificate

Series Driver

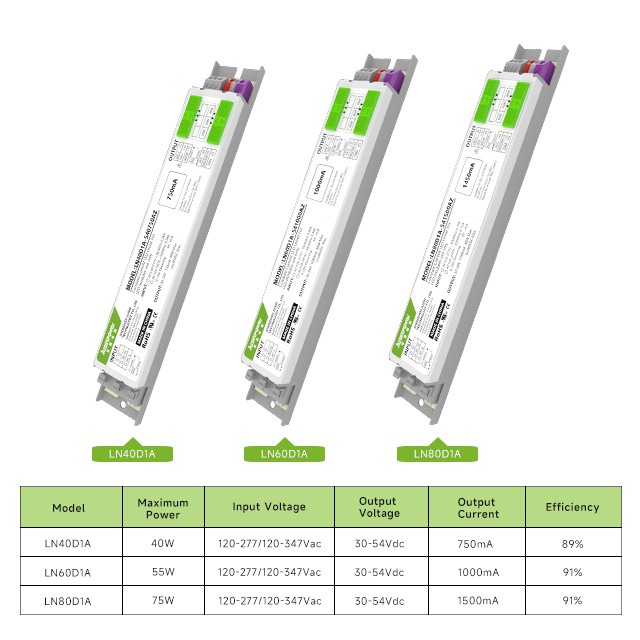

Model	Max Power	Input Voltage	Output Voltage	Output Current	Power Factor	Power Regulation	Color temperature	Efficiency
LN40D1A-54XXXXYZ	36W	120-277/120-347Vac	30-54Vdc	750mA	0.9	Adjustable	Adjustable	89%
LN60D1A-54XXXXYZ	55W	120-277/120-347Vac	30-54Vdc	1000mA	0.9	Adjustable	Adjustable	91%
LN80D1A-54XXXXYZ	75W	120-277/120-347Vac	30-54Vdc	1500mA	0.9	Adjustable	Adjustable	91%
