0 10V Dimming Driver Suitable for Tri-Proof Lights
The compact 0-10V dimming driver, designed for tri-proof lights, is ideal for tight assembly spaces. Beyond tri-proof lights, it's compatible with slim strip LEDs like linear lights, horticultural lights, and grid lamps.
3 levels of
color temperature
adjustment
3 levels of
brightness
Adjustment
120-347Vac
12V auxiliary
power supply
5 Years
warranty
1. Reduced size
2. 0-10V dimming
3. Suitable for narrow assembly spaces

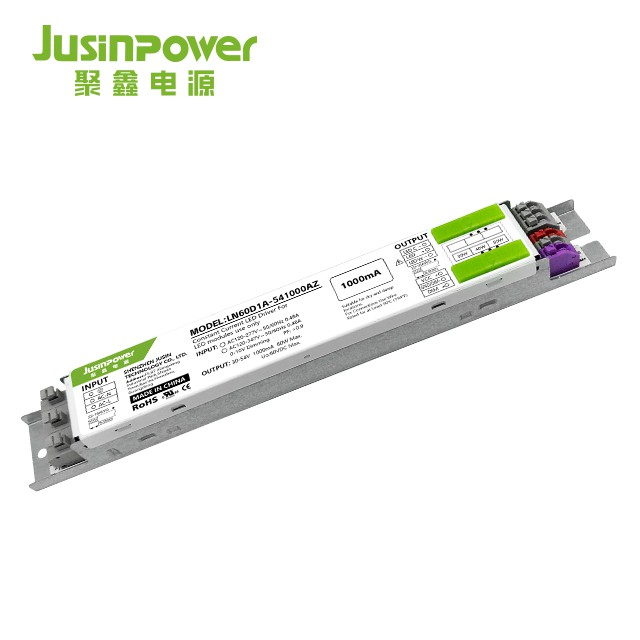

Product Details:

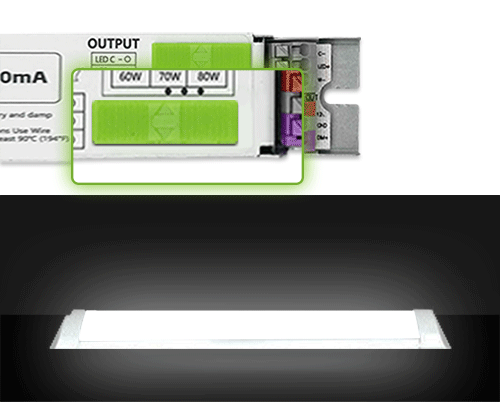

The power can be adjusted by dialing the code

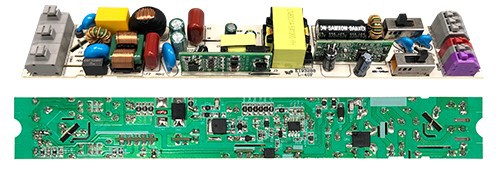

Product Internal Picture

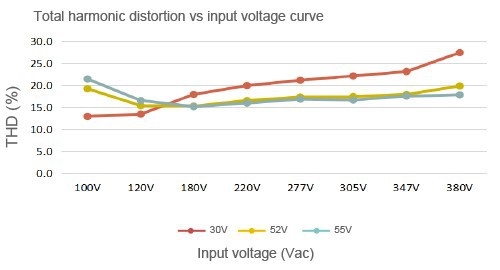

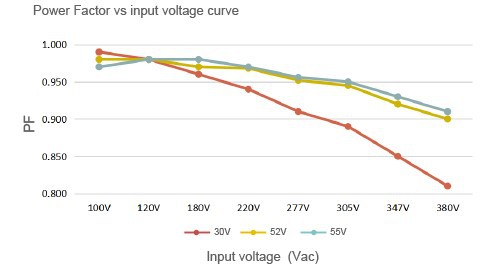

Electrical Characteristics:

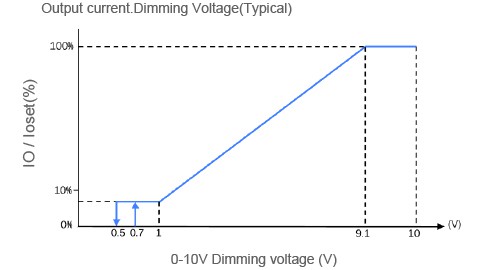

With 0-10V dimming, the light achieves around 8% brightness at 0.7V adjustment and reaches 100% brightness at >9V. At 0.5V adjustment, the light is fully turned off.

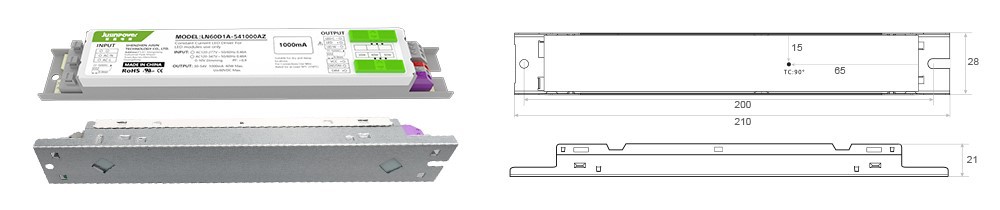

Dimension (mm)
Length: 210mm Width: 28mm Height: 21mm
Wiring Instructions:

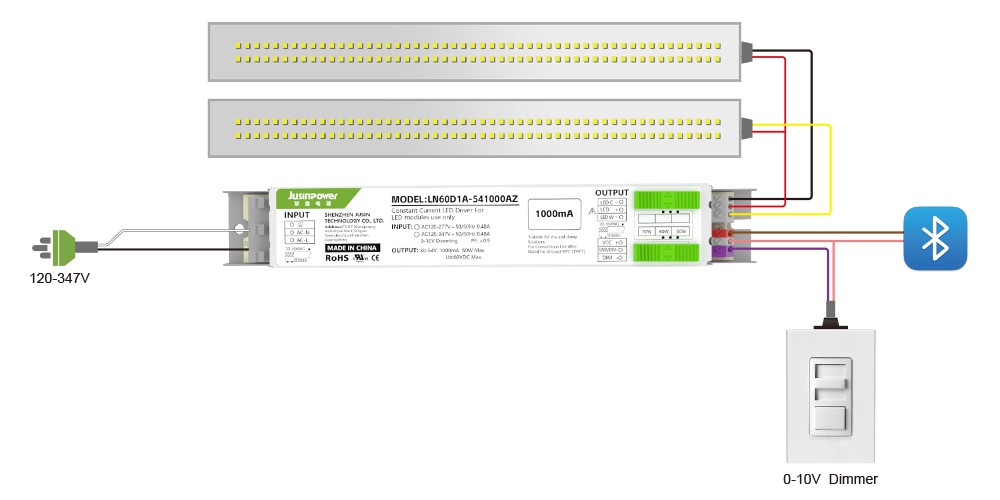

The two ends of the product are connected, one end is the AC input terminal, the other end is the DC output and dimming signal input end, LED+, LED C-/LED W- are respectively connected to the positive pole of the LED light; DIM+ is connected to 0-10V; VCC is connected to the 12V auxiliary module for power supply, GND/DIM- grounded.
Cautions:
1.The two power outputs cannot be connected together, which may cause damage to the power supply.
2. As the residual output voltage is>0 V, it will not be hot swapped, non-isolated,high output voltage .
3.This product is non waterproof, need to avoid sun and rain.In case of outdoor use, please ensure it is mounted in a water proof enclosure.
4.Good heat dissipation conditions extend product life.Please install the product in a well-ventilated environment.
Hot Tags: 0 10v dimming driver suitable for tri-proof lights, China 0 10v dimming driver suitable for tri-proof lights manufacturers, suppliers, factory, wifi lamp, no strobe, pwm dimming ac, tunable light, Color Blending applications , non isolated led driver circuit
LN60
LN60D1A
|
Performance |
||
|
Model |
LN60D1A-541000AZ |
|
|
Input |
Efficiency |
91%@230Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac full load |
|
|
THD(full load) |
<20%@120Vac full load |
|
|
AC Current(max) |
0.6A@120Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
30A@120Vac |
|
|
60A@277Vac |
||
|
80A@347Vac |
||
|
Leakage current (max) |
<0.75mA@347V |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
30-54Vdc/750mA/40W |
|
Channel |
1 output |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V OPEN |
|
Dimming current |
<1mA@10V <2mA@0.7V |
|
|
Dimming range |
7%-100% (standard) |
|
|
Color temperature |
Three gears adjustable |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
210 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
195mm |
|
Weight (g) |
154g |
|
Environmental |
|
|
Safety standard |
UL8750 ,Class1 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE/FCC/UL certificate |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LN40D1A-54XXXXYZ |
36W |
120-277/120-347Vac |
30-54Vdc |
750mA |
0.9 |
Adjustable |
Adjustable |
89% |
|
LN60D1A-54XXXXYZ |
55W |
120-277/120-347Vac |
30-54Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
91% |
|
LN80D1A-54XXXXYZ |
75W |
120-277/120-347Vac |
30-54Vdc |
1500mA |
0.9 |
Adjustable |
Adjustable |
91% |
