Double DIP Power Adjustment Constant Current Led Driver
The double dip power adjustment constant current led driver has a single constant current output, and the current can be adjusted from 920mA to 2500mA by dial code, which is suitable for LED lights with different currents. The driver power factor can reach 0.9, and the efficiency is higher than 85%.

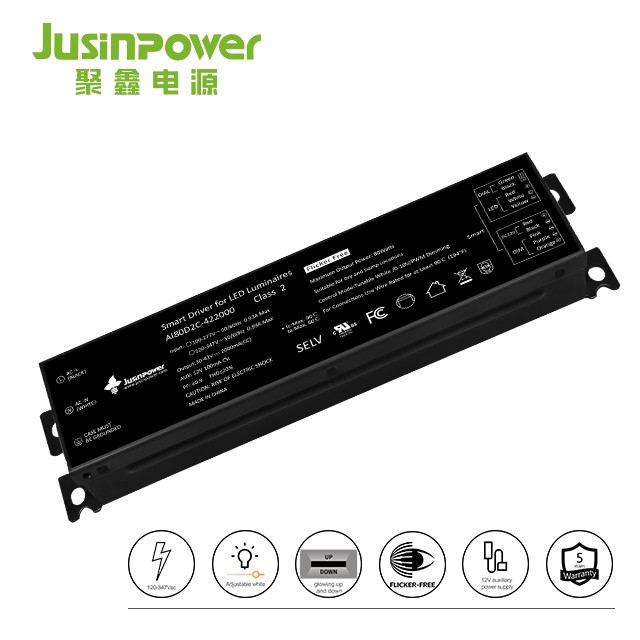

Top Features and Benefits:
|
|
|
|
|
|
120-347Vac |
12V auxiliary power supply |
Flicker free |
5 Years Warranty |
1. IP 20 design
2. 5 years warranty
3. Output current level selectable by Dip Switch

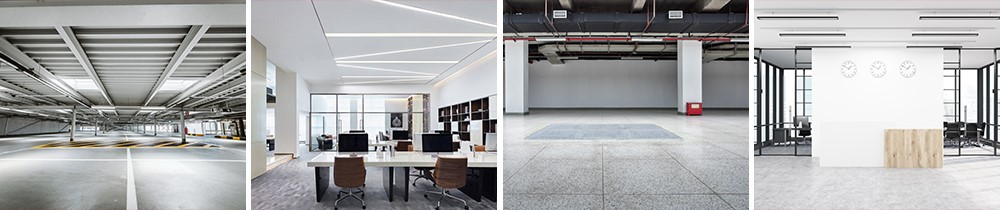

Application Scenario:
The double dip power adjustment constant current led driver suitable for tri-proof light, classroom light, line light and so on.
Electrical Characteristics:

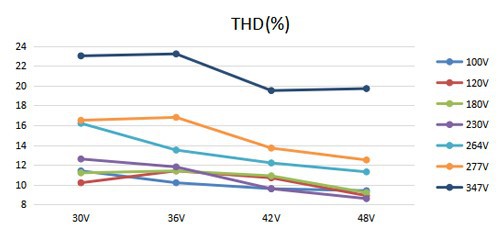

When the input voltage is 120V and the output voltage is 48V, the THD of the driver is 9%
Hot Tags: double dip power adjustment constant current LED driver, China double dip power adjustment constant current LED driver manufacturers, suppliers, factory, CUL Certification, led panel driver 40W, smart lighting system, 4500K medium brightness, Low THD 10 , Ultra thin panel
AI I series

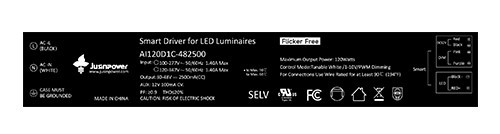

AI120D1C-482500(1-10V)
|
Performance |
|
|
Input Voltage |
120-347 Vac |
|
Input Current Max |
0.48A |
|
Input Power Max |
120W |
|
Input Frequency |
50/60Hz |
|

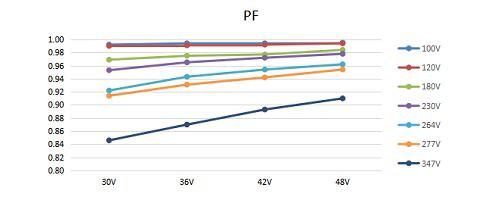

Power Factor |
> 0.9 @ max load |
|
THD Max |
< 18 % @ max load |
|
Output Voltage (Refer to Driver Operating Range) |
30-48Vdc |
|
Max. Output Current |
2500mA |
|
AUX Power |
12V 100mA |
|
Output Power |
120W |
|

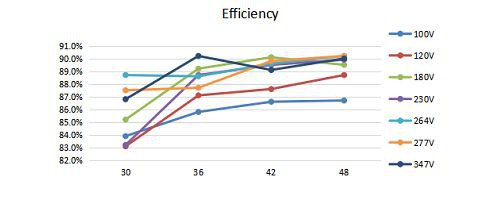

Power Efficiency |
86% |
|
Input Line Regulation |
±3% |
|
Adjustment Rat |
±3% |
|
No Flicker |
Optional |
|
Inrush Current* Peak / >10% Duration |
277V: 30A / 1.5ms |
|

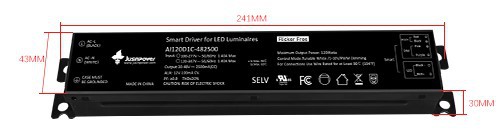

Physical |
|
|
Length |
241 mm |
|
Width |
43mm |
|
Height |
30 mm |
|
Mounting Length |
200mm |
|
Weight (g) |
230g |
|
Environmental |
|
|
Safety Standard |
UL8750, Class2 |
|
EMC Emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Location Rating |
UL Dry & Damp |
|
Surge Protection |
L-N 1KV, L-N-FG 2KV |
|
Certificate |
CE/UL/FCC certificate |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Regulation |
Efficiency |
Size |
Certificate |
|
JX-AI40D1B |
40W |
100-277Vac |
30-42Vdc |
920mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
1000mA |
||||||
|
JX-AI50D1B |
50W |
100-277 Vac |
30-43Vdc |
1300mA |
External dip switch |
88% |
L212*W31.2*H27.6 |
UL FCC CLASSII |
|
JX-AI60D1C |
60W |
100-277Vac 120-347Vac |
30-42Vdc 30-40Vdc |
1200mA 1500mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
75W |
200-240Vac |
30-40Vdc |
1700mA |
NO |
87% |
L213*W32*H27 |
UL FCC CLASSII |
|
|
JX-AI120D1C |
120W |
100-277Vac |
30-48Vdc |
2500mA |
NO |
86% |
L241.3*W43.4*H30 |
UL FCC CLASSII |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.
QC Process Flow Chart
Company Profile
Shenzhen JUSIN Technology Co.,Ltd.,established in 2012,is a national high-tech enterprise integrating research and development, production, sales and service of LED driver.Headquartered in Shenzhen,China,We have set up a branch in Taiwan,and have a 4000 square meter factory in Foshan high-tech Zone for production.In the 10 years since its establishment, all JUSIN family have continuously created value for nearly 1000 partners around the world by responding the market demands rapid and accurate,high-quality products and perfect services,and have passed the "ISO9001:2015" quality management system certification.
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international cUL, SAA, TUV, CE, CB, SAA, FCC, CCC.
