1000mA 0 10v Dimming Driver
It is high power factor, high efficiency LED power supply, power factor > 0.9, maximum efficiency 87%, in addition to 1000mA, there are 920mA, 1200mA, 1500mA, 1700mA, 2500mA can be purchased, with 0 -10V dimming signal isolation, obtained UL, FCC, CCC certification.
Top Features and Benefits:
|
|
|
|
|
|
120-347Vac |
12V auxiliary power supply |
Flicker free |
5 Years Warranty |

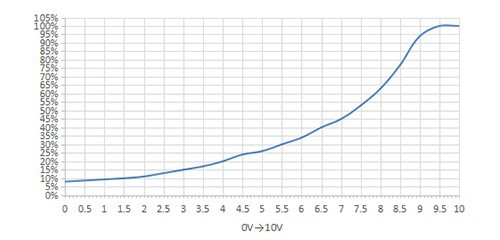

1. 0-10V dimming
2. PF>0.9
3. UL/FCC/CCC Certification

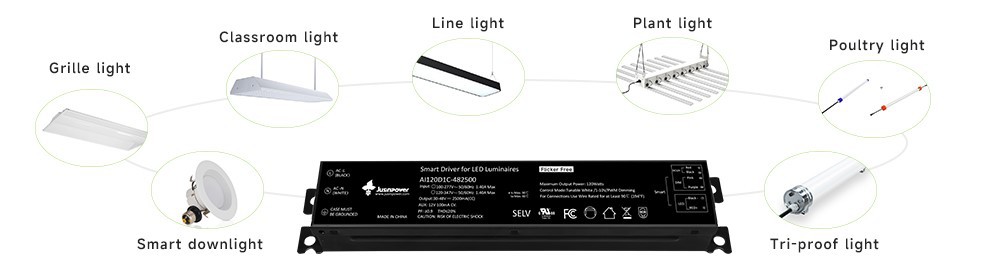

Application Scenario:
This product can be applied to many scenarios and different lamps. For example, smart downlights, grille lights, line lights, plant lights, poultry lights and more lamps.
Product Details:
Flicker-free design - Improve visual comfort: Provide more stable and consistent light, make colors and details clearer, and make the visual experience more comfortable.
Suitable for special application scenarios: In work scenarios that require high precision and high concentration, such as classrooms, laboratories, operating rooms, and design studios, flicker-free lamps can provide more reliable lighting.

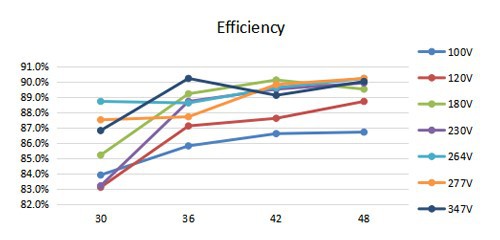

Electrical Characteristics:

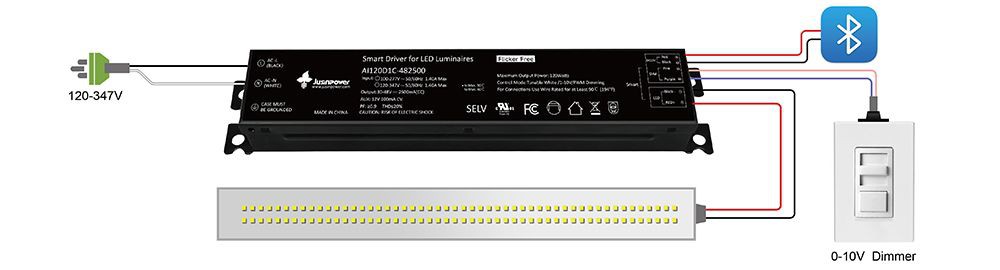

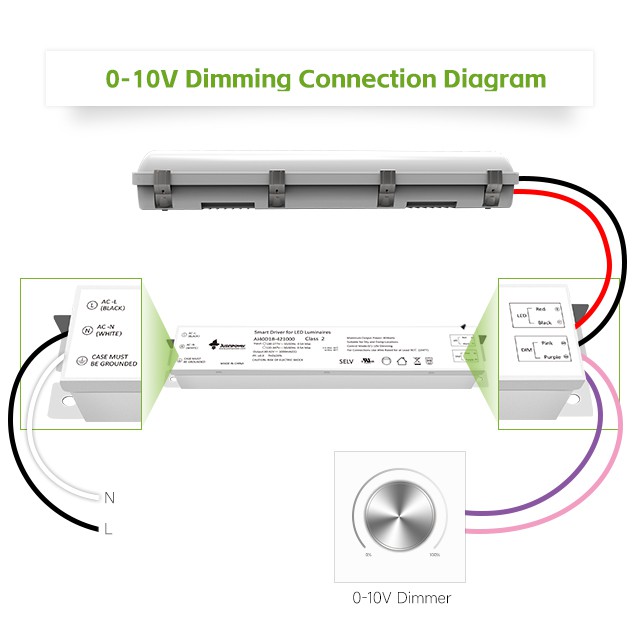

Wiring Diagram
The product is divided into two ends. One end is the AC input end, connected to the mains. The other end is the DC output end and the dimming signal input end, with a total of 4 wires. LED+, LED- are connected to the positive and negative poles of the LED lamp respectively; DIM+, DIM- are connected to the positive and negative poles of the 1-10V dimmer respectively.
Hot Tags: 1000ma 0 10v dimming driver, China 1000ma 0 10v dimming driver manufacturers, suppliers, factory, 3000K Dimming, 1000mA 0 10v Dimming Driver, 6000K selectable, pwm led driver, pwm dimming ac, 1700mA
AI I series
AI120D1C-482500(1-10V)
|
Performance |
|
|
Input Voltage |
120-347 Vac |
|
Input Current Max |
0.48A |
|
Input Power Max |
120W |
|
Input Frequency |
50/60Hz |
|

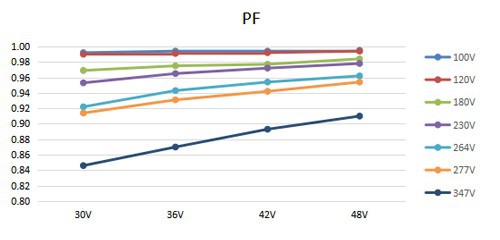

Power Factor |
> 0.9 @ max load |
|
THD Max |
< 18 % @ max load |
|
Output Voltage (Refer to Driver Operating Range) |
30-48Vdc |
|
Max. Output Current |
2500mA |
|
AUX Power |
12V 100mA |
|
Output Power |
120W |
|
Power Efficiency |
86% |
|
Input Line Regulation |
±3% |
|
Adjustment Rat |
±3% |
|
No Flicker |
Optional |
|
Inrush Current* Peak / >10% Duration |
277V: 30A / 1.5ms |
|

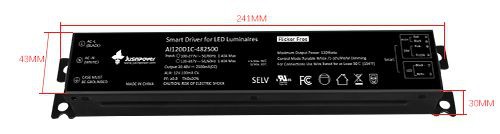

Physical |
|
|
Length |
241 mm |
|
Width |
43mm |
|
Height |
30 mm |
|
Mounting Length |
200mm |
|
Weight (g) |
230g |
|
Environmental |
|
|
Safety Standard |
UL8750, Class2 |
|
EMC Emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|

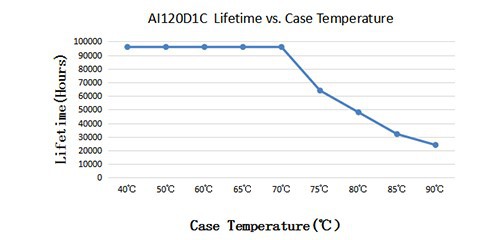

Warranty Tc |
85°C max for 50k Hr Life |
|
Location Rating |
UL Dry & Damp |
|
Surge Protection |
L-N 1KV, L-N-FG 2KV |
|
Certificate |
CE/UL/FCC certificate |
|

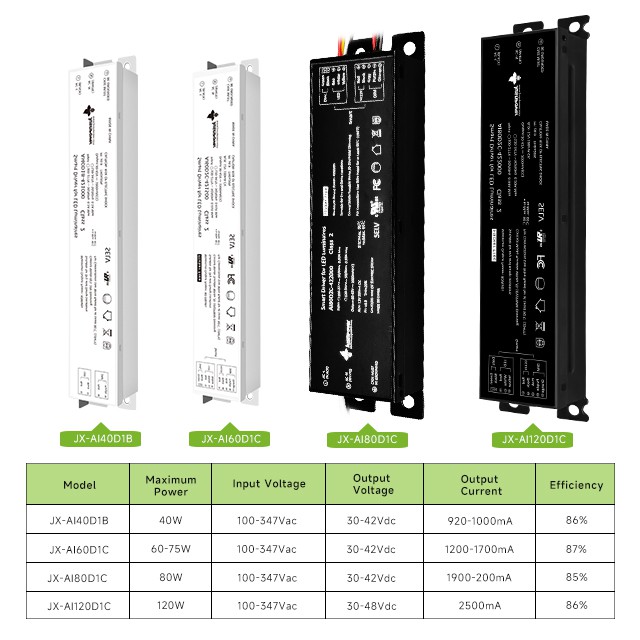

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Regulation |
Efficiency |
Size |
Certificate |
|
JX-AI40D1B |
40W |
100-277Vac |
30-42Vdc |
920mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
1000mA |
||||||
|
JX-AI50D1B |
50W |
100-277 Vac |
30-43Vdc |
1300mA |
External dip switch |
88% |
L212*W31.2*H27.6 |
UL FCC CLASSII |
|
JX-AI60D1C |
60W |
100-277Vac 120-347Vac |
30-42Vdc 30-40Vdc |
1200mA 1500mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
75W |
200-240Vac |
30-40Vdc |
1700mA |
NO |
87% |
L213*W32*H27 |
UL FCC CLASSII |
|
|
JX-AI120D1C |
120W |
100-277Vac |
30-48Vdc |
2500mA |
NO |
86% |
L241.3*W43.4*H30 |
UL FCC CLASSII |
OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure,required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.
OEM/ODM Service flow
1.New Project: Overall project discussion product specification definition estimate cost quotation.According to your specific needs, we can develop personalized solutions that are different from conventional standards.
2.R&D Design: research and design of the prototype.Prototype functional test and verification. We have a professional R&D team and engineers of about 20 people who can provide you with full-process services from concept design to product prototype production.
3. Sample Release: Get customer sample approval-final modification
4. Mass Production: Logistics services and Provide after-sales service
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international cUL, SAA, TUV, CE, CB, SAA, FCC, CCC.
Factory
We have a 4000 square meter factory in FoShan high-tech Zone for production.At the same time we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT machine,Automatic Gluing Machine,aged vehicle,reflow solder and so on.The production line of about 80 people, able to reach 1 million shipments per year!
-
High and Low Temperature Test Equipment
-
Automatic Plug-in Equipment
-
Automatic Glue Filling Equipment
-
SMT Equipment
-
Aging Test Equipment
-
AOI Detector
-
Wave Soldering
-
Reflow Soldering
