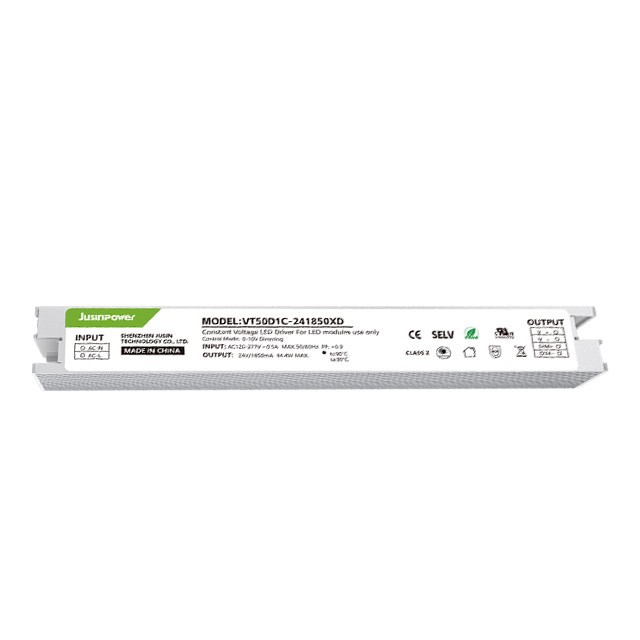

24V 50W dimmable led driver
This is a constant voltage LED driver suitable for linear lamps in small spaces. The input voltage is 120-277Vac, and the output is 24V. It can achieve 1% deep dimming, flicker free. The standby power is less than 1W. The dimming method is 0-10V, 0.5V to turn on, 0.7V to turn off. It is suitable for various indoor lamps.
Top Features and Benefits:
|
|
|
|
|
|
Application of GaN (gallium nitride) solution |
Input 120-277Vac |
1% deep dimming |
Ultra-thin size |
1. 1% deep dimming
2. Input voltage 120-277Vac
3. Dimming function 0-10v dimmable
4.Suitable for linear lamps in small spaces

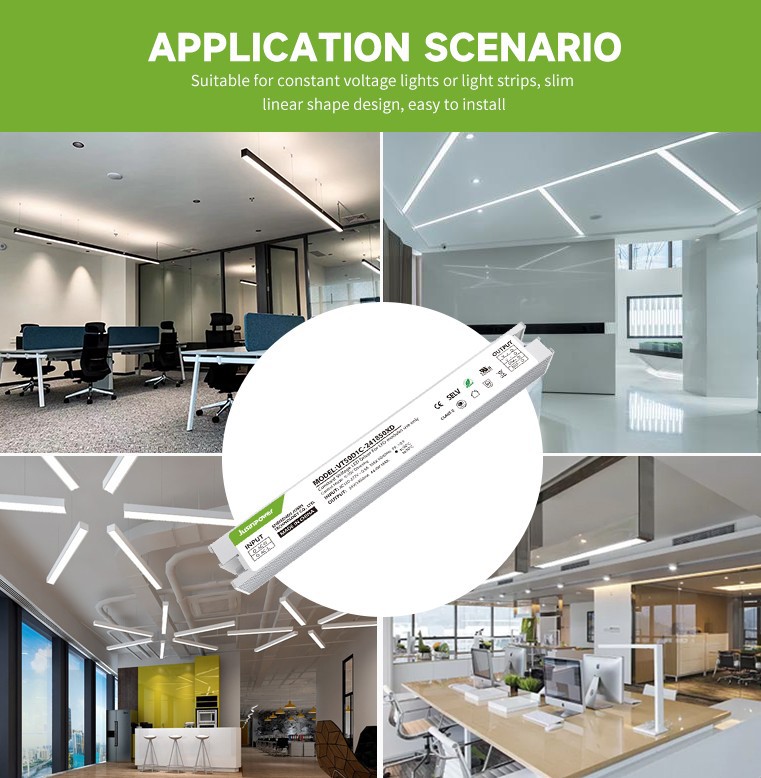

Application Scenario:

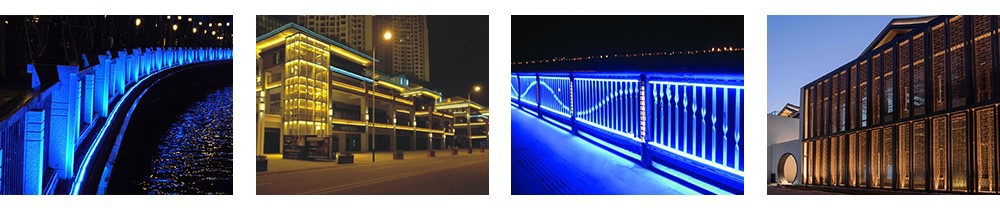

This product is suitable for wall washer lights are commonly used in building exterior lighting, landscape lighting, and interior decoration to emphasize the building's contour and features, improve the visual effect and aesthetics, and create a romantic night landscape effect.

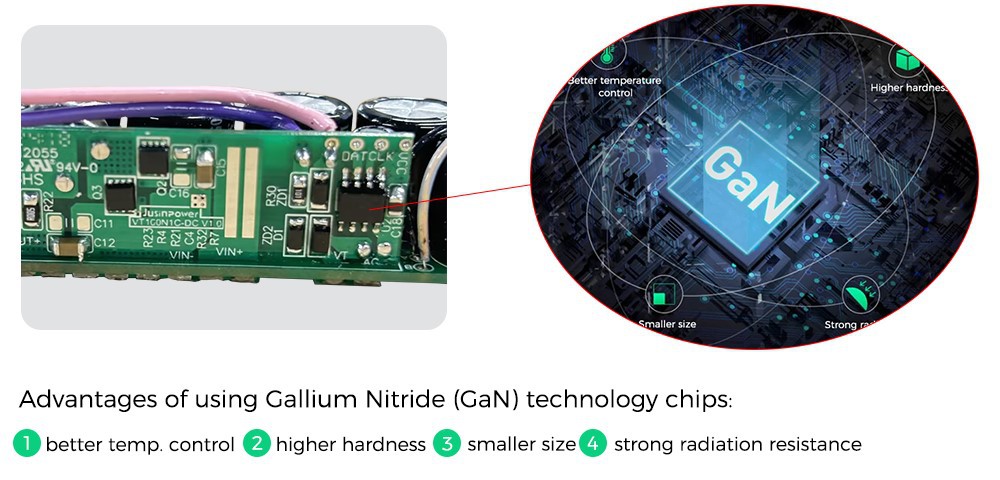

The chip uses the latest gallium nitride technology
Reduced volume at the same power, long lifespan, low temperature increase, great efficiency at light loads, and energy conservation

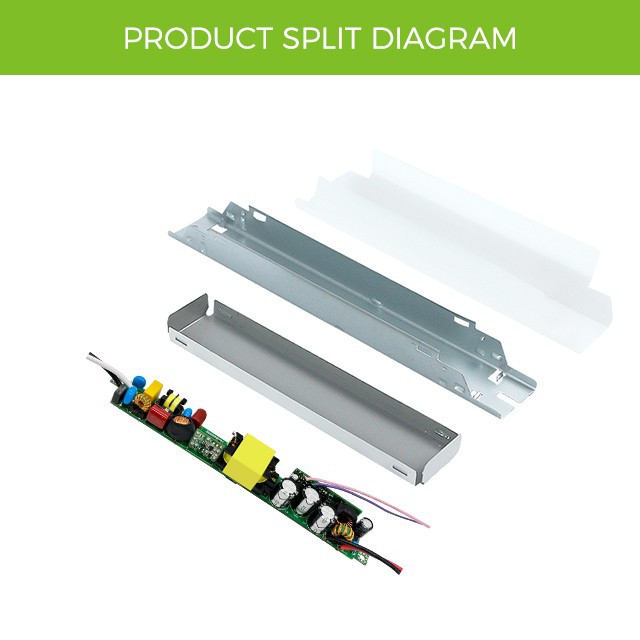

Internal structure introduction:

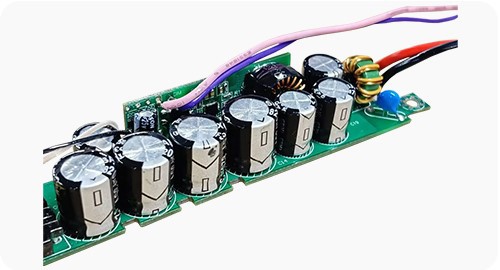

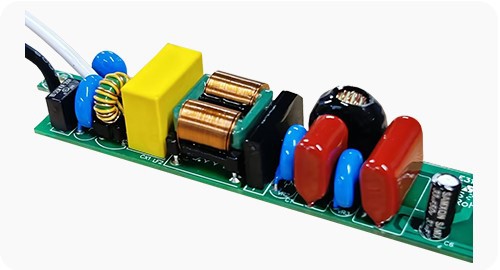

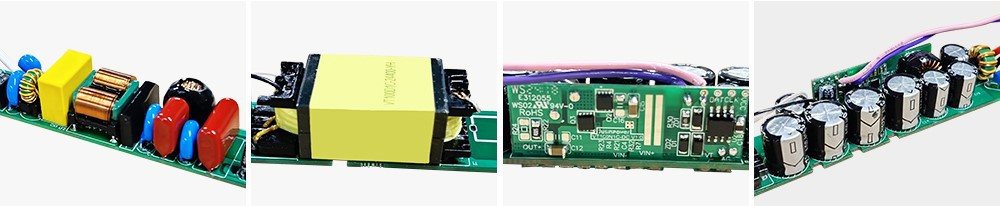

EMC includes fuses, Y capacitors, inductors, and CBB capacitors that suppress electromagnetic interference (EMI) and provide electromagnetic shielding.

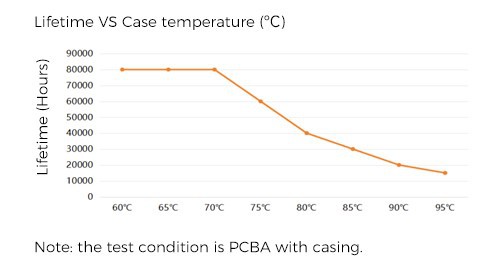

10,000 hours of capacitor use extends the life of the driver

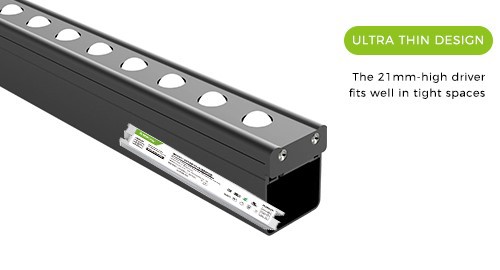

The slender strip structure of the LED luminaire can be embedded or suspended from the ceiling to provide uniform lighting, reduce shadow and glare, and enhance the comfort of the work and study environment.

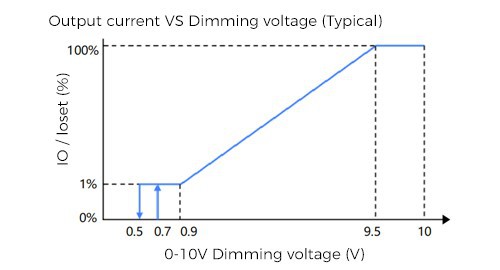

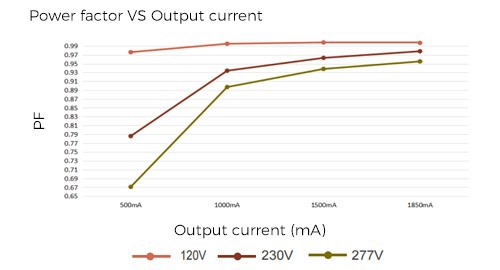

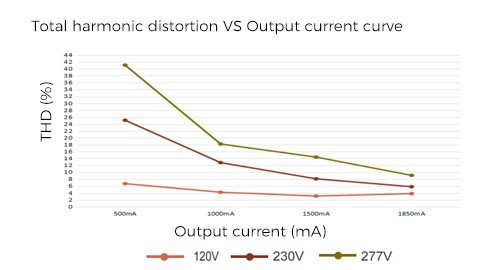

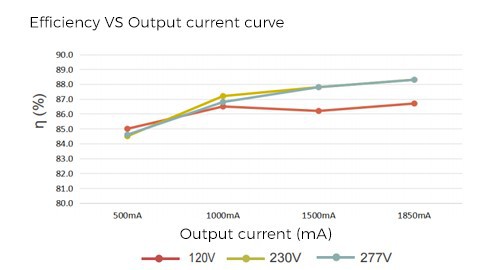

Electrical curve diagram:
At TA 25℃, the output voltage is 24V, and the current is 500mA to 1850mA

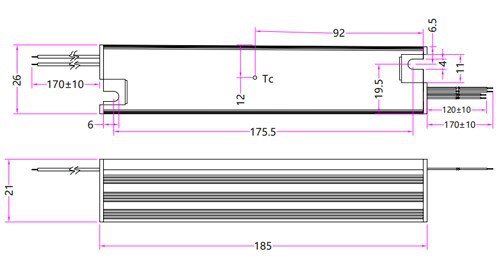

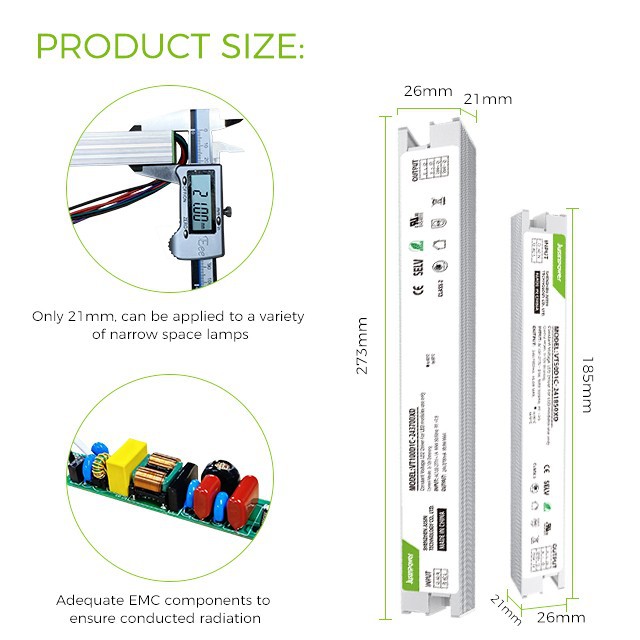

Dimension (mm):
Length: 185 Width: 25.5 Height: 21

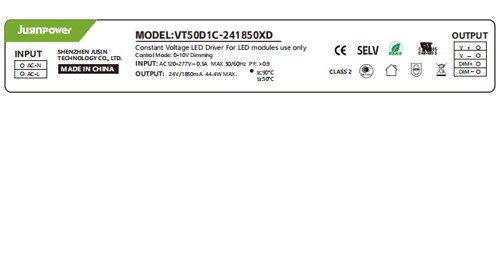

Product Label
To ensure the product's safety and efficacy during installation and usage, users can find comprehensive wiring instructions and basic specification information on the product label.
Wiring instructions：

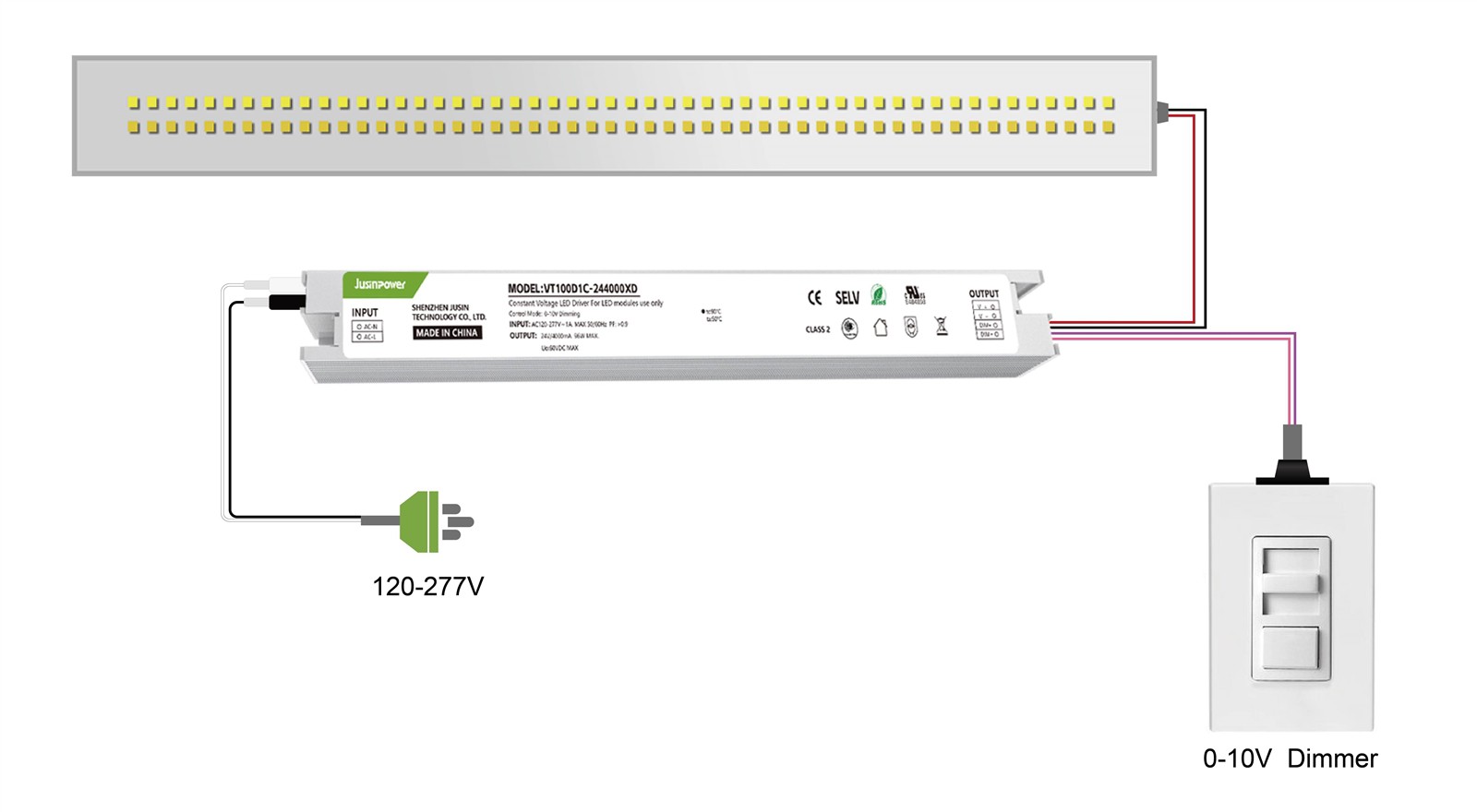

The two ends of the product are connected, one end is the AC input end, the other end is the DC output and dimming signal input end. LED+, LED- respectively connected to the positive and negative poles of the LED lamp; Purple DIM+ is connected to 0-10V+, Pink DIM- is connected to 0-10V-.

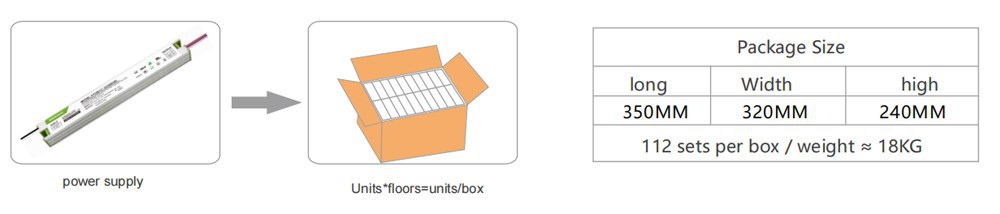

Product Packaging:
Hot Tags: 24v 50w dimmable led driver, China 24v 50w dimmable led driver manufacturers, suppliers, factory, T8 tunable white, led driver pwm dimming, Smart Dimming LED Driver for Global Market, 1000mA 0 10v Dimming Driver, 0 10V Dimming Driver Suitable for Tri proof Lights, 5 different color temperatures
VT50D1C
|
Performance |
||
|
Model |
VT50D1C-241850XD |
|
|
Input |
Voltage |
120-277Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
87%@120Vac full load |
|
|
88%@230Vac full load |
||
|
88%@277Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(30-100 %) full load |
|
|
≥ 0.9@230Vac/50Hz(60-100 %) full load |
||
|
≥ 0.9@277Vac/60Hz(60-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (30-100 %) full load |
|
|
<20 %@230Vac (60-100 %) full load |
||
|
<20 %@277Vac (60-100 %) full load |
||
|
AC Current (Max) |
0.46A@120Vac full load |
|
|
0.24A@230Vac full load |
||
|
0.19A@277Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
230V 25A peak,600us duration(10% Ipeak) |
||
|
277V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@277V |
|
|
Output |
/Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1850mA/44.4W CV |
|
Ripple Voltage
|
<5% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<0.5S@277V ＜1S@120V |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V ON |
|
Dimming current |
<0.5mA@10V <1mA@0.7V |
|
|
Dimming range |
1%-100%(standard) |
|
|
Power regulation |
/ |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
185 mm |
|
Width |
26mm |
|
Height |
21 mm |
|
Weight (g) |
145g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Warranty Tc |
50000Hour (s)@TC:＜75℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Certification |
|
VT50D1C-242000XD |
48W |
120-277Vac |
24V |
2A |
0.9 |
88% |
L185*W25.5*H21 |
UL,FCC,CE,ROHS |
|
VT100D1C-244000XD |
96W |
120-277Vac |
24V |
4A |
0.9 |
89% |
L274*W25.5*H21 |
UL,FCC,CE,ROHS |
Packing
Standard export packing ,or customized packing as your request .From production to shipment of a series of processes, we will carry out strict inspection over and over again to ensure the quality of goods. Bare board series of products we will set a layer of blister protection shell, to ensure that the goods are not damaged during transportation.
Delivery
We have a variety of shipping options to choose from:express(DHL,FEDEX,UPS,TNT,EMS）
air,sea.
If your order is not big, we can send them to you by TNT,DHL,FEDEX, UPS or EMS etc.
