Built in 0-10V LED Driver

The driver is a versatile and efficient power source designed for use with a variety of lighting applications, including T5/T8 tubes, panel lights, and tri-proof fixtures. Featuring a single-channel design, this driver provides reliable and stable power output, while the 0-10V dimming function allows for easy control of light intensity.

Top Features and Benefits:


100-277Vac	Flicker free	Over temperature protection	Ultra small thin

1.0-10v dimming signal isolation

2.Product thickness is ultra-thin

3.OEM/ODM available

4.Long warranty time

Application Scenario:

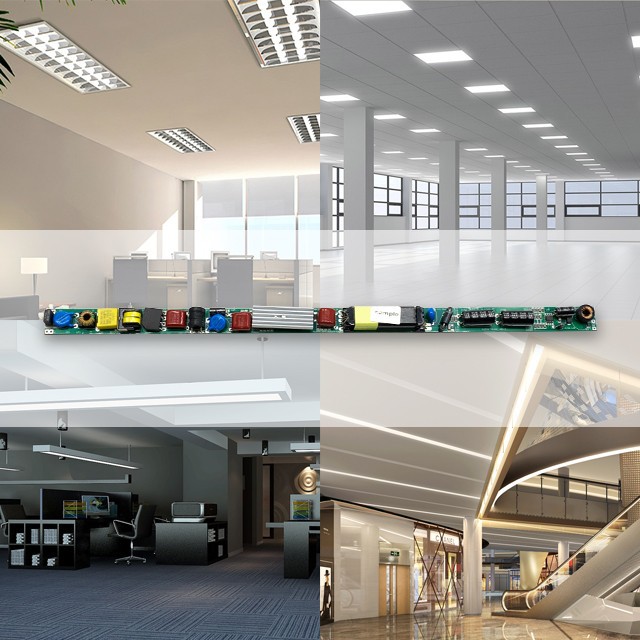

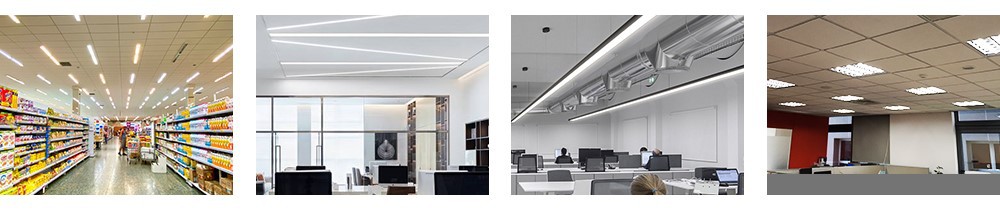

With a constant current output and a wide input voltage range, our LED driver can support a variety of indoor lighting applications.

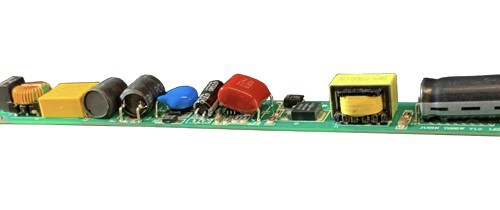

Product Details:

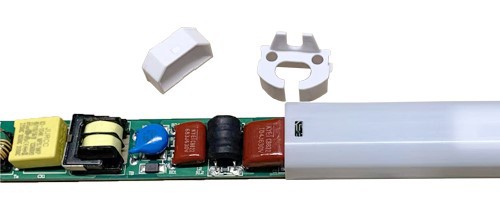

Safety tubes provide physical protection for the input side components of the LED driver, shielding them from dust, moisture, and other environmental factors that could potentially compromise performance or reliability.

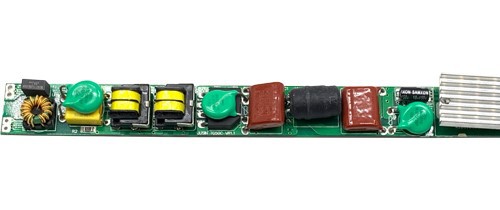

With components arranged horizontally, accessing and replacing individual parts becomes more straightforward, reducing maintenance time and costs.

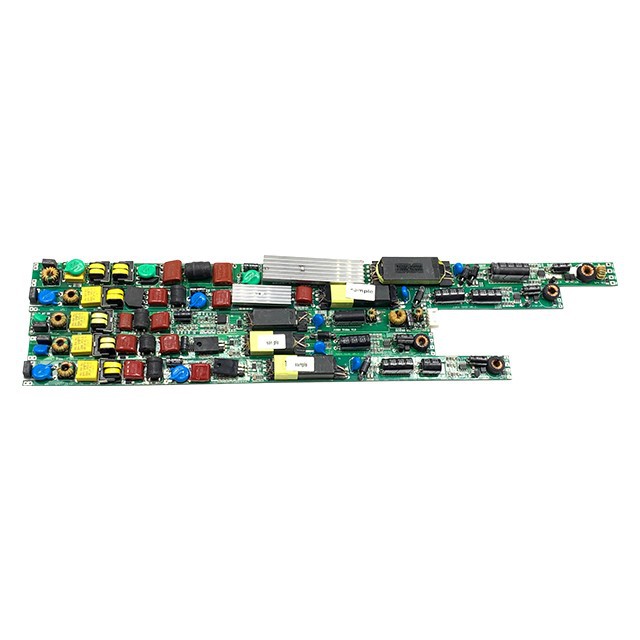

FR4 PCBs offer excellent mechanical strength and dimensional stability, making them resistant to warping, bending, and mechanical stress during assembly, handling, and operation.

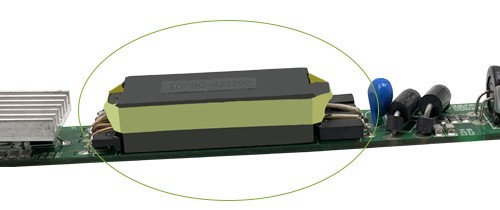

Some LED drivers with transformers are designed to be dimmable, allowing for adjustable light levels to meet different lighting requirements and create the desired ambiance.

Plastic serves as an excellent insulator, offering electrical separation between the internal components of the LED driver and the external environment. This helps prevent electrical shock and ensures safe operation.

Wiring Instructions:

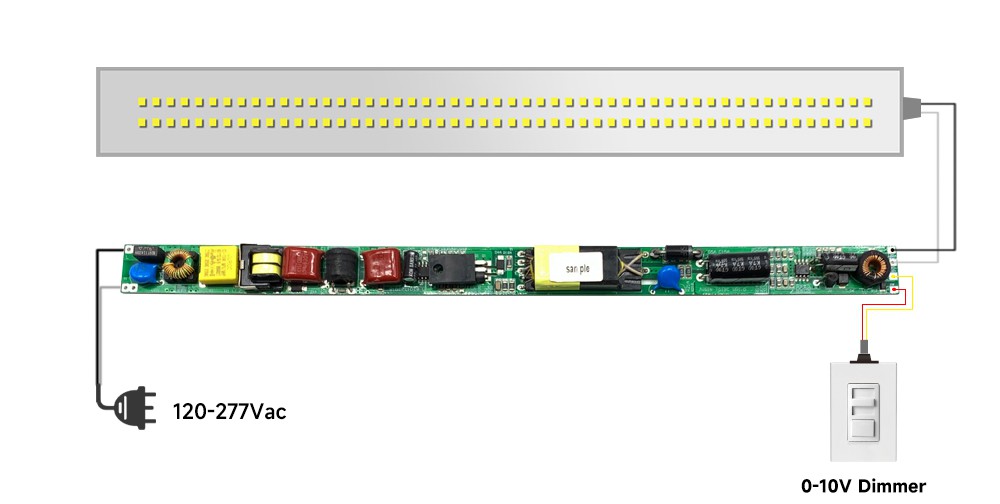

The AC input terminal is where you connect the power source from 120-277Vac mains. The DC output terminal, marked with positive and negative poles, is where you connect the LED light

Product Packaging:

product-1000-270

Hot Tags: Built in 0-10V LED Driver, China Built in 0-10V LED Driver manufacturers, suppliers, factory, 30-54Vdc, 40W Tunable White LED Driver, CCT Selectable LED Flat Panel, external dip switch, Three color temperatures, multipower drivers

TG40C

Performance
Model	TG40C
Input Voltage	100-277 Vac
Input Current Max	0.46A@230Vac Full load
Input Power Max	40W
Input Frequency	50/60Hz
Power Factor	> 0.9
Output Voltage (Refer to Driver Operating Range)	30-42Vdc
Max. Output Current	920mA
Output Power	40W
Power Efficiency	87%@230Vac Input
No flicker	Optional(TG40C Model)

Environmental
Safety standard	UL8750 ,Class2
EMC emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature,Humidity	-20°C to 85°C,20-90%RH
Surge protection	L-N 1KV , L/N-FG 2KV
Certificate	Meet CE /FCC/ UL certificate

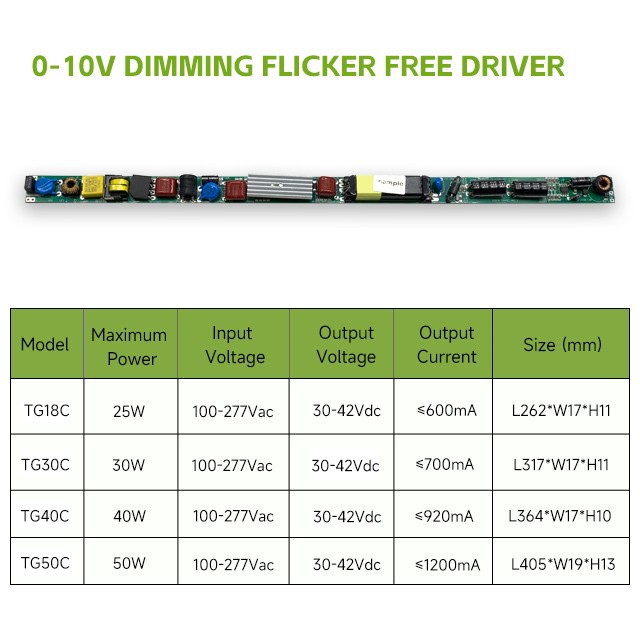

Series
Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark
TG19A	18W	100-277Vac	30-42V	≤430mA	0.88	0.92	L265W17H11	TUV,FCC,UL	0-10V Dimming signal isolation
TG28A	30W	100-277Vac	30-42V	≤700mA	0.88	0.92	L311W17H11	TUV,FCC,UL	0-10V Dimming signal isolation
TG18C	25W	100-277Vac	28-42V	≤600mA	0.87	0.92	L265W17H11	TUV,FCC,UL	Flicker free
TG30C	30W	100-277Vac	30-42V	≤700mA	0.87	0.92	L317W17H11	TUV,FCC,UL	Flicker free
TG40C	40W	100-277Vac	28-42V	≤920mA	0.87	0.92	L364W17H11	TUV,FCC,UL	Flicker free
TG50C	50W	100-277Vac	30-42V	≤1200mA	0.87	0.92	L405W19H13	TUV,FCC,UL	Flicker free

Inspection
