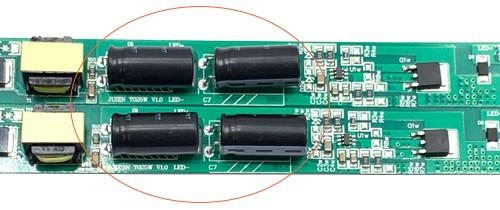

Flicker Free Non-isolated Tube Driver
With an input range from 100-277VAC, this LED driver provides reliable performance and eliminates the annoying flicker associated with many other drivers. Electronics Supply ensures high quality and long life. Choose a high-performance, reliable power supply for your lamp.
Top Features and Benefits:
|
|
|
|
|
|
100-277Vac |
Flicker free |
Short circuit protection |
Ultra small thin |
1.High power factor(PF)
2.Flicker free for mobile phone photography
3.Constant current LED driver
4.100-277Vac input

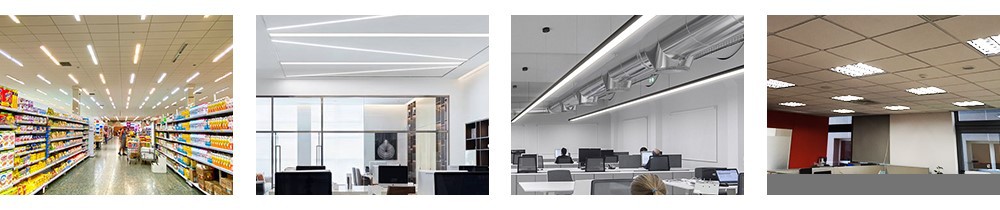

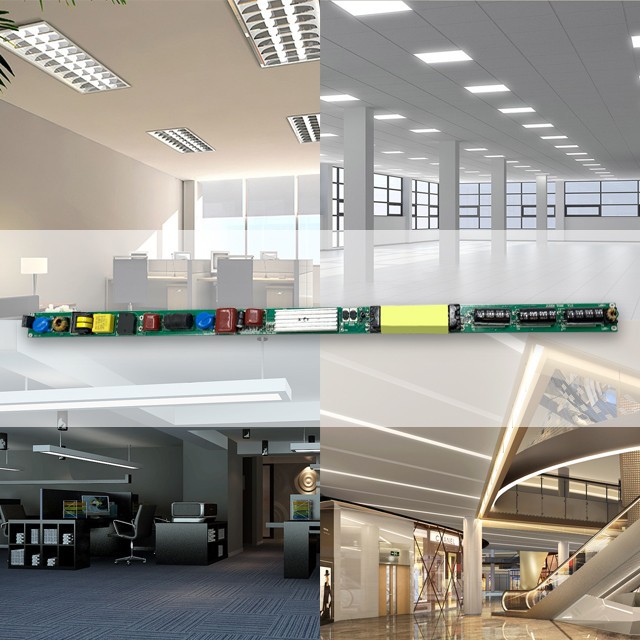

Application Scenario:
The LED linear driver is versatile and easy to install, making it suitable for various lighting applications and providing flexibility for a wide range of scenarios.

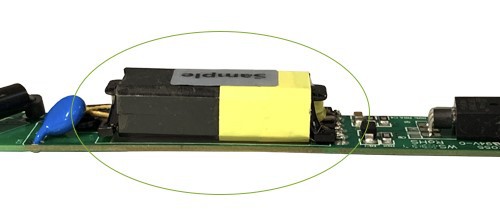

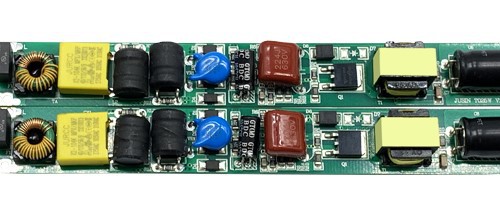

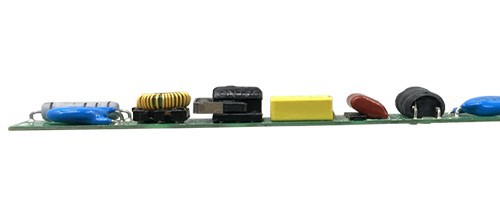

Product Details:

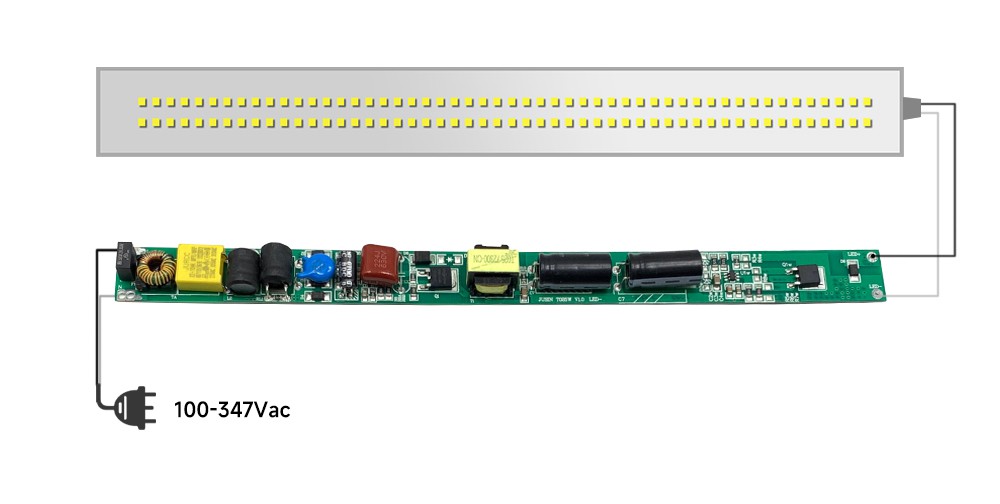

Wiring Instructions:
The AC input terminal is where you connect the power source from 100-347Vac mains. The DC output terminal, marked with positive and negative poles, is where you connect the LED light
Product Packaging:
Hot Tags: flicker free non-isolated tube driver, China flicker free non-isolated tube driver manufacturers, suppliers, factory, Smart Tunable White Driver, 60W Sensor Driver, 0-10V dimmer, Long Bar Sensor Driver, 2stage, 0 10v led dimmer
T012E T026W
|
Performance |
|
|
Model |
T012E T026W |
|
Input Voltage |
100-277 Vac |
|
Input Current Max |
0.21A@100Vac Full load |
|
Input Power Max |
40-56W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.9 |
|
Output Voltage (Refer to Driver Operating Range) |
52-72Vdc |
|
Max. Output Current |
600-800mA |
|
Output Power |
40-56W |
|
Power Efficiency |
91%@220Vac Input |
|
Input Line Regulation |
±3% |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Surge protection |
L-N 0.5KV |
|
Product Net Weight |
47g
|
|

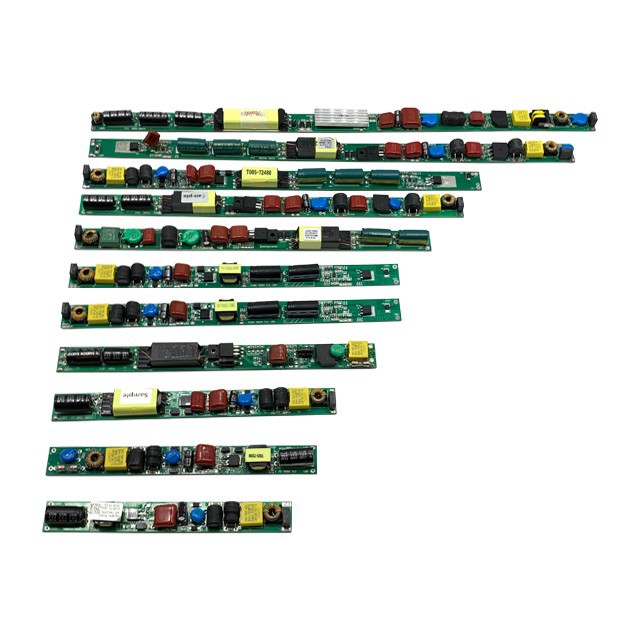

Series |
|||||||||
|
Model |
Max power |
Input voltage |
Output voltage |
Output current |
Efficiency |
Power factor |
Size(mm) |
Meet with |
Remark |
|
T025 |
25W |
100-240Vac |
52-72Vdc |
≤300mA |
0.91 |
0.92 |
L138*W17.2*H11 |
EMC |
|
|
T025W |
25W |
100-277Vac |
52-72Vdc |
≤300mA |
0.92 |
0.92 |
L216*W17*H11 |
EMC |
Flicker free |
|
T025S |
25W |
100-240Vac |
52-72Vdc |
≤300mA |
0.91 |
0.92 |
L158*W17.2*H11 |
EMC |
2.5KV surge |
|
T025G |
25W |
100-347Vac |
50-72Vdc |
≤250mA |
0.91 |
0.90 |
L138*W17.2*H11 |
EMC |
347Vac input |
|
T028 |
32W |
120-277Vac |
52-72Vdc |
≤450mA |
0.92 |
0.95 |
L170*W17.2*H11 |
EMC |
|
|
T028W |
32W |
110-277Vac |
52-72Vdc |
≤450mA |
0.91 |
0.95 |
L230*W17.2*H11 |
EMC |
Flicker free |
|
T036 |
36W |
120-347Vac |
50-70Vdc |
≤520mA |
0.92 |
0.90 |
L241.5*W17.2*H10 |
EMC |
347Vac input |
|

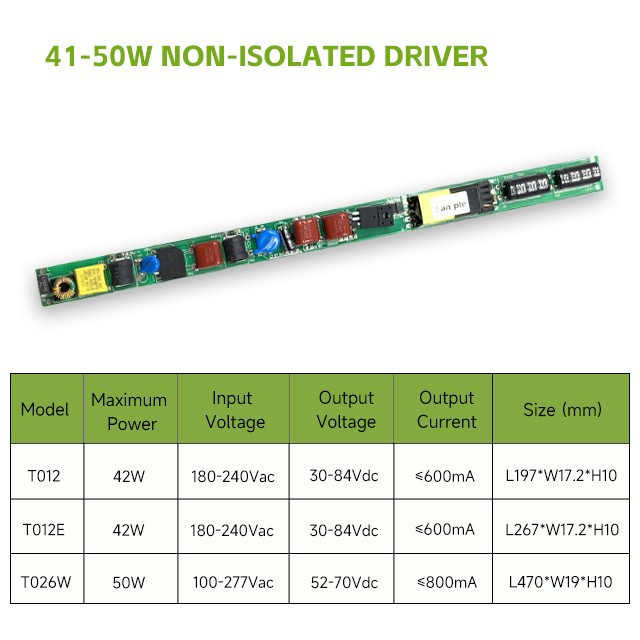

T012 |
42W |
180-240Vac |
30-84Vdc |
≤600mA |
0.92 |
0.95 |
L197*W17.2*H10 |
EMC |
|
|
T012E |
42W |
180-240Vac |
30-84Vdc |
≤600mA |
0.92 |
0.95 |
L267*W17.2*H10 |
EMC |
|
|
T012EW |
40W |
120-277Vac |
52-72Vdc |
≤560mA |
0.91 |
0.95 |
L360*W17.2*H10 |
EMC |
|
|
T026 |
56W |
100-240Vac |
52-72Vdc |
≤800mA |
0.92 |
0.95 |
L330*W17.2*H10 |
EMC |
Flicker free |
|
T026W |
50W |
100-277Vac |
52-70Vdc |
≤800mA |
0.92 |
0.95 |
L470*W19*H10 |
EMC |
Flicker free |
FAQ
Q1. Are you a manufacturer or trading company?
A1. We are a professional manufacturer of producing led drivers for more than 10 years.
Q2. What is your MOQ?
A2. Our MOQ is 200pcs. But can be negotiable based on different models
Q3. What is your delivery time ?
A3. Our delivery time is 7-20 days which is depended on models and quantity.
Q4. Do you accept OEM/ODM?
A4. Yes. We accept OEM/ODM. And one of our advantage is doing customized drivers for customers.
Q5. Service
A5. We have a professional service team to solve all the questions and problems. No worry about the after-sales service.
Q6. How about your R&D capability?
A6. We have professional engineers for certificates and research&development.
We have passed cUL, FCC, SAA, TUV, ROHS, CE, CB, CCC.
