25-56W Non-isolated tube driver

The non-isolated tube driver is designed for use with tube light fittings. Its compact design makes installation easy and it is capable of driving a wide range of tube light sizes and types. Whether you need a driver for your home, office or business, this driver delivers reliable and efficient performance.

Top Features and Benefits:


Over temperature protection	Flicker free	Short circuit protection	Ultra small thin

1.Meet with ERP certification

2.Reliability and durability

3.AC to DC led power supply

4.Warranty and support

Application Scenario:

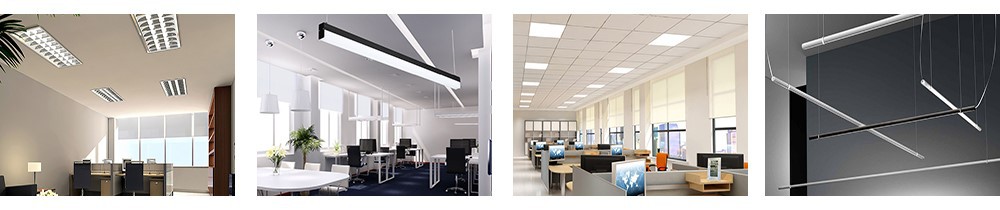

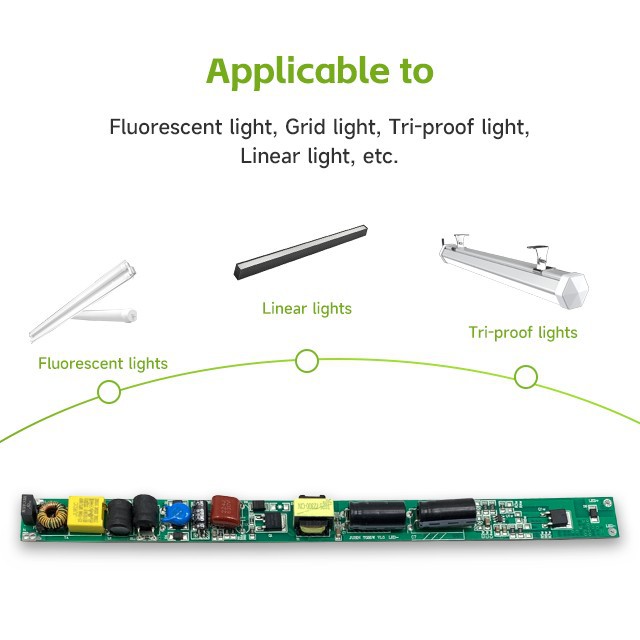

Suitable for use with a range of indoor lighting systems, including grille lights, tri-proof lights, linear lights, and panel lights.

product-1000-210

Product Details:

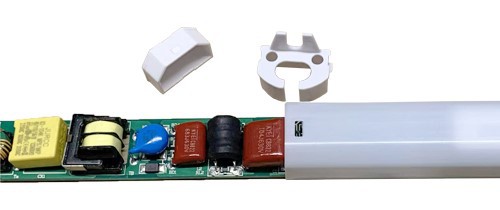

The plastic shell acts as an insulator, protects the LED driver well, and has good thermal conductivity.

Good heat resistance, stable electrical insulation performance, high mechanical strength. The pins on the back are flat and will not pierce your hands.

Slim strip design, better used in small spaces

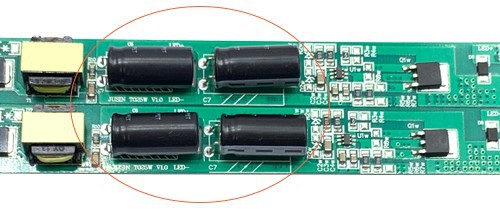

Use large-capacity capacitors to ensure driver life 10000h

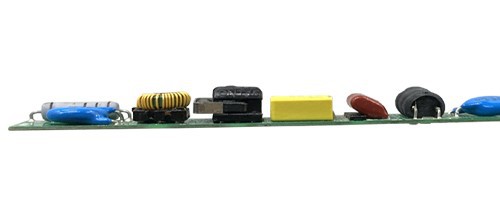

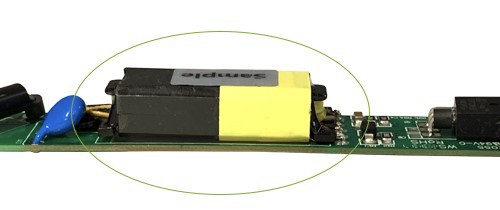

The non-isolated series transformer is only 10mm high and compact, making it more suitable for narrow spaces.

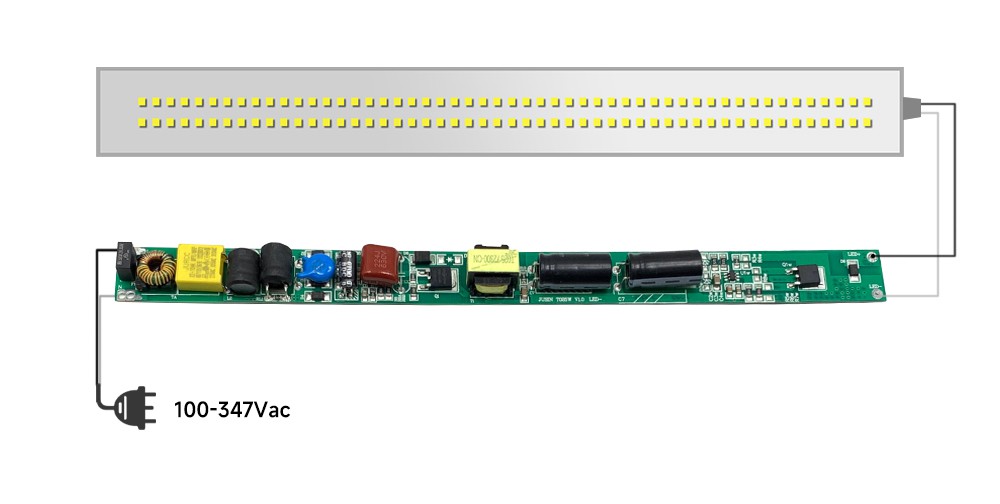

Wiring Instructions:

AC input terminals are used to connect to 100-347 volt AC power, while DC output terminals labeled positive and negative are used to connect LED lights

product-1000-504

Product Packaging:

product-1000-270

Hot Tags: 25-56w non-isolated tube driver, China 25-56w non-isolated tube driver manufacturers, suppliers, factory, Input frequency 47 63 Hz, smart lighting control systems, Five gear power, tunable linear light driver, Grow light driver, 200 240Vac input

T025W-26W

Performance
Model	T025W-T026W
Input Voltage	100-277 Vac
Input Current Max	0.3A-0.8A
Input Power Max	25-50W
Input Frequency	50/60Hz
Power Factor	> 0.9
Output Voltage (Refer to Driver Operating Range)	52-72Vdc
Max. Output Current	800mA
Power Efficiency	92%

Environmental
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 85°C
Surge protection	L-N 0.5KV

Series

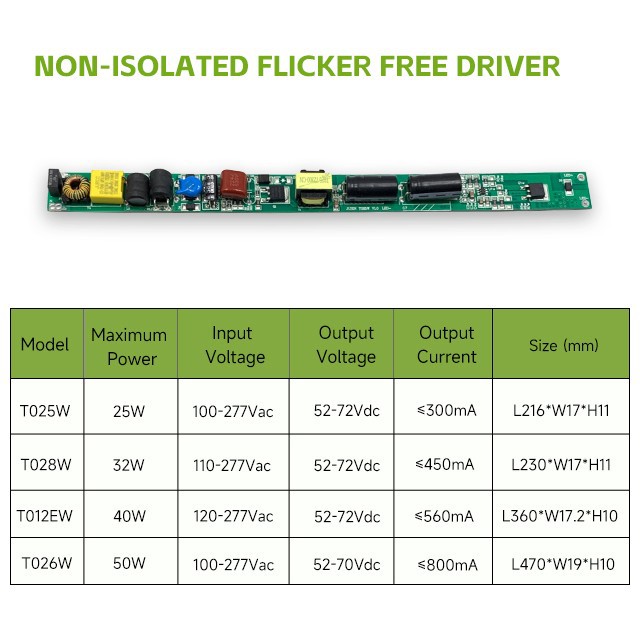

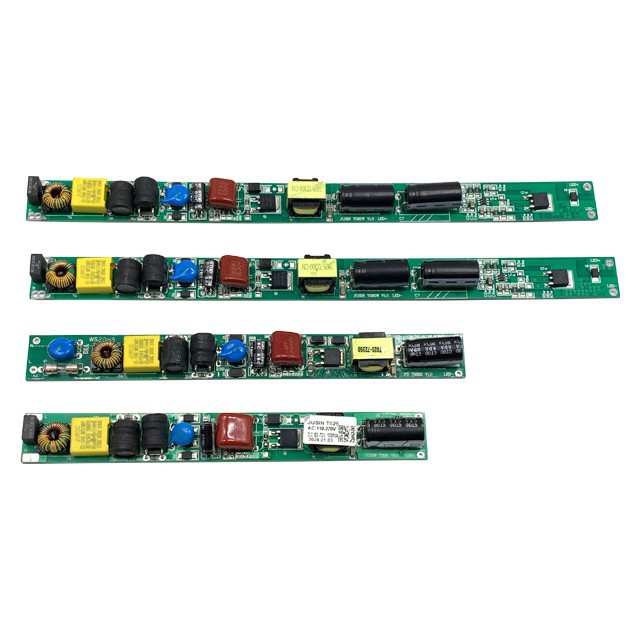

Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark
T025W	25W	100-277Vac	52-72Vdc	≤300mA	0.92	0.92	L216W17H11	EMC	Flicker free
T028W	32W	110-277Vac	52-72Vdc	≤450mA	0.91	0.95	L230W17.2H11	EMC	Flicker free
T026	56W	100-240Vac	52-72Vdc	≤800mA	0.92	0.95	L330W17.2H10	EMC	Flicker free
T026W	50W	100-277Vac	52-70Vdc	≤800mA	0.92	0.95	L470W19H10	EMC	Flicker free

Packing Delivery

Standard export packing, or customized packing as your request. From production to shipment of a series of processes, we will carry out strict inspection over and over again to ensure the quality of goods. Bare board series of products we will set a layer of blister protection shell, to ensure that the goods are not damaged during transportation.

Certificate

Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international cUL, SAA, TUV, CE, CB, SAA, FCC, CCC.
