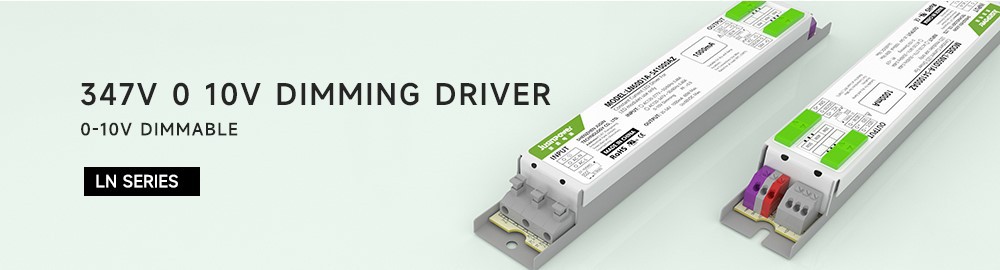

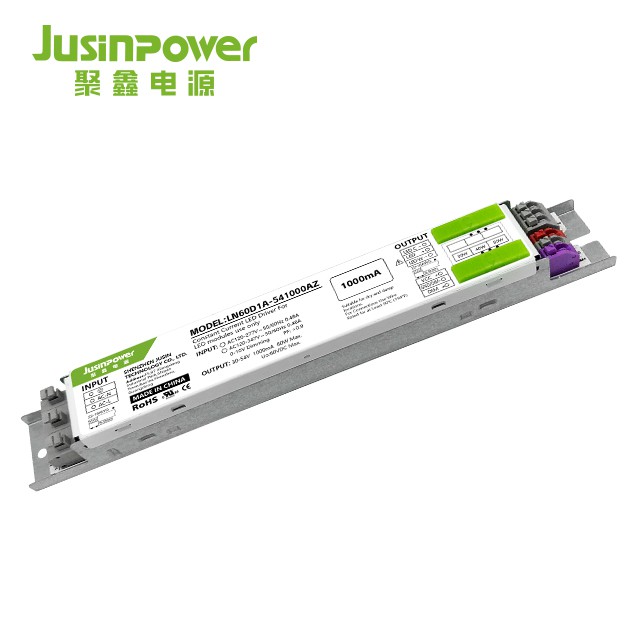

347V 0 10V Dimming Driver
The 347V 0 10V dimming driver is a led driver with a maximum voltage up to 347V, suitable for the Mexican market. Designed with a long metal shell, it has a good heat dissipation function, improves the reliability of the product and prolongs the service life.
3 levels of
color temperature
adjustment
3 levels of
brightness
Adjustment
120-347Vac
12V auxiliary
power supply
5 Years
warranty
1. 347V Input
2. 0-10V Dimmable
3. Long mental case

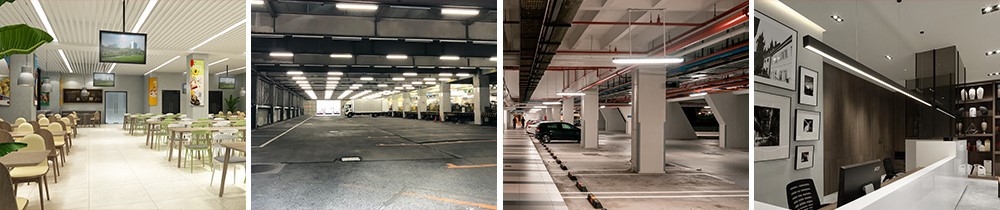

Application Scenario:
The 347V 0 10V dimming driver suitable for line lights, tri-proof light, plant lights, grille lights and so on.
Product Details:

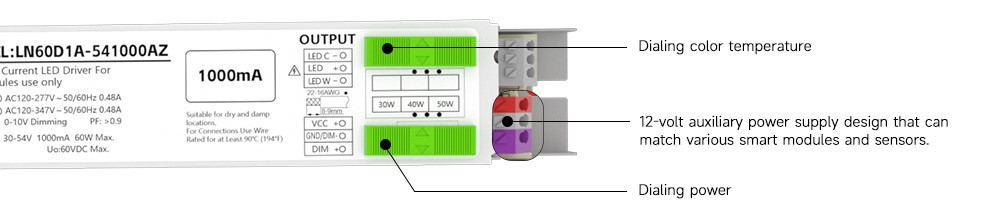

It has dual dials to adjust color temperature and power, and a 12-volt auxiliary power supply design that can match various smart modules and sensors.

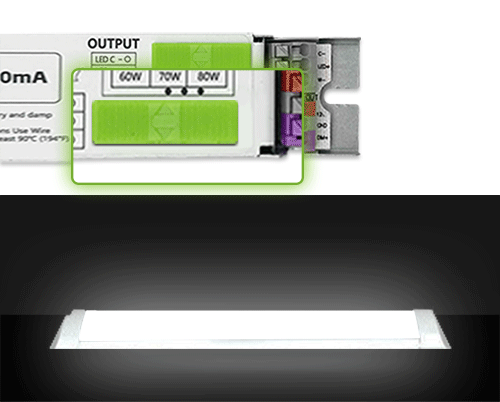

The power can be adjusted by dialing the code
High Quality Raw Materials and Exquisite Technology

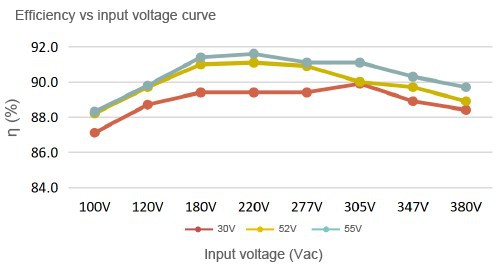

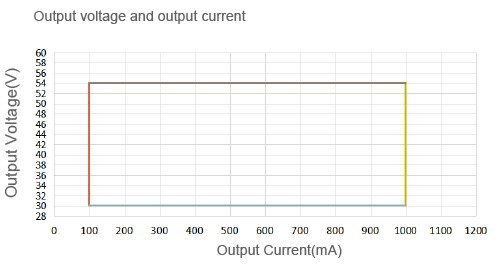

Electrical Characteristics:

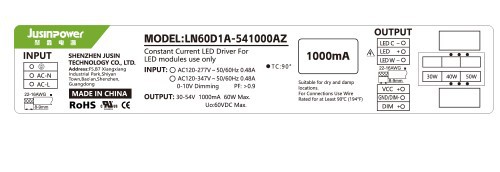

Product Label:

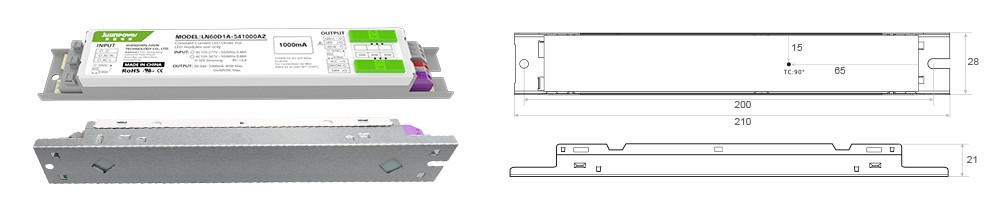

Dimension (mm)
Length: 210mm Width: 28mm Height: 21mm

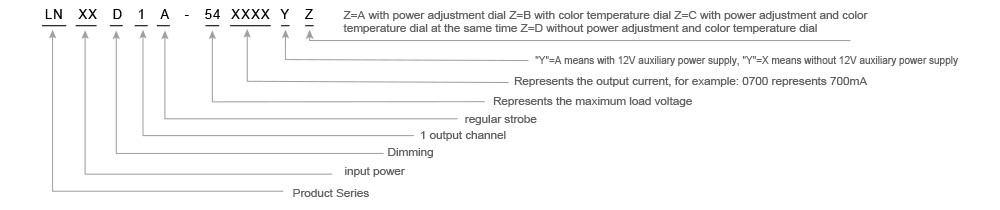

Model Coding Rules of LN Series

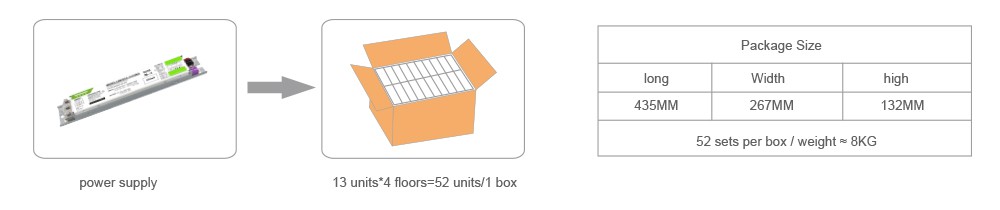

Product Packaging:
Hot Tags: 347v 0 10v dimming driver, China 347v 0 10v dimming driver manufacturers, suppliers, factory, 5 different power, Dimmable LED Driver, 70W Tunable White LED Driver, Dim to Dark, 50 60Hz, driver for led strip lights
LN60
LN60D1A
|
Performance |
||
|
Model |
LN60D1A-541000AZ |
|
|
Input |
Efficiency |
91%@230Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac full load |
|
|
THD(full load) |
<20%@120Vac full load |
|
|
AC Current(max) |
0.6A@120Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
30A@120Vac |
|
|
60A@277Vac |
||
|
80A@347Vac |
||
|
Leakage current (max) |
<0.75mA@347V |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
30-54Vdc/750mA/40W |
|
Channel |
1 output |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Function |

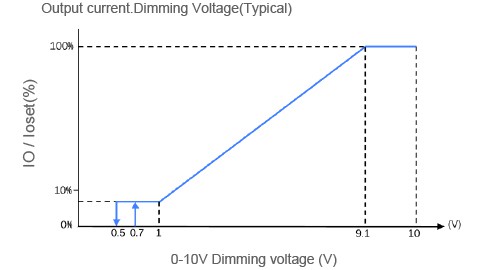

Dimming method |
0-10V 0.5V OFF /0.7V OPEN |
|
Dimming current |
<1mA@10V <2mA@0.7V |
|
|
Dimming range |
7%-100% (standard) |
|
|
Color temperature |
Three gears adjustable |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
210 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
195mm |
|
Weight (g) |
154g |
|
Environmental |
|
|
Safety standard |
UL8750 ,Class1 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|

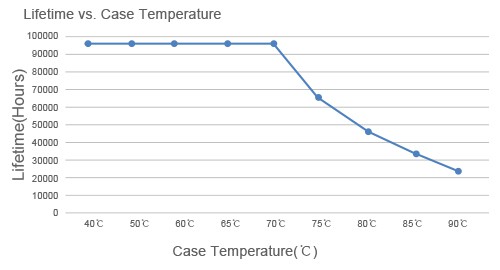

Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE/FCC/UL certificate |
|

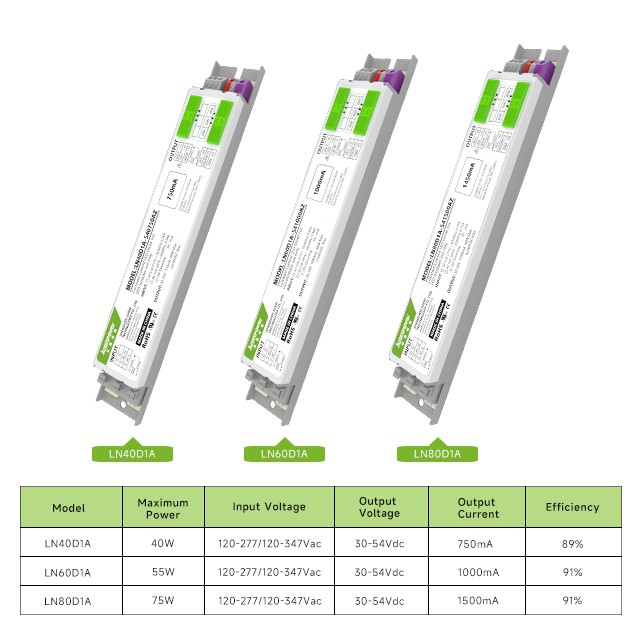

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LN40D1A-54XXXXYZ |
36W |
120-277/120-347Vac |
30-54Vdc |
750mA |
0.9 |
Adjustable |
Adjustable |
89% |
|
LN60D1A-54XXXXYZ |
55W |
120-277/120-347Vac |
30-54Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
91% |
|
LN80D1A-54XXXXYZ |
75W |
120-277/120-347Vac |
30-54Vdc |
1500mA |
0.9 |
Adjustable |
Adjustable |
91% |
