80W Tunable White LED Driver

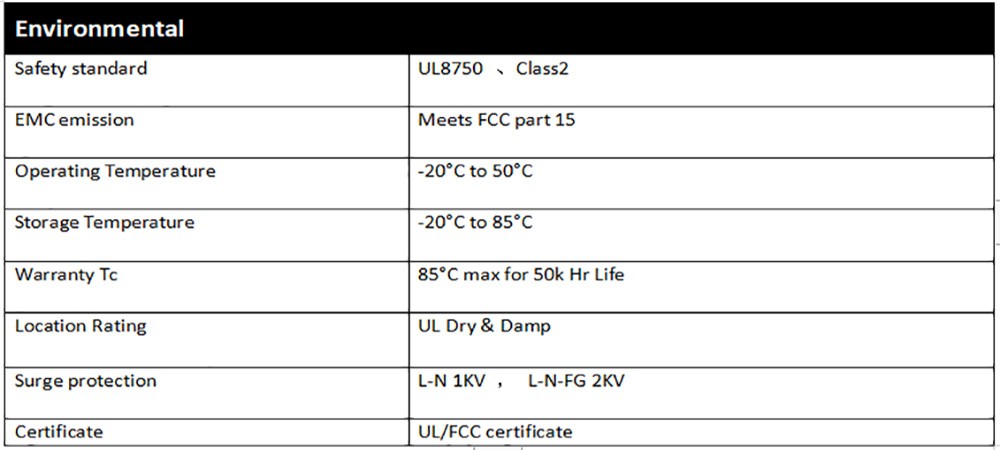

The 80W tunable white LED driver incorporates a control chip enabling adjustment of output current through a 0-10V dimmer by altering the voltage. The 0-10V dimming wire control circuit is isolated, ensuring EMC emission compliance with FCC part 15. Operating Temperature ranges from -20°C to 50°C. Additionally, the 12V auxiliary power supply supports diverse intelligent scene applications.
Top Features and Benefits:
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply

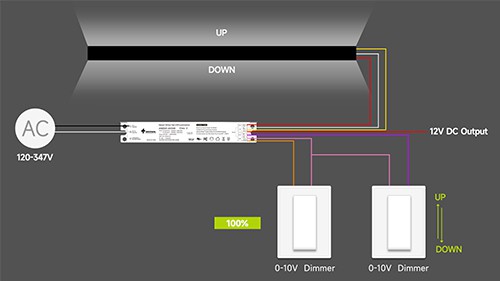

glowing up
and down
1.High Power Efficiency
2.100-277/120-347Vac and Universal Input Models
3.85°C max for 50k Hr Life
4.Obtained UL and FCC certification

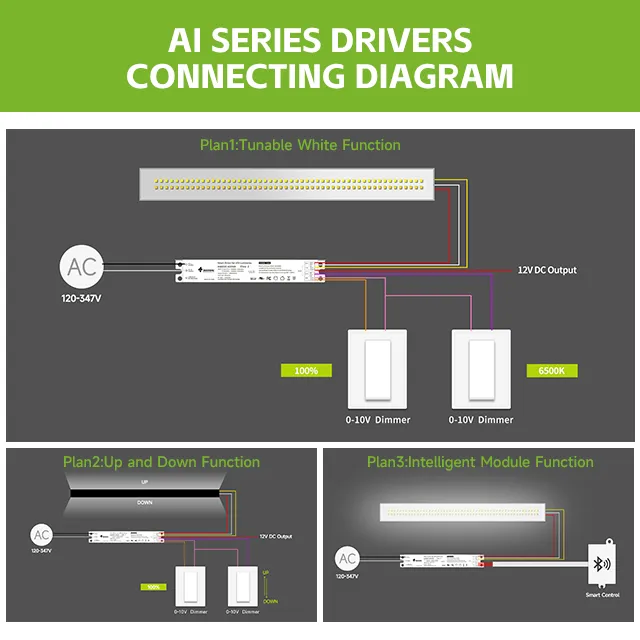

4 scene modes

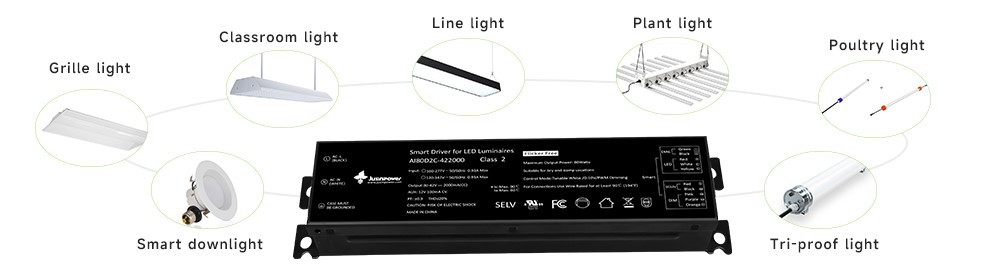

Application:
The double dial to adjustment the color temperature driver suitable for smart downlight, panel light, linear light poultry light and so on.

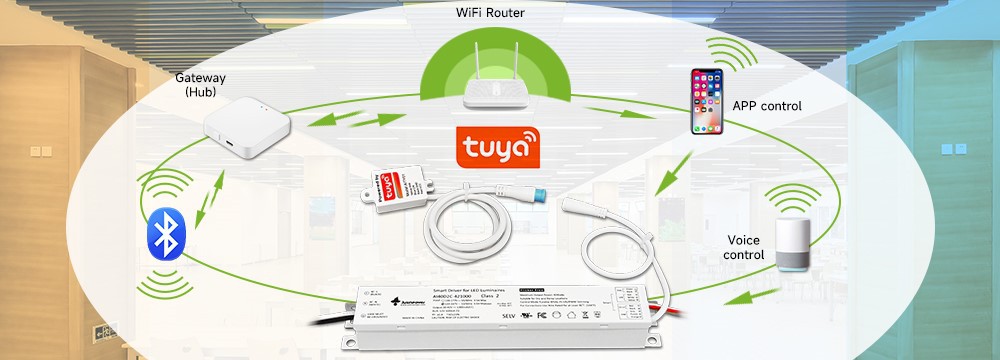

The design of the 5-12V auxiliary power supply enables seamless compatibility with various smart modules including mobile app control, Wi-Fi, Bluetooth, Tuya sensors, and more.

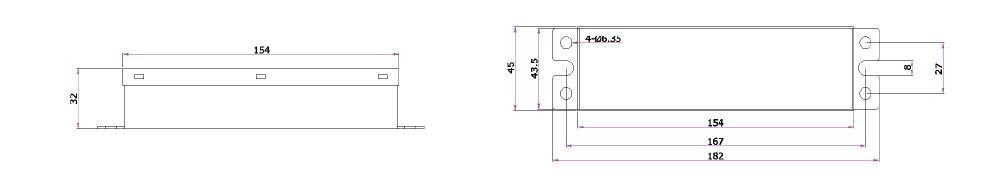

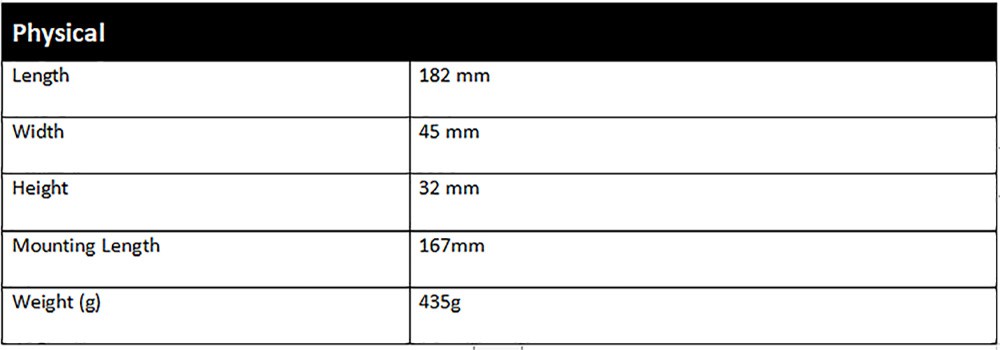

Dimensional Diagram (mm):
Length:182mm Width: 45mm Height:32mm

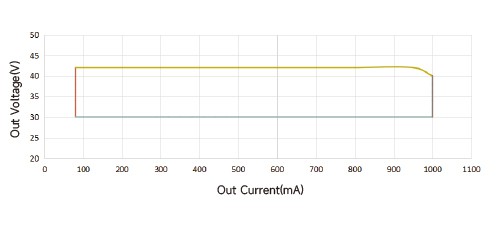

Driver Operating Range
The maximum current can reach 2000mA, while the maximum voltage can exceed 40V.

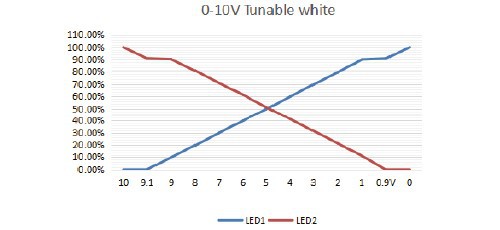

0-10V Tunable white
At 5V adjustment within the 0-10V range, LED1 and LED2 both reach 50% brightness.

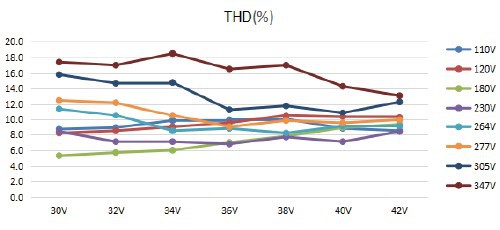

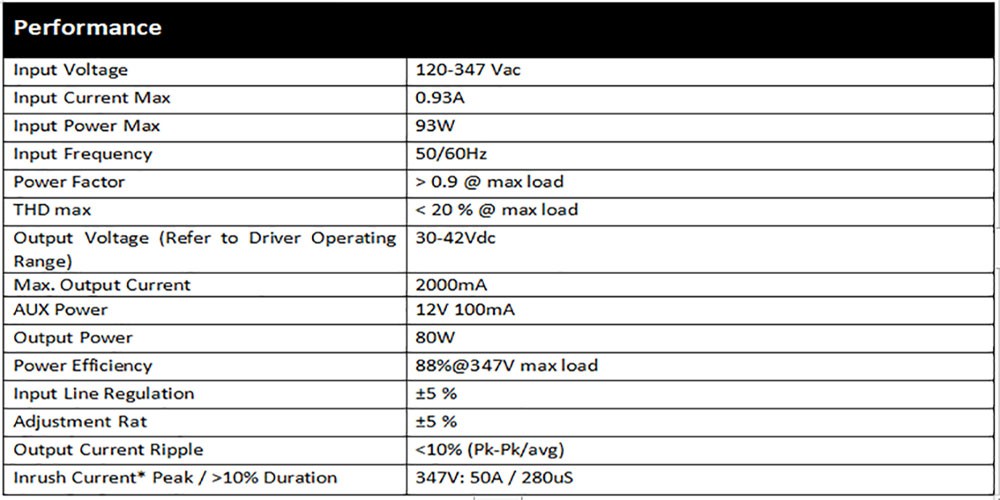

Performance: Total Harmonic
Distortion & Power Factor:
With an input voltage of 277V and an output voltage of 36V, the Total Harmonic Distortion (THD) measures at 10. Similarly, at an input voltage of 120V and an output voltage of 36V, the Power Factor (PF) approaches 1.

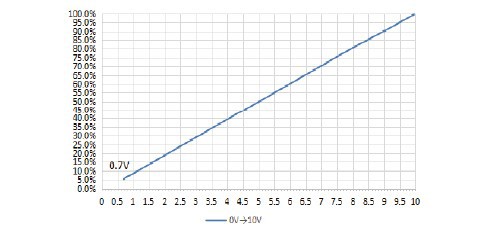

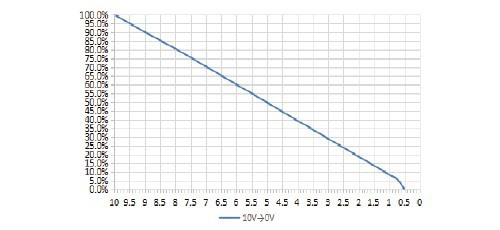

0-10V/10-0V Dimming
The light is off when the voltage is adjusted to 0.5V. At 0.7V, it appears slightly bright.

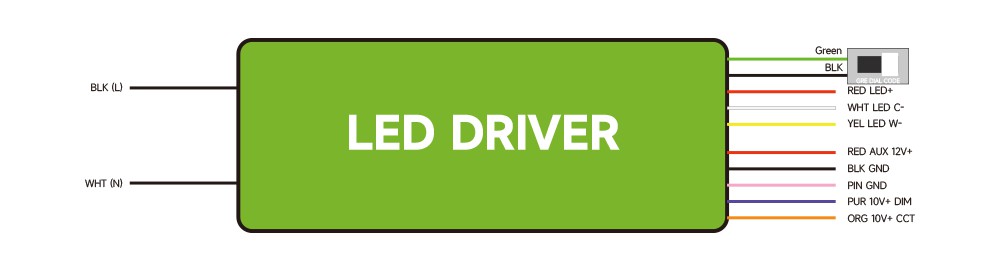

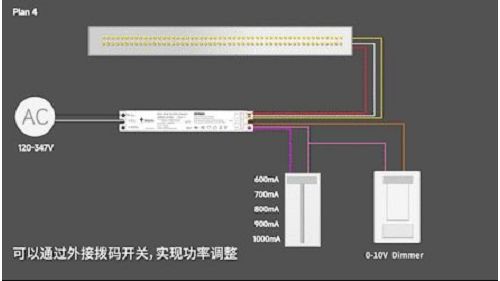

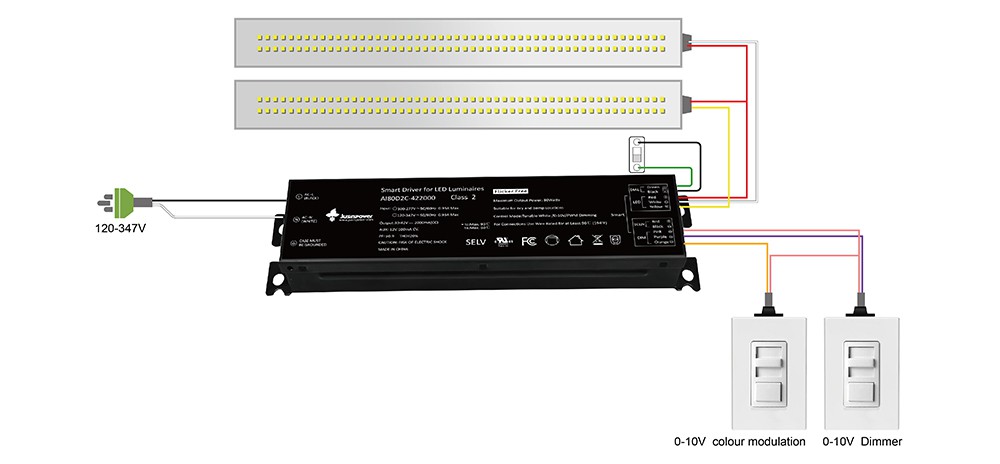

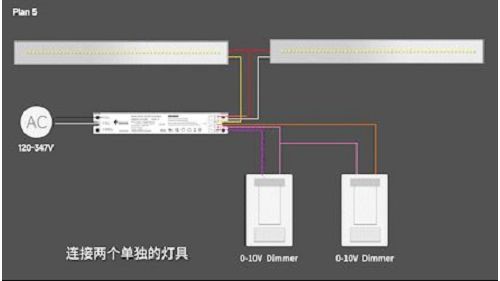

Wiring Diagram
★ AC input ：
UL1015 18AWG 105℃ 600V 230mm Black-L White-N
★ DC output：
UL1007 20AWG 80℃ 300V 230mm Red V+; White C- ;Yellow W-
★ D I M:
UL1007 22AWG 80℃ 300V 230mm Purple DIM+ ; Pink DIM- ;Oragne CCT-
★ Dial code(Power regulation)：
UL1007 22AWG 80℃ 300V 230mm Green ; Black
Hot Tags: 80w tunable white LED driver, China 80w tunable white LED driver manufacturers, suppliers, factory, Ultra thin bare board, panel led driver, output voltage 30 54Vdc, multifunctional constant current, Suitable for Grow Lights, output current 2 5A

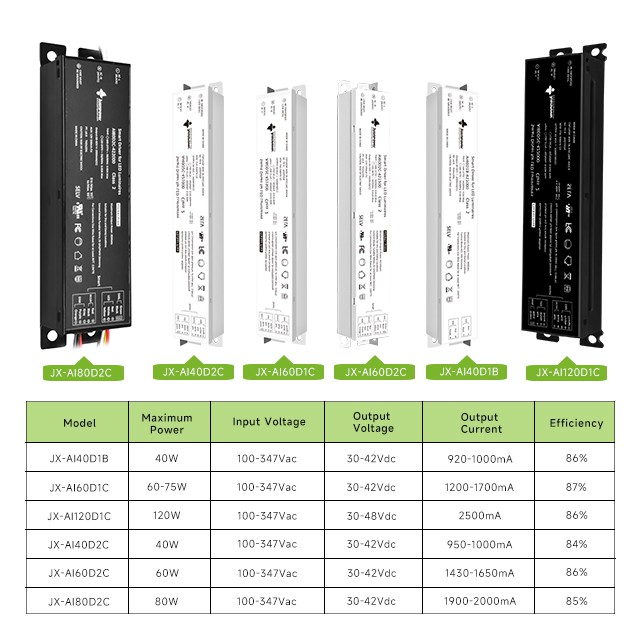

AI II series
AI80D2C-422000 (0-10V)
