10-50w Isolated tube driver
10-50w Isolated tube driver is a highly efficient LED driver that is designed to minimize energy consumption and reduce operating costs. With its advanced features and superior performance, this driver is ideal for a wide range of applications, from residential to commercial lighting. Its isolated design ensures stable and reliable operation, while its high efficiency helps to maximize energy savings. Additionally, this driver is easy to install and can be used with a variety of LED tubes, making it a versatile and cost-effective solution for any lighting project.
Top Features and Benefits:
|
|
|
|
|
|
3 years warranty |
Flicker free |
Over voltage protection |
Ultra small thin |
1.Constant current LED driver
2.Reliability and durability
3.Ease of installation
4.Warranty and support
Application Scenario:
Designed to meet the specific requirements of commercial and residential lighting applications.

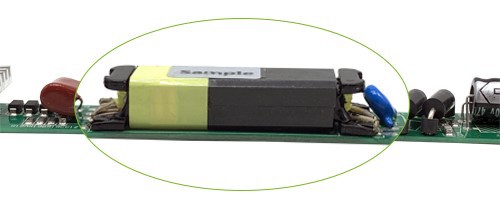

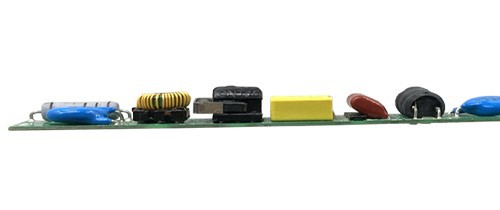

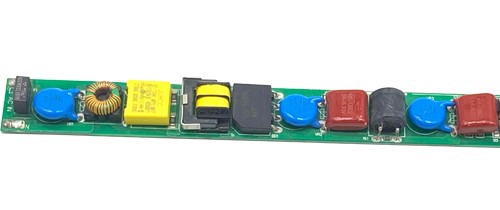

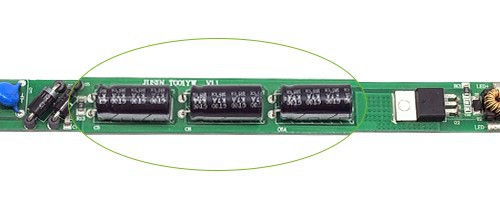

Product Details:

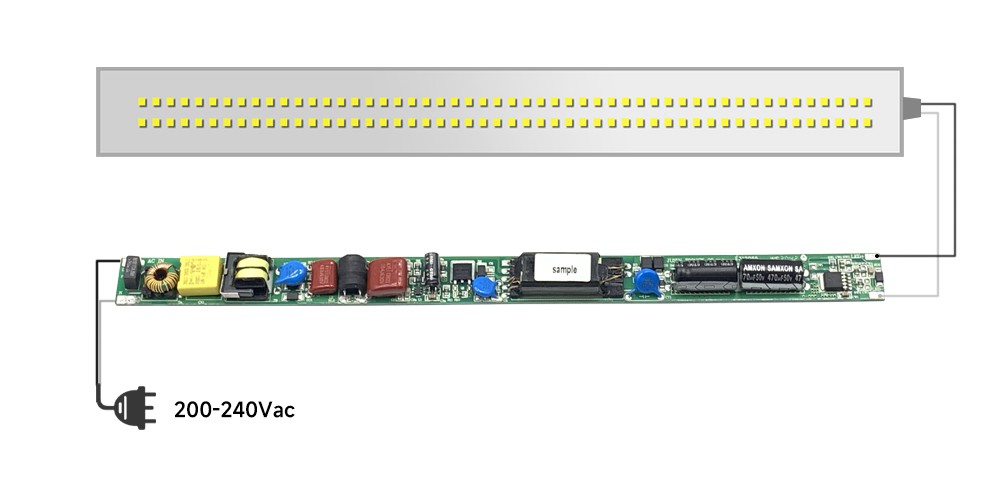

Wiring Instructions:
AC input terminals are used to connect to 200-240 volt AC power, while DC output terminals labeled positive and negative are used to connect LED lights
Product Packaging:
Hot Tags: 10-50w isolated tube driver, China 10-50w isolated tube driver manufacturers, suppliers, factory, 5 stage color temperature, minicontroller, CCT panel light, led tri proof light, 2500mA, Long Bar Sensor Driver
T014EW-T050C
|
Performance |
|||||||||
|
Model |
T014EW- T050C |
||||||||
|
Input Voltage |
100-277 Vac/200-240Vac |
||||||||
|
Input Current Max |
0.3A-1.2A@230Vac Full load |
||||||||
|
Input Power Max |
12-50W |
||||||||
|
Input Frequency |
50/60Hz |
||||||||
|
Power Factor |
> 0.9 |
||||||||
|
Output Voltage (Refer to Driver Operating Range) |
30-42Vdc |
||||||||
|
Max. Output Current |
1200mA |
||||||||
|
Power Efficiency |
88%@230Vac Input |
||||||||
|
Environmental |
|||||||||
|
EMC Standard |
EN55015,EN55022 |
||||||||
|
Operating Temperature |
-20°C to 50°C |
||||||||
|
Storage Temperature |
-20°C to 85°C |
||||||||
|
Surge protection |
L-N 1KV |
||||||||
|
Certificate |
Meet CE/ FCC /UL certificate |
||||||||
|

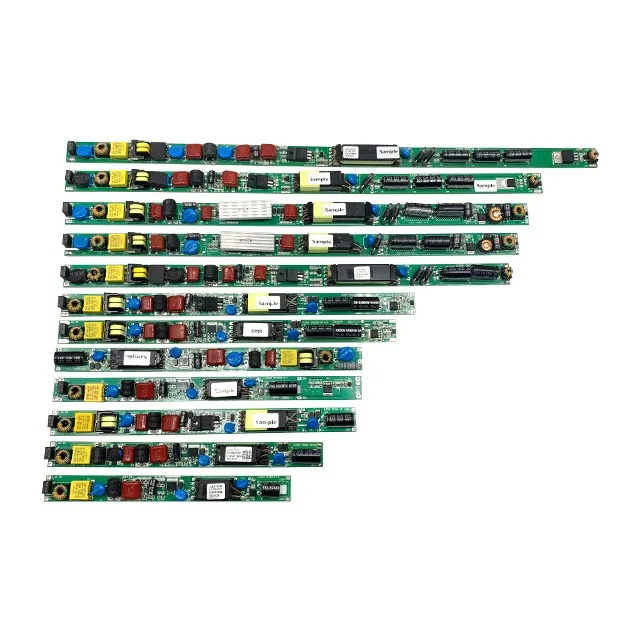

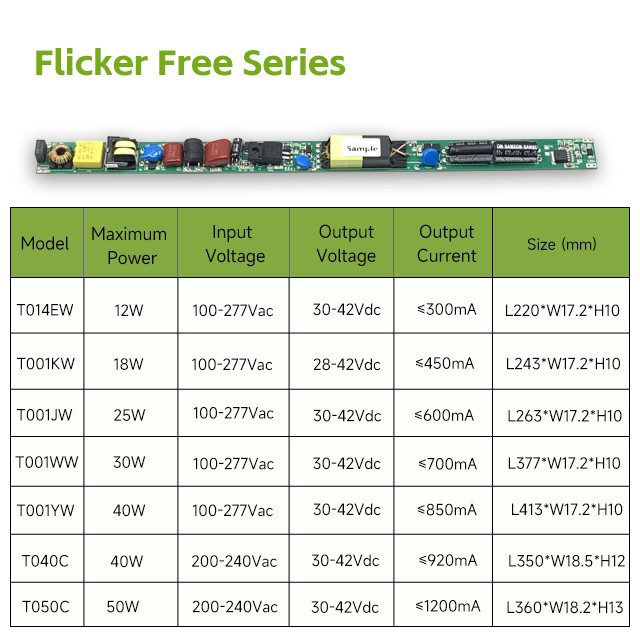

Series |
|||||||||
|
Model |
Max power |
Input voltage |
Output voltage |
Output current |
Efficiency |
Power factor |
Size(mm) |
Meet with |
Remark |
|
T014EW |
12W |
100-277Vac |
30-42Vdc |
≤300mA |
0.84 |
0.90 |
L220*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T001KW |
18W |
100-277Vac |
28-42Vdc |
≤450mA |
0.85 |
0.90 |
L243*W17.2*H10 |
CCC |
Flicker free |
|
T001JW |
25W |
100-277Vac |
30-42Vdc |
≤600mA |
0.86 |
0.90 |
L263*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T001WW |
30W |
100-277Vac |
30-42Vdc |
≤700mA |
0.86 |
0.90 |
L377*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T001YW |
40W |
100-277Vac |
30-42Vdc |
≤850mA |
0.86 |
0.90 |
L413*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T040C |
40W |
200-240Vac |
30-42Vdc |
≤920mA |
0.87 |
0.92 |
L350*W18.5*H12 |
FCC,TUV,UL |
Flicker free |
|
T050C |
50W |
200-240Vac |
30-42Vdc |
≤1200mA |
0.88 |
0.92 |
L360*W18.2*H13 |
FCC,TUV,UL |
Flicker free |
