Lithium battery rechargeable emergency power supply
Lithium battery rechargeable emergency power supply ensure reliable operation when you need it most. It offers an output voltage of 20-75Vdc or 75-200Vdc and provides an impressive emergency runtime of up to 180 minutes. The integrated LiFePo4 battery (6.4V 2AH) is known for its safety and longevity. Certified by CE, CB, and SAA, this emergency power supply meets rigorous international standards, making it a dependable choice for critical lighting applications.

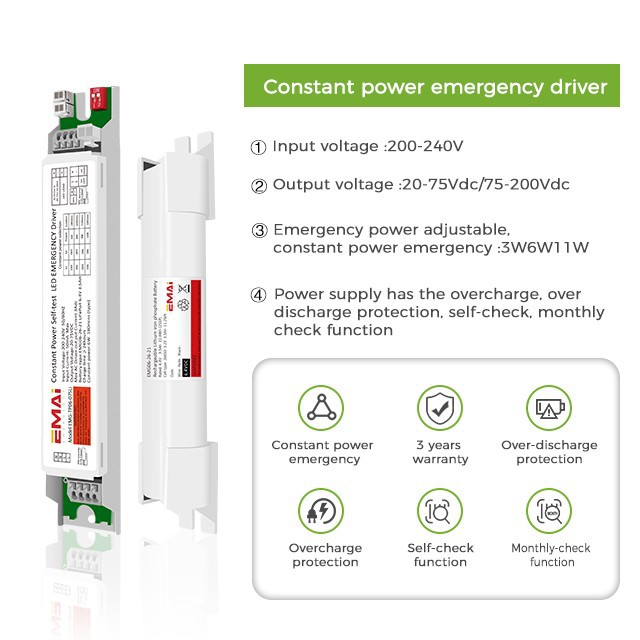

Features：
200-240Vac
Constant power emergency
3 years warranty
Monthly-check function
1.Certified: Complies with CE, CB, and SAA standards.
2.Easy Status Indication: Test button with indicator lights for quick status checks.
3.Superior Energy Density: Lithium batteries provide more power storage per unit of mass or volume.

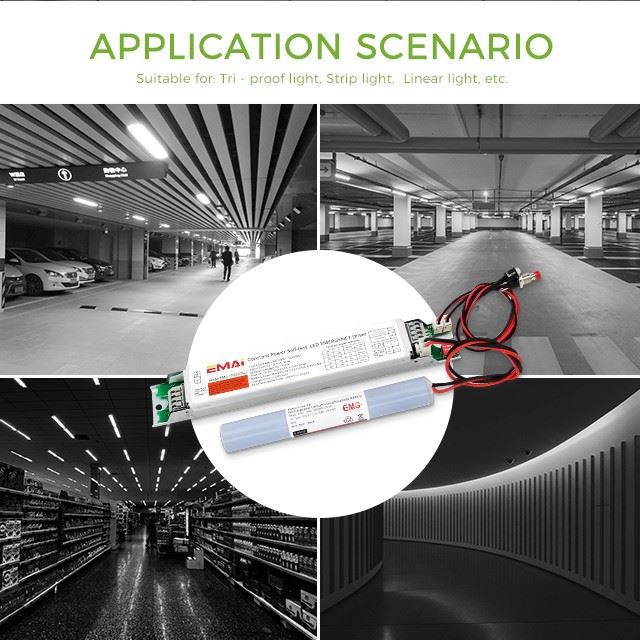

Application Scenario:

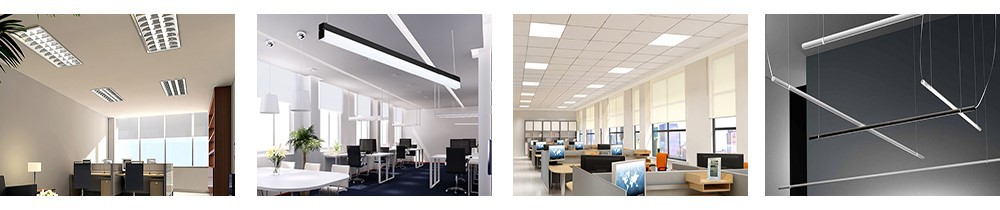

Commercial Buildings: Provides essential lighting in offices, retail spaces, and other commercial settings to ensure safety and operational continuity during power failures.
Battery Comparison
|
Lithium Iron Phosphate Battery (LiFePO4):
High safety, good chemical stability, long cycle life, high thermal and chemical stability, and light weight. |
Nickel-cadmium Battery (NiCd):
Higher cost, lower energy density than newer technologies, and cadmium toxicity raises environmental issues. |

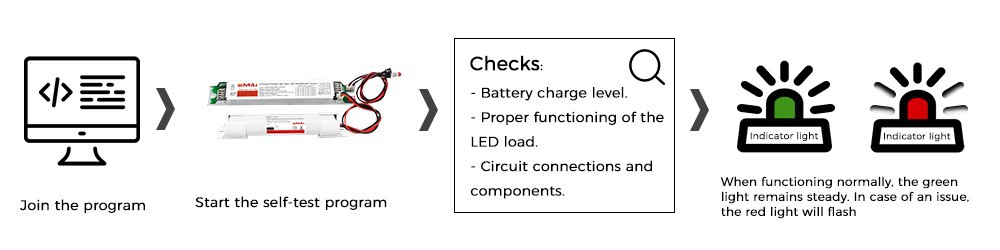

Self-Test Functionality:
1.Purpose:Verify the operational status of the LED emergency driver.
Implementation: Incorporate a routine within the driver circuit that periodically (e.g., daily or weekly) tests key parameters such as battery charge, LED functionality, and circuit integrity.
2.Procedure:Upon activation or periodically during operation, the driver initiates a self-test sequence where it checks:
- Battery charge level.
- Proper functioning of the LED load.
- Circuit connections and components.
- Result Reporting:After testing, the driver may indicate the status via LED indicators or communication signals (if integrated with a control system).

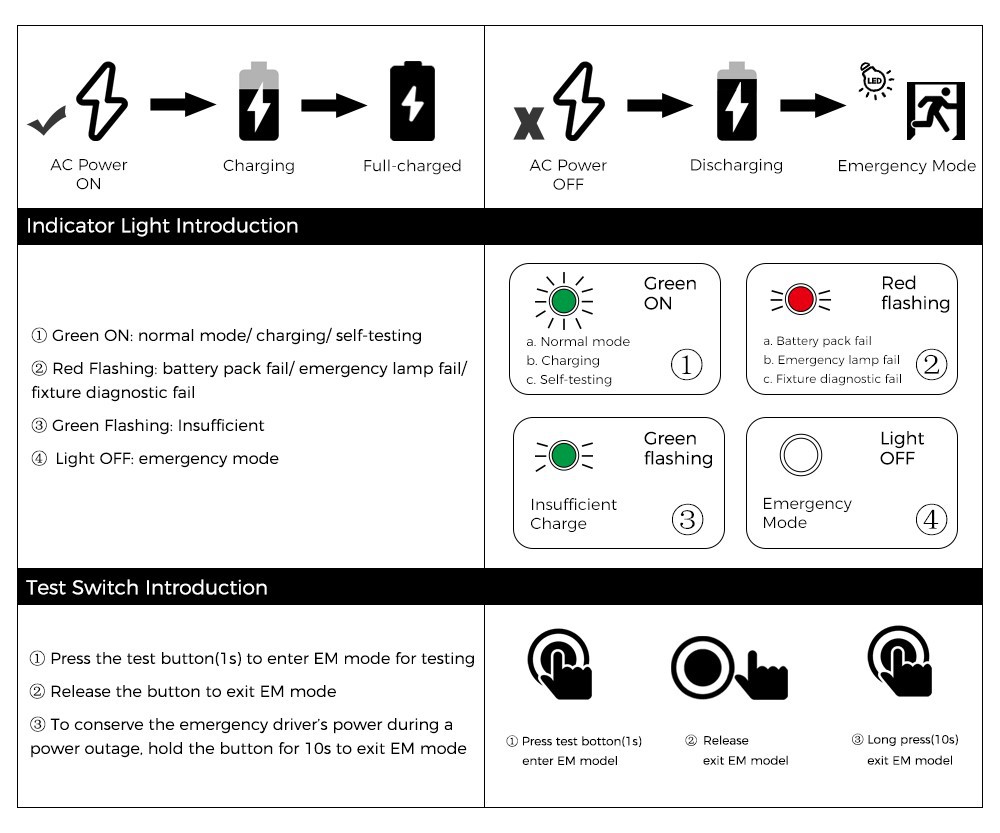

Diagnostic Codes:
The charge indicator LED will flash GREEN when charging and remain lit solid GREEN when fully charged and in the standby mode. If a problem is encountered during the test cycle, the will flash RED, according to the diagnostic codes below:
Test Switch Operations:
Press test button (1s)to enter EM mode for testing in normal AC powered.Release to exit the EM mode.
Long press(10s) exit emergency mode and the battery is cut-off in AC failure powered.

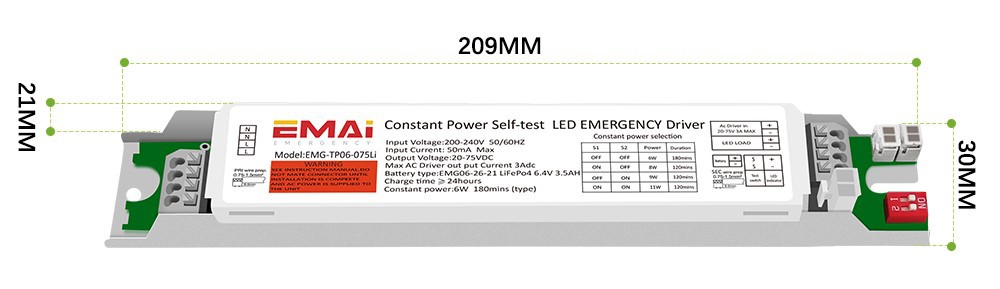

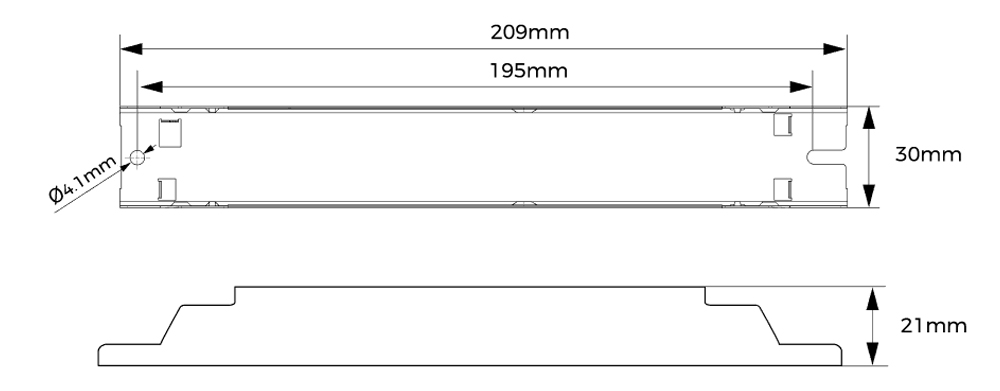

Dimension:
Length:209mm Width: 30mm Height:21mm

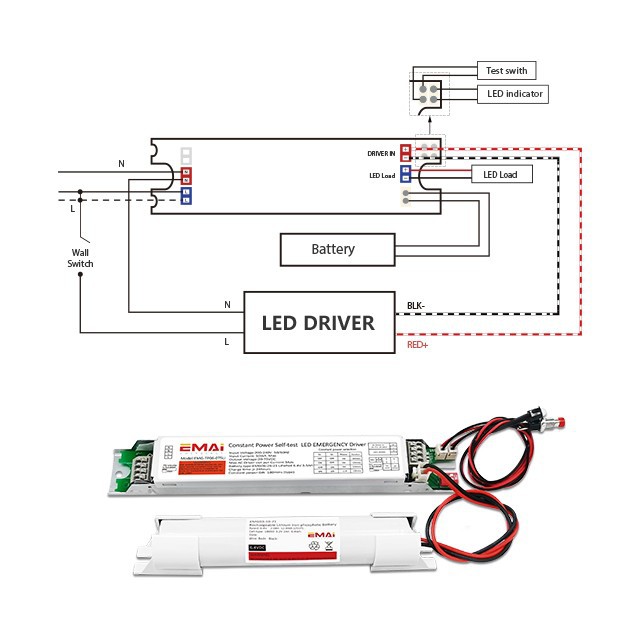

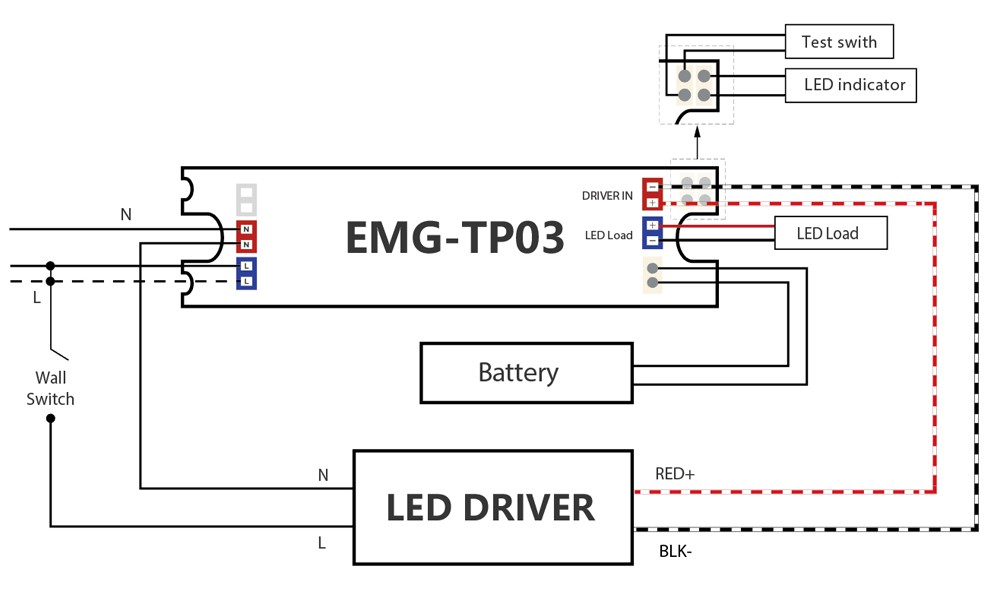

Wiring Diagram:
Product Packaging
Hot Tags: lithium battery rechargeable emergency power supply, China lithium battery rechargeable emergency power supply manufacturers, suppliers, factory, 3CCT select LED driver, sensor module, Two channels output, 75w dimmable led driver, Sensor Drivers for Linear Lights, 1 10v dimming
TP03
Input Voltage ............................................................................ (Universal) 200-240VAC, 50/60Hz
Input Current (200V)......................................................................................................0.05A (max)
Output Voltage...............................................................................................20-75VDC (TP03-075)
70-200VDC(TP03-200)
Output Current .......................................................................................................... Auto-Adjusting
Output Power ........................................................................................................ 3 Watts (Constant)
Max. AC Driver Neutral Current .............................................................................................3Amps
Power Factor ..............................................................................................................................＜0.5
Surge Protection........................................................Line-Neutral 1KV,Line&Neutral-Ground 2KV
Emergency Operation .................................................................................................... 180 minutes
Operating Temp ................................................................................................................0° to 55° C
THD ............................................................................................................... < 10% (@ full charge)
EMI ...........................................................................................Complies to FCC commercial limits
Emergency Mode Protections ...................................................... ..Battery Over Voltage Protection
Battery Under Voltage Protection
Battery Hot Plug at Normal Mode Protection
Battery Hot Plug at Emergency Mode Protection
Output Open Protection
Output Short Protection
Battery ............................................................................................................... LiFePO4,6.4V 2Ah
Battery Charge Current ..........................................................................................................300mA
Battery Recharge Time.........................................................................................................12Hours
|
Status Indication |
Condition |
|
Steady Green |
Normal Mode |
|
Steady Green |
Charging |
|
Steady Green |
Self-Testing |
|
OFF |
Emergemcy Mode |
|
Slow Flashing Green |
Insucient Charge |
|
1 RED Flash |
Battery Pack Failure |
|
2 RED Flashes |
Emergency Lamp Falure |
|
3 RED Flashes |
Flxture Diagnostic Failure Detected |
|

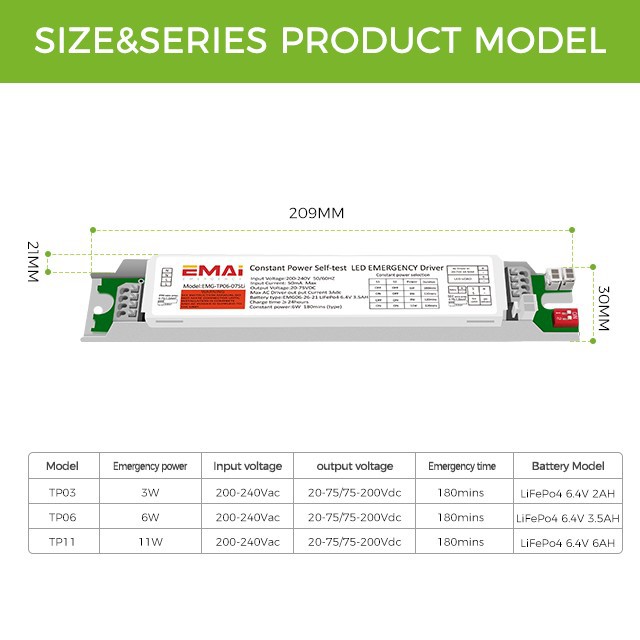

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Emergency time |
Battery Model |
Size(mm) |
Certification |
|
TP03 |
3W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 2AH |
L209*W30*H21 |
CE SAA CB |
|
TP06 |
6W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 3.5AH |
L209*W30*H21 |
CE SAA CB |
|
TP11 |
11W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 6AH |
L209*W30*H21 |
CE SAA CB |
