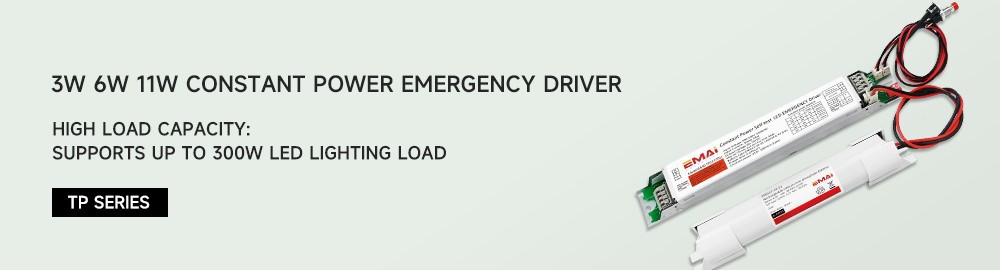

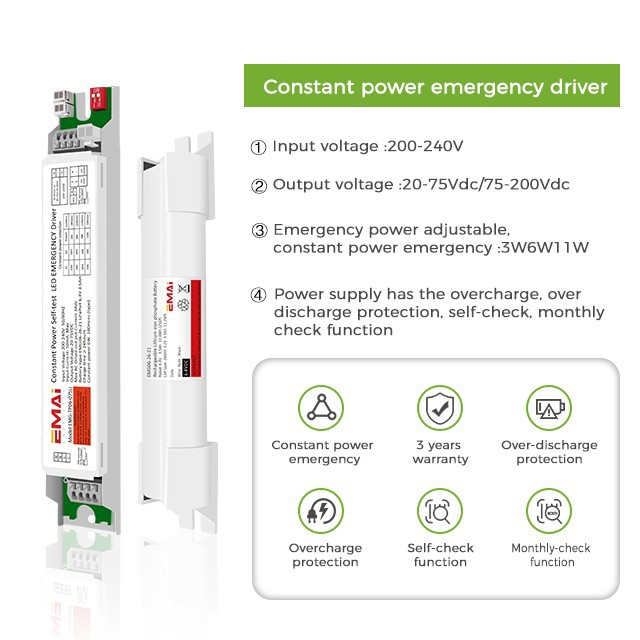

3W 6W 11W constant power emergency driver
The 3W, 6W, and 11W constant power emergency drivers are matched with lithium batteries, offering superior energy density. Compared to alternative battery technologies, these lithium batteries store more power per unit of mass or volume, ensuring reliable emergency lighting. This driver can support up to a 300W LED lighting load, making it ideal for various applications where dependable emergency power is crucial.
Features：
Self-check function
Overcharge protection
Over-discharge protection
3 years warranty
1.Certified: Complies with CE, CB, and SAA standards.
2.Constant Power Output: Available in 3W, 6W, and 11W options.
3.Superior Energy Density: Lithium batteries provide more power storage per unit of mass or volume.
4.High Load Capacity: Supports up to 300W LED lighting load.

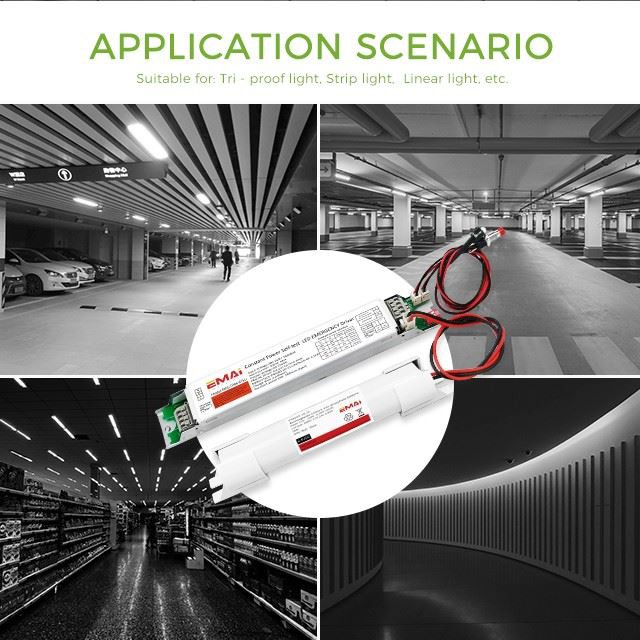

Application Scenario:

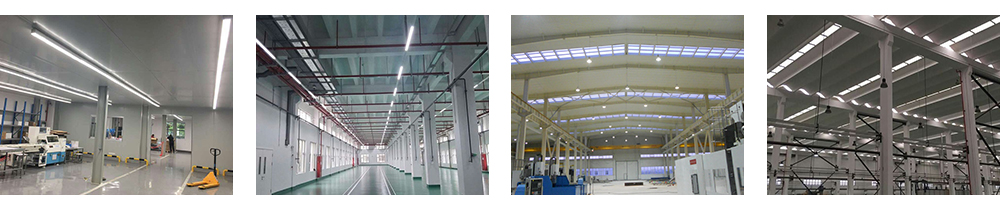

Industrial Facilities: Ensures critical areas such as factories, warehouses, and production lines remain illuminated, preventing accidents and maintaining productivity during outages.

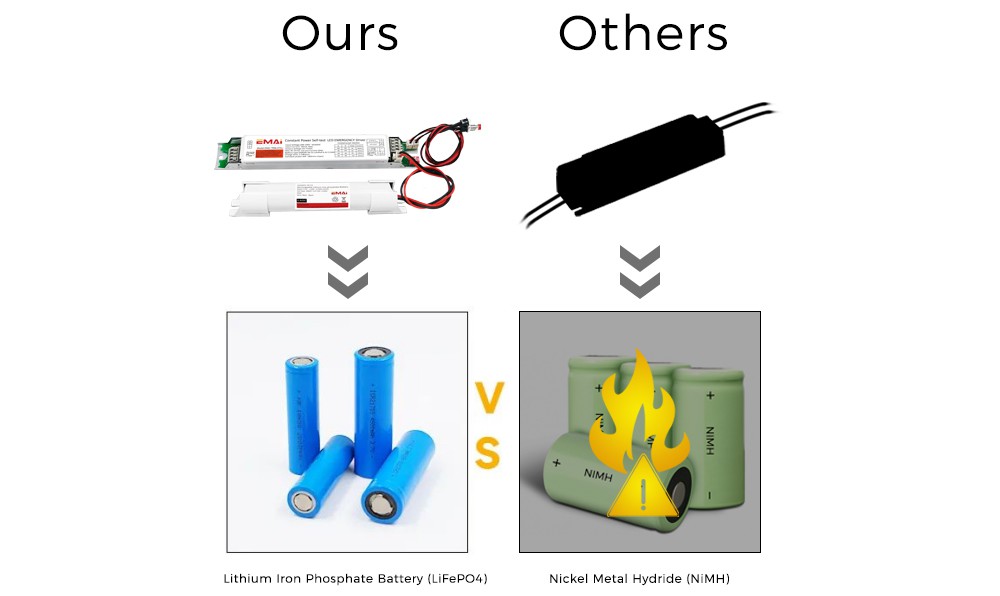

Battery Comparison
|
Lithium Iron Phosphate Battery (LiFePO4):
Excellent overcharge resistance, excellent discharge performance, excellent cycle performance, good storage performance, green and environmentally friendly. |
Nickel Metal Hydride (NiMH):
Batteries have a shorter lifespan than Li-Ion batteries, a higher self-discharge rate, and a higher cost than NiCd. |

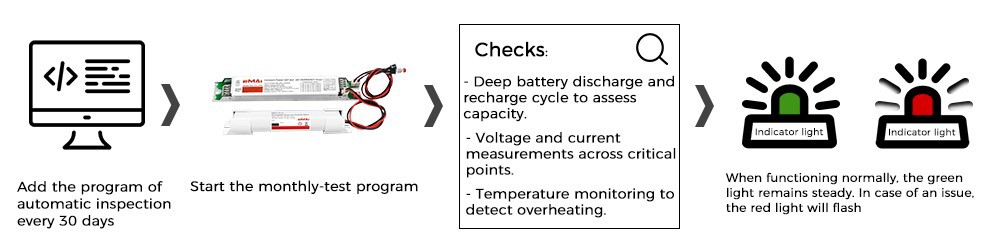

Monthly Check Function:
1.Purpose: Conduct a more thorough inspection to ensure long-term reliability.
2.Implementation: Schedule a monthly routine where the driver performs extended tests and inspections.
3.Procedure: Once a month, the driver executes a comprehensive check that includes:
- Deep battery discharge and recharge cycle to assess capacity.
- Voltage and current measurements across critical points.
- Temperature monitoring to detect overheating.
- Communication with central systems (if applicable) to report status.
- Reporting: Detailed logs and reports may be generated for maintenance records.

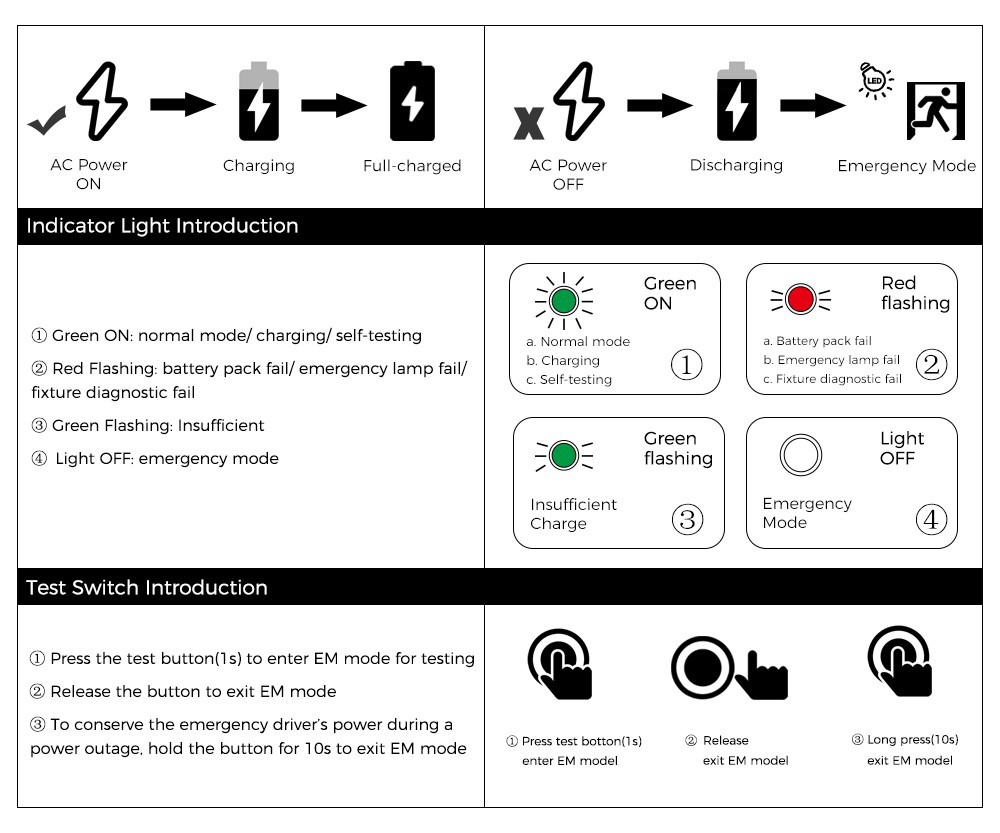

Diagnostic Codes:
The charge indicator LED will flash GREEN when charging and remain lit solid GREEN when fully charged and in the standby mode. If a problem is encountered during the test cycle, the will flash RED, according to the diagnostic codes below:
Test Switch Operations:
Press test button (1s)to enter EM mode for testing in normal AC powered.Release to exit the EM mode.
Long press(10s) exit emergency mode and the battery is cut-off in AC failure powered.

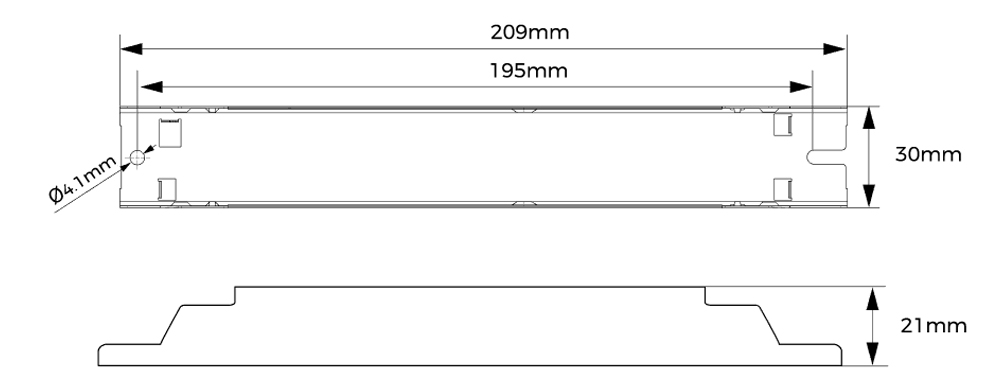

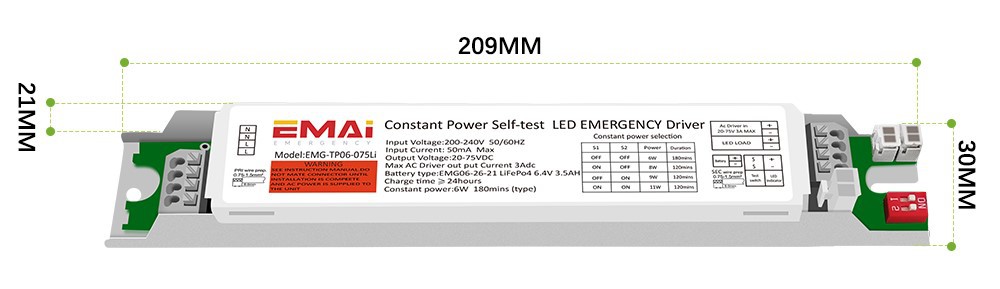

Dimension:
Length:209mm Width: 30mm Height:21mm

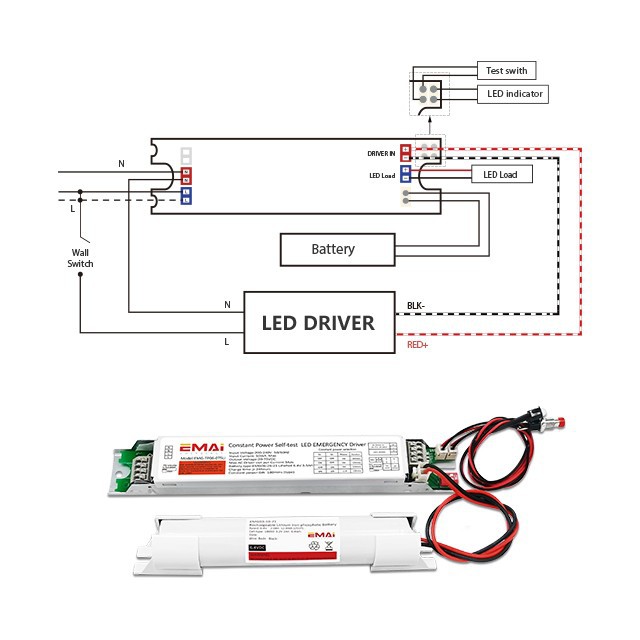

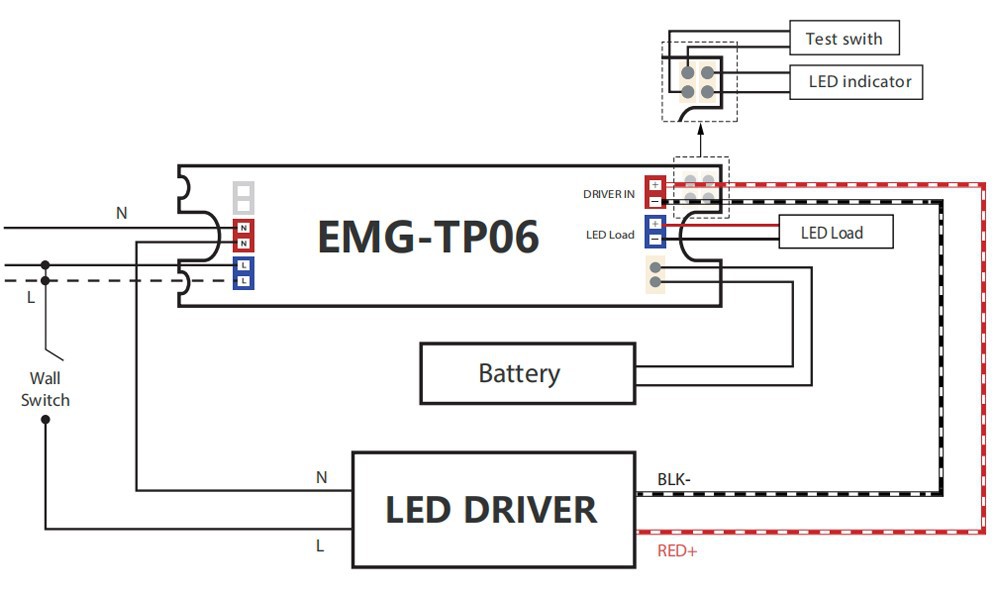

Wiring Diagram:

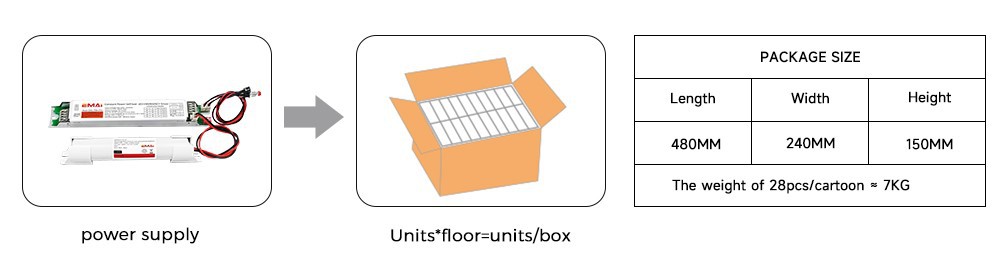

Product Packaging
Hot Tags: 3w 6w 11w constant power emergency driver, China 3w 6w 11w constant power emergency driver manufacturers, suppliers, factory, wifi lamp, fricker free, 40W Sensor Driver, 50 60Hz, Unipolar with strobe, Color Blending applications
TP06
Input Voltage ............................................................................ (Universal) 200-240VAC, 50/60Hz
Input Current (200V)......................................................................................................0.05A (max)
Output Voltage...............................................................................................20-75VDC (TP06-075)
70-200VDC(TP06-200)
Output Current .......................................................................................................... Auto-Adjusting
Output Power ........................................................................................................ 6Watts (Constant)
Max. AC Driver Neutral Current .............................................................................................3Amps
Power Factor ..............................................................................................................................＜0.5
Surge Protection........................................................Line-Neutral 1KV,Line&Neutral-Ground 2KV
Emergency Operation .................................................................................................... 180 minutes
Operating Temp ................................................................................................................0° to 55° C
THD ............................................................................................................... < 10% (@ full charge)
EMI ...........................................................................................Complies to FCC commercial limits
Emergency Mode Protections ...................................................... ..Battery Over Voltage Protection
Battery Under Voltage Protection
Battery Hot Plug at Normal Mode Protection
Battery Hot Plug at Emergency Mode Protection
Output Open Protection
Output Short Protection
Battery .............................................................................................................LiFePO4,6.4V 3.5Ah
Battery Charge Current ........................................................................................................ 300mA
Battery Recharge Time.........................................................................................................24Hours
|
Status Indication |
Condition |
|
Steady Green |
Normal Mode |
|
Steady Green |
Charging |
|
Steady Green |
Self-Testing |
|
OFF |
Emergemcy Mode |
|
Slow Flashing Green |
Insucient Charge |
|
1 RED Flash |
Battery Pack Failure |
|
2 RED Flashes |
Emergency Lamp Falure |
|
3 RED Flashes |
Flxture Diagnostic Failure Detected |
|

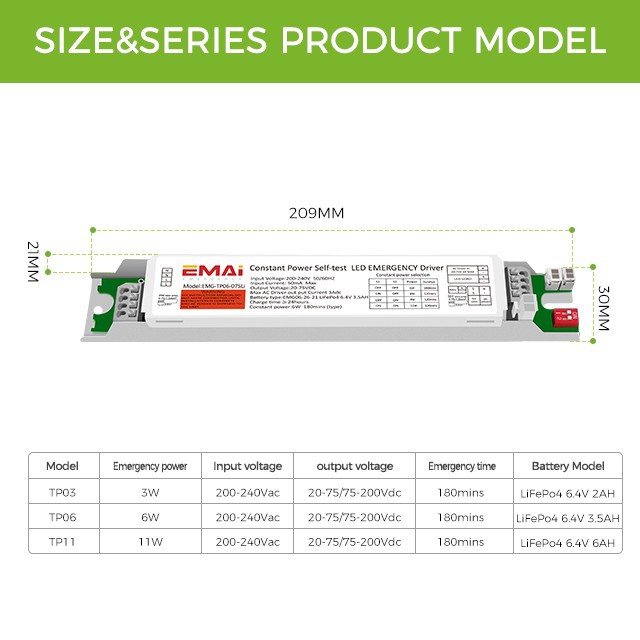

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Emergency time |
Battery Model |
Size(mm) |
Certification |
|
TP03 |
3W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 2AH |
L209*W30*H21 |
CE SAA CB |
|
TP06 |
6W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 3.5AH |
L209*W30*H21 |
CE SAA CB |
|
TP11 |
11W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 6AH |
L209*W30*H21 |
CE SAA CB |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.

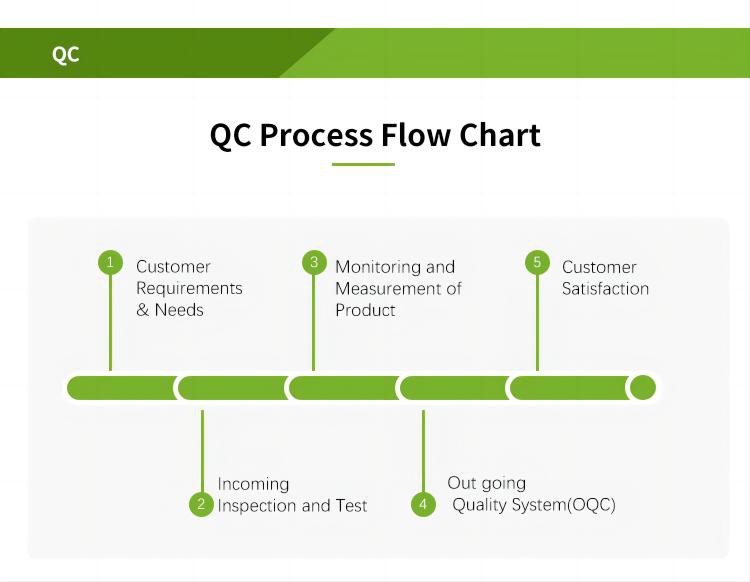

QC Process Flow Chart
