LED Emergency Kit For LED panel Down light led emergency driver
LED Emergency Kit For LED panel Down light led emergency driver offers a dependable emergency backup with 3W or 6W power options and a runtime of up to 180 minutes. It operates seamlessly within an input voltage range of 200-240V and provides adjustable output voltages of 20-75Vdc or 75-200Vdc to suit various lighting applications. Equipped with advanced safety features including overcharge and over-discharge protection, as well as self-diagnostic and monthly inspection functions, it guarantees reliability and compliance. With its lithium iron phosphate battery technology, it ensures extended lifespan and minimal environmental impact, promising a sustainable lighting solution with a shelf life of three years.
Top Features and Benefits:
Over-discharge protection
Overcharge protection
Monthly-check function
3 years warranty
1.Wide Output Voltage Range: 20-75Vdc/75-200Vdc to suit various applications.

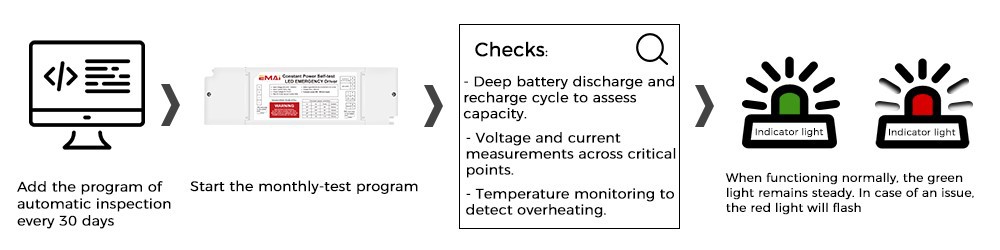

2.Monthly Test Function: Regularly checks the device's status for optimal performance.
3.Superior Energy Density: Lithium batteries provide more power storage per unit of mass or volume.

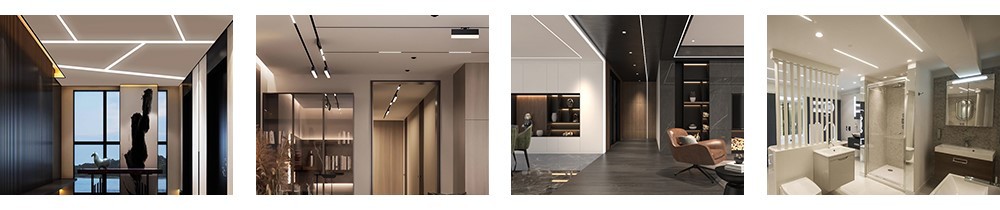

Application Scenario:
Residential Buildings: Provides emergency lighting in hallways, stairwells, and common areas of apartment complexes and houses, ensuring safe evacuation and navigation during power failures.
Battery Comparison
|
Lithium Iron Phosphate Battery (LiFePO4):
Long service life, the cycle life reaches more than 2000 times, and the theoretical life will reach 7~8 years. |
Nickel-cadmium battery (NiCd):
It has advantages such as high energy density, long life, high temperature resistance and no memory effect, but also has disadvantages such as long charging time, high price and environmental pollution. |
Reporting Mechanism:
After the self-test is completed, the status is indicated by an LED indicator or an alarm signal, or the status information is sent to the central monitoring system through an interface.

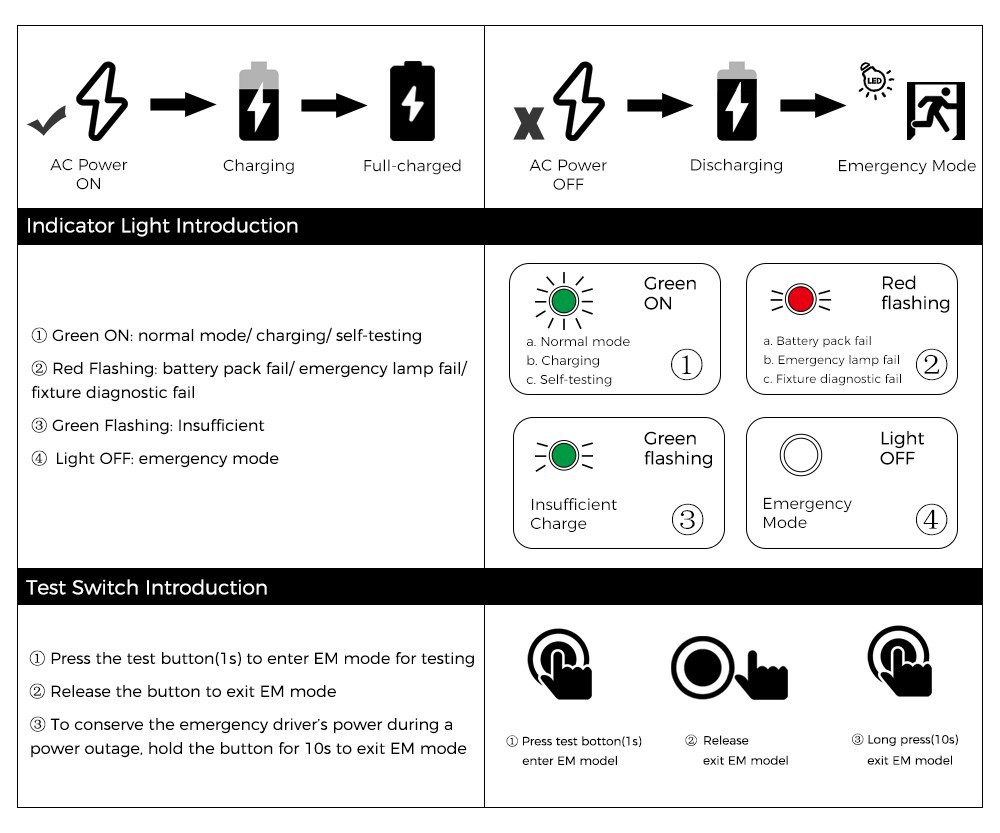

Diagnostic Codes:
The charge indicator LED will flash GREEN when charging and remain lit solid GREEN when fully charged and in the standby mode. If a problem is encountered during the test cycle, the will flash RED, according to the diagnostic codes below:
Test Switch Operations:
Press test button (1s)to enter EM mode for testing in normal AC powered.Release to exit the EM mode.
Long press(10s) exit emergency mode and the battery is cut-off in AC failure powered.

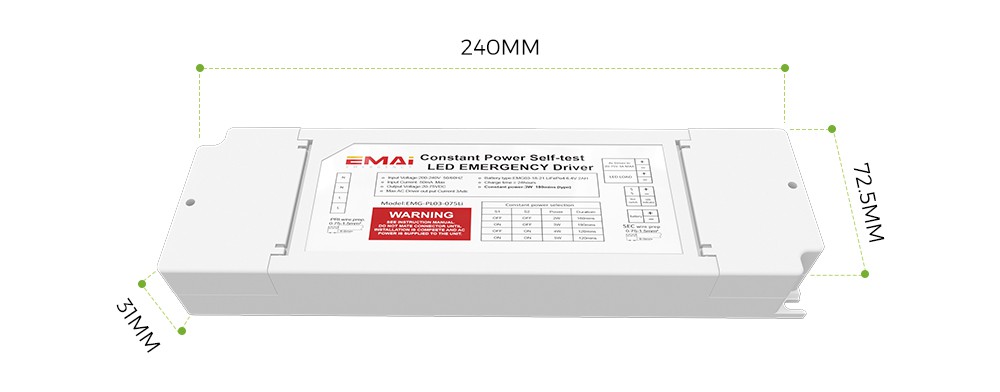

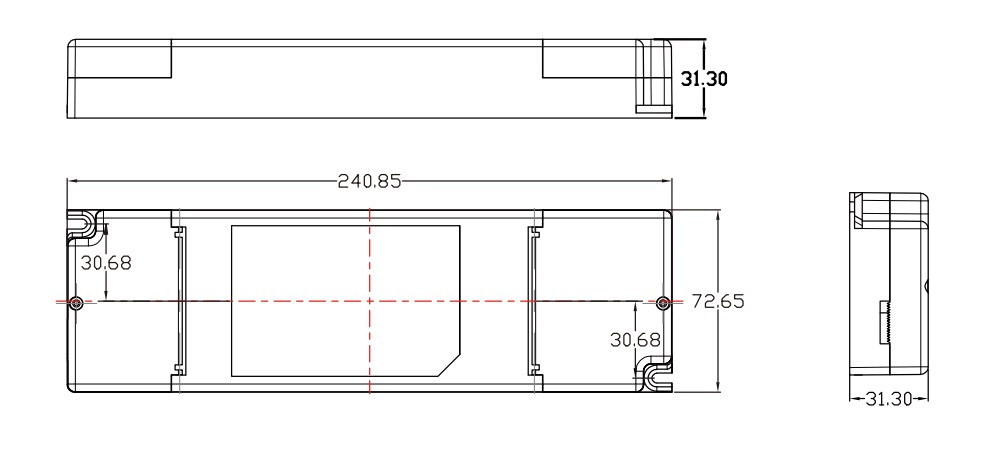

Dimension:
Length:240mm Width: 72.5mm Height:31mm

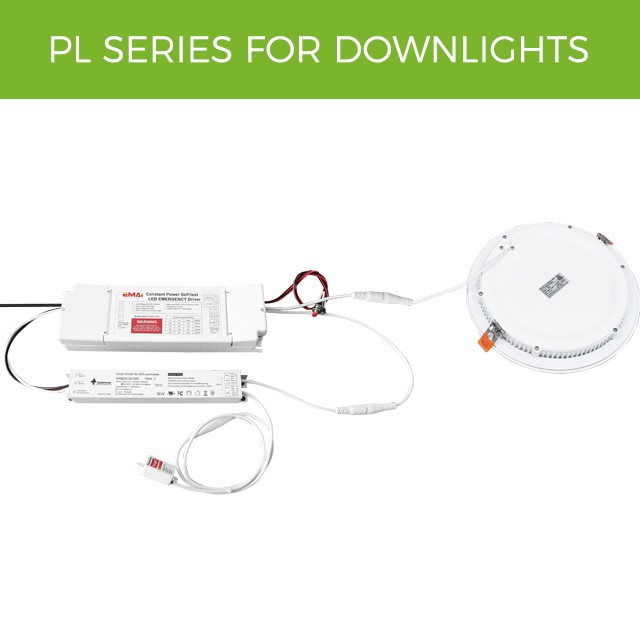

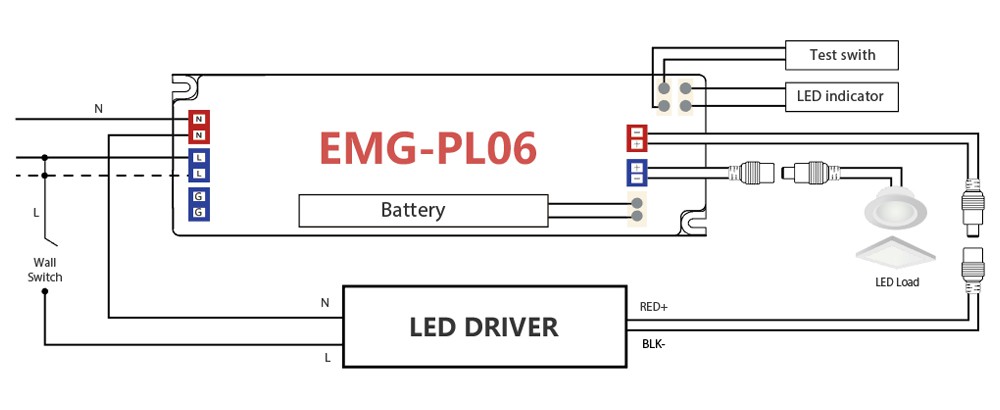

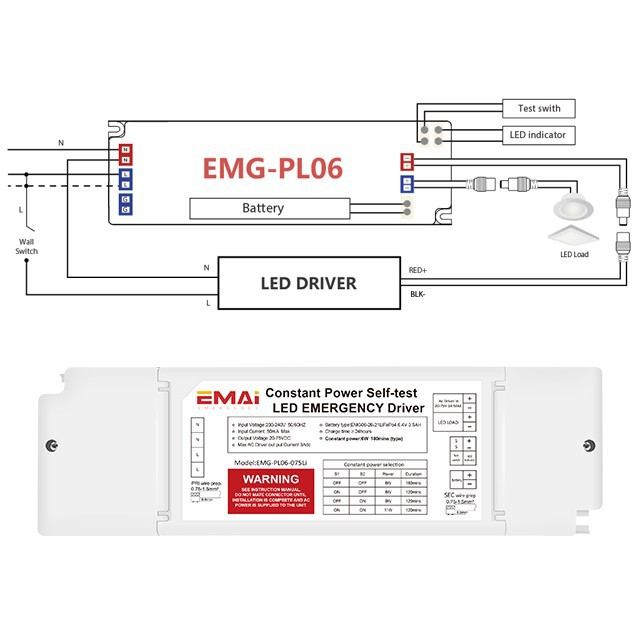

Wiring Diagram:
Hot Tags: led emergency kit for led panel downlight led emergency driver, China led emergency kit for led panel downlight led emergency driver manufacturers, suppliers, factory, led tri proof light, input 347Vac, cct tunable led driver, Two stage circuit design, fricker free, non isolated dimmer
PL06
Input Voltage ............................................................................ (Universal) 200-240VAC, 50/60Hz
Input Current (200V)......................................................................................................0.05A (max)
Output Voltage...............................................................................................20-75VDC (PL06-075)
70-200VDC(PL06-200)
Output Current .......................................................................................................... Auto-Adjusting
Output Power ........................................................................................................ 6Watts (Constant)
Max. AC Driver Neutral Current .............................................................................................3Amps
Power Factor ..............................................................................................................................＜0.5
Surge Protection........................................................Line-Neutral 1KV,Line&Neutral-Ground 2KV
Emergency Operation .................................................................................................... 180 minutes
Operating Temp ................................................................................................................0° to 55° C
THD ............................................................................................................... < 10% (@ full charge)
EMI ...........................................................................................Complies to FCC commercial limits
Emergency Mode Protections ...................................................... ..Battery Over Voltage Protection
Battery Under Voltage Protection
Battery Hot Plug at Normal Mode Protection
Battery Hot Plug at Emergency Mode Protection
Output Open Protection
Output Short Protection
Battery .............................................................................................................LiFePO4,6.4V 3.5Ah
Battery Charge Current ........................................................................................................ 300mA
Battery Recharge Time.........................................................................................................24Hours
|
Status Indication |
Condition |
|
Steady Green |
Normal Mode |
|
Steady Green |
Charging |
|
Steady Green |
Self-Testing |
|
OFF |
Emergemcy Mode |
|
Slow Flashing Green |
Insucient Charge |
|
1 RED Flash |
Battery Pack Failure |
|
2 RED Flashes |
Emergency Lamp Falure |
|
3 RED Flashes |
Flxture Diagnostic Failure Detected |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Emergency time |
Battery Model |
Size(mm) |
Certification |
|
PL03 |
3W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 2AH |
L240*W72.5*H31 |
CE SAA CB |
|
PL06 |
6W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 3.5AH |
L240*W72.5*H31 |
CE SAA CB |

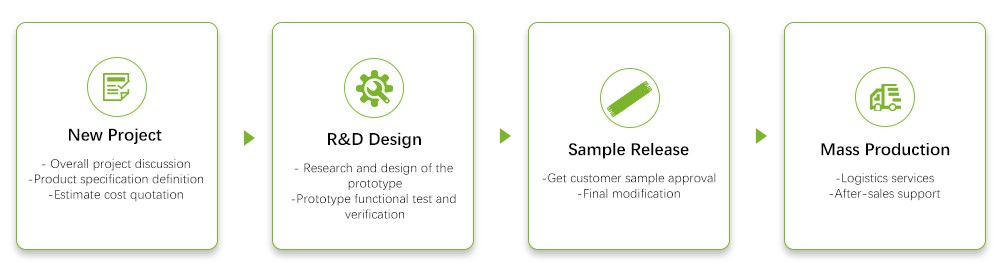

OEM/ODM
