Emergency led driver with a built-in battery

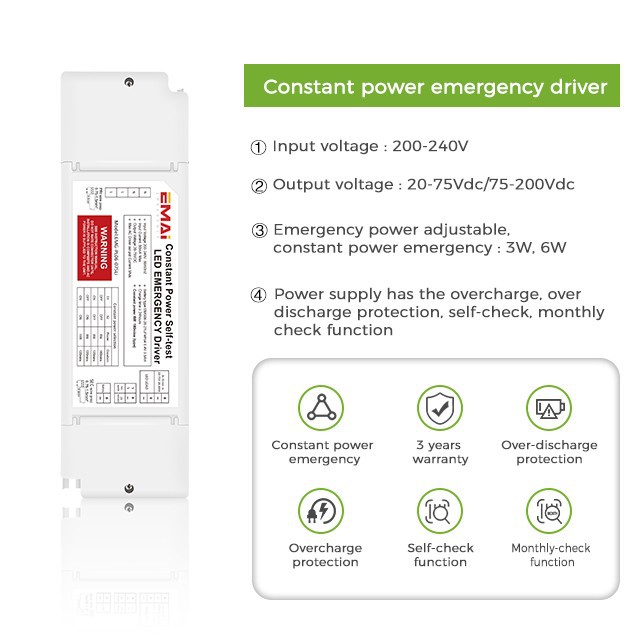

Emergency led driver with a built-in battery offers reliable backup for lighting solutions with its 3W/6W output options and a substantial 180-minute emergency operation time. Designed for use with panel lights, ceiling lights, and downlights, it supports a wide input voltage range of 200-240V and provides flexible output voltages of 20-75Vdc or 75-200Vdc. Featuring overcharge and over-discharge protection, along with self-check and monthly inspection capabilities, it ensures longevity and safety.
Features：
200-240Vac
Constant power emergency
Self-check function
3 years warranty
1.Built-in Lithium Battery: Ensures long-lasting and safe performance.
2.Wide Output Voltage Range: 20-75Vdc/75-200Vdc to suit various applications.
3.Extended Emergency Time: Up to 180 minutes of emergency lighting.
4.High-Quality LiFePo4 Battery: 6.4V 2AH for reliability and safety.
Application Scenario:

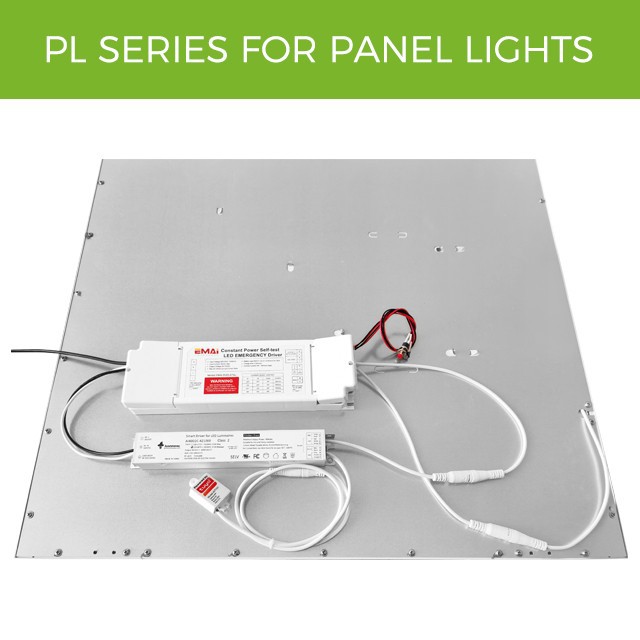

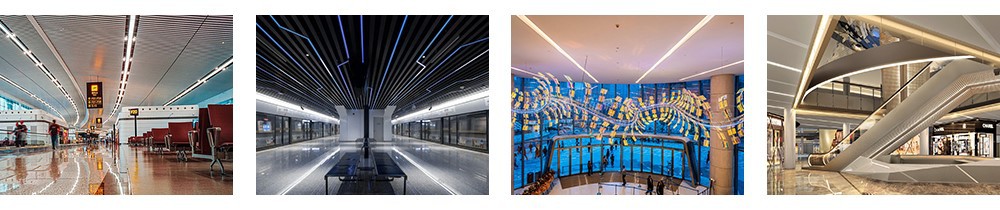

Public Spaces: Keeps lighting operational in places like airports, train stations, and shopping malls, ensuring the safety and comfort of the public during unexpected power outages.

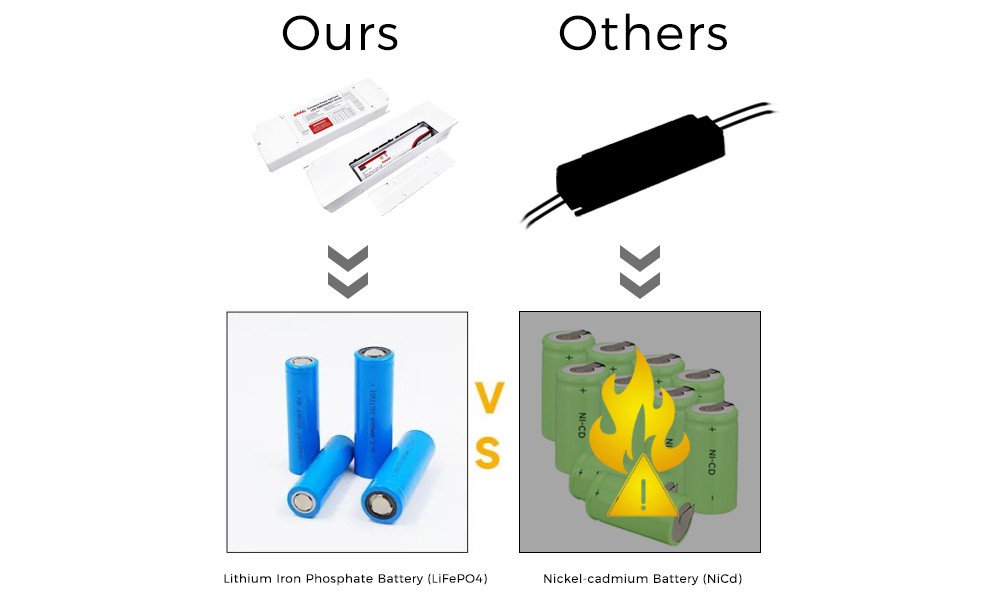

Battery Comparison
|
Lithium Iron Phosphate Battery (LiFePO4):
Good safety, overcharge safety is greatly improved compared to ordinary liquid electrolyte lithium cobalt oxide batteries. |
Nickel-cadmium battery (NiCd):
Contains heavy metals, such as cadmium, which may have a negative impact on the environment. Cycle life is generally shorter than that of lithium iron phosphate batteries. |
Software Design:

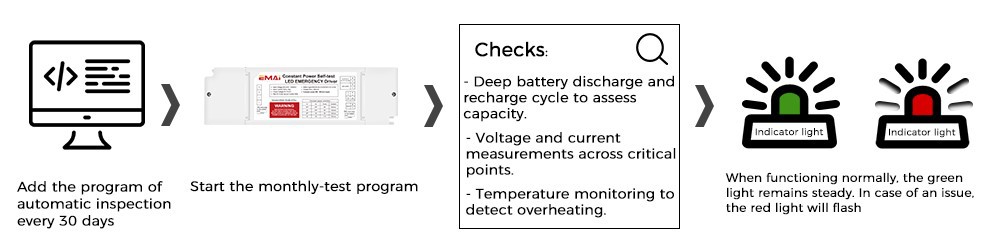

Self-Test Program: Write a self-test program, which is executed regularly or at startup to detect the following key parameters:
Battery charge state.
Brightness and working state of the LED load.
Functionality of the emergency switch.
Diagnostic Codes:

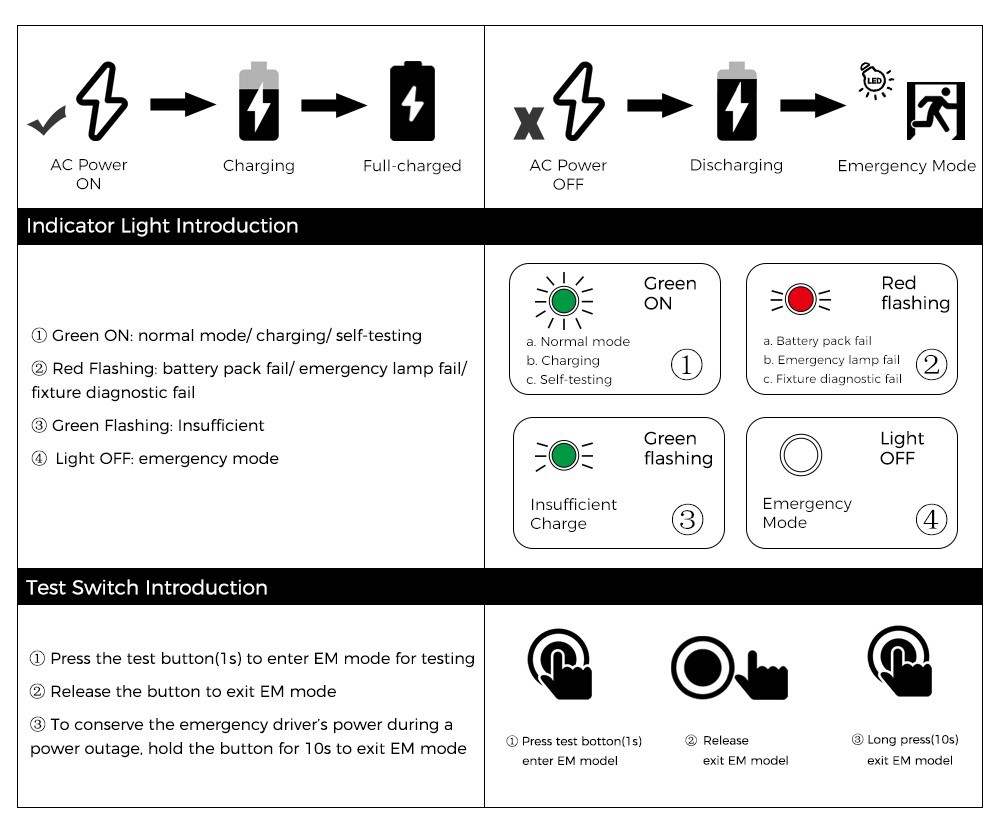

The charge indicator LED will flash GREEN when charging and remain lit solid GREEN when fully charged and in the standby mode. If a problem is encountered during the test cycle, the will flash RED, according to the diagnostic codes below:
Test Switch Operations:
Press test button (1s)to enter EM mode for testing in normal AC powered.Release to exit the EM mode.
Long press(10s) exit emergency mode and the battery is cut-off in AC failure powered.

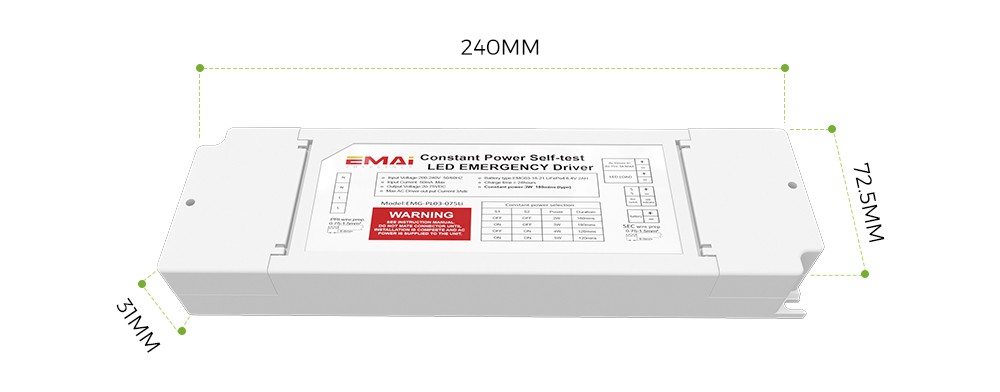

Dimension:

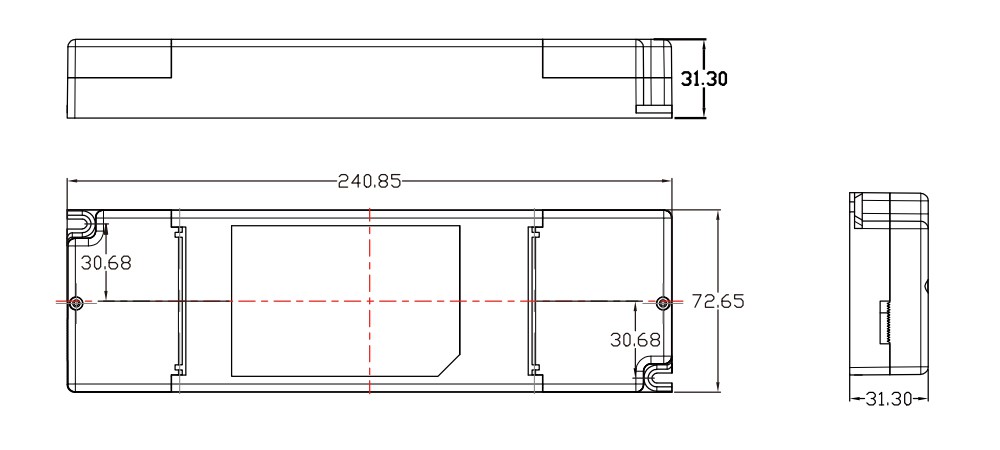

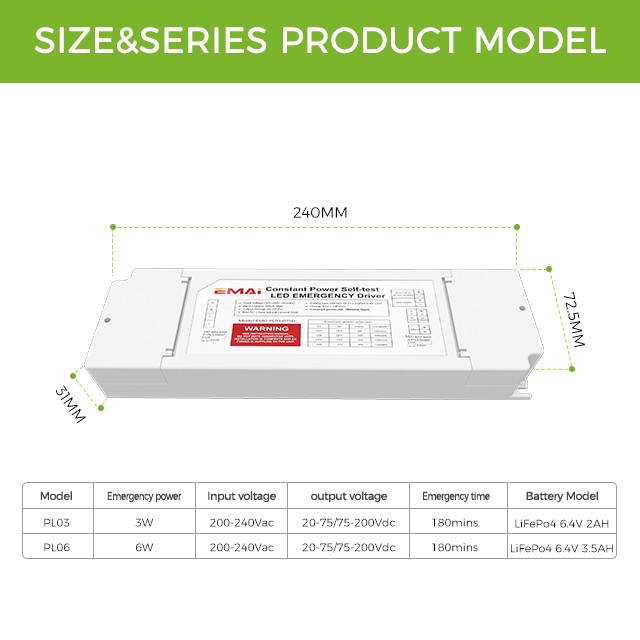

Length:240mm Width: 72.5mm Height:31mm

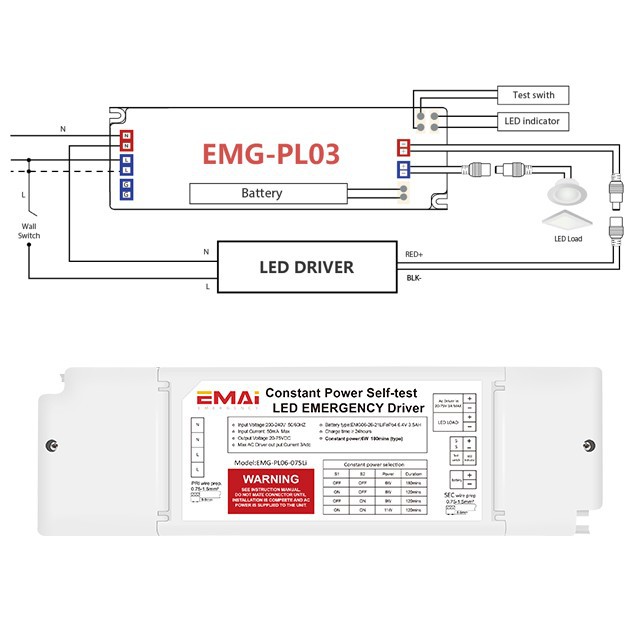

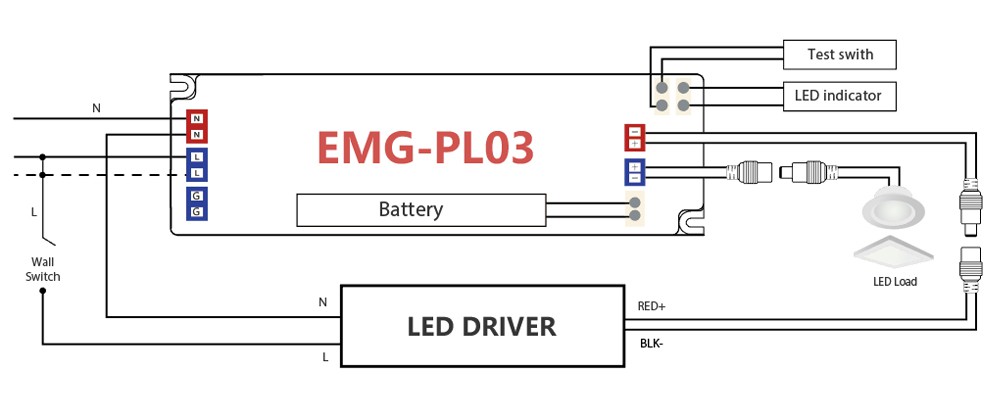

Wiring Diagram:
Hot Tags: emergency led driver with a built-in battery, China emergency led driver with a built-in battery manufacturers, suppliers, factory, CE LED Sensor Driver, 3000K dimmable, motion sensor led driver, 0 10V Tunable White LED Driver, Power 55W, driver for led strip lights
PL03
Input Voltage ............................................................................ (Universal) 200-240VAC, 50/60Hz
Input Current (200V)......................................................................................................0.05A (max)
Output Voltage...............................................................................................20-75VDC (PL03-075)
70-200VDC(PL03-200)
Output Current .......................................................................................................... Auto-Adjusting
Output Power ........................................................................................................11Watts (Constant)
Max. AC Driver Neutral Current .............................................................................................3Amps
Power Factor ..............................................................................................................................＜0.5
Surge Protection........................................................Line-Neutral 1KV,Line&Neutral-Ground 2KV
Emergency Operation .................................................................................................... 180 minutes
Operating Temp ................................................................................................................0° to 55° C
THD ............................................................................................................... < 10% (@ full charge)
EMI ...........................................................................................Complies to FCC commercial limits
Emergency Mode Protections ...................................................... ..Battery Over Voltage Protection
Battery Under Voltage Protection
Battery Hot Plug at Normal Mode Protection
Battery Hot Plug at Emergency Mode Protection
Output Open Protection
Output Short Protection
Battery .............................................................................................................LiFePO4,6.4V 2Ah
Battery Charge Current ........................................................................................................ 300mA
Battery Recharge Time.........................................................................................................12Hours
|
Status Indication |
Condition |
|
Steady Green |
Normal Mode |
|
Steady Green |
Charging |
|
Steady Green |
Self-Testing |
|
OFF |
Emergemcy Mode |
|
Slow Flashing Green |
Insucient Charge |
|
1 RED Flash |
Battery Pack Failure |
|
2 RED Flashes |
Emergency Lamp Falure |
|
3 RED Flashes |
Flxture Diagnostic Failure Detected |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Emergency time |
Battery Model |
Size(mm) |
Certification |
|
PL03 |
3W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 2AH |
L240*W72.5*H31 |
CE SAA CB |
|
PL06 |
6W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 3.5AH |
L240*W72.5*H31 |
CE SAA CB |
