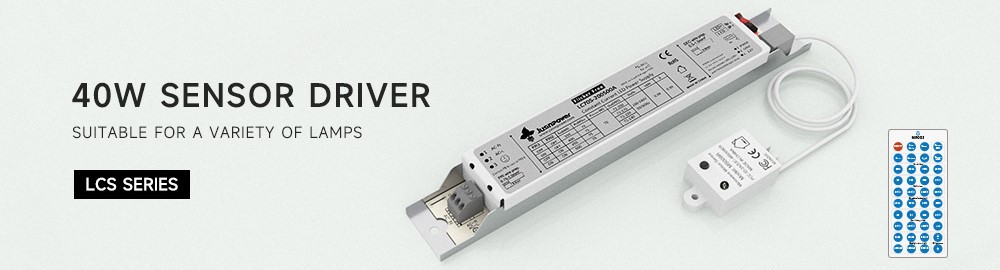

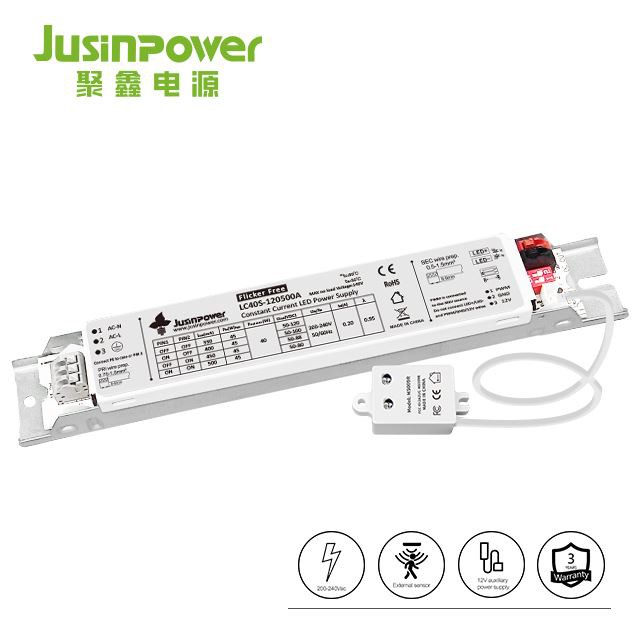

40W Sensor Driver
The 40W sensor driver is a non-isolated constant current LED power supply with THD as low as 10%. Its wide output voltage range is 50-190Vdc, and the output current is between 350-500mA, which is selected by the user through the dial switch. Suitable for tri-proof lights, line lights, grille lights, etc.
4 levels of
brightness
adjustment
12V auxiliary
power supply
200-240Vac
External sensor
Flicker free
3 Years
warranty
1. Low THD 10%
2. DIP adjustment

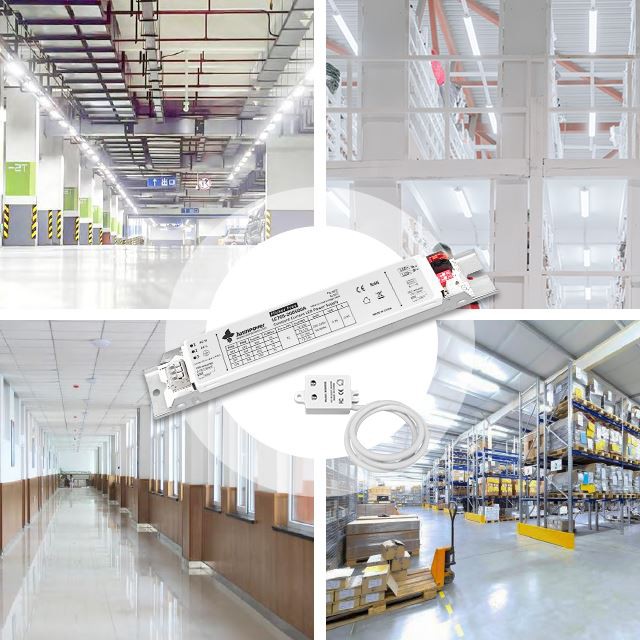

3. Suitable for a variety of lamps

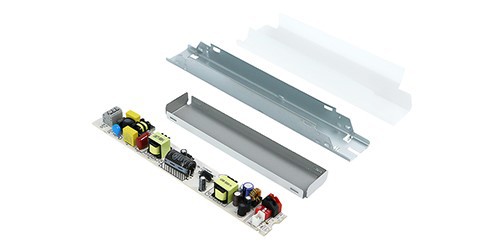

Product Details:

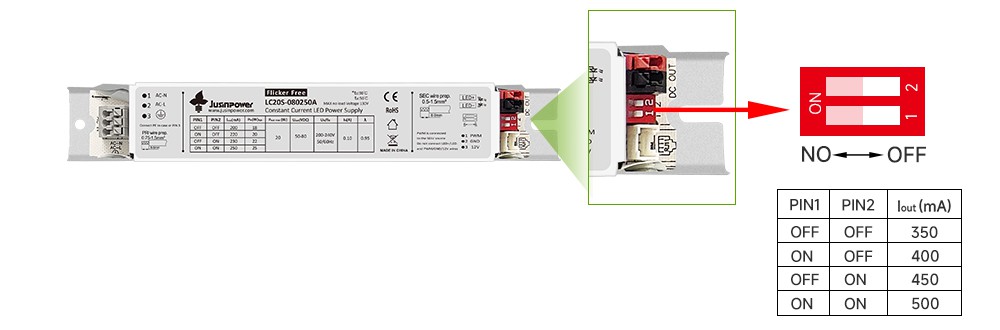

The output current can be selected independently through the dip switch.

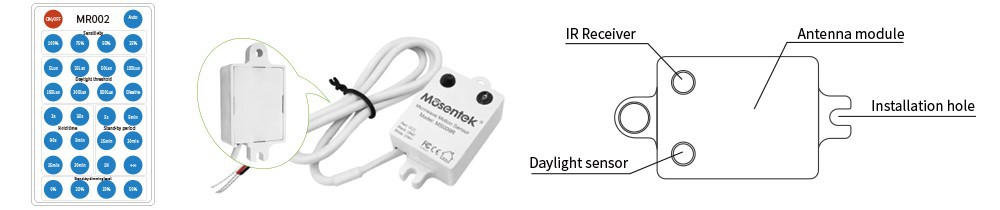

About The Sensor Module
Sensor Technical Parameters
|
Input |
Operating voltage |
5~24VDC |
|
Operating current |
23mA |
|
|
Output |
Output |
PWM |
|
Sensor Parameters |
Microwave frequency |
5.8GHz±75MHz |
|
Microwave power |
<0.3mW |
|
|
Sensitivity |
100%/75%/50%/25% (Refer to remote control) |
|
|
Hold time |
3s/30s/90s/3min/5min/15min/20min/30min (Refer to remote control) |
|
|
Daylight threshold |
Disable/300Lux/100Lux/50Lux/15Lux/5Lux (Refer to remote control) |
|
|
Stand-by period |
0s/5s/30s/3min/5min/15min/45min/+∞ (Refer to remote control) |
|
|
Stand-by dimming level |
10%/20%/30%/50% (Refer to remote control) |
|
|
Mounting height |
Max.9m (Ceiling mounted) |
|
|
Detection range |
Radius 4-5m (Ceiling mounted 6m) |
|
|
Operating temperature |
-35℃~70℃ |
|
|
Warranty |
5 years |
|
|
Other |
Default setting: Sensitivity 100%, Hold time 3s, Daylight threshold disable, Stand-by period 0s. |
|

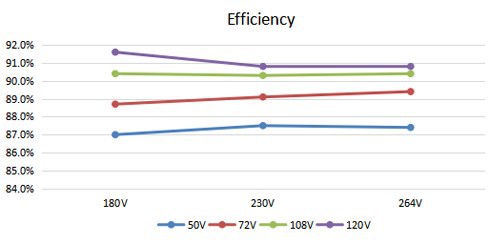

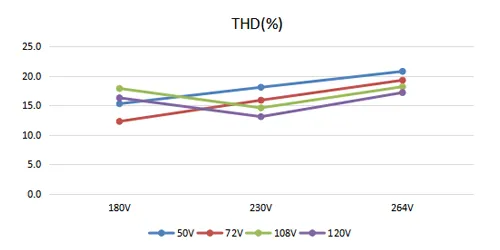

Electrical Characteristic:
Hot Tags: 40w sensor driver, China 40w sensor driver manufacturers, suppliers, factory, pwm led driver, 2500mA, 5 stage color temperature, up and down cct, app control led driver, tunable light
LC40S
|
Performance |
||
|
Model |
LC40S-120500 |
|
|
Input |
Efficiency |
90%@220Vac full load |
|
Voltage |
200-240Vac |
|
|
Frequency Range(Hz) |
50Hz |
|
|
Power Factor |
≥ 0.95@230Vac full load |
|
|
THD(full load) |
<10%@230Vac full load |
|
|
AC Current(max) |
0.23A@230Vac full load |
|
|
Standby power |
<1w |
|
|
Inrush current (cold engine start) max |
10.27A@230Vac |
|
|
peak value |
11.22A@230Vac |
|
|
Leakage current (max) |
0.09mA |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
50-120Vdc/500mA/40W |
|
Current ripple |
<5% |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<140V |
|
|
Start Time |
<1S@230V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Dimming range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|

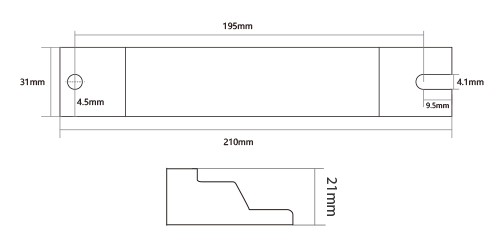

Physical |
|
|
Length |
199 mm |
|
Width |
31 mm |
|
Height |
21.5 mm |
|
Mounting Length |
196mm |
|
Weight (g) |
141.5g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|

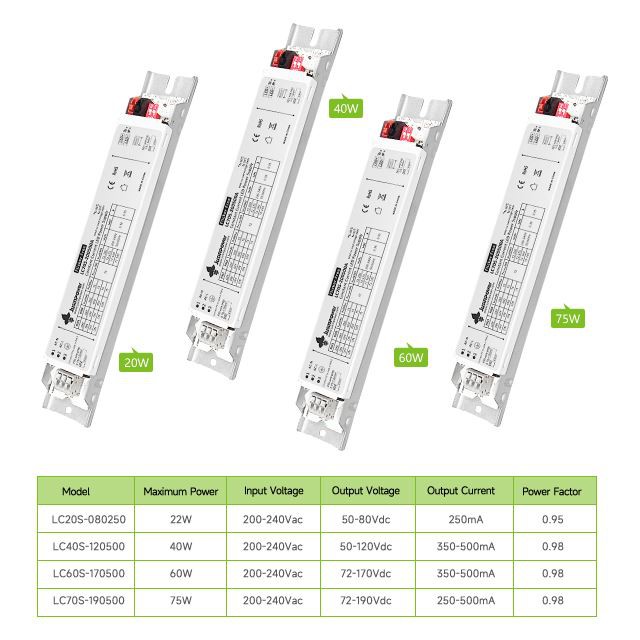

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC20S-080250 |
22W |
200-240Vac |
50-80Vdc |
250mA |
0.9 |
Adjustable |
84% |
|
LC40S-120500 |
40W |
200-240Vac |
50-120Vdc |
350-500mA |
0.9 |
Adjustable |
89% |
|
LC60S-170500 |
60W |
200-240Vac |
72-170Vdc |
350-500mA |
0.9 |
Adjustable |
92% |
|
LC70S-190500 |
75W |
200-240Vac |
72-190Vdc |
250-500mA |
0.9 |
Adjustable |
92% |
OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure,required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.

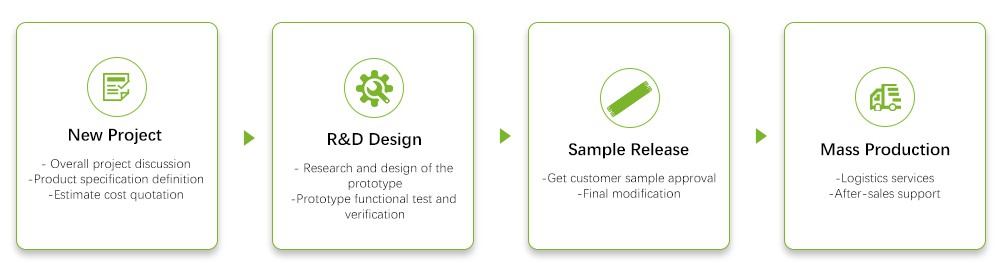

OEM/ODM Service flow
