CCT Selectable Driver
It is a single-channel output LED driver with CCT. It can adjust three light effects of white light, warm light and mixed light by dialing the code, and the dimming range is 7%-100%. When the input voltage is fully loaded with 347V, the start-up time is <0.5s.
3 levels of
color temperature
adjustment
3 levels of
brightness
Adjustment
120-347Vac
12V auxiliary
power supply
5 Years
warranty

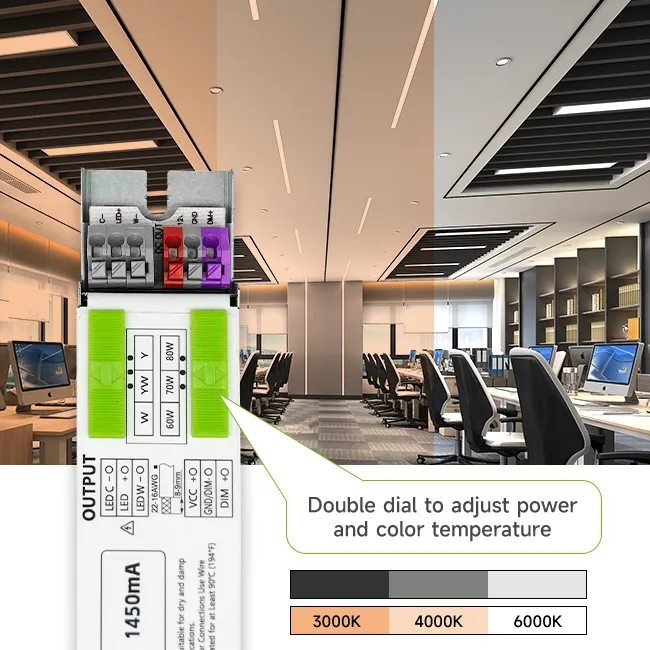

1. Dial to adjust color temperature
2. Adjustable white light
3. Adjustable warm light

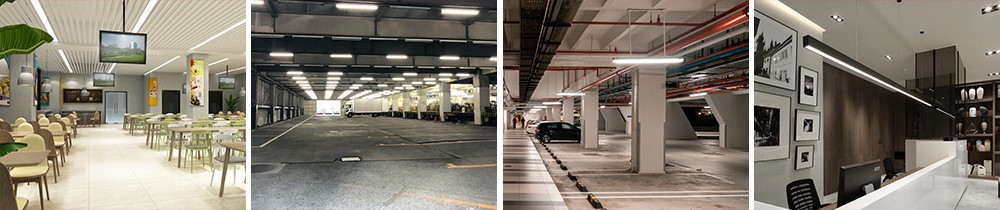

Application Scenario:
This driver is ideal for LED lights in tight spaces, including linear lights, tri-proof lights, plant lights, grille lights, among others.
Product Details:

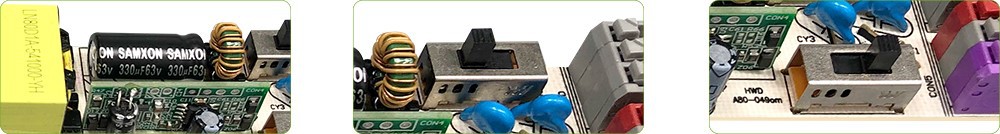

This product features a surface-mounted dial switch that allows you to easily adjust the color temperature in three levels. This function is very convenient and simple to operate, and you can quickly achieve the desired lighting atmosphere with just a simple turn.

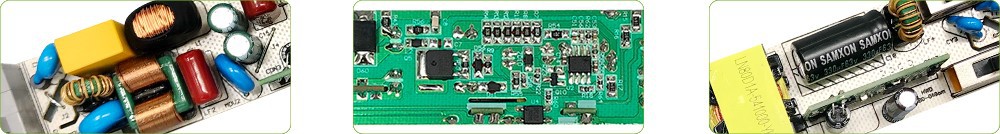

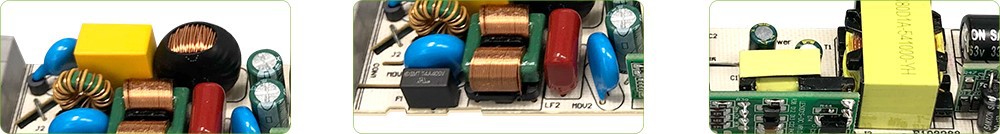

High Quality Raw Materials and Exquisite Technology

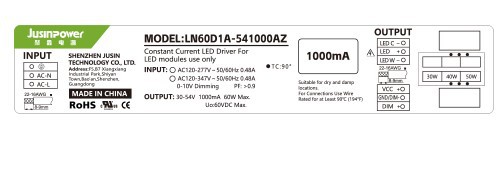

Product Label
Electrical Characteristics:

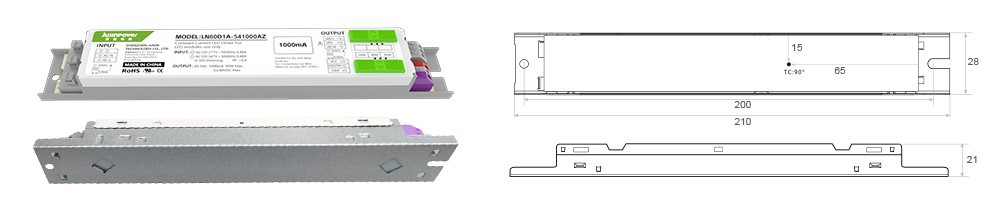

Dimension (mm)
Length: 210mm Width: 28mm Height: 24mm

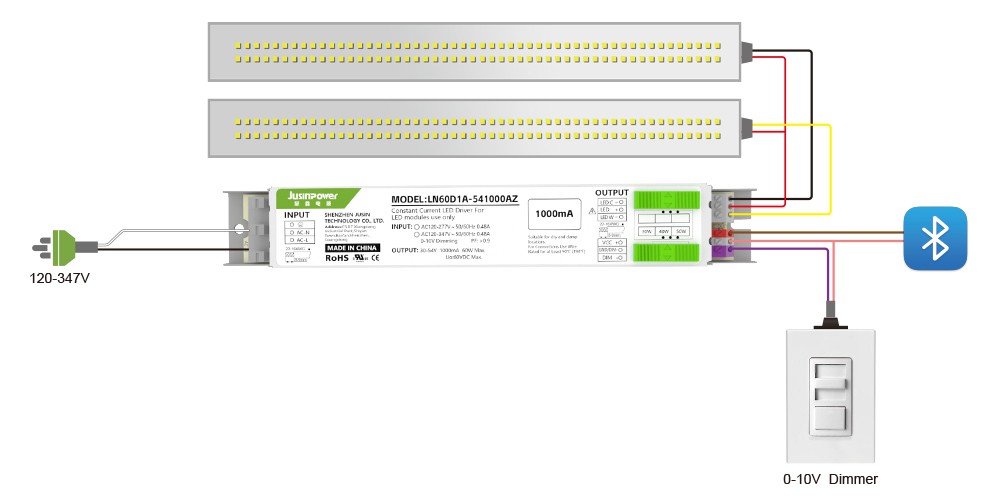

Wiring Instructions:
The two ends of the product are connected, one end is the AC input terminal, the other end is the DC output and dimming signal input end, LED+, LED C-/LED W- are respectively connected to the positive pole of the LED light; DIM+ is connected to 0-10V; VCC is connected to the 12V auxiliary module for power supply, GND/DIM- grounded.

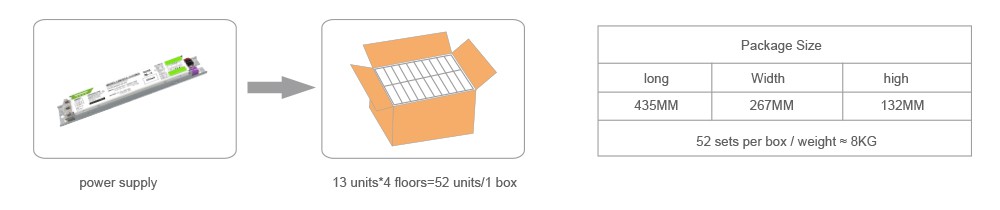

Product Packaging:
Hot Tags: cct selectable driver, China cct selectable driver manufacturers, suppliers, factory, 80W tunable white, output current 2 5A, Wireless Dimmable LED Driver, 5 stage color temperature, 6000K selectable, Non isolated Constant Current Driver with 12V Auxiliary Driver
LN60
|
Performance |
||
|
Model |
LN60D1A-541000AZ |
|
|
Input |
Efficiency |
91%@230Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac full load |
|
|
THD(full load) |
<20%@120Vac full load |
|
|
AC Current(max) |
0.6A@120Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
30A@120Vac |
|
|
60A@277Vac |
||
|
80A@347Vac |
||
|
Leakage current (max) |
<0.75mA@347V |
|
|
Output |

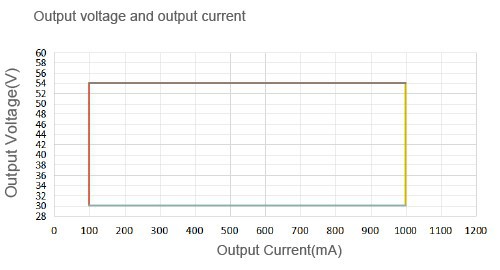

Current(mA)/Voltage (VDC) Power(W) |
30-54Vdc/750mA/40W |
|
Channel |
1 output |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Function |

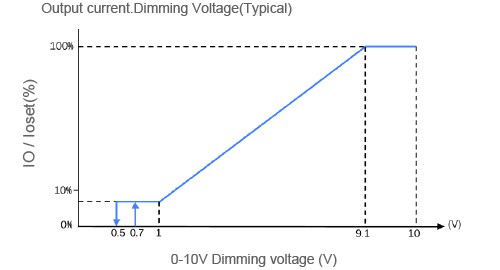

Dimming method |
0-10V 0.5V OFF /0.7V OPEN |
|
Dimming current |
<1mA@10V <2mA@0.7V |
|
|
Dimming range |
7%-100% (standard) |
|
|
Color temperature |
Three gears adjustable |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
210 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
195mm |
|
Weight (g) |
154g |
|
Environmental |
|
|
Safety standard |
UL8750 ,Class1 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE/FCC/UL certificate |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LN40D1A-54XXXXYZ |
36W |
120-277/120-347Vac |
30-54Vdc |
750mA |
0.9 |
Adjustable |
Adjustable |
89% |
|
LN60D1A-54XXXXYZ |
55W |
120-277/120-347Vac |
30-54Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
91% |
|
LN80D1A-54XXXXYZ |
75W |
120-277/120-347Vac |
30-54Vdc |
1500mA |
0.9 |
Adjustable |
Adjustable |
91% |
