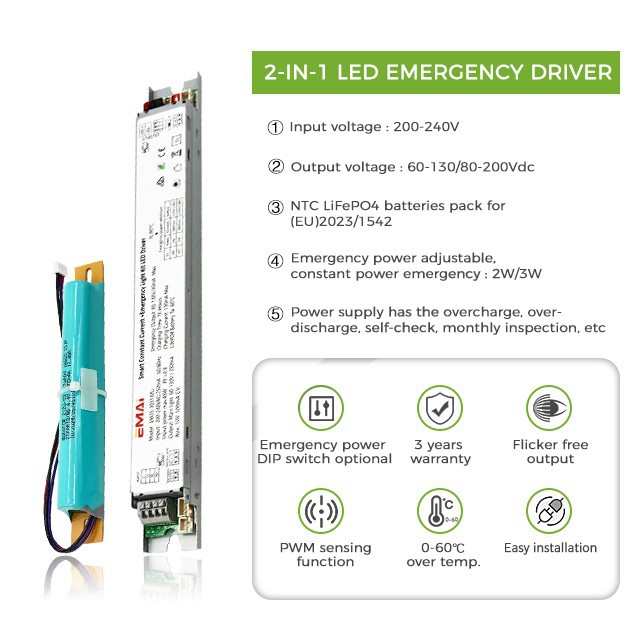

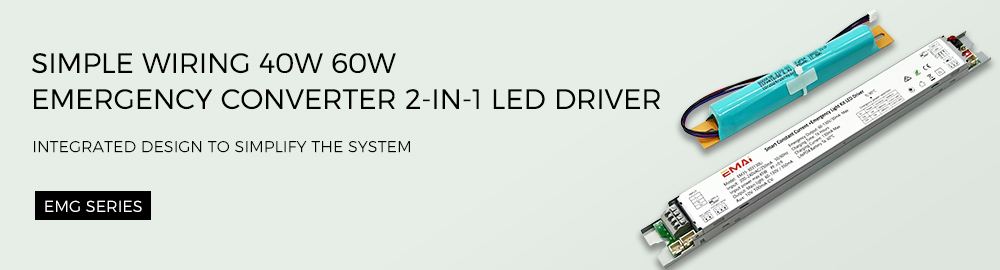

Simple Wiring 40W 60W Emergency Converter 2-In-1 Led Driver
This 2-in-1 emergency LED driver available in 40 and 60W. It has both conventional power supply and emergency power supply functions. In the original solution, we need to connect a conventional power supply, an emergency power supply and a battery. This means complex wiring, which increases the difficulty and time of installation. This wiring method is not only complicated, but also prone to errors, which may cause system instability and affect the normal operation of the equipment. Our 2-in-1 emergency power supply integrates conventional power supply and emergency power supply into one device. The wiring is simple and clear, and the design reduces the complexity of wiring and the risk of errors, saving installation time. This design not only improves efficiency, but also ensures higher safety.
Top Features and Benefits:
0-60℃
Temp Protection

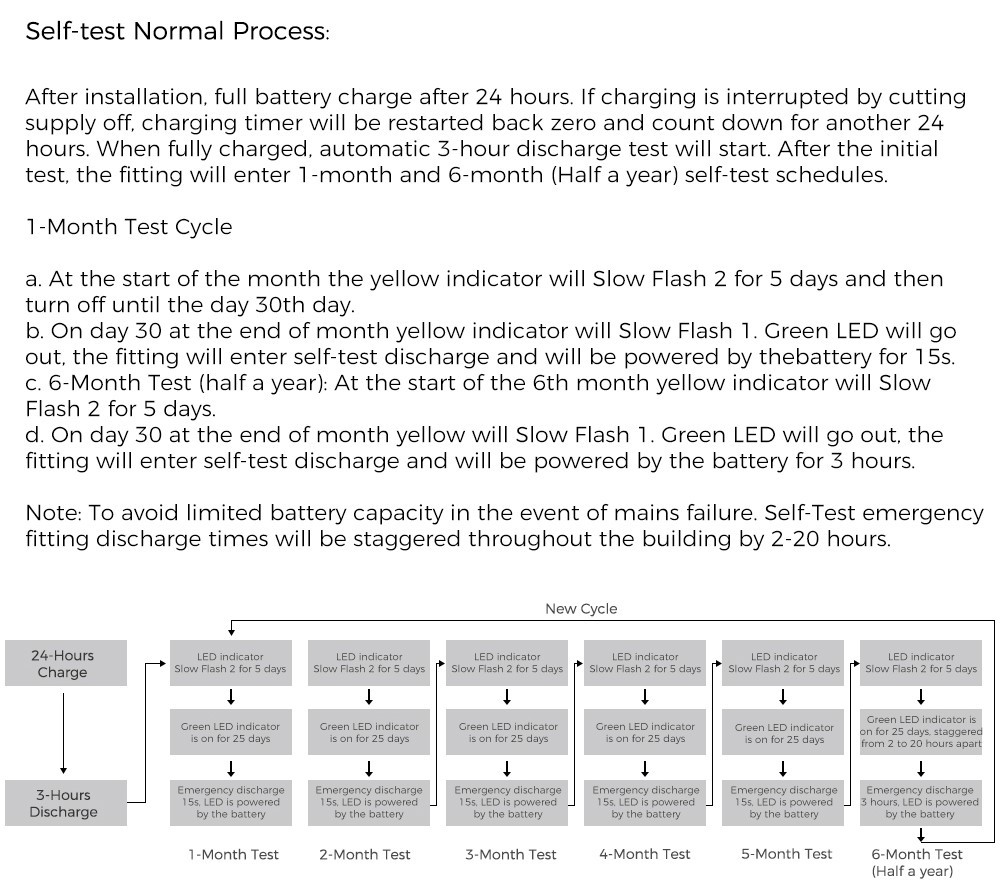

Monthly-inspection
Function
Overcharge Protection

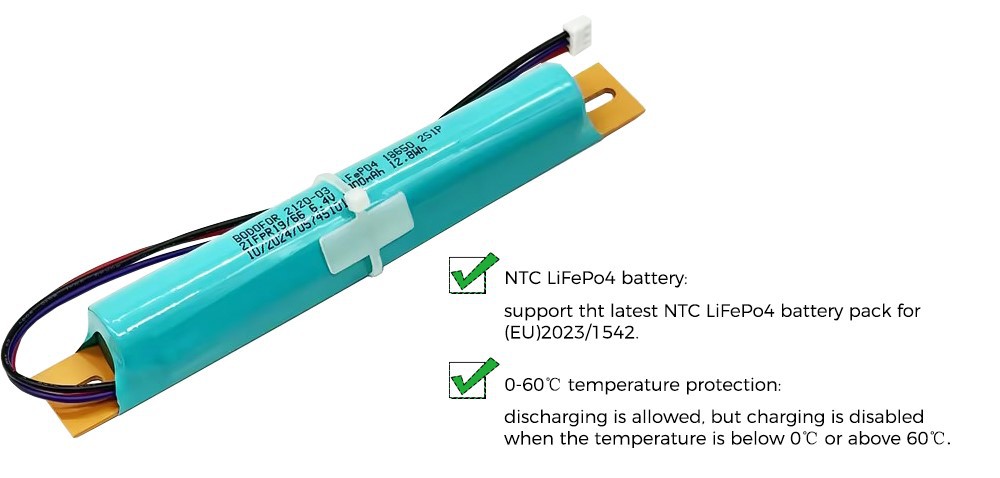

NTC LiFePO4 Battery

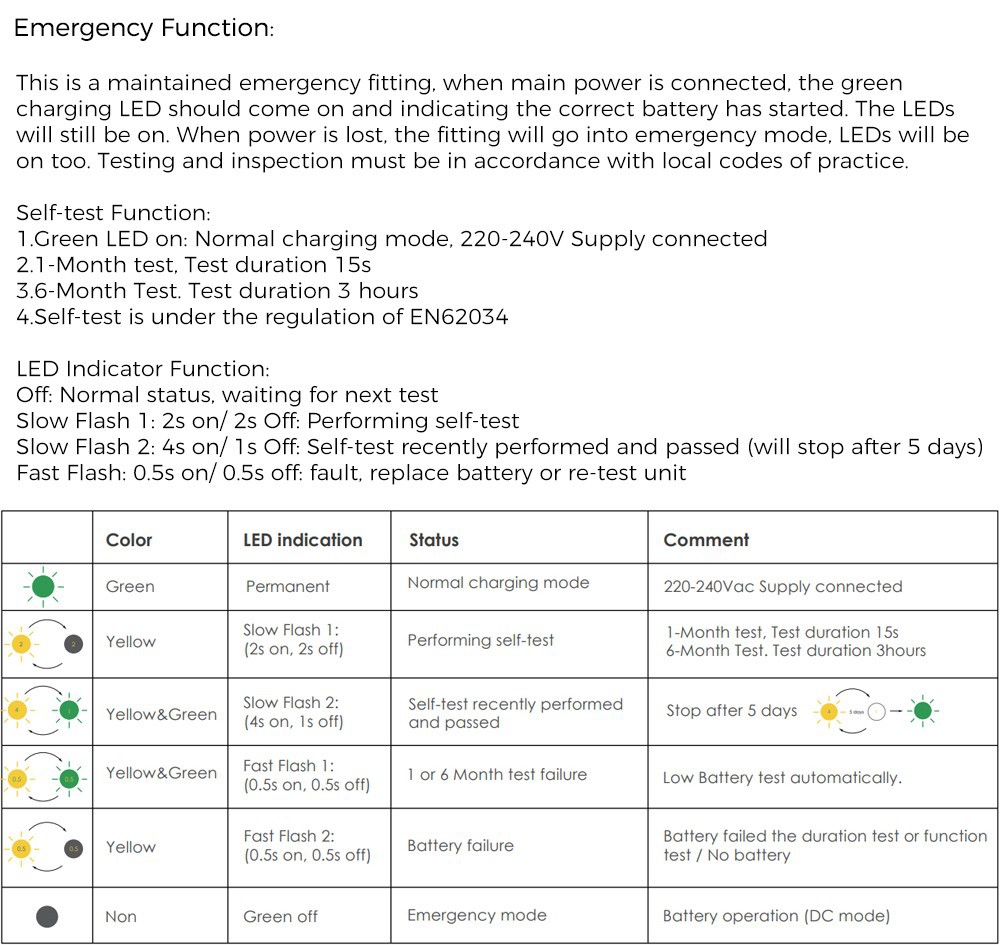

Emergency Power
DIP
1.2-In-1 Led driver for regular and emergency
2.Input voltage:Universal 200-240 VAC,Supports up to 40W 60W LED lighting load.
3.Integrated design to simplify the system
4.CE compliant emergency 2 in 1 LED driver,ensures worldwide applicability and safety

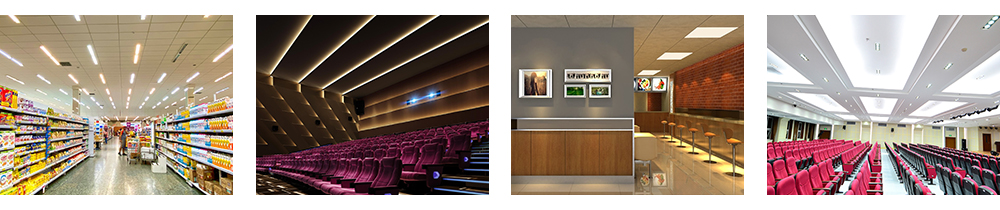

Application Scenario:
Malls & Supermarkets:Shopping malls and supermarkets are usually crowded with people, and power outages may cause panic or difficulty in evacuation. Emergency lights can ensure that the lighting of emergency exits, stairs, passages and other areas of the mall is not affected, helping customers evacuate quickly and orderly during power outages.
Product Details:

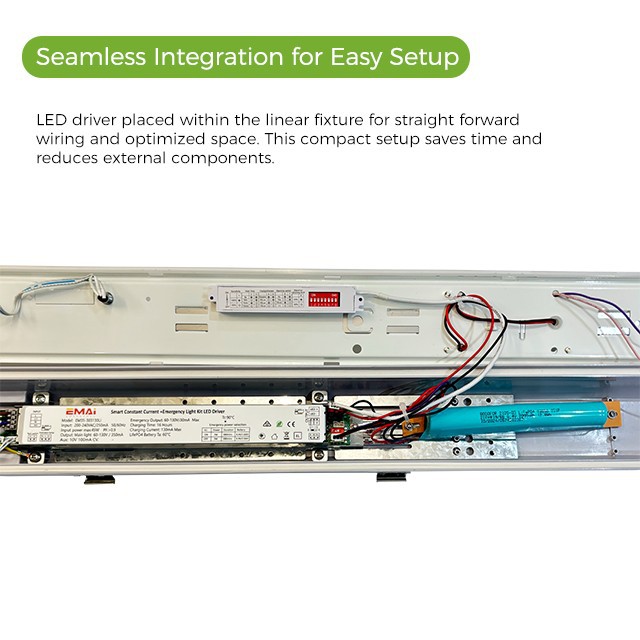

Save space and installation costs
Only one device is needed to provide regular and emergency power supply functions, reducing the need for independent emergency power supply installation, saving space, and reducing installation and maintenance costs.

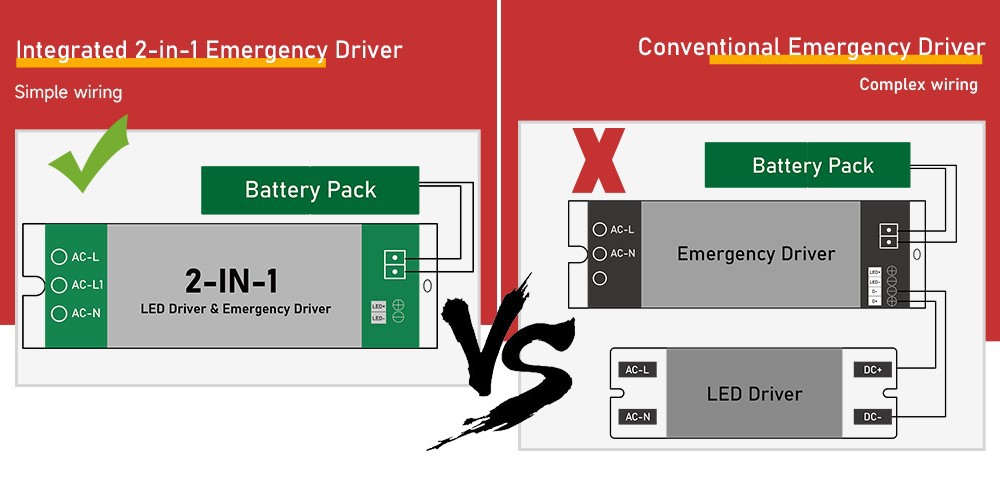

In the original one, we need to connect a conventional power supply, an emergency power supply, and a battery. This means complex wiring, which increases installation difficulty and time. This wiring method is not only complicated but also prone to errors, potentially leading to system instability and affecting the normal operation of the equipment.
On the other hand, our 2-in-1 emergency power supply integrates the conventional power supply and the emergency power supply into one device. The wiring is simple and clear, saving installation time.
Just a simple connection is needed to complete the installation. This design not only improves efficiency but also ensures greater safety.
The battery hot swap is protected in normal mode .The battery hot swap is protected in emergency mode.

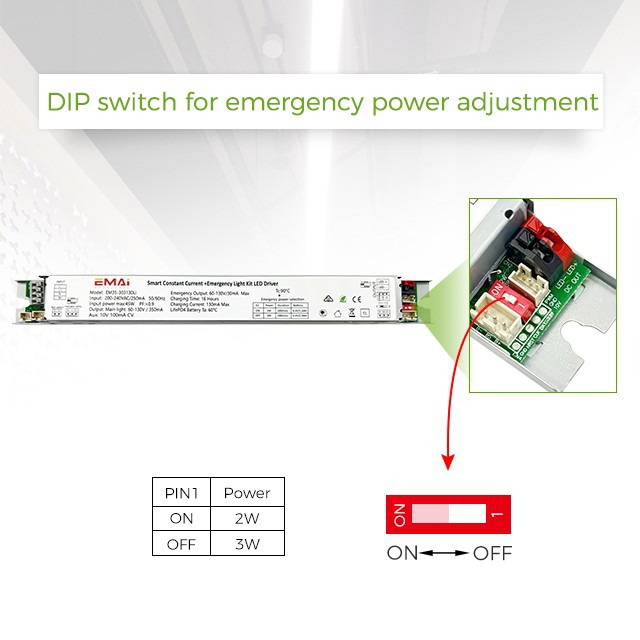

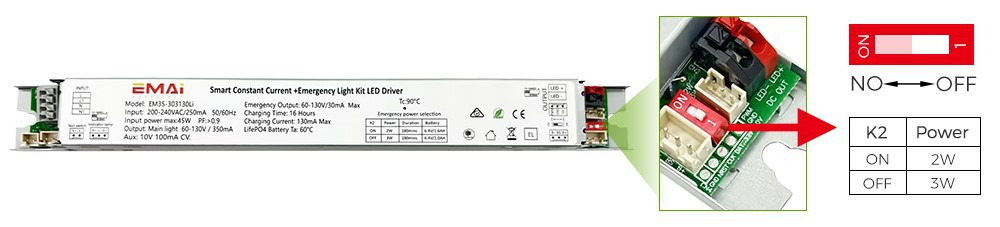

The emergency output can be selected as 2W or 3W through the dip switch, and the longest emergency time can be up to 3 hours, which is enough to deal with most emergencies.

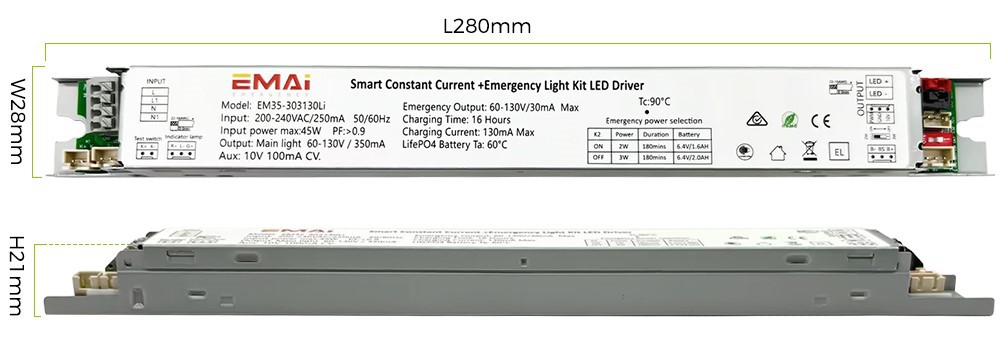

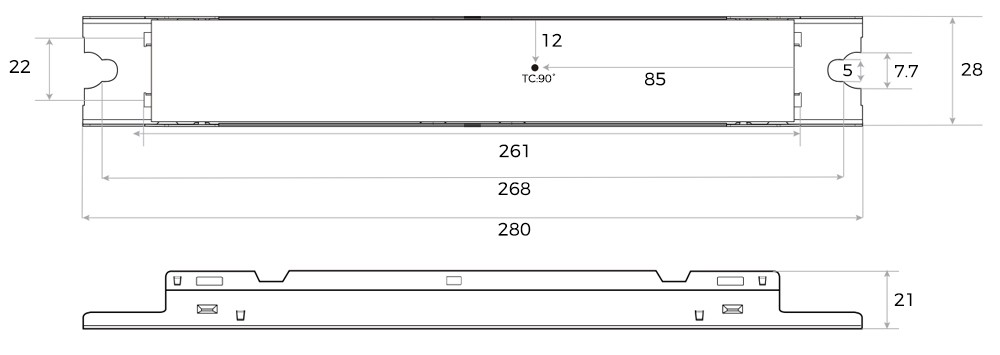

Dimension:
Length:280mm Width: 28mm Height:21mm
Label:

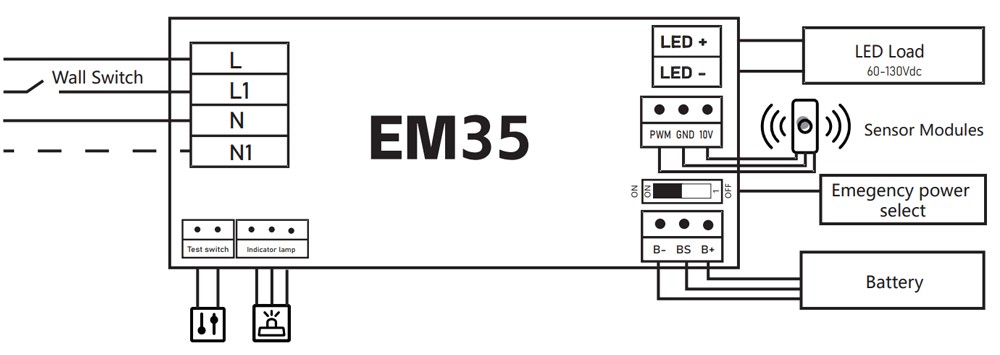

Wiring Diagram:
Hot Tags: simple wiring 40w 60w emergency converter 2-in-1 led driver, China simple wiring 40w 60w emergency converter 2-in-1 led driver manufacturers, suppliers, factory, deeply dimming, automatic led sensor light, 80W tunable white, no strobe flash, Non isolated Constant Current Driver with 12V Auxiliary Driver, 3CCT white light
Input voltage
Input current
Output voltage
Output current
Output power
Emergency voltage
Power factor
Inrush current
Emergency operation
Operating temperature
Total harmonic distortion
EMI
Emergency protection mode
Battery undervoltage protection
The battery hot swap is protected in normal mode
The battery hot swap is protected in emergency mode
Output open protection
Output short-circuit protection
battery
LiFePO4,6.4V 1600mAh for 2W
Battery charging current
Battery charge time
|
Series Driver |
|||||||
|
Model |
Lamp Power |
Emergency Power |
Input Voltage |
Output Voltage |
Emergency Time |
Battery Model |
Dimension(mm) |
|
EM35 |
40W |
2-3W |
200-240Vac |
60-130Vdc |
180mins |
LiFePo4 |
L280*W28*H21 |
|
EM36 |
60W |
2-3W |
200-240Vac |
80-200Vdc |
180mins |
LiFePo4 |
L280*W28*H21 |
OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure, required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.

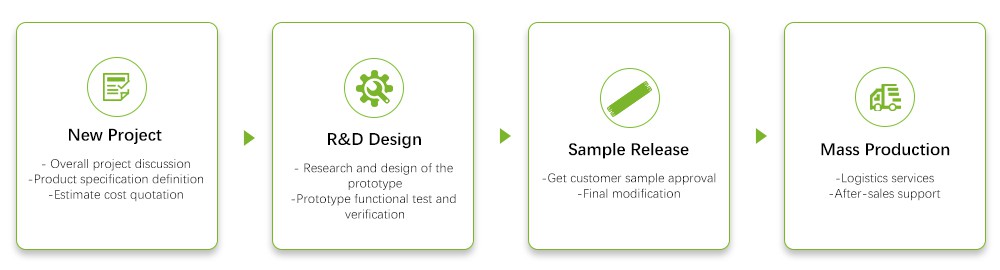

OEM/ODM Service Flow
