Constant Power Plastic housing LED Emergency Drivers
Say goodbye to flickering or dimming during outages. The EMAI EK05 delivers stable, constant-power emergency output (2–5W) across its entire operating range, maintaining safe, uniform lighting. Its adaptive 20–300VDC output works seamlessly with integrated or external LED drivers-ideal for upgrading existing fixtures in European or Australian buildings. Enhanced by lithium-based design, it offers minimal size without compromising performance. The intelligent system performs monthly and annual self-tests, ensuring compliance with local emergency lighting regulations. Crucially, if a fault occurs, charging halts for safety; once the issue is fixed, the unit automatically reactivates AC and resumes charging-maximizing uptime. Fully certified (ENEC, CE, UKCA, CB, C-tick) and backed by a 3-year warranty.

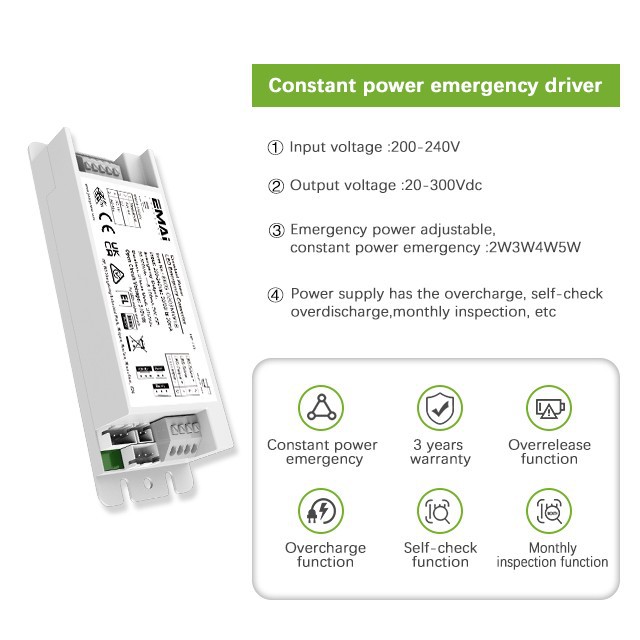

Top Features and Benefits:
Constant power emergency
Self-check function
ENEC certification
UKCA certification
LiFePO4 battery
Reset test cycle anytime by disconnecting AC and battery.
Surge immunity up to 1kV ensures reliability in harsh grids.
PH2.0 connectors simplify wiring and reduce installation errors.
Self-Test Function: Ensures the unit is always ready for use.
Monthly Test Function: Regularly checks the device's status for optimal performance.

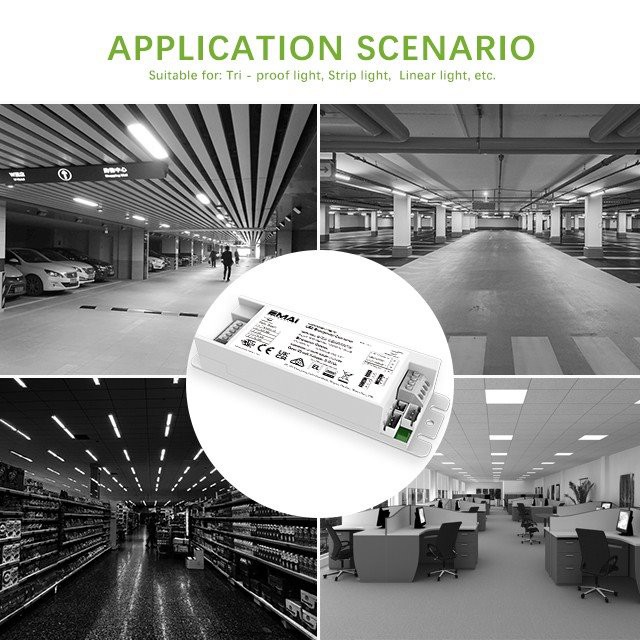

Application Scenario

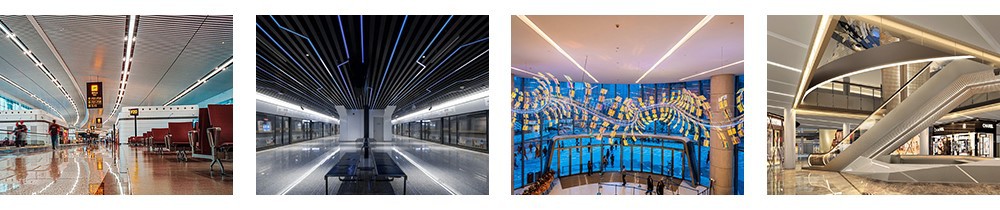

Public Spaces: Keeps lighting operational in places like airports, train stations, and shopping malls, ensuring the safety and comfort of the public during unexpected power outages.
Product Advantages
1.Built to Comply: ENEC Assurance for Public & Commercial Projects
Choosing an ENEC-certified emergency driver like the EK05 means choosing trust. Unlike generic CE-marked products, ENEC requires ongoing factory audits and sample retesting-ensuring consistent quality. This gives architects and contractors confidence in code compliance. With supplementary CE, CB, UKCA, and C-tick marks, the EK05 is pre-qualified for public tenders, commercial builds, and infrastructure projects across multiple continents.
2.Sustainable Power for Critical Applications
Free from cobalt and nickel, this LiFePO₄ battery offers a cleaner, more ethical alternative to traditional lithium batteries. Its integrated NTC sensor ensures intelligent thermal control, enhancing both safety and durability in demanding scenarios like medical devices or off-grid solar backups. Validated under Regulation (EU) 2023/1542 (Compliance Reference: 2IFpR19/66), the product fulfills rigorous EU mandates on performance labeling, recycled content, and take-back schemes-proving that high reliability and environmental responsibility can go hand in hand.
Battery Parameters
Different battery capacities correspond to different emergency power outputs and emergency durations.
A larger battery capacity enables higher emergency power and longer emergency operating time, which can be flexibly configured according to project requirements.
|
Single |
Side by side |
Column |
Emergency power (W) |
2W |
3W |
4W |
5W |
||||||
|
Emergency Duration (H) |
1.5 |
3 |
1.5 |
3 |
1.5 |
3 |
1.5 |
3 |
|||||
|
Battery type |
Structure |
Cell |
Size(L*W*H) |
Model |
|
|
|
|
|
|
|
|
|
|
26650 3.2V 4000mAH |
Single with fixed plate |
1*1 |
100*28*29 |
1140-02 |
★ |
★ |
★ |
★ |
|||||
|
26650 6.4V 4000mAH |
Side-by-side with fixed plates |
2*1 |
100*53*29 |
2140-02 |
★ |
★ |
|||||||
|
Column with fixing plate |
2*1 |
168*28*29 |
2140-03 |
★ |
★ |
||||||||
|
18650 6.4V 1600mAH |
Side-by-side with fixed plates |
2*1 |
100*38*21 |
2116-02 |
★ |
★ |
|||||||
|
Column with fixing plate |
2*1 |
168*21*21 |
2116-04 |
★ |
★ |
||||||||
|
18650 6.4V 2000mAH |
Side-by-side with fixed plates |
2*1 |
100*38*21 |
2120-02 |
★ |
★ |
|||||||
|
Column with fixing plate |
2*1 |
168*21*21 |
2120-03 |
★ |
★ |
||||||||
Figure 1: 26650 Single 3.2V 4000mAH
Figure 2: 26650 Side by side 6.4V 4000mAH
Figure 3: 26650 Column 6.4V 4000mAH
Figure 4: 18650 Side by side 6.4V 1600mAH
Figure5: 18650 Column 6.4V 2000mAH
Battery charging and discharging time
|
Model number |
6.4V/1600mAH |
6.4V/2000mAH |
6.4V/4000mAH |
3.2V/4000mAH |
|||||||
|
Emergency power |
2W |
4W |
3W |
5W |
4W |
5W |
2W |
3W |
4W |
5W |
|
|
Duration |
3H |
1.5H |
3H |
1.5H |
3H |
4H |
3H |
3H |
1.5H |
1.5H |
|
|
Battery charge time |
Initial charge |
24H |
|||||||||
|
Trickle charge |
Continuous and uninterrupted charging |
||||||||||
|
Charging current |
Initial charge |
100-250mA |
100-250mA |
||||||||
|
Trickle charge |
100-250mA/0mA |
100-250mA/0mA |
|||||||||
|
Discharge current |
400-1000mA |
800-2000mA |
|||||||||
|
Charging protection voltage |
7.3+/-0.5Vdc |
3.6+/-0.5Vdc |
|||||||||
|
End of discharge voltage |
5.5+/-0.2Vdc |
2.7+/-0.2Vdc |
|||||||||
|
Discharge protection voltage |
4.2Vdc |
2.1Vdc |
|||||||||
Emergency Function
This is a maintenance-type emergency device. When the main power is connected, the green charging indicator light should illuminate, indicating that the battery has been correctly activated. The light will remain on. When the power is interrupted, the device will enter emergency mode and the indicator light will also illuminate. Testing and inspection must comply with local operating regulations.
Self-check function:
1. Green LED status light on: Normal charging mode, 200 - 240 volt power connected.
2. Monthly test, test duration 15 seconds.
3. 6-month test, test duration 3 hours.
4. Self-check tests are subject to EN62034 regulations.
LED indicator functions:
Off: Normal state, waiting for the next test.
Slow flash 1: 2 seconds on/2 seconds off: Self-check test in progress.
Slow flash 2: 4 seconds on/1 second off: Most recent self-check test completed and passed (stops after 5 days).
Fast flash: 0.5 seconds on/0.5 seconds off: Fault, replace battery or retest the device.
|
|
Colour |
The indicator light shows |
Status |
Comment |
|
|
Green |
Permanent |
Normal charging mode |
220-240Vac Supply connected |
|
|
Green |
Slow flash |
charging |
220-240Vac Supply connected |
|
|
Yellow |
Slow Flash 1: |
Performing self-test |
1-Month test,Test duration 15s |
|
|
Yellow/ Green |
Slow Flash 2: |
Self-test recently performed and passed |
Stop after 5 days |
|
|
Yellow/ Green |
Fast Flash 1: |
1 or 6 Month test failure |
Low Battery test automatically. |
|
|
Red |
Fast Flash 2: |
Battery failure |
Battery failed the duration test or function test / No battery |
|
|
Red |
Permanent |
LED Breakdown |
220-240Vac Supply connected |
|
|
No |
Green off |
Emergency mode |
Battery operation (DC mode) |

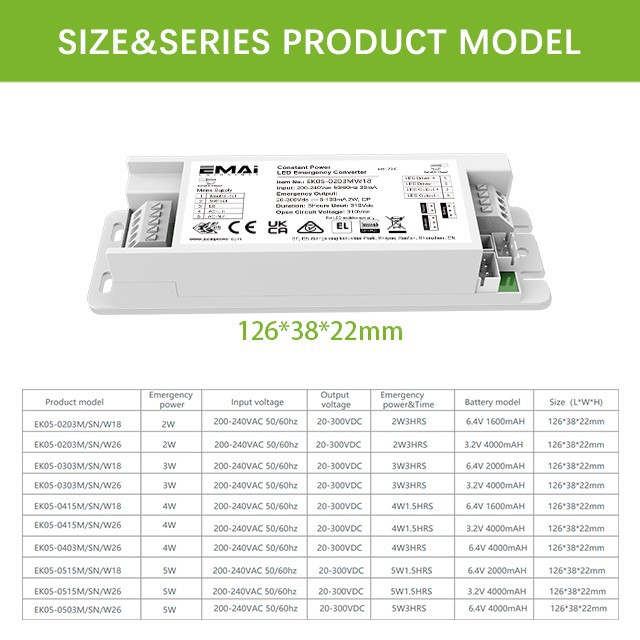

Dimension

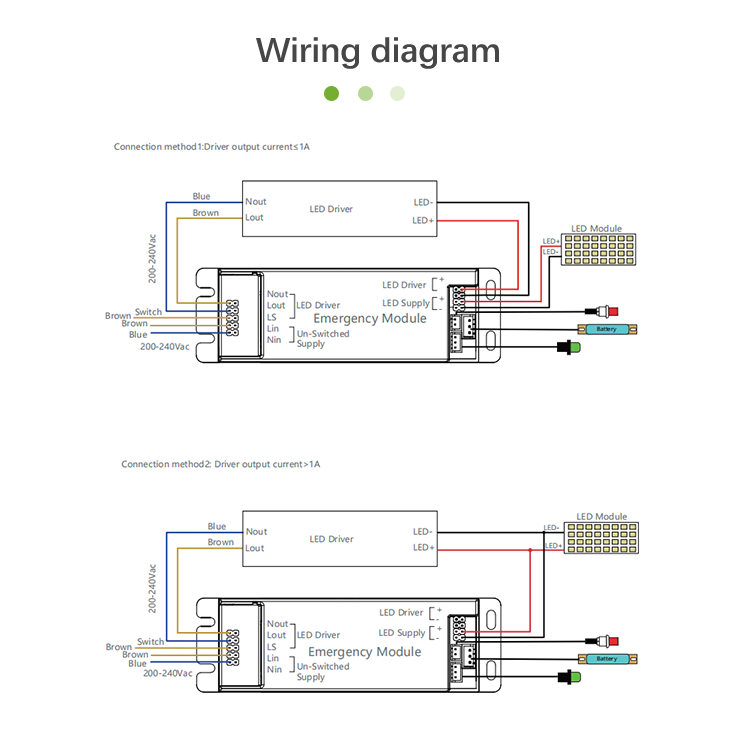

Wiring Diagram
Product Packaging
Hot Tags: constant power plastic housing led emergency drivers, China constant power plastic housing led emergency drivers manufacturers, suppliers, factory, emergency airport led driver, emergency dome led driver, emergency tunnel led driver, emergency yacht led driver, led driver for emergency boat lights, led driver for emergency subway lights
Product Specifications
Input voltage ..............................................................................(Universal) 200-240 VAC, 50/60Hz
Input current(300V).........................................................................................................0.07A (max)
Output voltage .................................................................................................................20-300VDC
Output current ..................................................................................................Automatic adjustment
Output power........................................................................................................................5W(max)
The neutral current of the highest AC drive unit .....................................................................1Amps
Power factor ...................................................................................................................................0.5
Surge ....................................................................................................................................L-N 1KV
Emergency time ..........................................................................................................90/180 minutes
Operating temperature ......................................................................................................0° - 50° C
Total Harmonic Distortion .........................................................................< 10% (@ Fully charged)
EMI ................................................................................Compliant with the FCC commercial scope
Emergency mode protection ...............................................................Battery overvoltage protection
Battery under-voltage protection
Battery hot-swapping under normal mode protection
Battery hot-swapping under emergency mode protection
Output open-circuit protection
Output short-circuit protection
Battery .....................................................................................LiFePO4 battery with NTC Detection
Battery charging current .................................................................................................250mA(Max)
Battery charging time .............................................................................................................24hours
Product Series
|
Model Example |
Emergency Power |
Backup Time |
Typical Battery Configuration |
Test Mode |
Output Voltage Range |
|
EK05-0215M/W18 |
2 W |
1.5 h |
2×18650 (1600–2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0203M/W18 |
2 W |
3 h |
2×18650 (2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0203S/W26 |
2 W |
3 h |
1×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
|
EK05-0315M/W18 |
3 W |
1.5 h |
2×18650 (1600 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0303S/W26 |
3 W |
3 h |
1×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
|
EK05-0415M/W18 |
4 W |
1.5 h |
2×18650 (2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0403S/W26 |
4 W |
3 h |
2×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
|
EK05-0515M/W18 |
5 W |
1.5 h |
2×18650 (2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0503S/W26 |
5 W |
3 h |
2×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
Note: Besides the above specifications, other parameters can be customized. Please contact the relevant sales for further details.
