2–5W LED Emergency Power Packs – 1.5–3 Hours Duration Time

2–5W LED Emergency Power Packs – 1.5–3 Hours Duration Time

Engineered for global commercial projects, the EMAI EK05 features constant emergency power output (2–5W)-a critical advantage in egress scenarios. Its intelligent 20–300VDC wide-voltage design auto-adapts to various LED drivers, eliminating compatibility headaches. The unit includes automatic monthly and annual self-checks, reducing maintenance costs in offices, schools, and retail spaces across the UK, EU, Australia, and the Middle East. Thanks to advanced lithium battery integration, it achieves a reduced footprint without sacrificing runtime. Safety-first features include deep discharge protection and fault-responsive AC control: charging pauses during errors and resumes automatically once fixed. Certified to ENEC, CE, UKCA, CB, and C-tick. IP20 rated (via host fixture). 3-year warranty included.

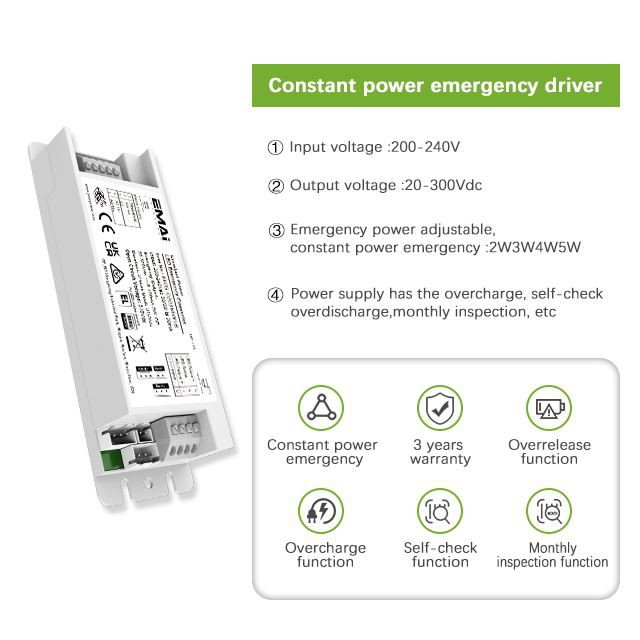

Top Features and Benefits:

Constant power emergency

Self-check function

3 years warranty

ENEC certification

LiFePO4 battery

Wide 20–300V DC output works with almost any LED load.
Supports 1.5h or 3h backup using 18650/26650 LiFePO₄ batteries.
Reverse polarity protection prevents damage during battery install.
Compact size (126×38×22mm) fits easily into most luminaires.
Dual-color LED shows real-time status: green = normal, yellow = test/fault.

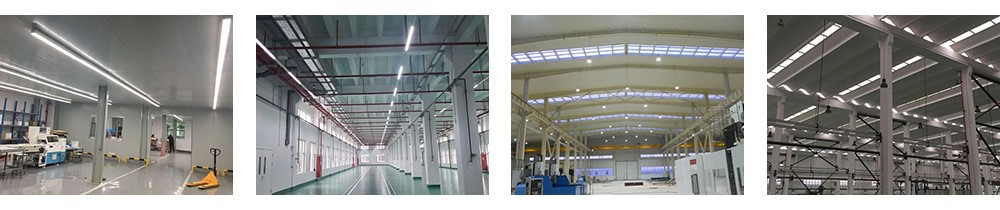

Industrial Facilities: Ensures critical areas such as factories, warehouses, and production lines remain illuminated, preventing accidents and maintaining productivity during outages.

1. Beyond CE: Real Safety Backed by ENEC & Global Certs
While many drivers carry only self-declared CE, the EK05 goes further with official ENEC certification, verified by accredited European testing bodies. This distinction signals superior build quality, electrical safety, and long-term reliability-key for specifiers and regulators. Backed by additional approvals including CB (IECEE), UKCA for Britain, and C-tick for Oceania, the EK05 eliminates certification hurdles and speeds up project deployment worldwide.

2.Built to Last, Designed to Comply
With a cycle life exceeding 3,000 charges and robust performance across diverse environments, this LiFePO₄ battery redefines longevity in energy storage. The built-in NTC thermistor actively safeguards against overheating during operation or charging, maintaining optimal efficiency between 0°C and 60°C. Fully assessed under the new EU Battery Regulation (EU) 2023/1542 (Compliance ID: 2IFpR19/66), it meets modern requirements for recyclability, carbon footprint transparency, and end-of-life responsibility-making it a future-proof choice for eco-conscious integrators.

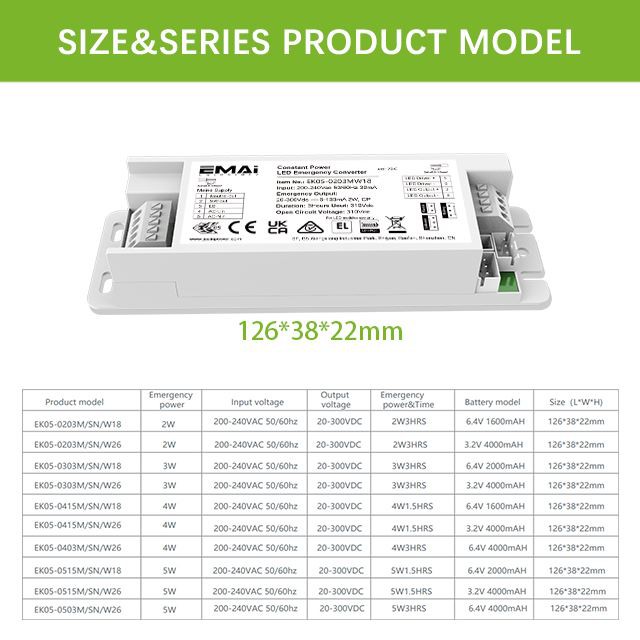

Different battery capacities correspond to different emergency power outputs and emergency durations.
A larger battery capacity enables higher emergency power and longer emergency operating time, which can be flexibly configured according to project requirements.

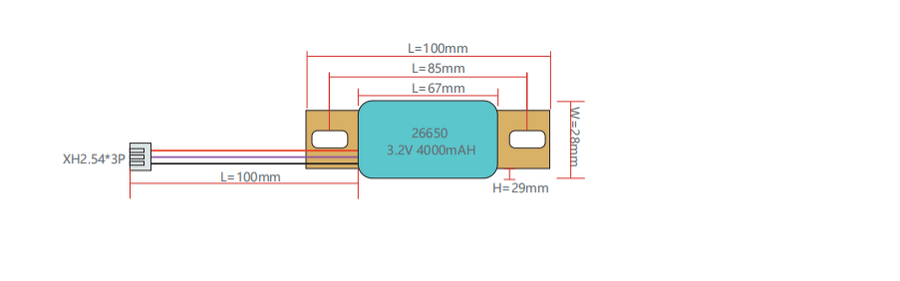

Figure 1: 26650 Single 3.2V 4000mAH

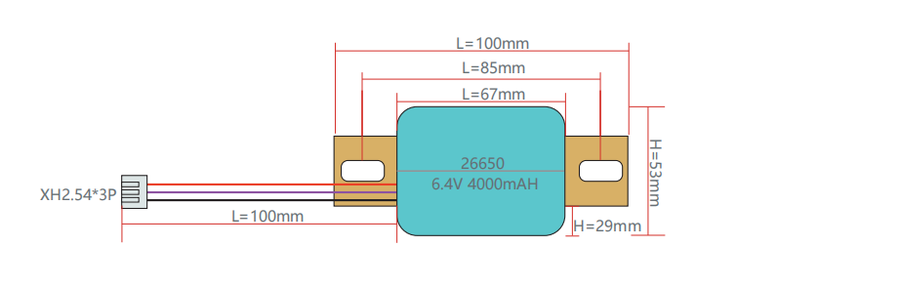

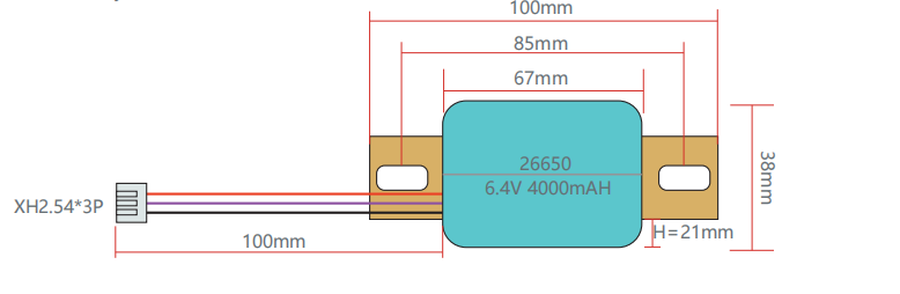

Figure 2: 26650 Side by side 6.4V 4000mAH

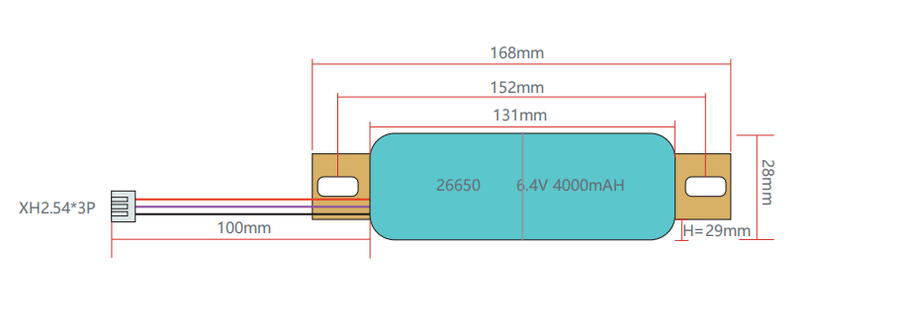

Figure 3: 26650 Column 6.4V 4000mAH

Figure 4: 18650 Side by side 6.4V 1600mAH

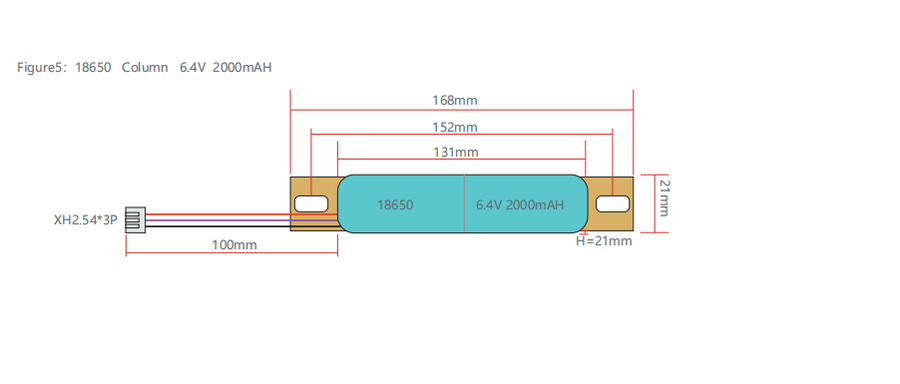

Figure5: 18650 Column 6.4V 2000mAH

This is a maintenance-type emergency device. When the main power is connected, the green charging indicator light should illuminate, indicating that the battery has been correctly activated. The light will remain on. When the power is interrupted, the device will enter emergency mode and the indicator light will also illuminate. Testing and inspection must comply with local operating regulations.

Self-check function:
1. Green LED status light on: Normal charging mode, 200 - 240 volt power connected.
2. Monthly test, test duration 15 seconds.
3. 6-month test, test duration 3 hours.
4. Self-check tests are subject to EN62034 regulations.

LED indicator functions:
Off: Normal state, waiting for the next test.
Slow flash 1: 2 seconds on/2 seconds off: Self-check test in progress.
Slow flash 2: 4 seconds on/1 second off: Most recent self-check test completed and passed (stops after 5 days).
Fast flash: 0.5 seconds on/0.5 seconds off: Fault, replace battery or retest the device.

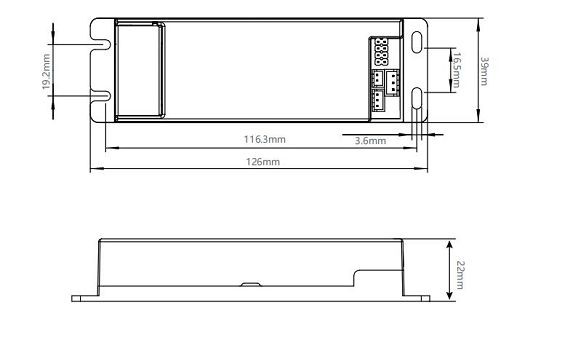

PRODUCT SIZE(MM)

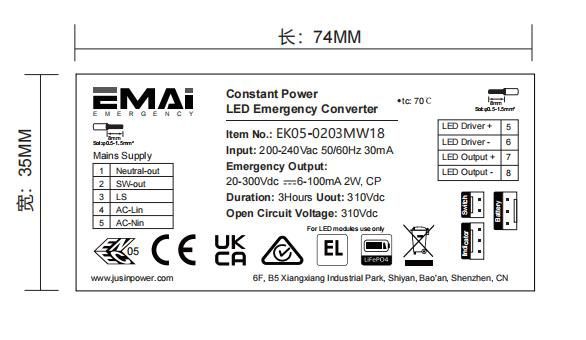

LABEL IMAGE(MM)

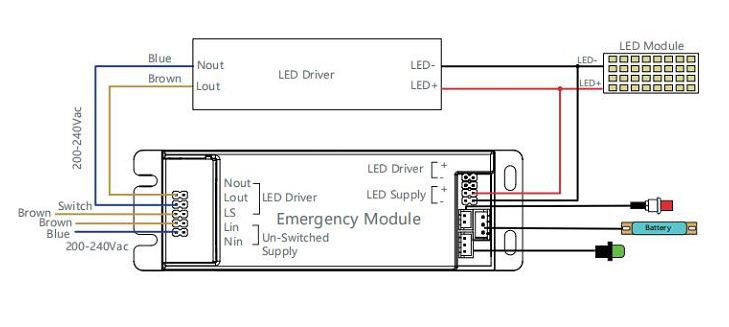

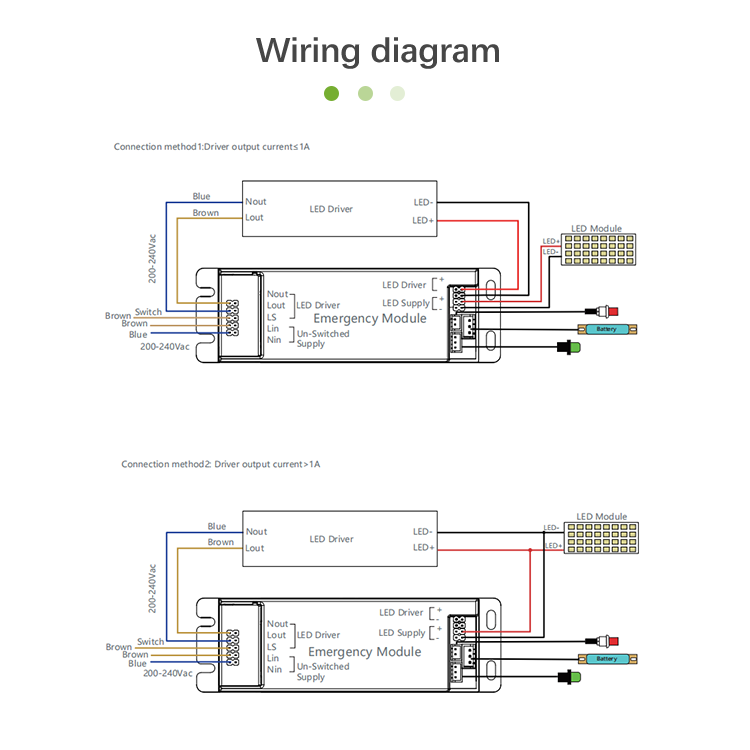

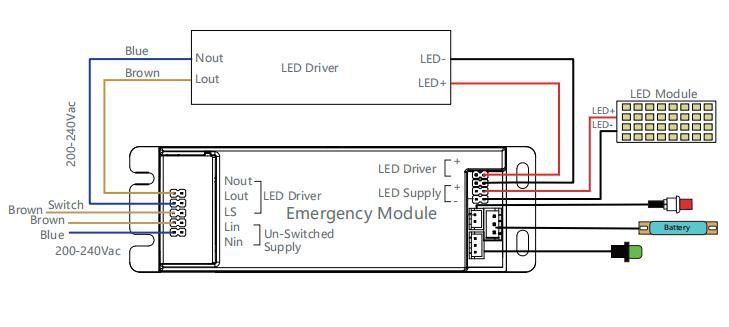

Connection method1:Driver output current≤1A

Connection method2: Driver output current>1A
