Non-Isolated Constant Current Sensor Driver
This is a LED power supply capable of power adjustment via dip switches. It delivers input power directly to the load after stepping down, with input and output connected directly through electronic components. There is no isolation between input and operating voltages, with the maximum voltage reaching 347V.
Top Features and Benefits:
3 levels of
color temperature
adjustment
3 levels of
brightness
Adjustment
120-347Vac
12V auxiliary
power supply
5 Years
warranty
1. Input voltage 120-347Vac
2. Surge protection L-N 1KV, L/N-FG 2KV
3. The power can be adjusted by dialing the code
Application Scenario:
The non-isolated constant current driver is ideal for LED lighting in confined areas, including line lights, tri-proof lights, plant lights, and grille lights.
Product Details:

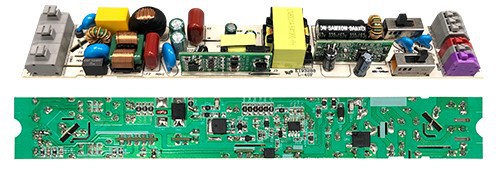

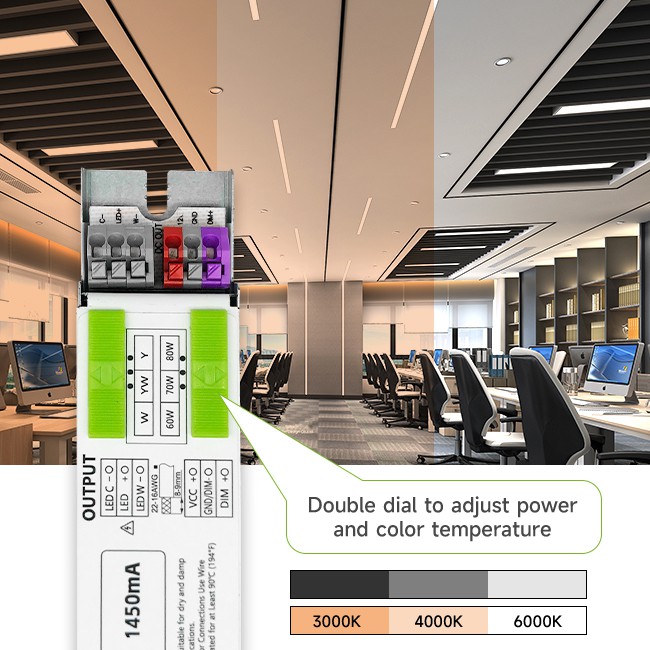

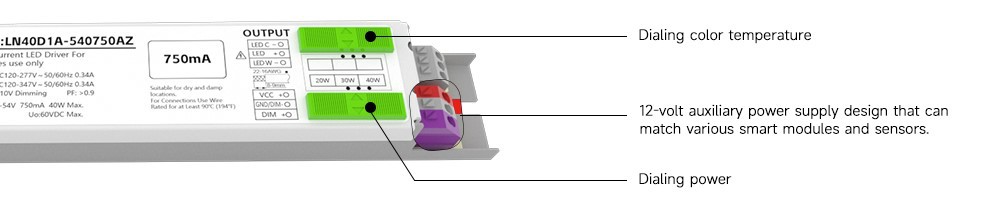

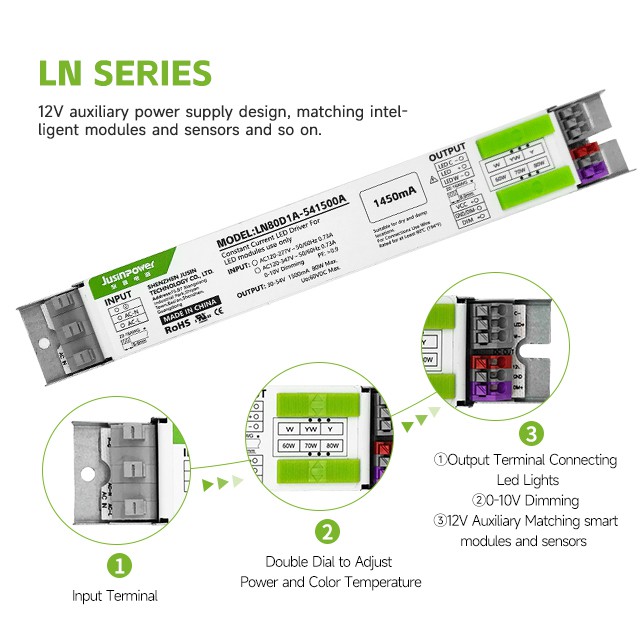

Equipped with dual dials for adjusting both color temperature and power, and featuring a 12-volt auxiliary power supply design, enabling compatibility with diverse smart modules and sensors.
A Note Regarding The 12V Auxiliary Power Supply

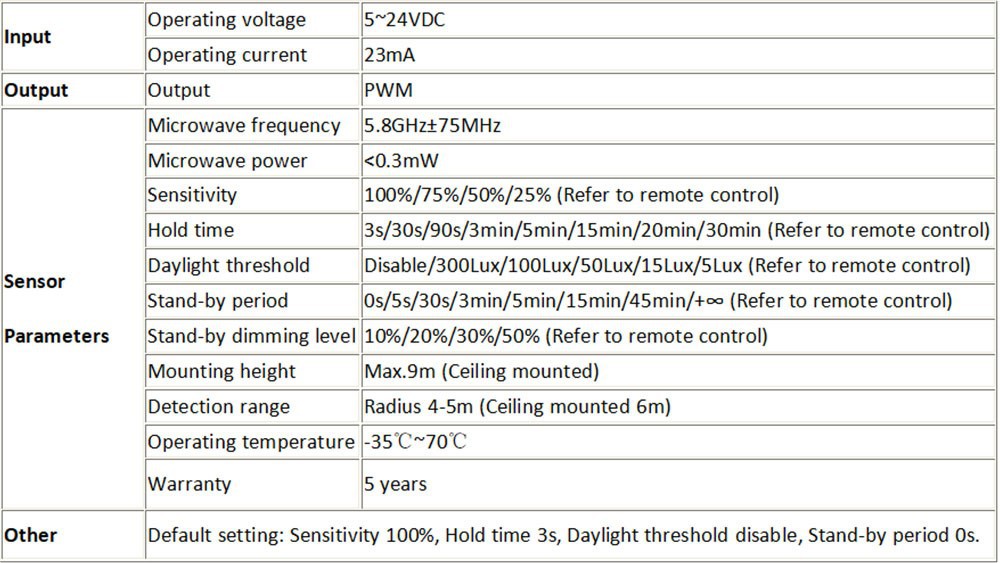

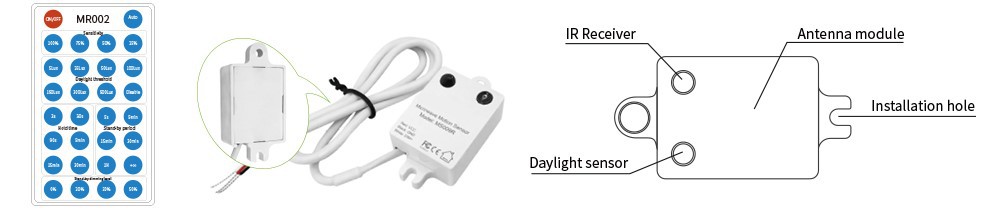

Parameter Data of The Sensing Module

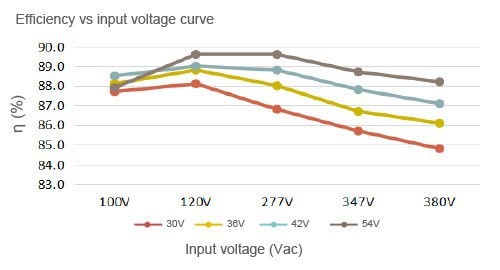

Electrical Characteristic:

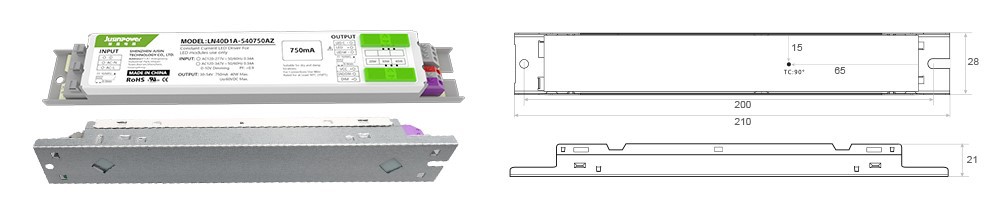

Dimension (mm)
Length:210mm width:28mm Height:21mm
Wiring Instructions:

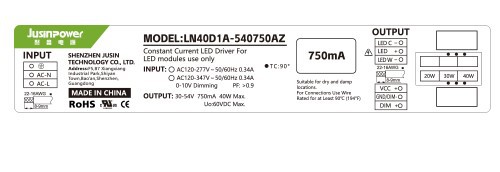

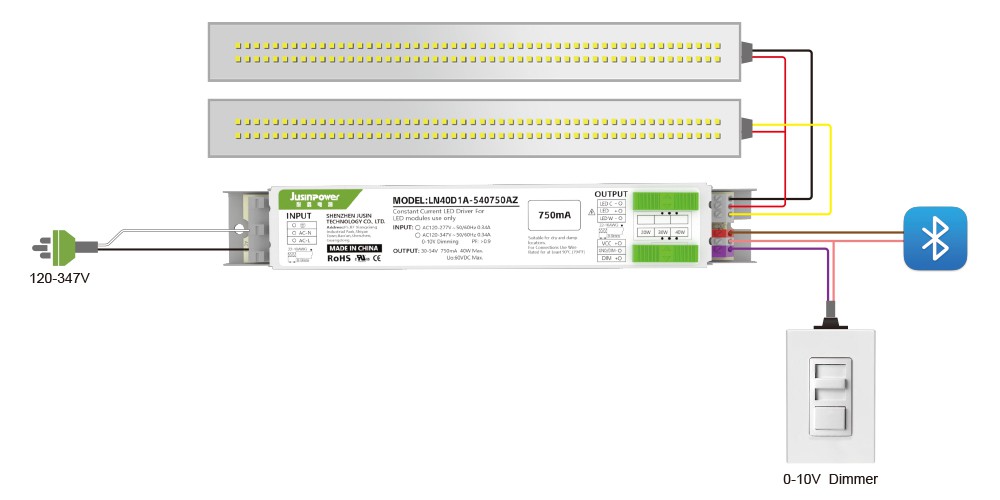

The device connects with one end as the AC input terminal and the opposite end as the DC output and dimming signal input terminal. LED+, LED C-/LED W- connect to the LED light's positive pole individually. DIM+ connects to 0-10V; VCC links to the 12V auxiliary module for power supply, while GND/DIM- is grounded.
Hot Tags: non-isolated constant current sensor driver, China non-isolated constant current sensor driver manufacturers, suppliers, factory, 75W power source, 920mA, Long Strip Smart Dimming LED Driver, Power 40W, Non isolated Constant Current Sensor Driver, Dim to Warm
LN series
|
Performance |
||
|
Model |
LN40D1A-540750AZ |
|
|
Input |
Efficiency |
89%@230Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac full load |
|
|
THD(full load) |
<20%@120Vac full load |
|
|
AC Current(max) |
0.34A@120Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
25A@120Vac |
|
|
60A@277Vac |
||
|
80A@347Vac |
||
|
Leakage current (max) |
<0.75mA@347V |
|
|
Output |

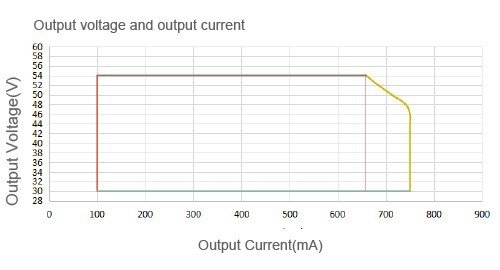

Current(mA)/Voltage (VDC) Power(W) |
30-54Vdc/750mA/40W |
|
Channel |
1 output |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V OPEN |
|
Dimming current |
<1mA@10V <2mA@0.7V |
|
|
Dimming range |
7%-100% (standard) |
|
|
Color temperature |
Three gears adjustable |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
210 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
195mm |
|
Weight (g) |
154g |
|
Environmental |
|
|
Safety standard |
UL8750 ,Class1 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE/FCC/UL certificate |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LN40D1A-54XXXXYZ |
36W |
120-277/120-347Vac |
30-54Vdc |
750mA |
0.9 |
Adjustable |
Adjustable |
89% |
|
LN60D1A-54XXXXYZ |
55W |
120-277/120-347Vac |
30-54Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
91% |
|
LN80D1A-54XXXXYZ |
75W |
120-277/120-347Vac |
30-54Vdc |
1500mA |
0.9 |
Adjustable |
Adjustable |
91% |
