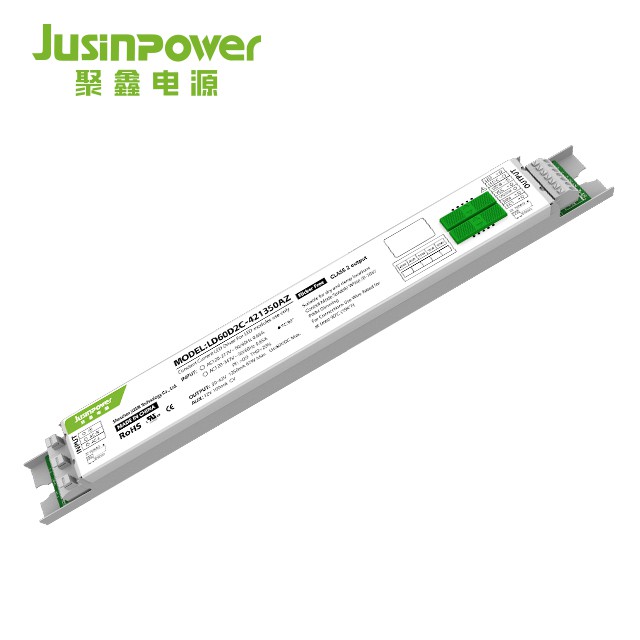

Deep Dimming Tunable White LED Driver

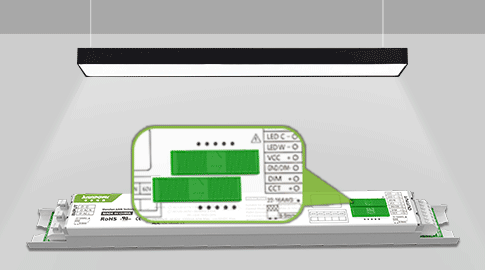

Deep dimming tunable white led drives are isolated constant current power supplies, providing two sets of 0-10V dimming channels and two sets of independent output channels for panel light, up and down light and other LED lights in narrow spaces. The input voltage is 120-347Vac, which is universal in the global market.
Top Features and Benefits:
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1.Harmless to Human Health
2.Meet with FCC,cUL
3.Deep dimming 100% to <1%
4.Configurable minimum dimming level
Application Scenario:
Suitable for LED lights in narrow spaces such as line lights, tri-proof lights, plants lights, grille lights, etc.
Color temperature and power can be customized. It can suitable for panel lights up and down light, line lights, floor flights, etc.
4 kinds of scene intelligence
0-10V tunable white led driver has built-in high-performance MCU chip, through the unique software algorithm of Juxin R & D team, the power supply has 2 signal receiving ports and 2 dip control ports. It can be allocated according to unnecessary needs, respectively to achieve power adjustment, brightness adjustment, color temperature adjustment and other functions, flexibly support 4 common scenarios.
Electrical characteristic:
Deep dimming tunable white led drives electrical characteristic

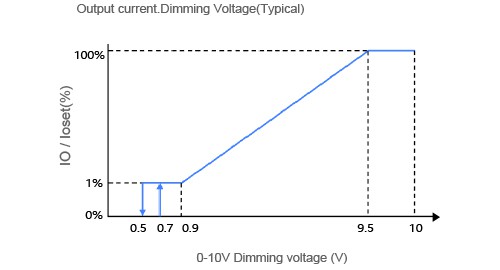

When adjusted to 0.7V, there is deep dimming 1% brightness. The brightness becomes brighter as the wattage increases, reaching 100% brightness at 9.5V. 10V is also 100% brightness. When the wattage is reduced to 0.5, the brightness is 0%.

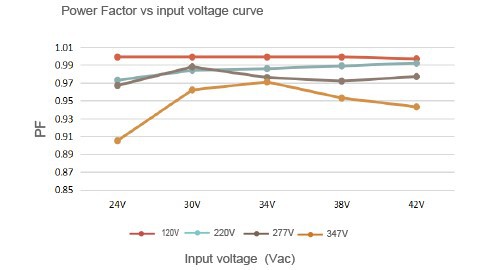

When the input voltage is 120V and the output voltage is 38V, the PF is above 0.99.

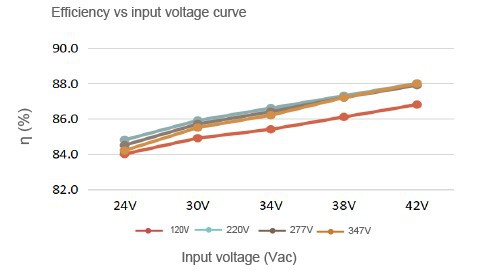

When the input voltage reaches 120V and the output voltage is 38V, the efficiency can be as high as 86%.

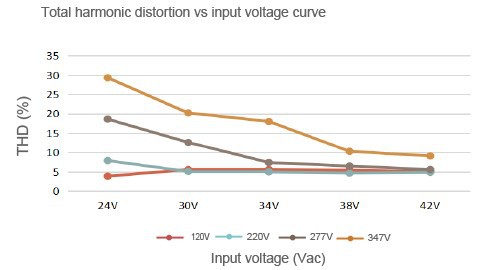

When the input voltage reaches 277V and the output 34V, the THD is about 7%.

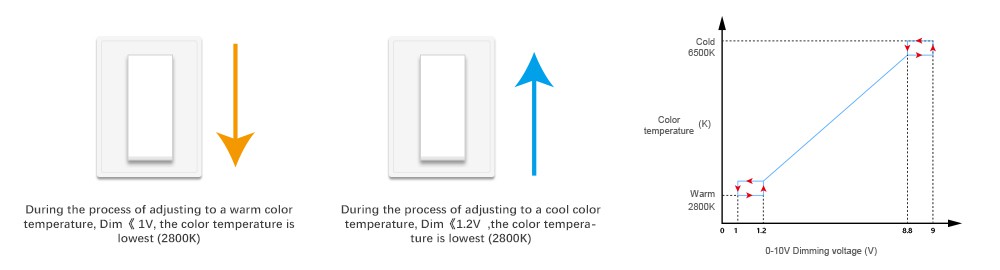

During the process of adjusting to a warm color temperature. Dim<1V, the color temperature is lowest(2800K)
During the process of adjusting to a cool color temperature. Dim<1.2V, the color temperature is lowest(2800K)

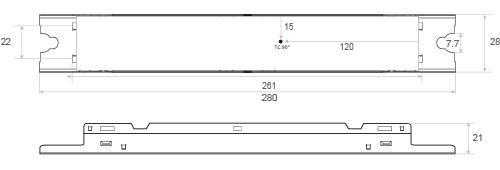

Dimension(mm):
Length:280mm Width: 28mm Height:21mm

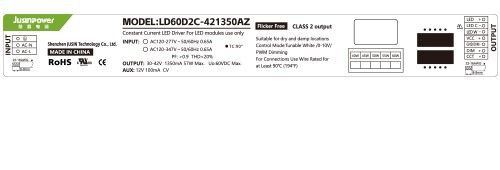

Product Label:

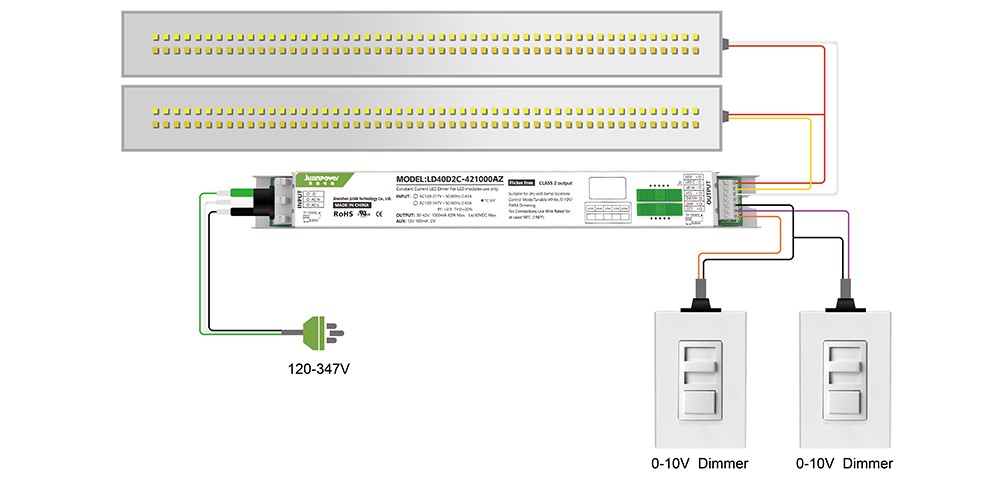

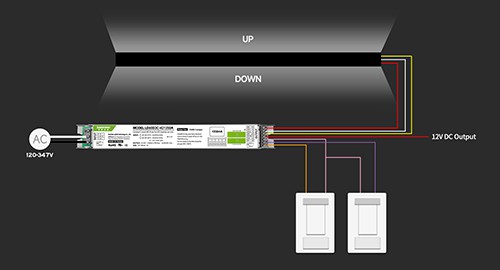

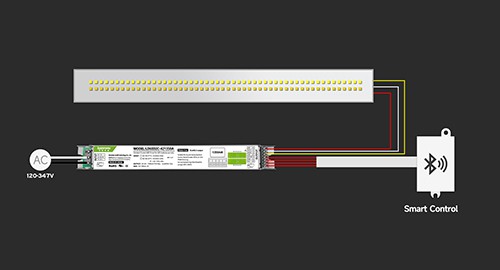

Wiring Instructions:

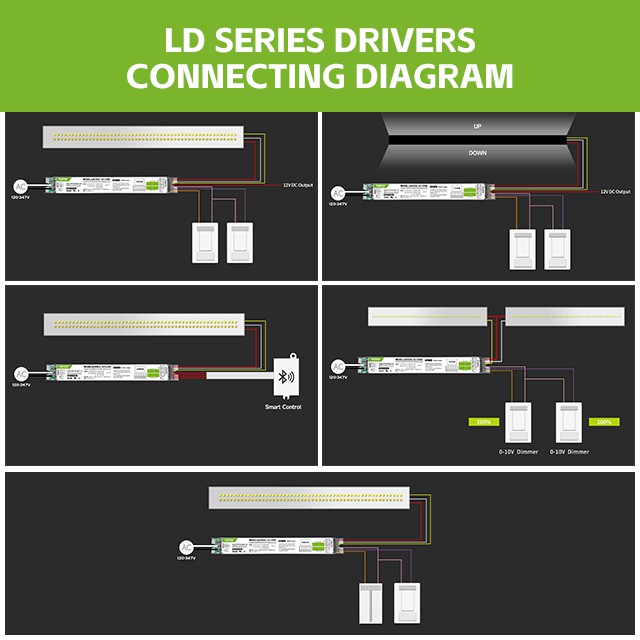

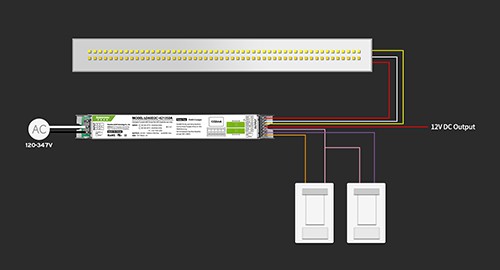

The two ends of the product are connected, one end is the AC input terminal, the other end is the DC output and dimming signal input end, the output can be connected to two
independent sets of lamp beads, LED V+ is a common positive pole, LED C- /LED W- are independent The two negative poles of the module, DIM is connected to a set of independent 0-10V positive poles, CCT is connected to a set of independent 0-10V positive poles, 12V is connected to the positive pole of the module, and GND is the common negative pole.

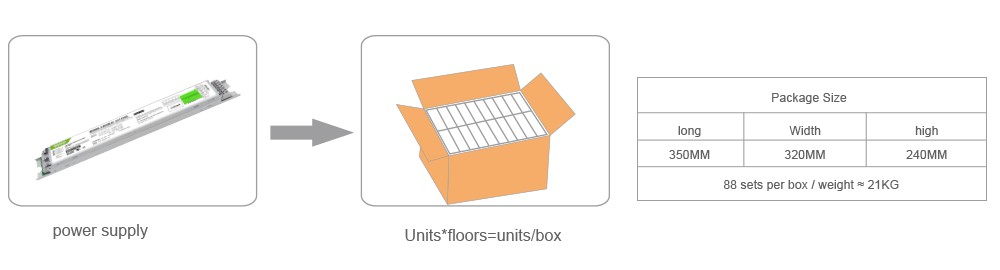

Product Packaging:
