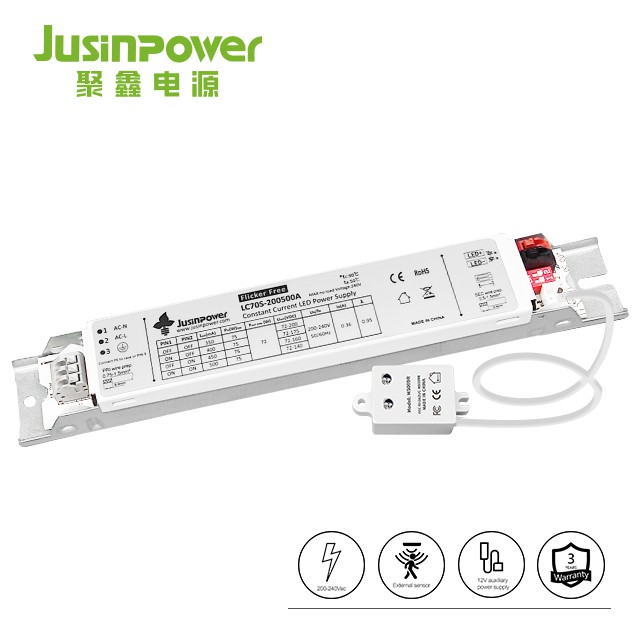

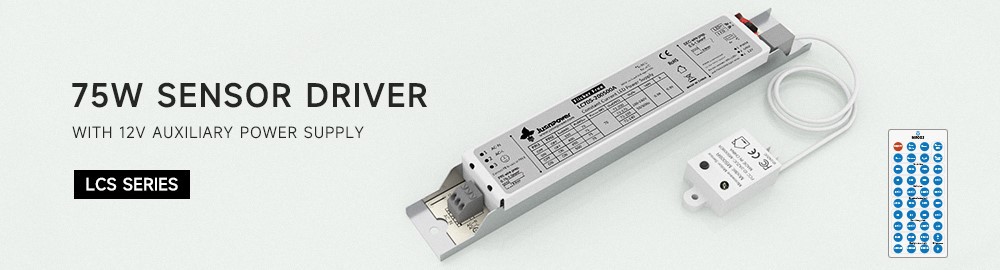

75W Sensor Driver
The 75W sensor driver is a high-efficiency non-isolated LED power supply. Its maximum power is 75W, and there are three other power options to choose from. It is designed with a 12V auxiliary power supply, which can match various intelligent modules and sensors, and the highest efficiency can be achieved up to 92%.
4 levels of
brightness
adjustment
12V auxiliary
power supply
200-240Vac
External sensor
Flicker free
3 Years
warranty
1. Three-year warranty
2. The highest efficiency is 92%
3. With 12V auxiliary power supply
Application Scenario:
The 75W sensor driver is appropriate for various applications, including tri-proof lights, linear lights, grille lights, and similar fixtures.
Product Details:

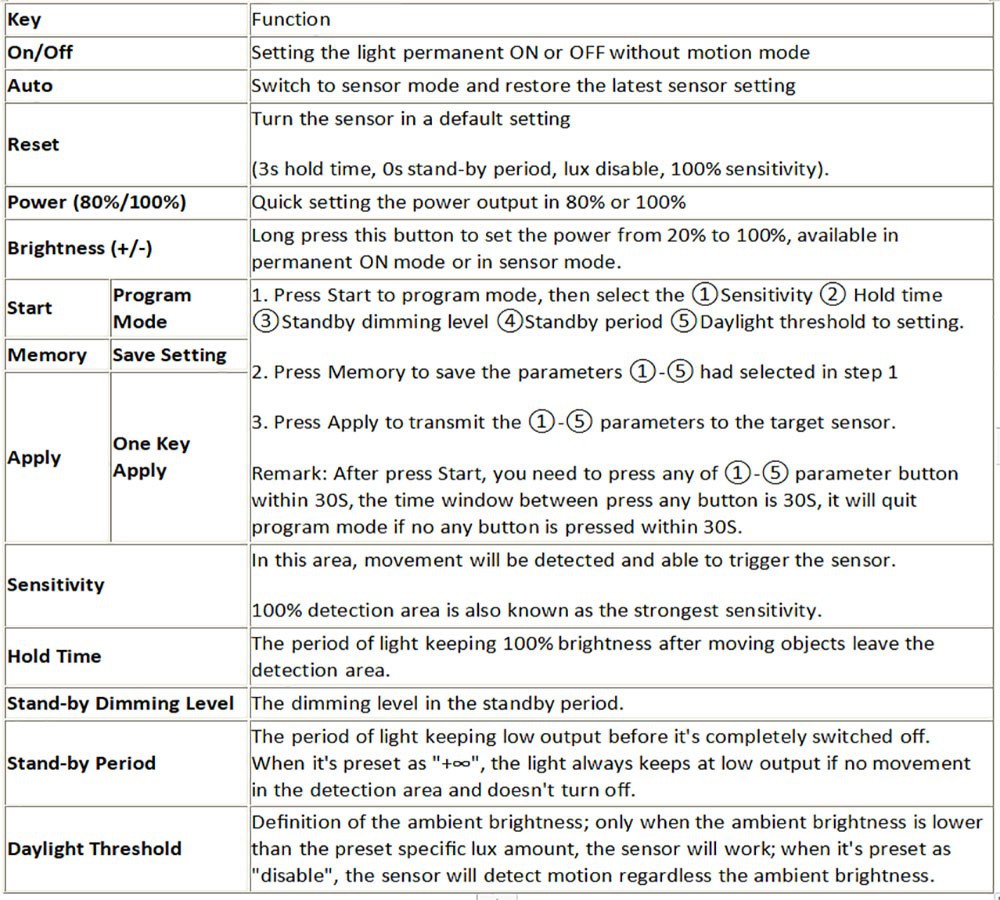

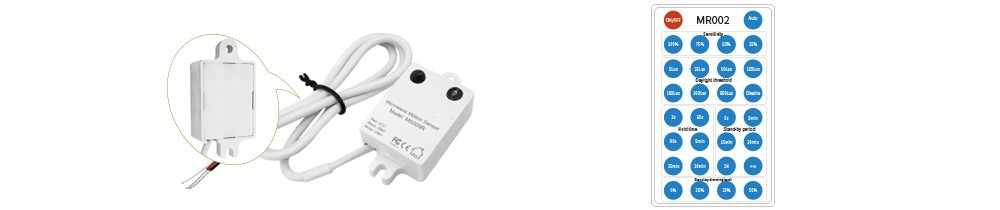

The controller is a programmable remote with one-key commissioning

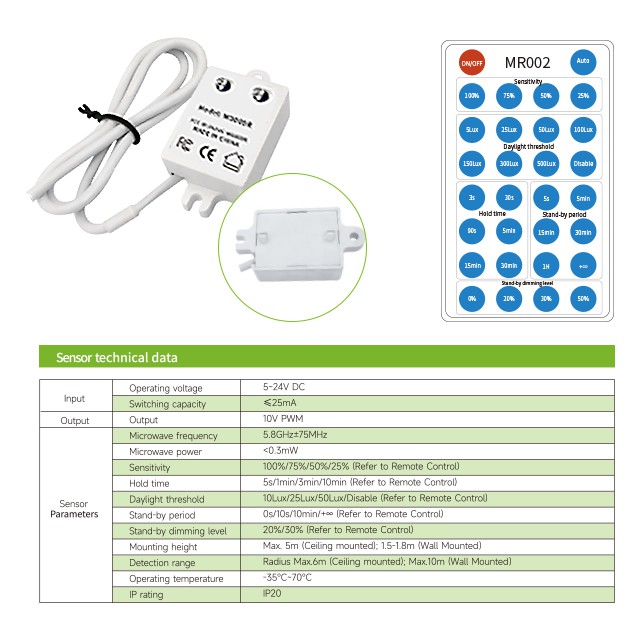

Technical Specifications of The Controller

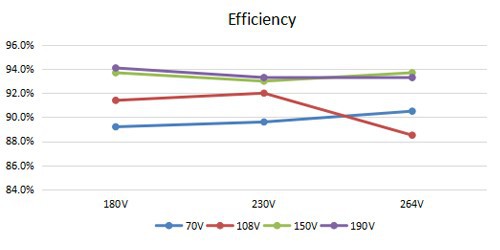

Electrical characteristic:

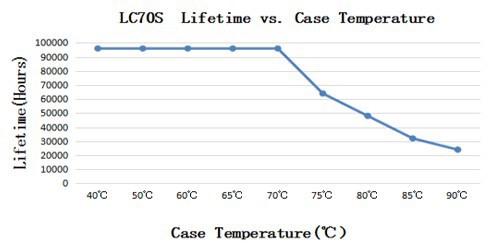

Optimal performance is achieved by maintaining the driver's operating temperature within the range of 40°C to 70°C, ensuring a maximum service life of 98,000 hours. If the operating temperature exceeds 70°C, the drive's service life will gradually diminish.

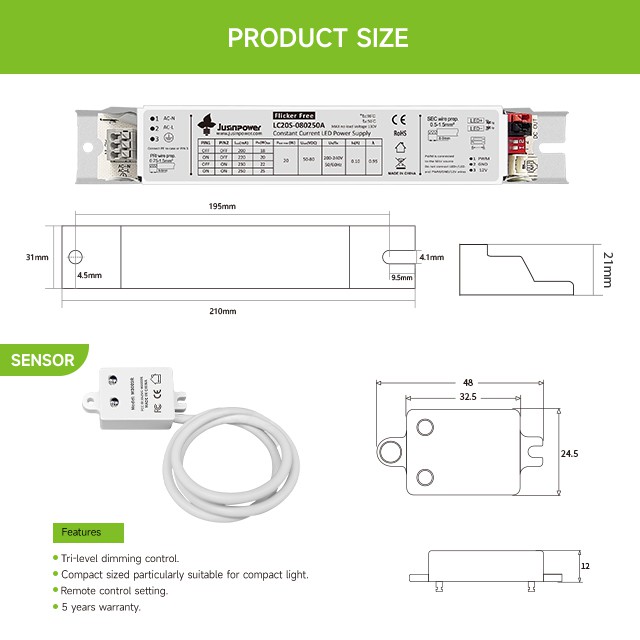

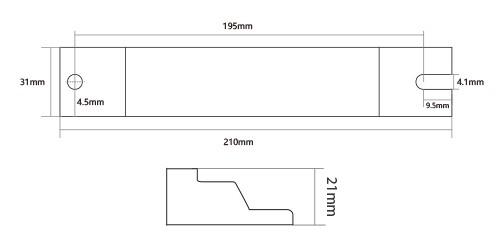

Dimension (mm)
Length: 210mm Width: 31mm Height: 21.5mm
Hot Tags: 75w sensor driver, China 75w sensor driver manufacturers, suppliers, factory, 60W, Dim to Warm, Three levels of color temperature, 1 10v Dimming Driver, Museum lighting, Omnidirectional protection
LC75S
|
Performance |
||
|
Model |
LC70S-190500 |
|
|
Input |
Efficiency |
93%@220Vac full load |
|
Voltage |
200-240Vac |
|
|
Frequency Range(Hz) |
50Hz |
|
|
Power Factor |
≥ 0.95@230Vac full load |
|
|

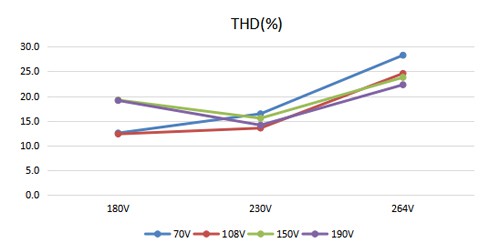

THD(full load) |
<10%@230Vac full load |
|
|
AC Current(max) |
0.38A@230Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
9.71A@230Vac |
|
|
Peak Vaule |
10.17A@230Vac |
|
|
Leakage current (max) |
0.08mA |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
72-190Vdc/500mA/60W |
|
Current ripple |
<5% |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<210V |
|
|
Start Time |
<1S@230V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Dimming range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
199 mm |
|
Width |
31 mm |
|
Height |
21.5 mm |
|
Mounting Length |
196mm |
|
Weight (g) |
150.5g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC20S-080250 |
22W |
200-240Vac |
50-80Vdc |
250mA |
0.9 |
Adjustable |
84% |
|
LC40S-120500 |
40W |
200-240Vac |
50-120Vdc |
350-500mA |
0.9 |
Adjustable |
89% |
|
LC60S-170500 |
60W |
200-240Vac |
72-170Vdc |
350-500mA |
0.9 |
Adjustable |
92% |
|
LC70S-190500 |
75W |
200-240Vac |
72-190Vdc |
250-500mA |
0.9 |
Adjustable |
92% |
