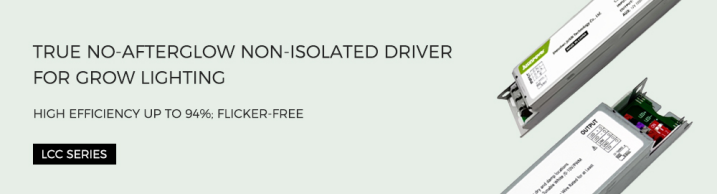

Jusinpower utilizes innovative circuitry to achieve complete power cutoff, ensuring true no afterglow, allowing plants to rest more peacefully!Jusinpower's non-isolated grow lighting LED driver family is as high as 94%., reducing self-loss and heat generation, making the product more stable and reliable compared to similar solutions!the efficiency of Under the same illuminance, it can significantly reduce the energy consumption of lamps and reduce the lighting cost of plant factories!
1.True no-afterglow,innovative circuitry turns off afterglow
2.High surge protections: L-N: 6kV; L/N-GND:4kV
3.According to the latest ERP and DLC standards
4.High efficiency up to 94%; flicker-free
Application Scenario:

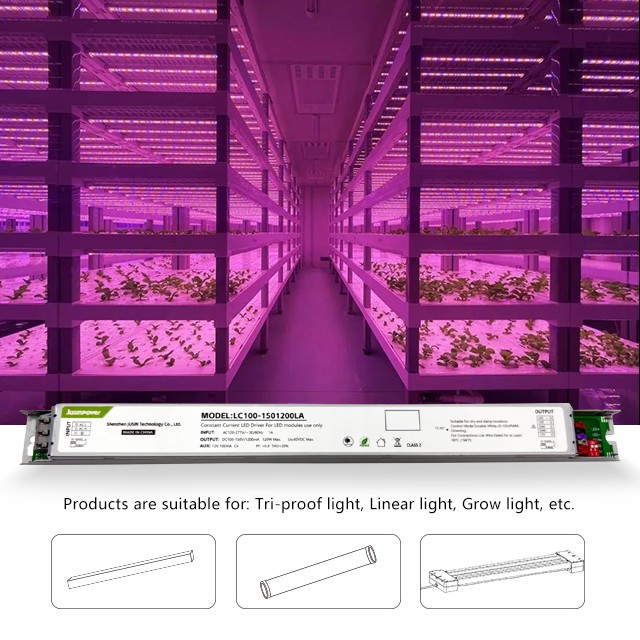

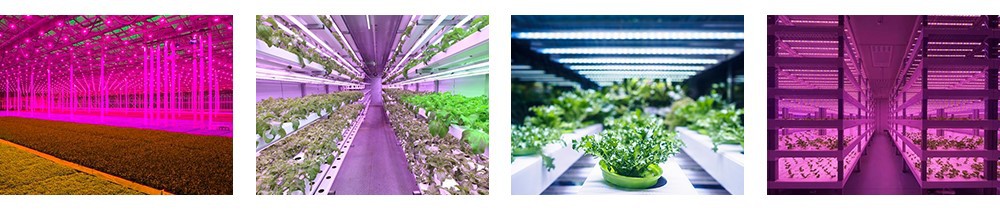

Plant growth lighting:Applicable to greenhouses, plant factories, horticultural planting and other scenarios. Ensure that there is no afterglow interference at night, maintain the circadian rhythm of plants, and promote healthy growth and photoperiod regulation.
Product Details:

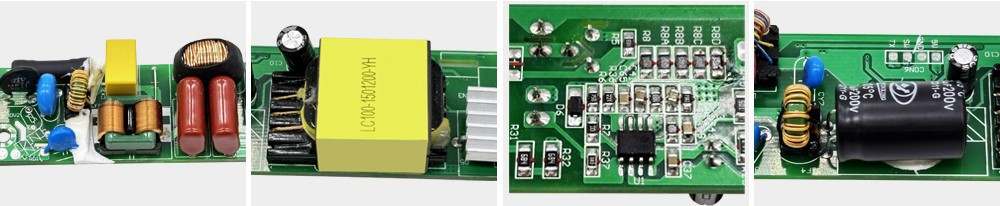

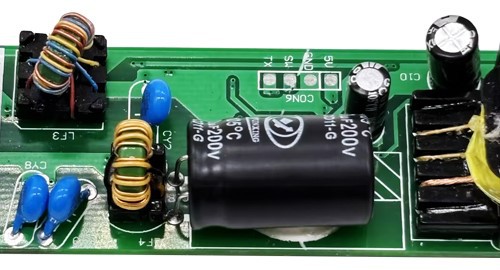

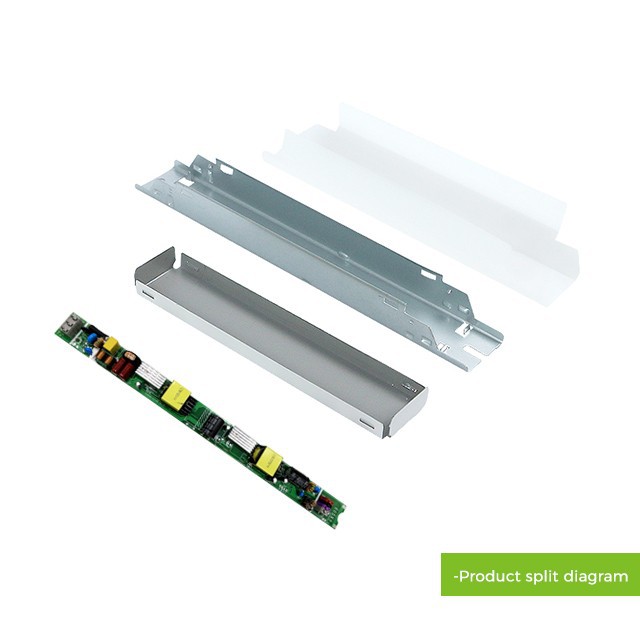

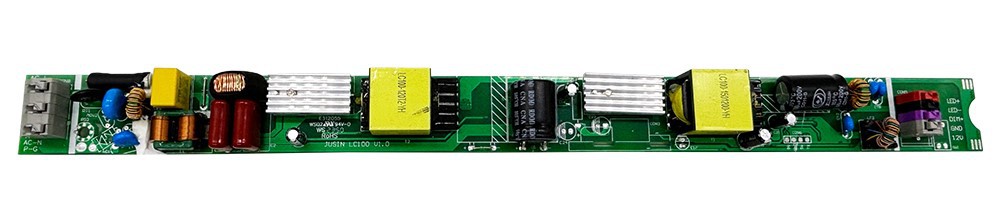

Double-sided board design, additional via-hole tinning. The cutout on the back is basically the same as the PCB, and there is no thorny feeling to the touch.

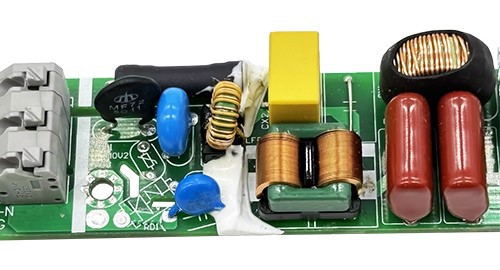

1.Ensure that electronic equipment or systems can operate stably in the electromagnetic environment.

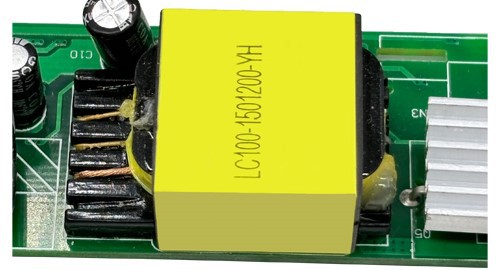

2.High-quality transformer to achieve voltage conversion and reduce losse.

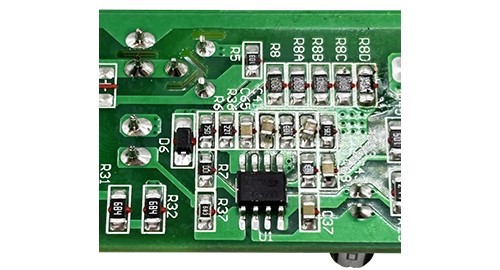

1.Brand IC.
2.High frequency low impedance capacitor.
"True" No Afterglow, Ensuring Undisturbed Sleep for Plants.
Many drivers that use 0-10V dimming have a problem: when the brightness is adjusted to the lowest, the light will still be slightly bright and cannot be completely turned off. In response to this phenomenon, Jusinpower has made innovative improvements to the original circuit and successfully achieved a truly dimming effect without afterglow. Providing plants with a light environment that is closer to nature helps regulate their physiological rhythms. At the same time, it can maximize energy savings and reduce operating costs.
With higher efficiency up to 94%,non-isolated,more energy-saving.
With higher efficiency up to 94%, significantly reduces energy consumption, The non-isolated design ensures compact size and lightweight construction, while maintaining robust reliability and safety standards. By minimizing power losses and optimizing thermal management, this innovative solution extends equipment lifespan and lowers maintenance costs.making it an ideal choice for sustainable and cost-effective lighting solutions!
Structural Size Characteristics：
Suitable for wires between 16-20WAG, wire twisted tin 5-8mm

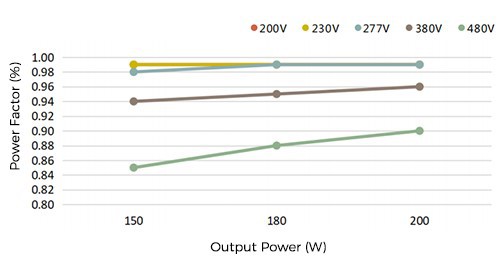

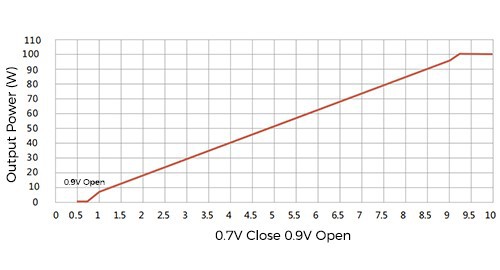

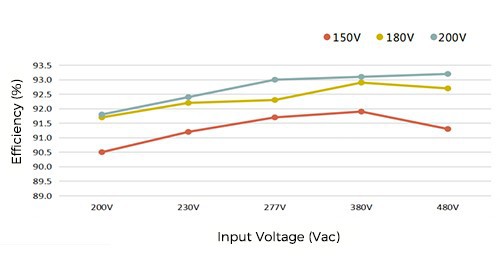

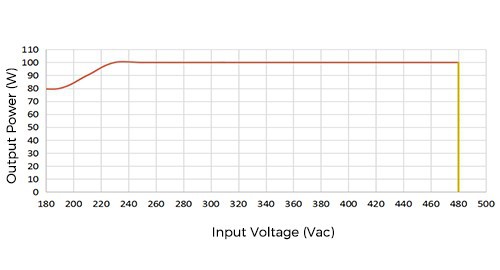

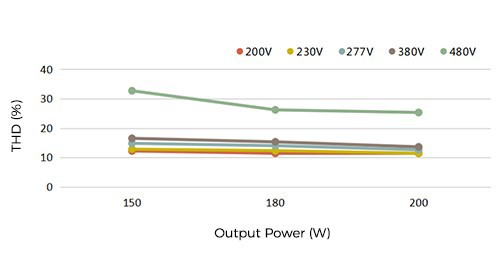

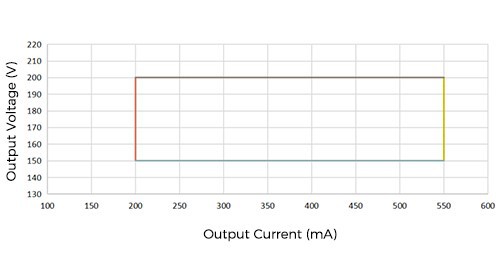

Electrical Characteristic:

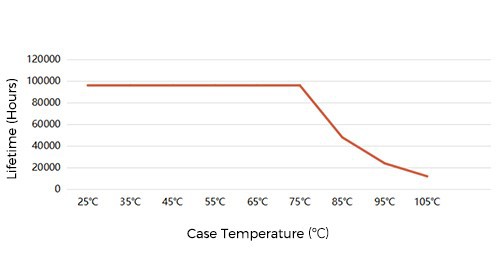

★ Lifetime VS Shell Temperature

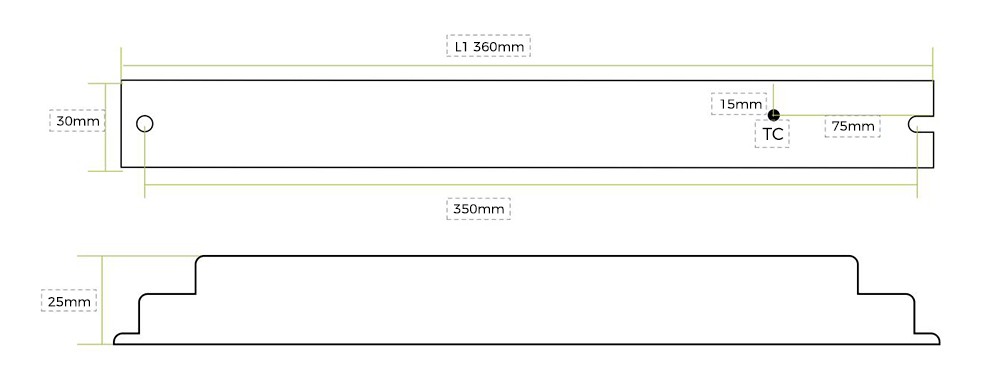

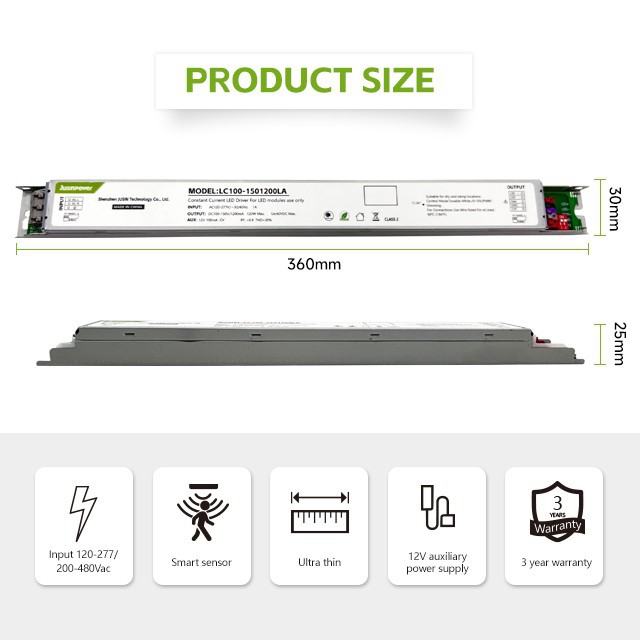

Dimension (mm)
Length: 360mm Width: 30mm Height: 25mm

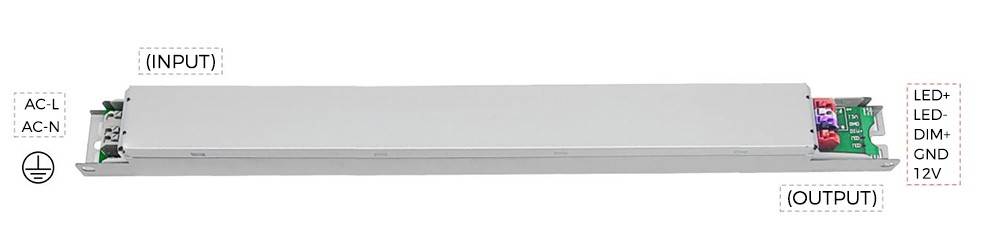

Wiring Diagram
The AC high voltage input 200-480.The DC output terminal, The DC output with 12V auxiliary, can be connected to smart module,marked with positive and negative poles, is where you connect the LED light.

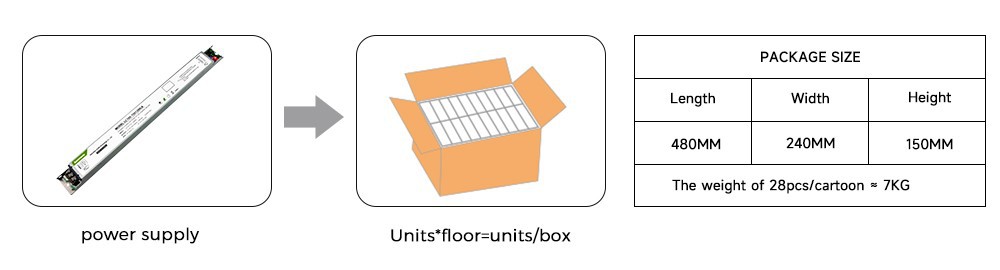

Product Packaging:
Hot Tags: true no-afterglow non-isolated driver for grow lighting, China true no-afterglow non-isolated driver for grow lighting manufacturers, suppliers, factory, Power 75W, 5 stage color temperature, Bipolar Flicker Free Sensor Driver, push dimming, CCC led driver, CE LED Sensor Driver
|
Performance |
||
|
Model |
LC100-200550HX |
|
|
Input |
Efficiency |
91% |
|
|
Power |
100W |
|
|
Voltage |
200-480Vac |
|
|
Frequency Range (Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.99@200Vac full load |
|
|
THD (Full Load) |
<15% |
|
|
Ac Current (Max) |
0.6A@200Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
130A@480Vac |
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
150-200Vdc/550mA/100W |
|
|
Linear Regulation |
±3% |
|
|
No-Load Output Voltage |
<200V |
|
|
Start Time
|
<1S@100V |
|
|
Auxiliary Voltage |
12V/200mA |
|
|
Dimming Range |
10%-100%(optional) |
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
||
|
Length |
360 mm |
|
|
Width |
30 mm |
|
|
Height |
21.5 mm |
|
|
Weight (g) |
276g |
|
|
Environmental |
||
|
Operating Temperature |
-30°C to 50°C |
|
|
Storage Temperature, Humidity |
-40°C to 80°C,5-95%RH |
|
|
Case Temperature |
TC=90℃ |
|
|
Warranty Tc |
85°C max for 50k Hr Life |
|
|
Surge Protection |
L-N 6KV , L/N-FG 4KV |
|
|
Ip Rating |
IP20 |
|
|
Material |
Iron shell |
|
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC100-200550HX |
100W |
200-480Vac |
150-200Vdc |
550mA |
0.9 |
Adjustable |
91% |
|
LC100-1501200LX |
120W |
100-277Vac |
100-150Vdc/ |
1200mA |
0.9 |
Adjustable |
94% |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.

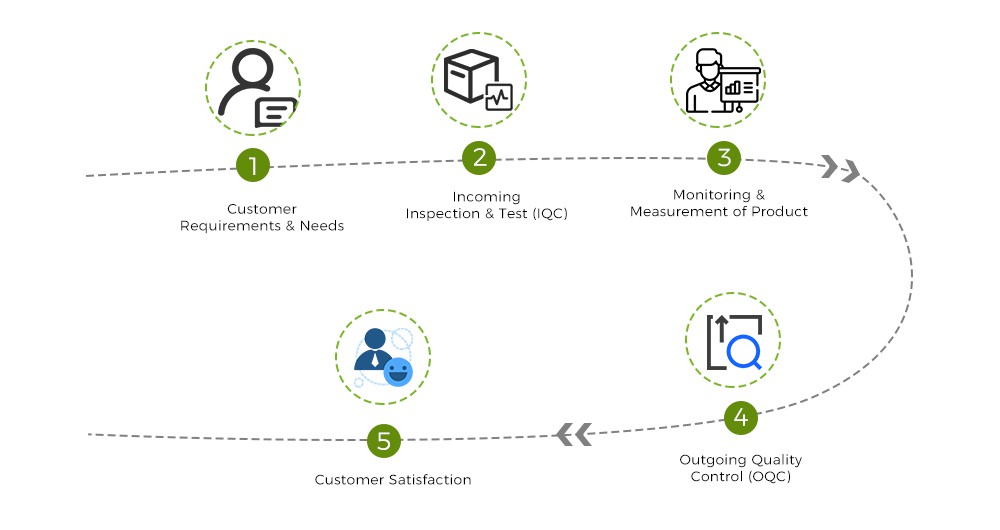

QC Process Flow Chart
