DC24V/36V High Efficiency DC To DC LED driver
With an output voltage range of DC40-55V and a steady current of 450mA, the DC24V/36V High Efficiency DC-DC LED driver ensures optimal performance of LED lighting, providing consistent brightness and uniform light distribution. This precise voltage regulation is essential for industrial applications where lighting consistency is crucial.
Output voltage range of DC40-55V.
Steady output current of 450mA.
Ensures consistent brightness.
Delivers uniform light distribution.
Product Details:
|
Feature |
DC to DC LED Tube Driver |
AC to DC LED Tube Driver |
|
Input power type |
Direct current (DC) |
Alternating current (AC) |
|
Conversion process |
Directly convert DC input to voltage and current suitable for LEDs |
First convert AC to DC (AC to DC), then adjust to voltage and current suitable for LEDs |
|
Efficiency |
Usually higher, can reach more than 90%, reducing conversion losses |
Overall efficiency is low, AC to DC conversion has losses |
|
Size |
Small |
Slightly bigger than DC |
|
Applicable |

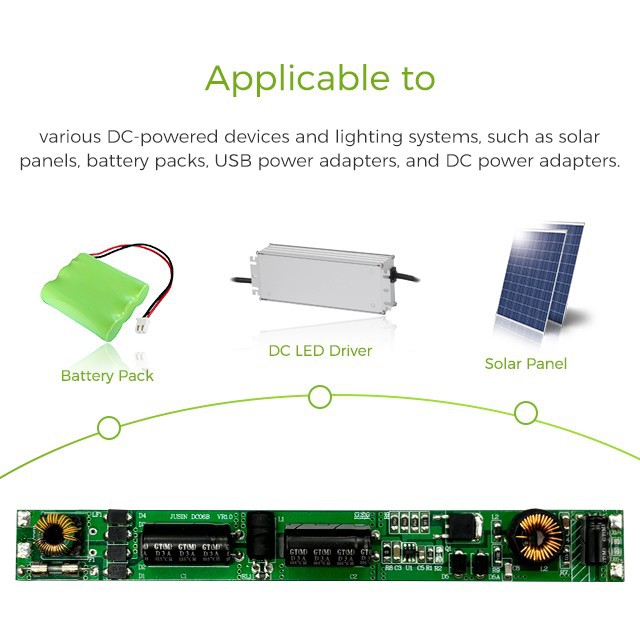

Applicable to DC power systems, such as batteries |
Applicable to AC power lighting systems, commonly used in home and commercial lighting |
|
EMI |
Generally good, reduces electromagnetic interference |
May generate higher electromagnetic interference, requiring additional electromagnetic shielding measures |
The DC to DC LED Tube Driver is a highly efficient, compact and environmentally friendly LED driver.

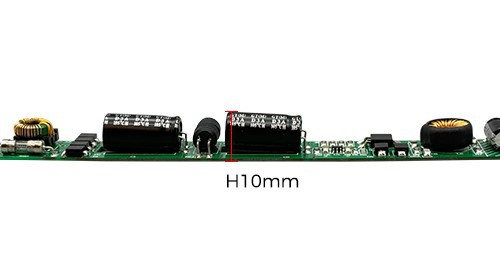

The product is very slim and thin with a height of only 10mm.

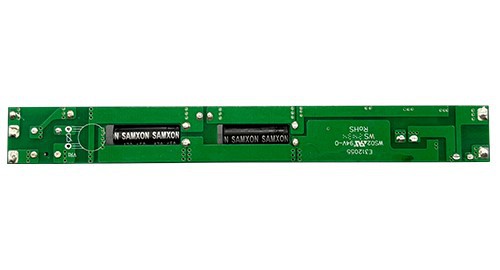

FR4 has good compressive resistance and is suitable for use in applications that require high mechanical strength.

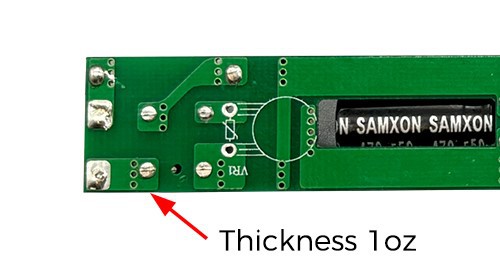

The copper foil has a thickness of approximately one ounce.

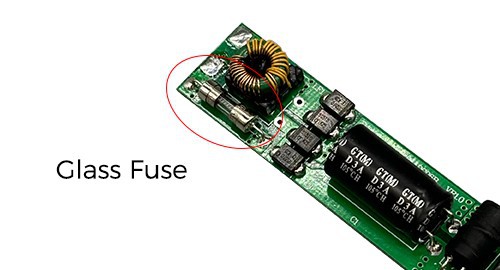

Capable of withstanding high current for a short period of time and quickly disconnecting the circuit to protect the driver from overload or momentary short circuit.

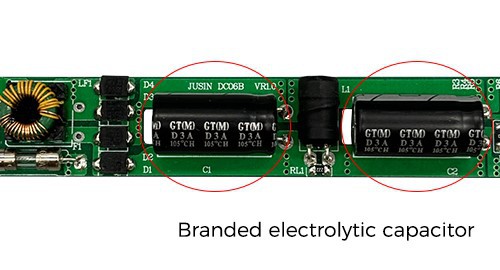

Use SAMXON electrolytic capacitors, Low-impedance capacitor, extended life guarantee, and high ripple current.

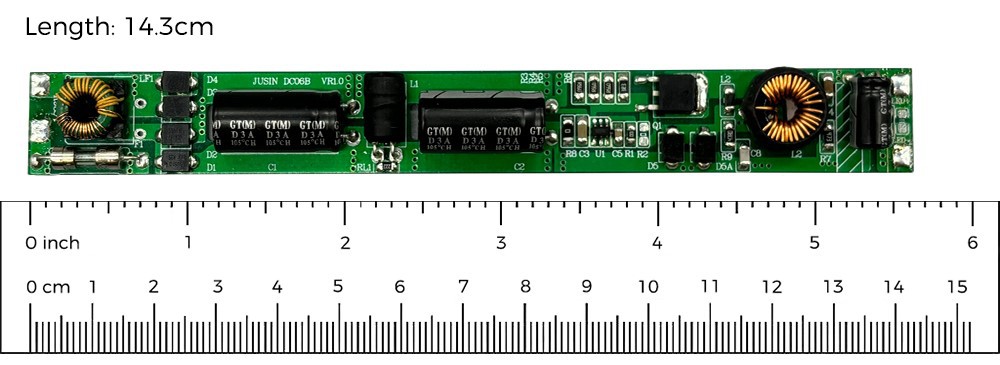

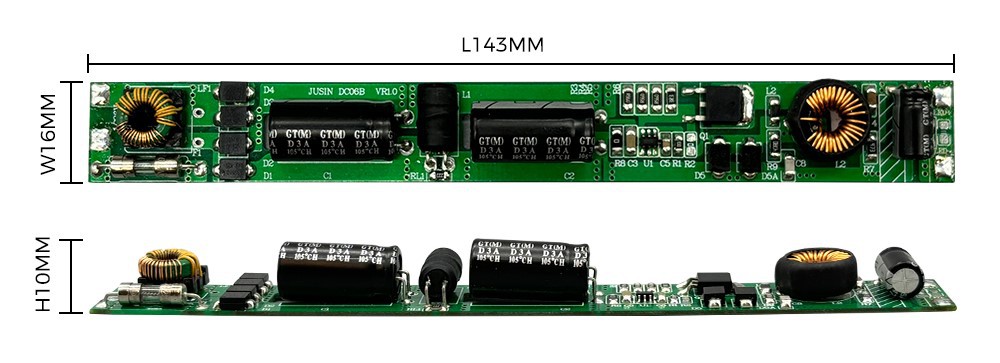

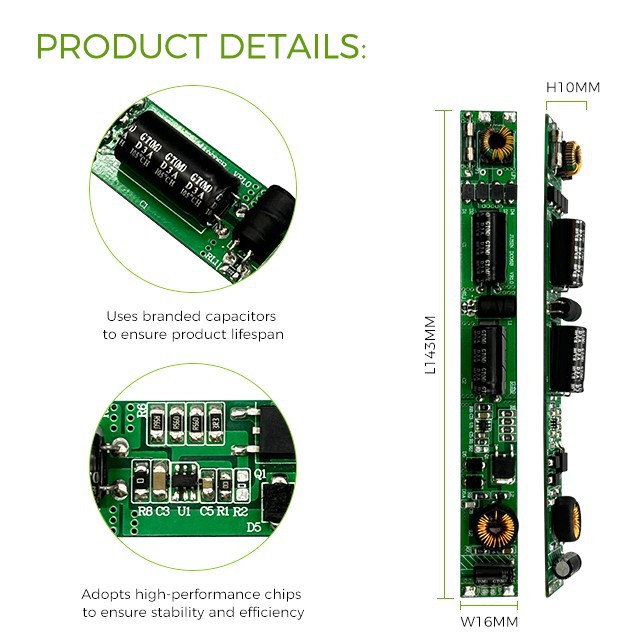

Dimension (mm)
Length 143 Width 16 Height 10

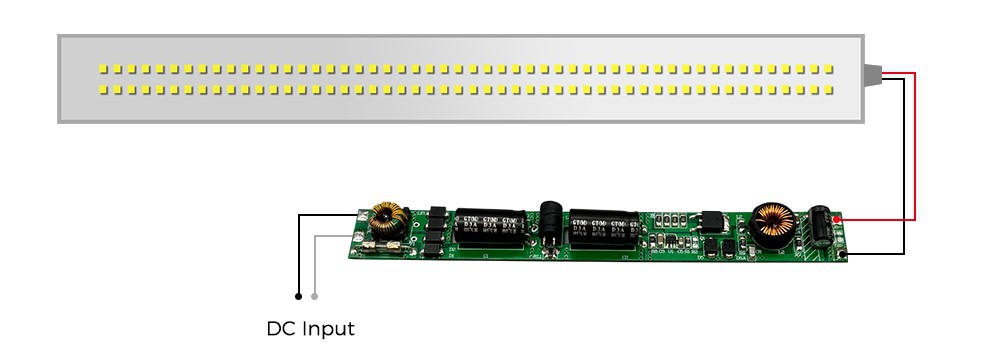

Wiring Diagram：
Input terminal, connected to DC power supply, input voltage 36V. Output terminal connected to LED lights
Hot Tags: dc24v/36v high efficiency dc-dc led driver, China dc24v/36v high efficiency dc-dc led driver manufacturers, suppliers, factory, Ultra thin panel, color temperature, tunable led panel, UL CUL FCC, PWM Valve Driver, bipolar led driver

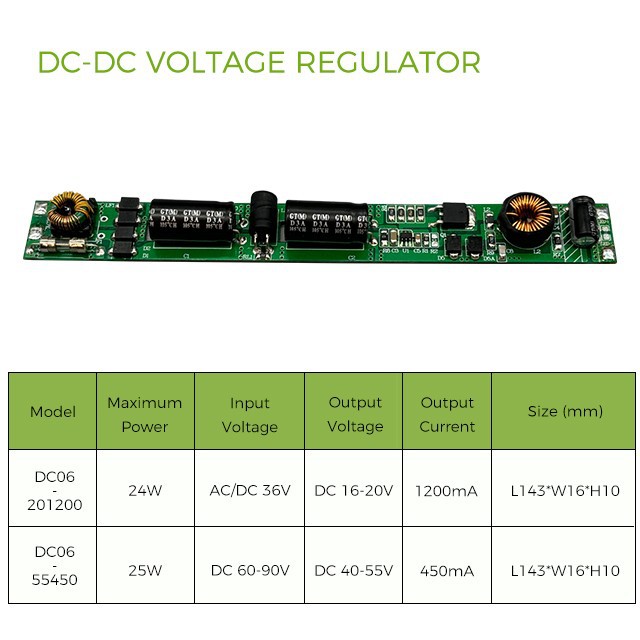

DC06
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Size(mm) |
||
|
DC06-201200 |
24W |
AC/DC180-265V |
DC16-20V |
1200mA |
L143*W16*H10 |
||
|
DC06-55450 |
25W |
DC60-90V |
DC40-55V |
450mA |
L143*W16*H10 |
||
|
Size |
|||||||
|
Length |
143 mm |
||||||
|
Width |
16mm |
||||||
|
Height |
10mm |
||||||
|
Weight (g) |
20g |
||||||
FAQ
Q1. Are you a manufacturer or trading company?
A1. We are a professional manufacturer of producing led drivers for more than 10 years.
Q2. What is your MOQ?
A2. Our MOQ is 200pcs. But can be negotiable based on different models
Q3. What is your delivery time ?
A3. Our delivery time is 7-20 days which is depended on models and quantity.
Q4. Do you accept OEM/ODM?
A4. Yes. We accept OEM/ODM. And one of our advantage is doing customized drivers for customers.
Q5. Service
A5. We have a professional service team to solve all the questions and problems. No worry about the after-sales service.
Q6. How about your R&D capability?
A6. We have professional engineers for certificates and research&development.
We have passed cUL, FCC, SAA, TUV, ROHS, CE, CB, CCC.
Company Profile
Shenzhen Jusin Technology Co., Ltd., established in 2012, is a national high-tech enterprise integrating research and development, production, sales and service of LED driver.In 2016,batch production of Emergency driver, the production workshop expanded from 1000 square meters to 2000 square meters. The Foshan branch will be established in 2022, and the factory will be purchased for production. The Foshan factory is officially put into production, with an estimated annual output of 3 million power supplies. With excellent engineering experience and high product quality as our background, Product performance in line with industry standards. To provide you with efficient, high-performance LED drive products and lighting control solutions.
Factory

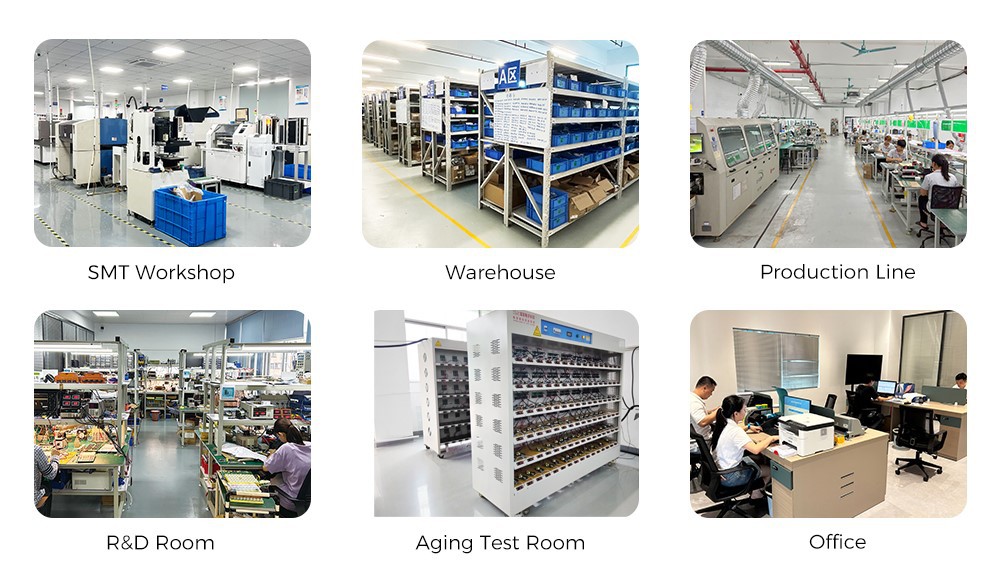

1.We have a 4000 square meter factory in Foshan high-tech Zone for production. At the same time, we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT machine, Automatic Gluing Machine, Aged Vehicle, Reflow Solder and so on. The production line of about 80 people, able to reach 1 million shipments per year!
2.Custom-made service provided
3.LED driver can be customized according to the customer's lamps, application space, product parameters, functions and other requirements, whole lamp service can also be provided.
4.Automated factory

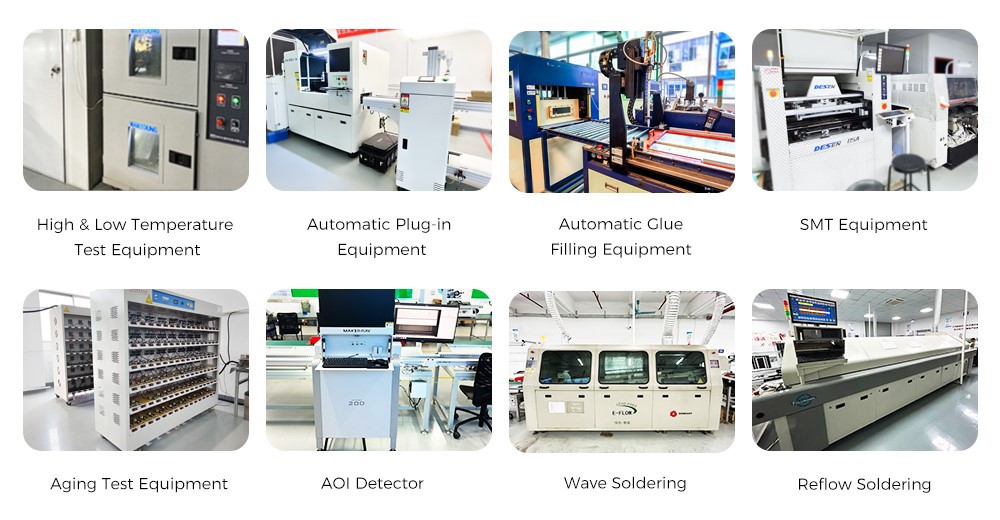

5.Three SMT lines and two DIP lines. The automatic placement machine & automatic plug-in machine & AOI for inspection. Continuously update automation to improve work efficiency.
