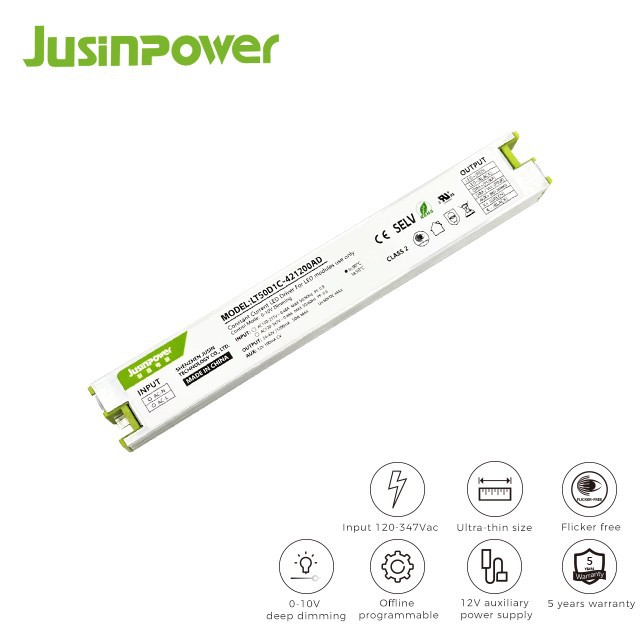

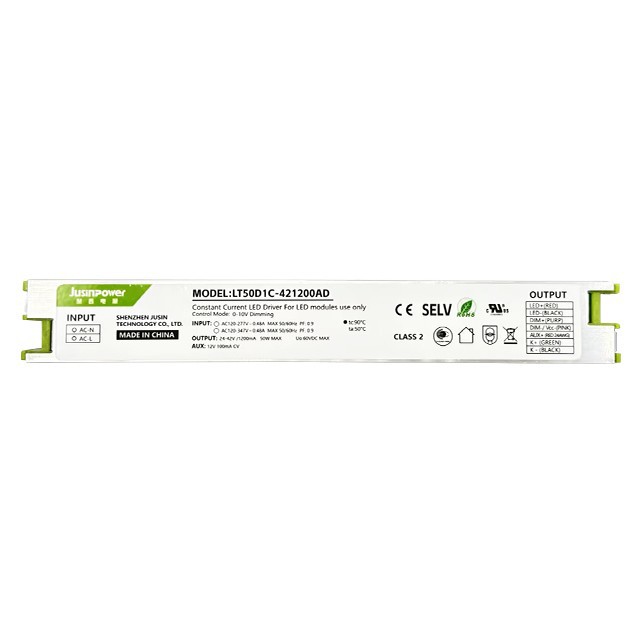

Linear LED Driver Suitable for Compact Space
It features high efficiency, high power factor (PF) and low total harmonic distortion (THD), ensuring reliable and optimal performance. With a wide dimming range from 1% to 100% and the ability to adjust power via an external dip switch, the drive offers unmatched control and flexibility. Suitable for commercial, industrial and residential lighting projects.
Top Features and Benefits:
Ultra-thin size
5 years warranty
Offline programmable
Input 120-347Vac
1.Wide Compatibility: suitable for various LED lighting applications.
2.Reliable Performance: Designed to provide consistent and stable power output.
3.Long Lifespan: Long life: the use of 10,000 hours of electrolytic capacitors, durable, reduce the need for frequent replacement.
4.Easy installation: simple installation, saving time and effort.
Application Scenario:

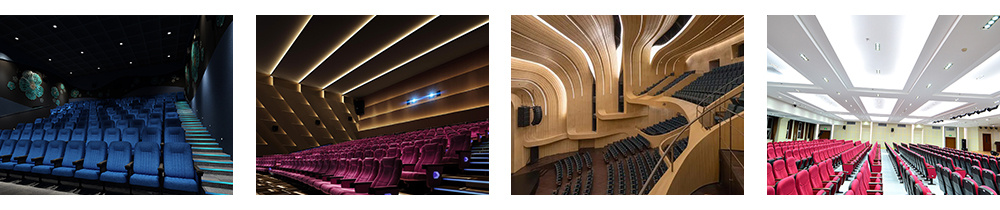

Special design space: such as cinemas, theaters, performing arts venues, etc. Line lights can be customized and installed according to the special design requirements of the space and the visual experience of the audience
Battery Comparison
|

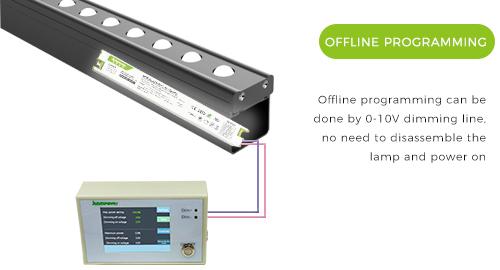

Offline programming: The operation is more convenient. The driver can still be programming offline when it is installed in the lamp. You only need to lead out a line to connect to the programmer to easily realize the offline programming operation. |

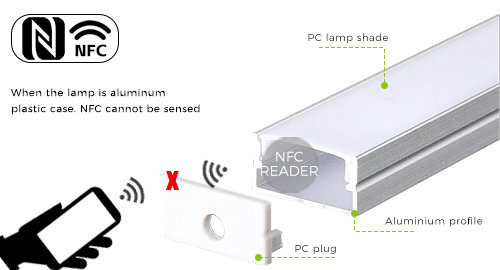

NFC: Susceptible to metal frequency blocking signal: When the driver is installed in the lamp, it is susceptible to internal metal shielding signal. |
|
Configuration consistency: During the production process, it can be ensured that each device has the same firmware and configuration
|
Compatibility issues: Not all smart devices support NFC, which limits its popularity and application
|
|
|
|

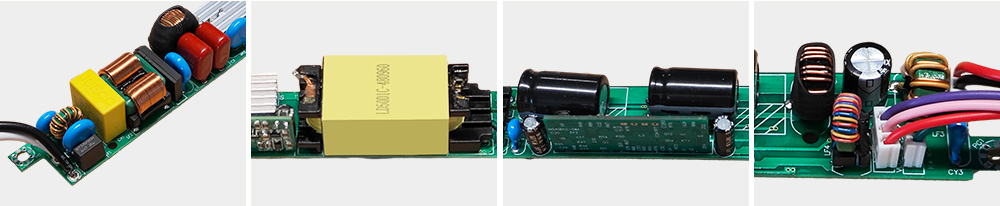

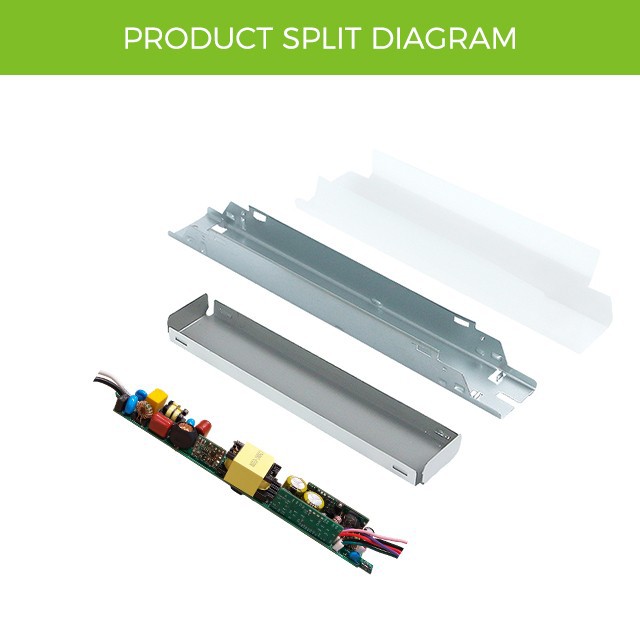

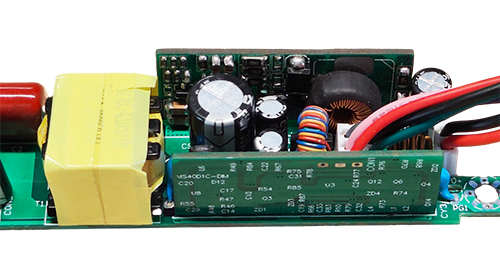

Internal Structure Introduction
|

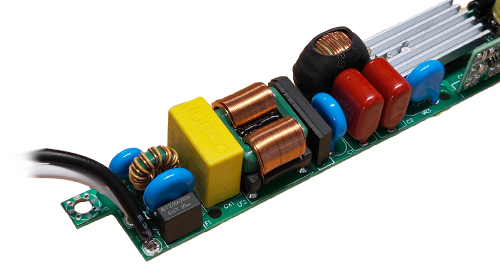

Its anti-interference capability and dependability are further improved by its precise electromagnetic compatibility (EMC) design.
|

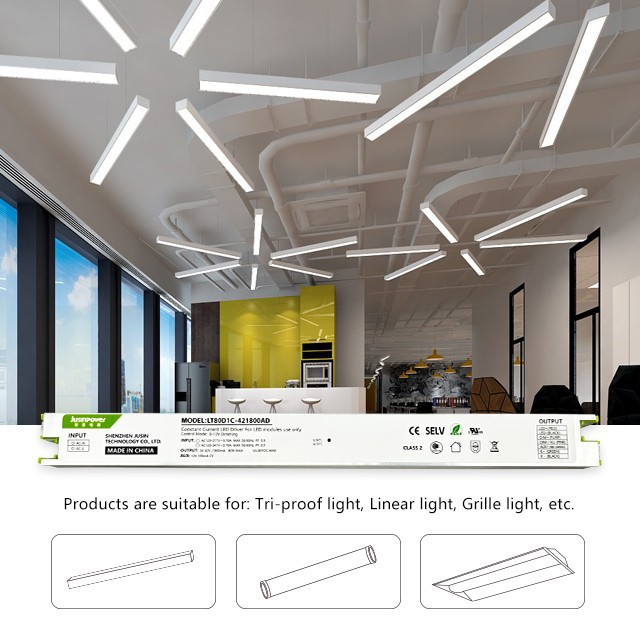

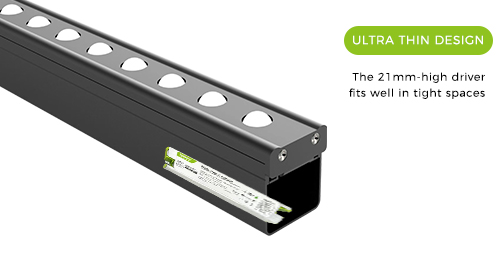

Recessed luminaires: Slim LED strips embedded in the ceiling or wall can provide uniform ambient lighting, enhancing the overall lighting effect of the interior space.
|
Using a 10,000-hour capacitor can extend the lifespan of the driver
|

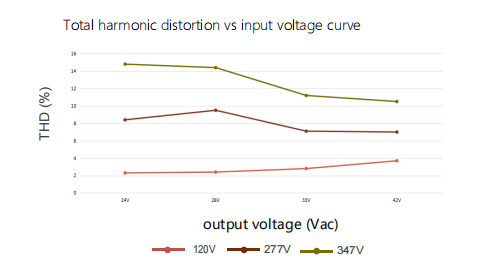

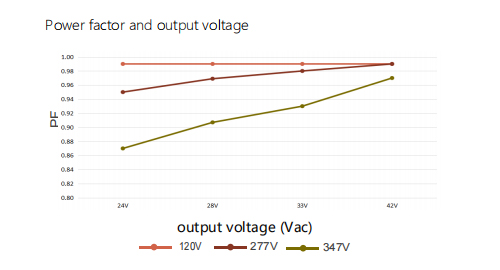

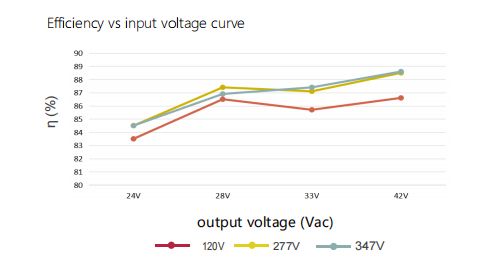

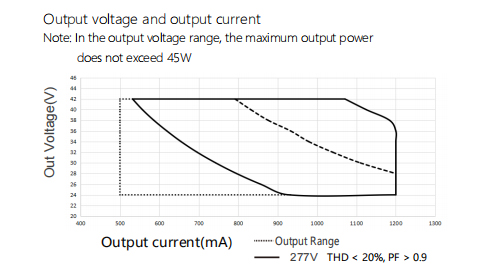

Electrical Curve Diagram:
Test at Ta 25℃ and output current 1200mA
88.4%@277Vac full load
88.6%@347Vac full load
<20 %@347Vac(60-100 %) full load
<10 %@120Vac(30-100 %) full load
≥ 0.9@277Vac/50Hz(60-100 %) full load
≥ 0.9@347Vac/60Hz(60-100 %) full load

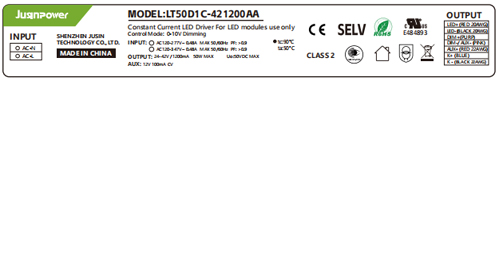

Wiring Instructions：

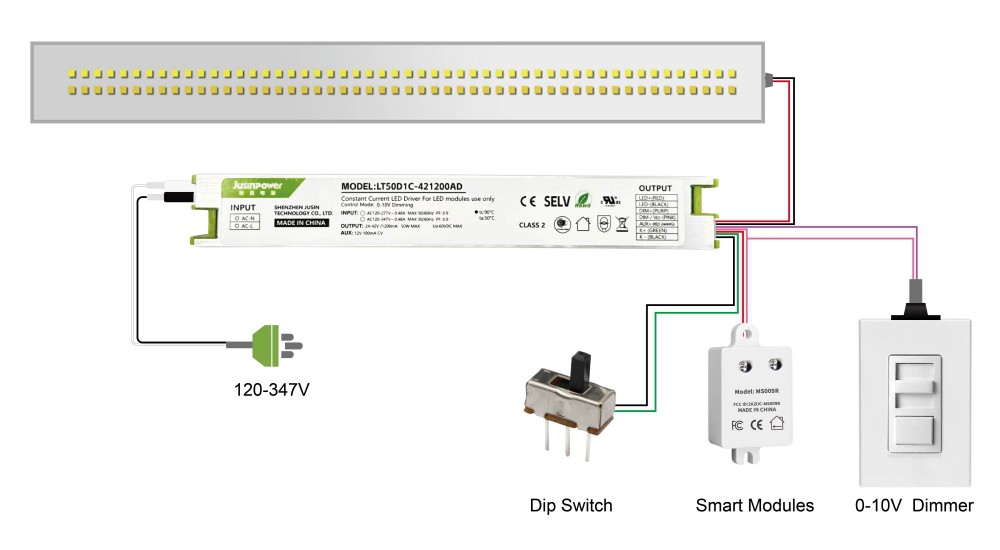

The product is divided into two sections: one for AC input and the other for DC output and dimming signal input. The LED+ and LED- terminals connect to the positive and negative poles of the LED lamp, respectively. The red VCC+ and pink terminals connect to the 12V control module. The purple DIM+ connects to the positive terminal of the 0-10V dimmer, and the pink GND connects to the negative terminal of the 0-10V dimmer. The green positive K+ and black negative K- terminals connect to the positive and negative poles of the dip switches, respectively.

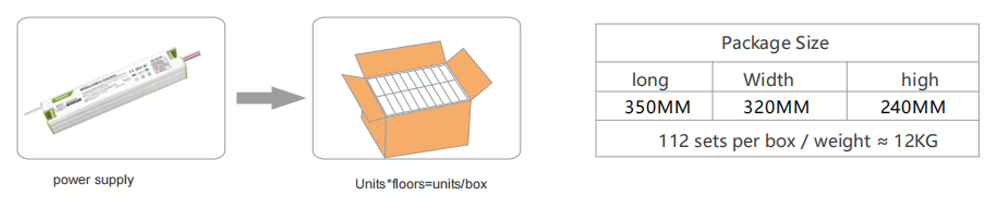

Product Packaging:
Hot Tags: linear led driver suitable for compact space, China linear led driver suitable for compact space manufacturers, suppliers, factory, 0 10V dimming line lights, intelligent dimming, 350mA sensor, push dimming, smart wifi led, input 347Vac
LT50D1C
|
Performance |
||
|
Model |
LT50D1C-HA |
|
|
Input |
Voltage |
120-347Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
86.6%@120Vac full load |
|
|
88.4%@277Vac full load |
||
|
88.6%@347Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(30-100 %) full load |
|
|
≥ 0.9@277Vac/50Hz(60-100 %) full load |
||
|
≥ 0.9@347Vac/60Hz(60-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (30-100 %) full load |
|
|
<20 %@277Vac (60-100 %) full load |
||
|
<20 %@347Vac (60-100 %) full load |
||
|
AC Current (Max) |
0.48A@120Vac full load |
|
|
0.21A@277Vac full load |
||
|
0.16A@347Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
277V 25A peak,600us duration(10% Ipeak) |
||
|
347V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@347V |
|
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
24-42Vdc/1200mA/50W |
|
Current Ripple
|
<5% |
|
|
Channel |
One channels |
|
|
Linear Regulation |
±5% |
|
|
No-Load Output Voltage |
<50V |
|
|
Start Time
|
<0.5S@347V <1S@120V |
|
|
Function |
Dimming method |

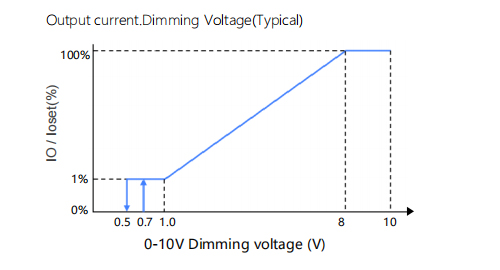

0-10V 0.5V OFF /0.7V OPEN |
|
Dimming current |
<1mA@10V <2mA@0.7V |
|
|
Dimming range |
1%-100%(standard) |
|
|
Power regulation |
External dip switches can be connected |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|

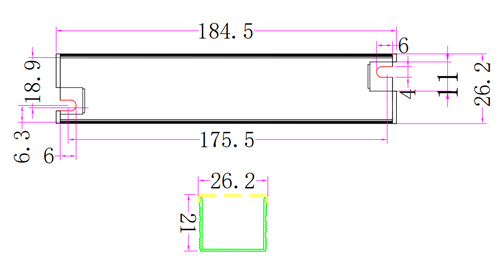

Size |
|
|
Length |
185 mm |
|
Width |
26mm |
|
Height |
21 mm |
|
Weight (g) |
145g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|

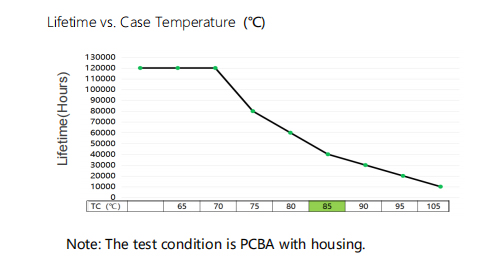

Warranty Tc |
50000Hour (s)@TC:80℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LT20D1C-HA |
20W |
120-347Vac |
24-42Vdc |
500mA |
0.9 |
Adjustable |
85% |
|
LT50D1C-HA |
50W |
120-347Vac |
24-42Vdc |
1200mA |
0.9 |
Adjustable |
88.6% |
|
LT80D1C-HA |
80W |
120-347Vac |
24-42Vdc |
1800mA |
0.9 |
Adjustable |
90.5% |
