Smart NFC LED Driver for Enhanced Lighting Control
This advanced LED driver is designed to deliver accuracy, flicker-free performance, and high compatibility across various lighting applications. It ensures smooth dimming and reliable performance, making it ideal for both commercial and residential settings. The driver allows for current adjustment from 300 to 1400mA, providing versatility in meeting different lighting needs. Additionally, it features NFC programming functionality, enabling easy customization and setup. With ultra-deep dimming capabilities down to 1%, it offers precise control over lighting levels, ensuring seamless transitions and optimal visual comfort.
Top Features and Benefits:
Input 120-277Vac
/120-347Vac
1.Accuracy,flicker free, high compatibility
2.Ensuring smooth dimming and reliable performance
3.Current adjustable from 300 to 1400mA for versatile lighting applications
4.Offering NFC programming functionality, flicker-free dimming, and ultra-deep dimming down to 1%
Application Scenario:

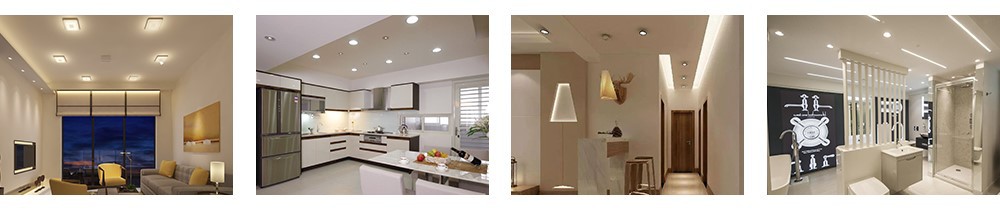

Residential Lighting: LED drivers are essential in residential settings for maintaining efficient and reliable lighting systems.

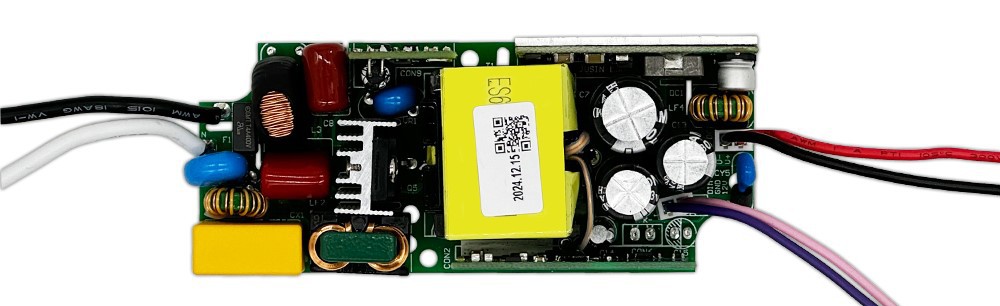

Product Details:

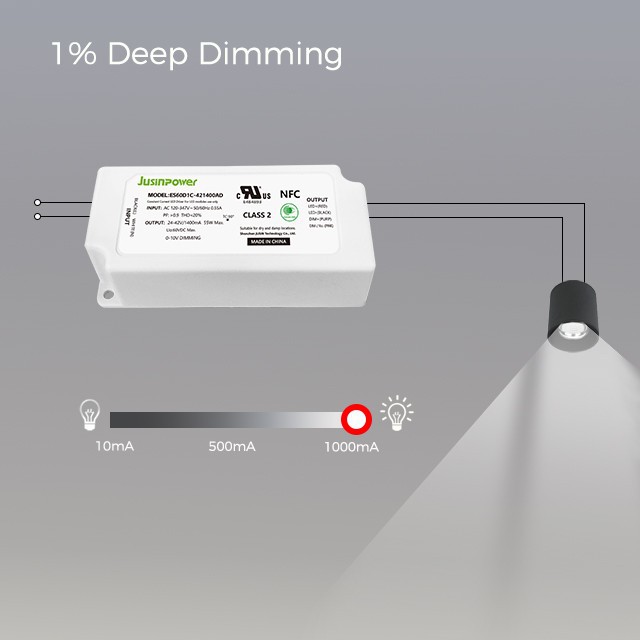

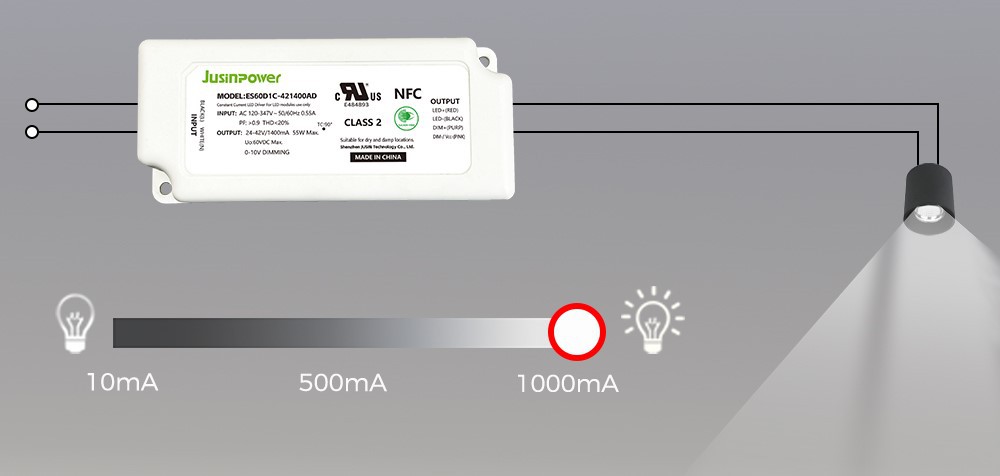

Supports 1% deep dimming, providing smooth brightness control.

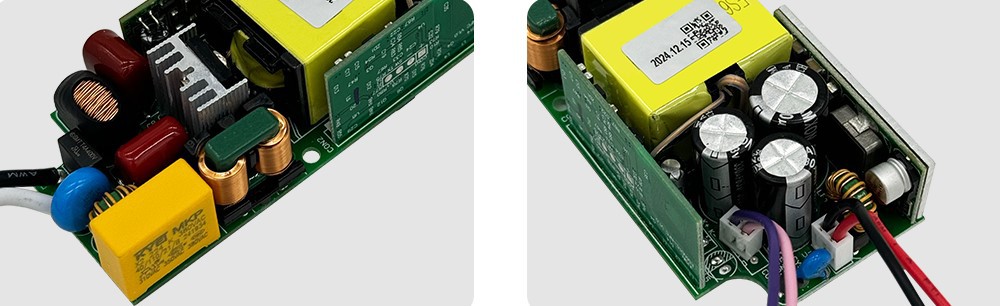

High efficiency design reduces energy consumption, improves system life and overall efficiency.

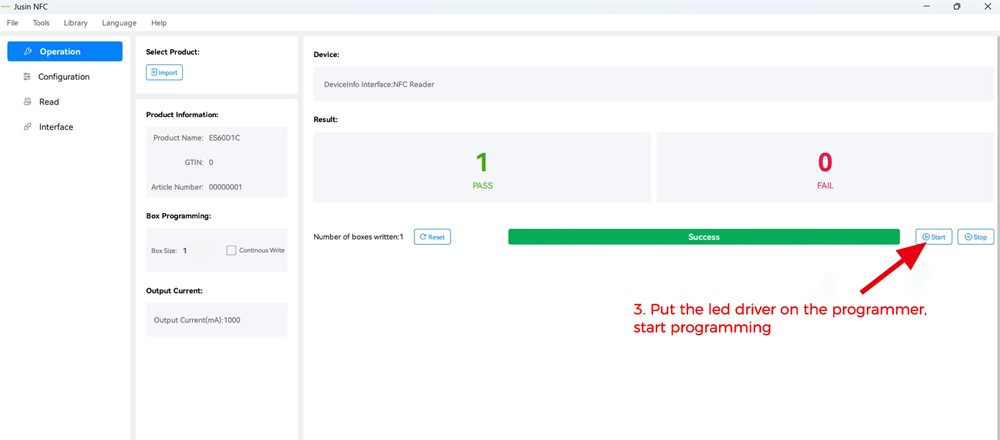

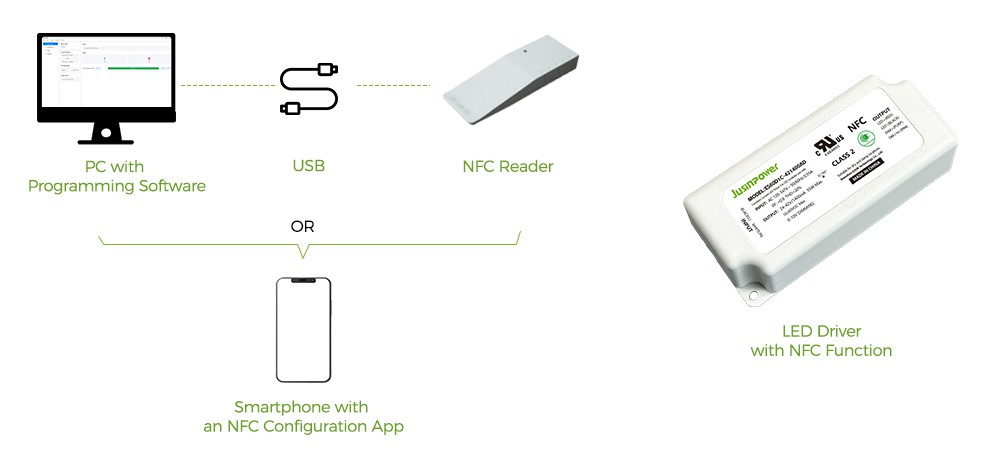

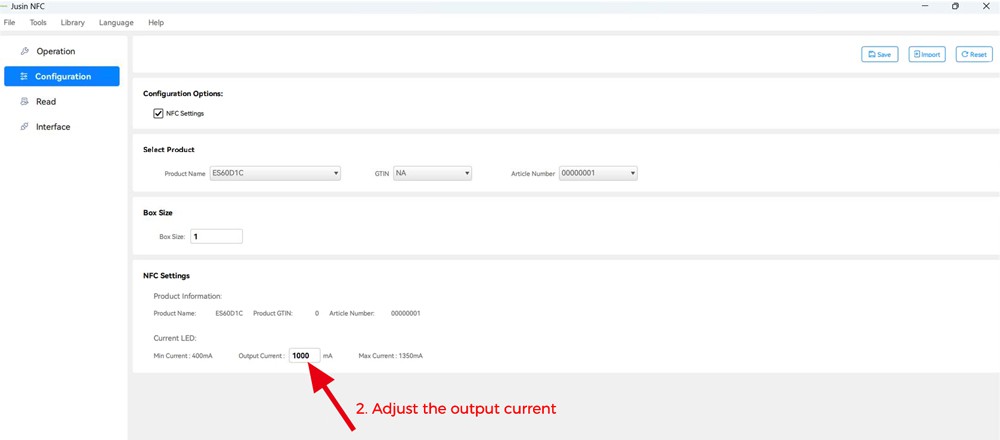

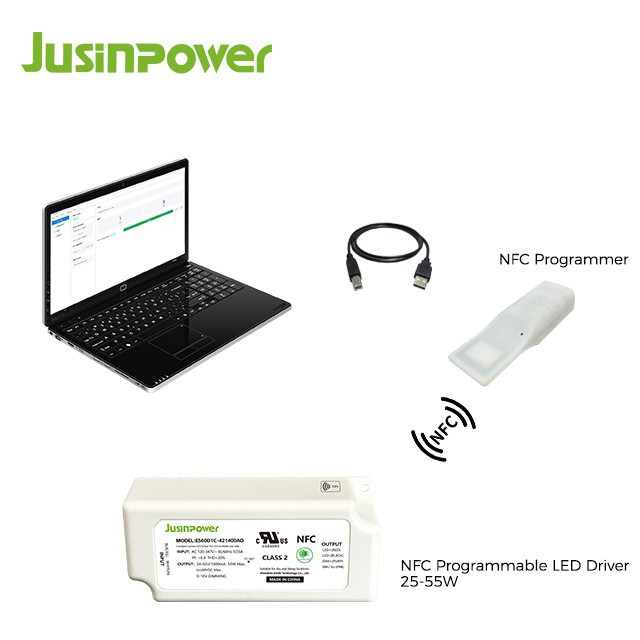

NFC Instructions:

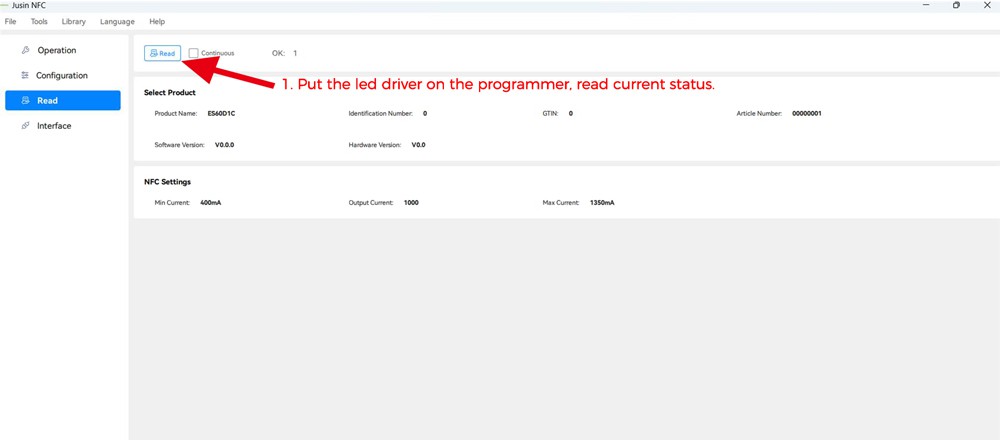

Use NFC programming tools to easily adjust the output current to meet different application requirements.

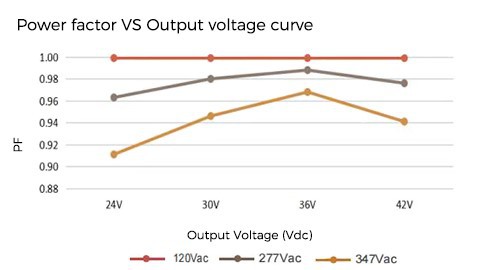

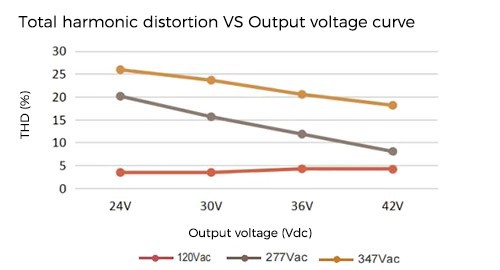

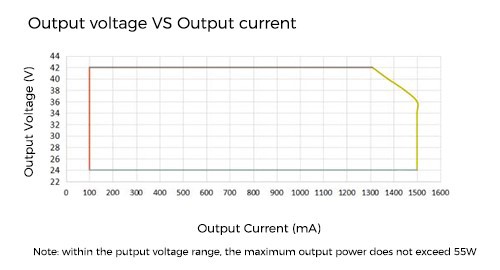

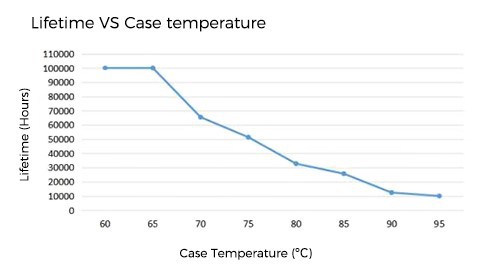

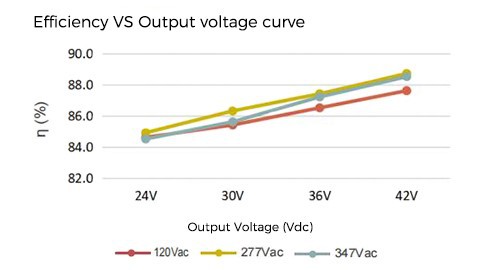

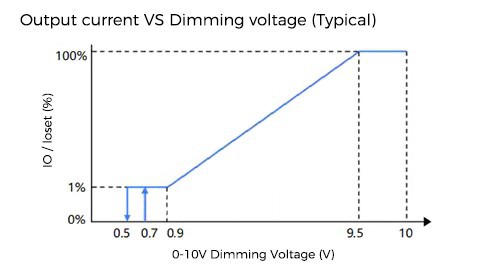

Electrical Curve Diagram:
Measured at Ta 25℃, output current 1350mA

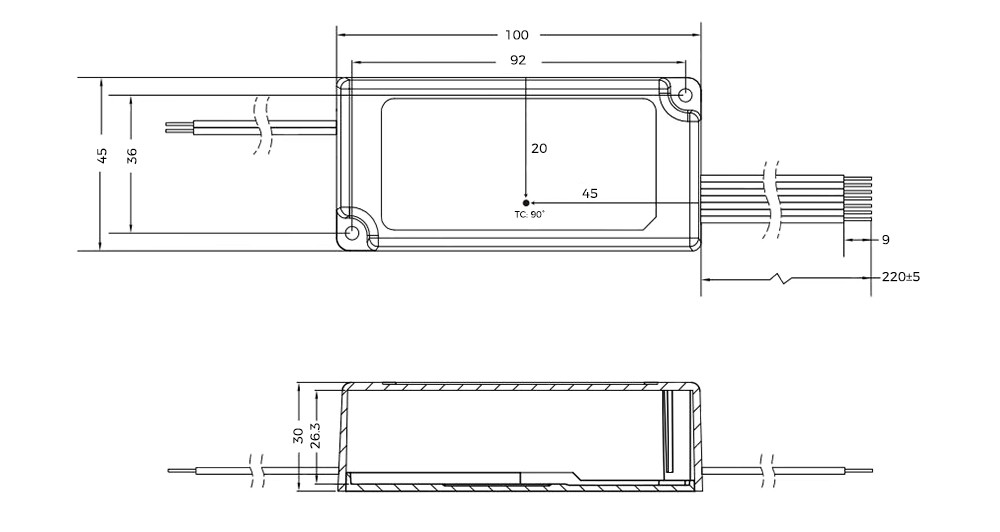

Dimension (mm):
Length: 100mm Width: 45mm Height: 30mm
Product Label:
To ensure the product's safety and efficacy during installation and usage, users can find comprehensive wiring instructions and basic specification information on the product label.

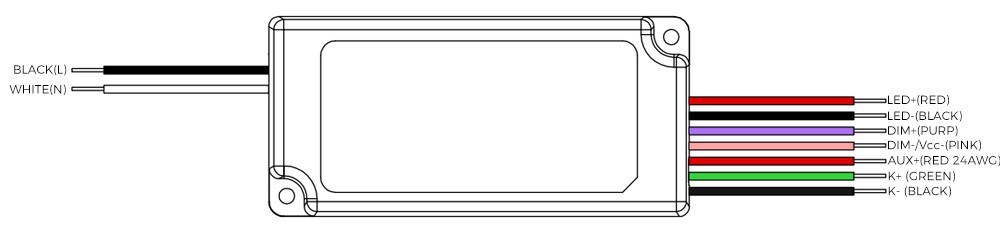

Wiring Instructions:
The two ends of the product are connected, one end is the AC input end, the other end is the DC output and dimming signal input end, LED+ and LED are respectively connected to the positive and negative poles of the LED light; the purple DIM+ is connected to 0-10V+, the pink DIM- is connected to 0-10V- ; Red AUX+ is connected to 12V control module +, VCC- is shared with pink DIM-.

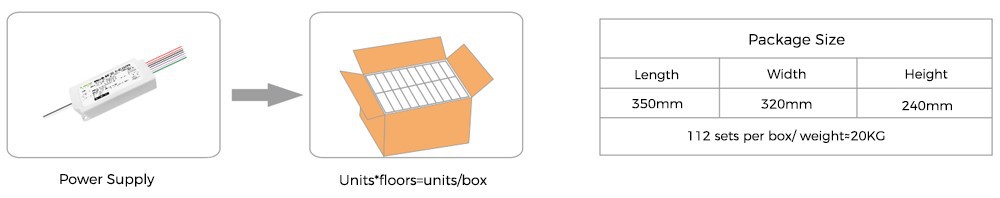

Product Packaging:
Hot Tags: smart nfc led driver for enhanced lighting control, China smart nfc led driver for enhanced lighting control manufacturers, suppliers, factory, Driver with Adjustable Color Temperature, T10 tunable white, 30-54Vdc, Ultra thin panel, tunable light, 0 10V dimming line lights
ES60D1C-421500AZ
|
Performance |
||
|
Model |
ES60D1C-421500AZ |
|
|
Input |
Efficiency |
88%@220Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@120Vac/60Hz,≥20% full load |
|
|
≥ 0.9@277Vac/60Hz,≥50% full load |
||
|
≥ 0.9@347Vac/60Hz,≥80% full load |
||
|
THD(full load) |
<10%@120Vac full load |
|
|
AC Current(max) |
0.55A@120Vac full load |
|
|
Standby Power |
<1W
|
|
|
Inrush Current (cold engine start)Max |
120V 20A peak,500us duration (10% Ipeak) |
|
|
277V 35A peak,600us duration (10% Ipeak) |
||
|
347V 45A peak,800us duration (10% Ipeak) |
||
|
Leakage Current (max) |
＜0.15mA@347V |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
30-42Vdc/1500mA/55W |
|
Current Ripple |
<5% |
|
|
Channel |
1 output channel |
|
|
Linear Regulation |
±5% |
|
|
No-load Output Voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
Auxiliary Voltage |
12V/100mA |
|
|
Function |
Dimming Method |
0-10V 0.5V OFF /0.7V ON |
|
Dimming Current |
<1mA@10V <2mA@0.7V |
|
|
Dimming Range |
1%-100% (standard) |
|
|
Adjust Power |
Can be dialed externally |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup,when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
||
|
Length |
100 mm |
|
|
Width |
45 mm |
|
|
Height |
30mm |
|
|
Mounting Length |
36mm |
|
|
Weight (g) |
238g |
|
|
Environmental |
||
|
Safety Standard |
UL8750 ,Class2 |
|
|
EMC Emission |
Meets FCC Part 15 |
|
|
Operating Temperature |
-20°C to 50°C |
|
|
Storage Temperature,Humidity |
-20°C To 85°C,20-90%RH |
|
|
Case Temperature |
Tc=90℃ |
|
|
Warranty Tc |
75°C Max For 50k Hr Life |
|
|
Surge Protection |
L-N 1KV |
|
|
IP Rating |
IP20 |
|
|
Material |
Plastic shell |
|
|

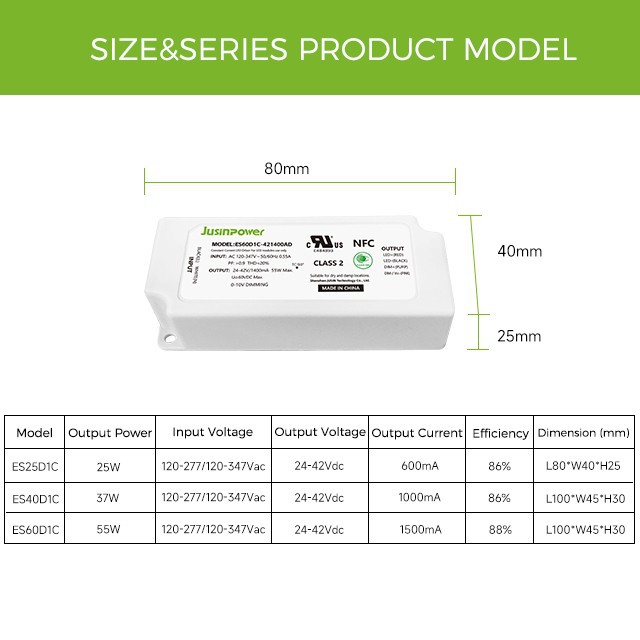

Sensor Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
ES25D1C-42XXXXYZ |
25W |
120-277/120-347Vac |
24-42Vdc |
600mA |
0.9 |
Adjustable |
86% |
|
ES40D1C-42XXXXYZ |
37W |
120-277/120-347Vac |
24-42Vdc |
1000mA |
0.9 |
Adjustable |
86% |
|
ES60D1C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1500mA |
0.9 |
Adjustable |
88% |
FAQ
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer of producing led drivers for more than 10 years.
Q: What is your MOQ?
A: Our MOQ is 200pcs. But can be negotiable based on different models
Q: What is your delivery time ?
A: Our delivery time is 7-20 days which is depended on models and quantity.
Q: Do you accept OEM/ODM?
A: Yes. We accept OEM/ODM. And one of our advantage is doing customized drivers for customers.
Q: Service
A: We have a professional service team to solve all the questions and problems. No worry about the after-sales service.
Q: How about your R&D capability?
A: We have professional engineers for certificates and research&development.
We have passed cUL, FCC, SAA, TUV, ROHS, CE, CB, CCC.
Company Profile
Shenzhen Jusin Technology Co., Ltd., established in 2012, is a national high-tech enterprise integrating research and development, production, sales and service of LED driver.In 2016,batch production of Emergency driver, the production workshop expanded from 1000 square meters to 2000 square meters. The Foshan branch will be established in 2022, and the factory will be purchased for production. The Foshan factory is officially put into production, with an estimated annual output of 3 million power supplies. With excellent engineering experience and high product quality as our background, Product performance in line with industry standards. To provide you with efficient, high-performance LED drive products and lighting control solutions.

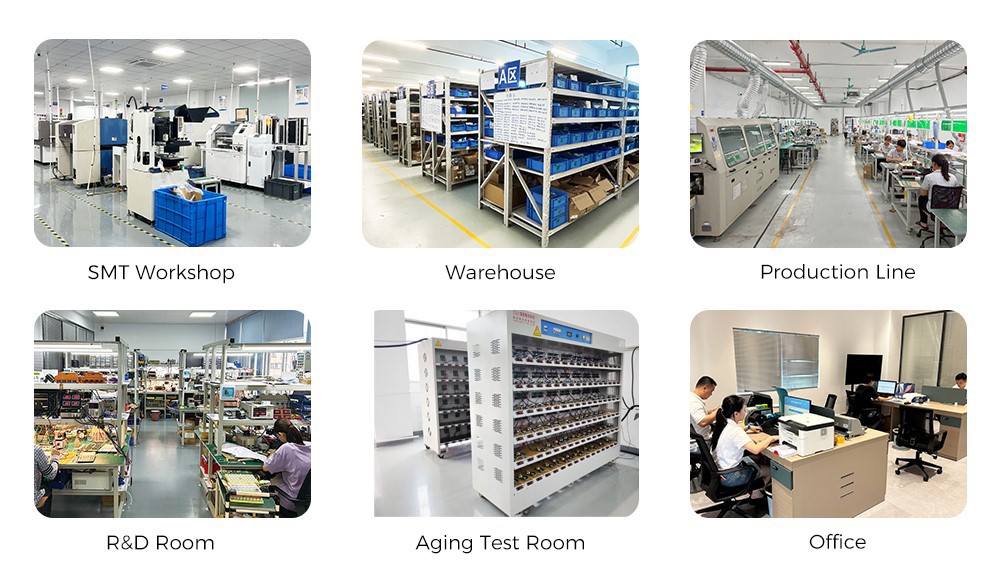

Factory
We have a 4000 square meter factory in Foshan high-tech Zone for production. At the same time, we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT machine, Automatic Gluing Machine, Aged Vehicle, Reflow Solder and so on. The production line of about 80 people, able to reach 1 million shipments per year!
Custom-made service provided
LED driver can be customized according to the customer's lamps, application space, product parameters, functions and other requirements, whole lamp service can also be provided.
Automated factory

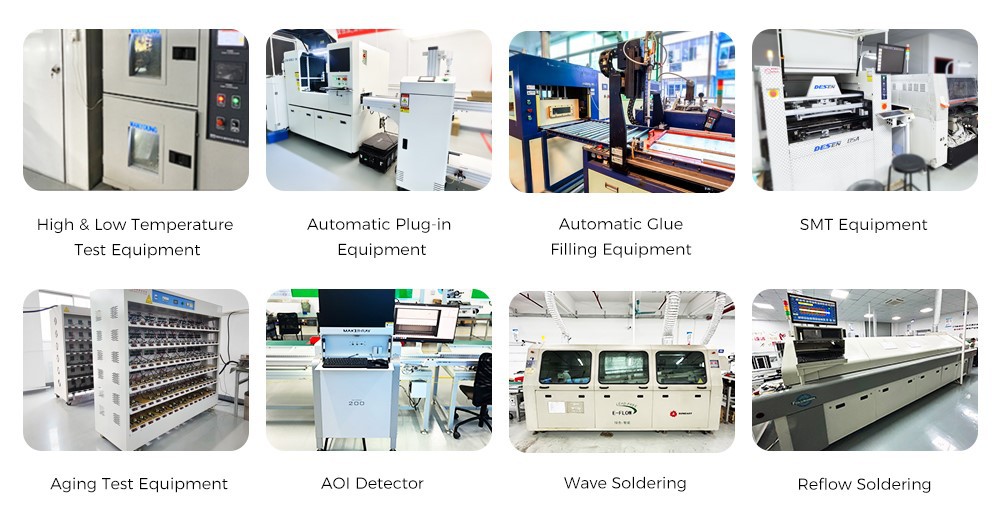

Three SMT lines and two DIP lines. The automatic placement machine & automatic plug-in machine & AOI for inspection. Continuously update automation to improve work efficiency.
